Cressington Vacuum Coating Systems

NEW 208HRD-180 High Resolution
Sputter Coater for FESEM

Ted Pella, Inc. is the exclusive distributor for the complete line of high quality compact desktop vacuum coating systems manufactured by Cressington Scientific Instruments. Cressington takes pride in building compact bench-top systems that have excellent quality and are easy to use.

Comparison charts of the Cressington Coaters available can be found below. The product range is comprised of:

108 Series Sputter Coaters for standard SEM sample coating
108 Series Carbon Coaters for standard EDS coating
208HRD High Resolution Turbo Sputter Coater for field emission SEM (FESEM) applications
208HRD-180 Larger Chamber High Resolution Sputter Coater for thin film and FESEM applications (shown at left)
208C High Vacuum Turbo Carbon Coater for TEM/EBSD/EPMA applications

Dedicated thickness measurement systems offer precise control over the desired coating thickness. A rotary-tilting stage enables better uniformity and a more conformal coating on topographic samples or coating of a larger number of samples.

Sputter Coater Selection Guide
Sputter Coaters for SEM				High Resolution Sputter Coaters for FE-SEM and Thin Film Applications

Model	108 Manual	108 Auto V2	108 Auto/SE V2	208HRD	NEW 208HRD-180
Sample Table	holds 12 SEM pin stubs; height adjustable through 60mm			RPT	RT
Product Number	6002, 6006	7003, 7003-220	7009, 7009-220	8000HRD, 8000HRD-220	8000HRD-180, 8000HRD-180-220
Coating Materials	Au, Au:Pd, Pt, Pt:Pd, Pd, Cu, Ag			Ir, Cr, Al, Pt, Pt:Pd, Au, Au:Pd, ITO, Ti, W, Ta, and others
Chamber OD x H (mm)	120 x 120	120 x 120	150 x 165	150mm OD, variable height	180mm OD, variable height
Target Shutter	No	No	Yes	Yes	Yes
Optional Sample Stage Movement	RT	RT	RT or RPT	RPT included	RT included

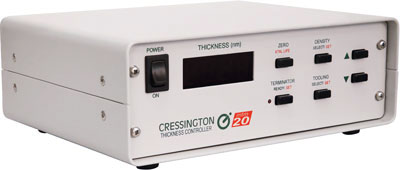

Optional Thickness Measurement System	MTM-10	MTM-10 or MTM-20	MTM-10 or MTM-20	MTM-20 included	MTM-20 included
Source	DC Magnetron

Carbon Coater Selection Guide
Carbon Coaters for SEM			High Vacuum Carbon Coater for TEM, EPMA, EBSD, and FE-SEM Applications

Model	108C Auto V2	108C Auto/SE	208C
Sample Table	holds 12 SEM pin stubs; height adjustable through 60mm
Product Number	9632, 9632-220	9603, 9603-220	9620, 9624
Coating Material	Double-Tip Carbon Rods (2 step; Ø6.15mm)
Chamber OD x H (mm)	120 x 120	150 x 165	150 x 165, 165 x 250
Target Shutter	N/A	N/A	N/A
Optional Sample Stage Movement	Static	RT or RPT	RT or RPT
Optional Thickness Measurement System	MTM-10	MTM-10	MTM-10
Source	Bradley-type Carbon Rod Source

Coater Accessories, Consumables & Spare Parts for 108 and 208 Series

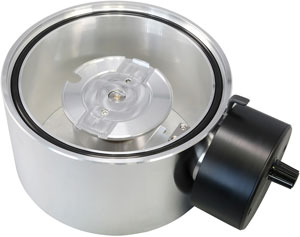

Rotary-Tilting Stages for 108 with 120mm Chamber	Rotary-Tilting Stages (RT) for 208 and 108Auto/SE with 150mm Chamber	Thickness Measurement Systems
Rotary-Tilting Stages for 108 with 120mm Chamber	Rotary-Planetary-Tilting (RPT) Stages for 208 and 180Auto/SE with 150mm Chamber	Thickness Measurement Systems
Spares & Consumables for 108 Series Coaters	NEW ESD Safe HEPA Vacuum	Spares & Consumables for 208 Series Coaters

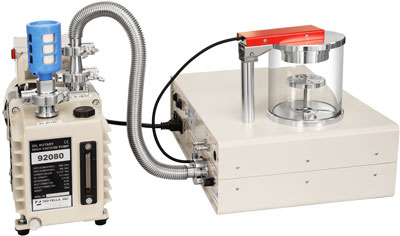

Vacuum Systems for 108 Series Coaters	Single & Dual All Metal Vacuum Connection Kits	Vacuum System for 208 Series Coaters
Sputter Targets for 108 & 208 Series Sputter Coaters	PELCO easiShaper™ & Carbon Coating Consumables	Grid Block Coating

High-Vacuum, High Resolution Turbo Coating Systems

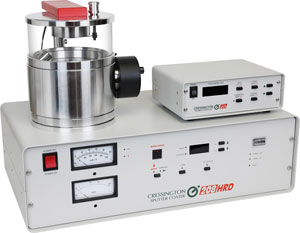

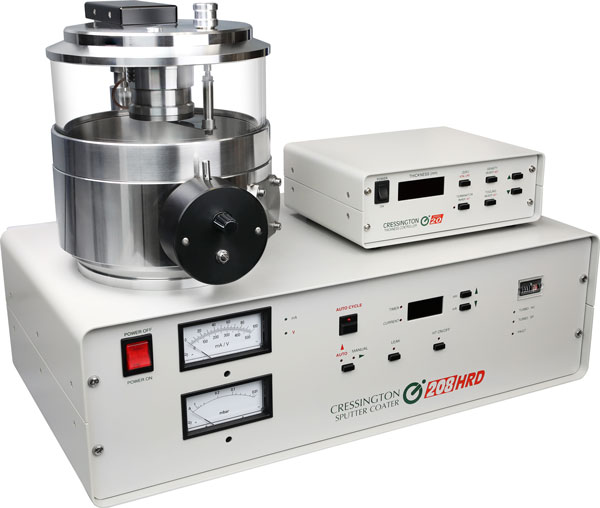

NEW 208HRD-180 Large Chamber High Vacuum Sputter Coater 180mm Diameter Chamber, includes Rotary-Tilting Stage and MTM-20 Thickness Controller	208HRD High Vacuum Turbo Sputter Coater includes Rotary-Planetary-Tilting (RPT) Stage and MTM-20 Thickness Controller

High-Vacuum, High Resolution Turbo Carbon Coating Systems

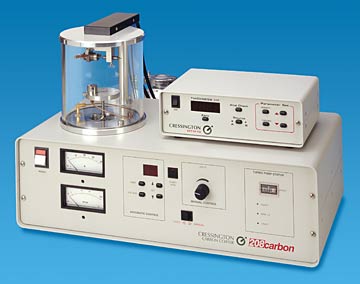

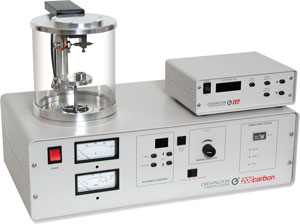

208C High Vacuum Turbo Carbon Coater
with optional MTM-10 Thickness Monitor

Low-Vacuum Sputter Coaters

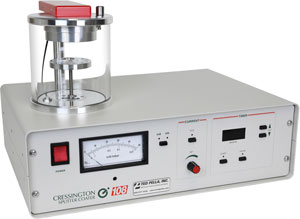

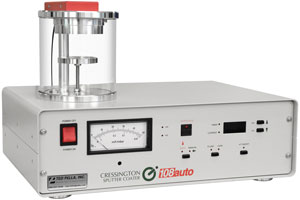

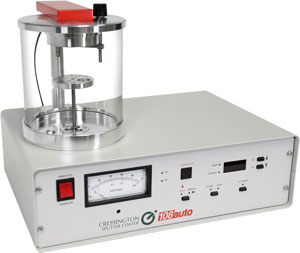

108 Manual Sputter Coater	108 Auto Sputter Coater	108 Auto/SE Sputter Coater

Low-Vacuum Carbon Coaters

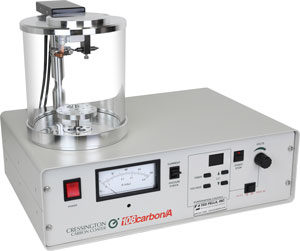

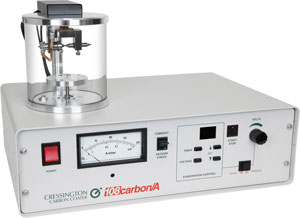

108C Auto Carbon Coater	108C Auto/SE Carbon Coater

Ultra-High Vacuum Sputter, E-beam & Metal Evaporation Coater Spares & Consumables
The 308 and 328 systems have been discontinued. Some supplies and some accessories are still available.

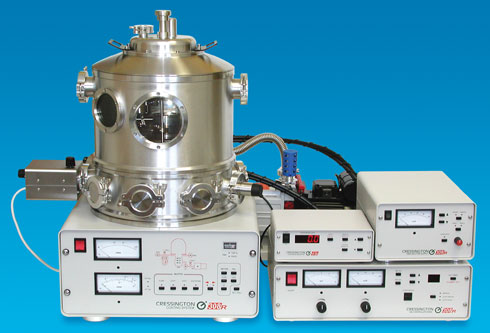

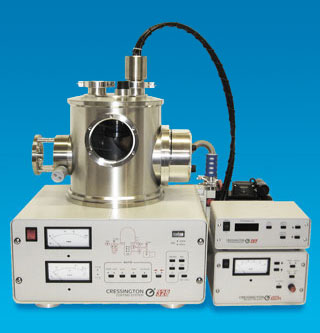

308R Desktop Modular Coating System Spares & Consumables	328UHR Ultra High Resolution EM Coating System Spares & Consumables
308/328 Targets
