NEW 208HRD High Resolution Sputter Coater

for FESEM Applications

Cressington 208HR High Resolution Sputter Coater for FESEM

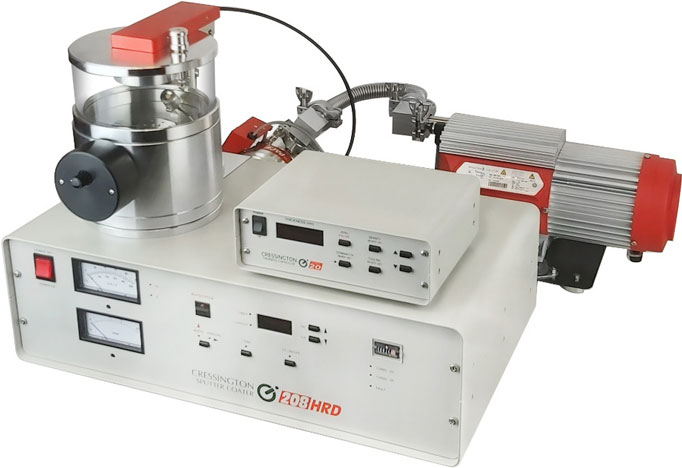

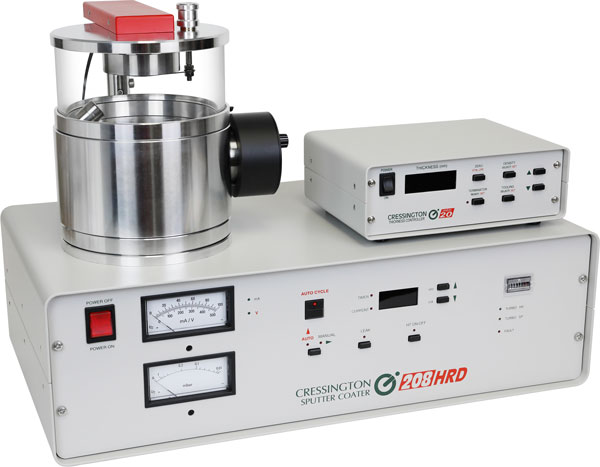

208HRD shown above with Rotary-Planetary-Tilting RPT Stage and MTM-20 Thickness Controller


The 208HRD High Resolution Sputter Coater from Cressington offers real solutions to the problems encountered when coating difficult samples for FESEM imaging. FESEM applications need extremely thin, fine-grained, uniform coatings to eliminate charging and to improve contrast on low density materials. In order to minimize the effects of grain size, the 208HR offers a full range of coating materials and gives unprecedented control over thickness and deposition conditions. The 208HRD Turbo Pumped High Vacuum System offers a wide range of operating pressures allowing precise control of both uniformity and conformity of the coating, minimizing charging effects.



The 208HRD High Resolution Sputter Coater is a complete coating solution, including as standard:



cressington mtm-20 high resolution thickness controller
MTM-20 High Resolution
Thickness Controller
  Rotary-Planetary-Tilting RPT Stage demonstrating
variable speed settings and adjustable tilt.


Main Features:



208HRD Sputter Head

The 208HRD employs a compact 28mm diameter target design that offers higher efficiency to better utilize more expensive target materials such as iridium. An additional benefit with using a smaller diameter sputter source is that it helps lower the total system cost with target compared to larger target systems.

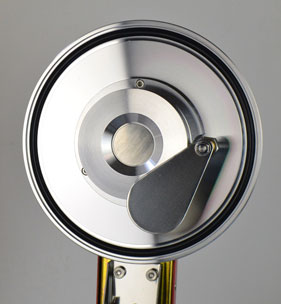

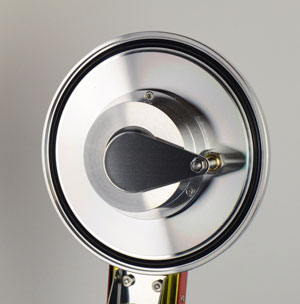

28mm target in cressington 208HR open 28mm target in cressington 208HR closed
28mm Diameter Target


Preferred Coating Materials for FESEM Applications:

Selection of 28mm diameter targets for 208HRD



208HRD Chamber

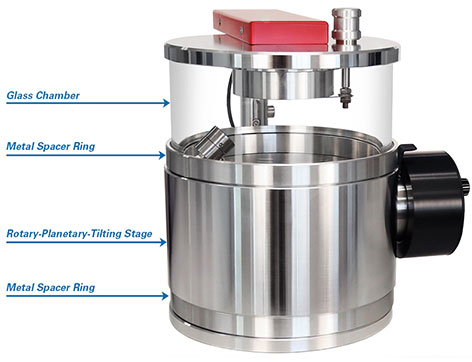

The 208HRD has a modular chamber that consists of glass chamber, metal spacer rings (2 included), and rotary-planetary-tilting stage. These components are labeled in the image below.


targets available
208HRD Chamber as shown on 208HRD


The sputter head support pillar can be adjusted into three different positions, varying the overall chamber height. Each adjustment location corresponds to a different metal spacer/ glass chamber / rotary-planetary-tilting RPT stage configuration. The addition of a spacer ring above the RPT stage increases the deposition distances by 15mm (height of metal spacer ring). Two metal spacers are included with the 208HRD, but a third (#8091-1) can be purchased separately.


targets available
Support pillar adjustment locations
  Chamber configuration variations


Optional Items

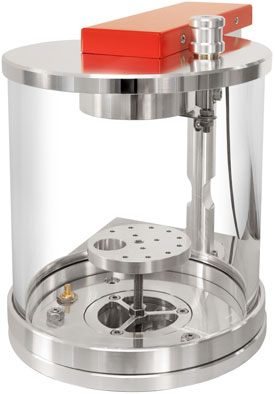

Also available is the Second Chamber Outfit (#7021-208HR) which includes a stationary stage with 150mm tall chamber, along with an additional spacer ring.


Stationary stage with
tall glass chamber   Rotary-Planetary-Tilting stage
with third spacer ring
Stationary stage with
tall glass chamber

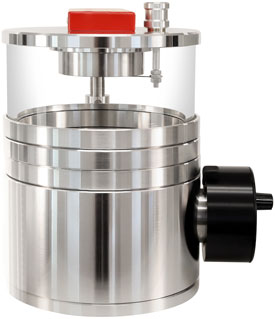

  Rotary-Planetary-Tilting stage
with third spacer ring


Specifications for the 208HRD High Resolution Sputter Coater

Ordering Information

Prod # Description Unit Price Order / Quote
115V System
8000HRD 208HRD High Resolution Sputter Coater for FESEM, 115VAC, 50/60Hz, Specify target choice each P.O.R.
Qty:
220V System
8000HRD-220 208HRD High Resolution Sputter Coater for FESEM, 220VAC, 50/60Hz, Specify target choice each P.O.R.
Qty:
Accessories and Spares:
7021-208HR Second Chamber Outfit for 208HRD including Glass Cylinder Tall (150mm D x 150mm H), Metal Spacer Ring, and Stationary Stage each 625.00
Qty:
7021-100 Standard 63mm Diameter Stationary Stage, height adjustable, includes M6 x 80mm threaded rod with two nuts each 125.00
Qty:
7021-B Longer M6 x 118mm threaded rod for 7021-100 Stationary Stage, with two nuts, for use with 108 Auto/SE and 208HRD each 12.00
Qty:
8025 O-Ring, 150mm, for Glass Cylinder for 208C, 208HRD, 108 Auto/SE and 108C Auto/SE each 17.20
Qty:
8006 Glass Cylinder Tall (150mm D x 150mm H), for 208HRD, 208C, 108 Auto/SE and 108C Auto/SE each 544.00
Qty:
8009 Glass Cylinder Short (150mm D x 65mm H), for 208HRD, 208C, 108 Auto/SE and 108C Auto/SE each 413.50
Qty:
8091-1 Metal Spacer Ring, for 208HRD, 208C, 108 Auto/SE and 108C Auto/SE each 240.00
Qty:
9611 Filter for Venting Inlet, complete with 1/4" hose for 108Auto, 108Auto/SE, 108Carbon, 108Carbon/SE, 208HRD, and 208C each 14.25
Qty:
93008 Replacement Crystals for MTM-10/20 pkg/3 42.00
Qty:
93009 Replacement Crystals for MTM-10/20 pkg/10 93.30
Qty:
896 PELCO Bell Jar Kleen™, 14 oz. each 14.36
Qty:
7032 Argon Pressure Regulator Kit, including dual stage pressure regulator, 3m gas hose and 2 hose clips for 6mm tube fittings each 610.00
Qty:
