Cressington 208HRD Sputter Coater
Cressington 208C Carbon Coater

Rotary-Planetary-Tilting
& Rotary-Tilting Stages

for the 208HRD, 208C, 108 Auto/SE, and 108C Auto/SE


  9660
Optional Rotary-Planetary-Tilting (RPT) Stage (#9524) demonstrating variable speed settings and adjustable tilt. Shown with MTM crystal monitor installed, also optional.     Optional Rotary-Tilting (RT)
Stage (#9660)


There are two types of Rotary Stages for the Cressington 108/SE and 208 series of coaters available.

1. Rotary-Planetary-Tilting (RPT) Stage; this stage offers multi-angle movements of multiple samples for sputter coating and carbon coating evaporation. The RPT stage can be configured with 4 specific holders for most types of SEM mounts, large specimen mounts and cross sections; see the listing below. The RPT enables better uniformity and more conform coating on topographic samples than with a static stage. It enables coating of a larger number of samples. The RPT fits all larger chamber configurations found on the 208 and the 108/SE series of Cressington coaters. With the special Large Sample Adapters, the RPT stage can be used as a rotary stage.

2. Rotary-Tilting (RT) Stage; this stage is mostly used for larger samples on the 208C and 108carbon/SE coaters. It is also useful for shadowing techniques on the 208C high vacuum turbo carbon coater. The RT stage is configured to accommodate standard 1" x 3" glass slides commonly used for making carbon support films.

Both the RPT and RT stages are built into a 150mm diameter mounting collar to enable rapid configuration modifications. Also included are glass and metal spacers for chamber height adjustment, variable rotation speed control, and external tilt adjustment with locking lever. (Note: Tilt adjustment is 0-90° w/o thickness monitor sensor, but limited to 0-60° when the thickness monitor sensor is fitted).


Prod # Description Unit Price Order / Quote
9524 Rotary-Planetary-Tilting (RPT) Stage (variable speed 9V battery powered) each P.O.R.
Qty:
9660 Rotary-Tilting (RT) Stage (variable speed 9V battery powered) each P.O.R.
Qty:

Note: The above are battery driven unless #9631 below is used.




Universal AC adapter for Cressington RPT and RT Stages

Universal AC adapter kit

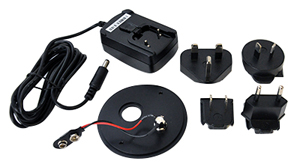

Universal AC adapter kit to replace 9V battery in RPT and RT stages. Input 100-240VAC, 50/60Hz. Output 9V. Complete with a selection of most popular power plugs.

Prod # Description Unit Price Order / Quote
9631 9VDC Converter Kit for 108 RT #7050, RT #9660, and RPT #9524 Stages 100-240VAC 50/60Hz each $110.00
Qty:






Sample Holders for Rotary-Planetary-Tilting Stage for use
with the Cressington 108 Auto/SE, 108C Auto/SE, 208HRD, and 208C


planetary stage sample holder for 6 x 12.5mm dia. or 1 x 25.4mm dia. pin mounts

Prod # Description Unit Price Order / Quote
8012 Sample Holder for 6 x 12.5mm dia. or 1 x 25.4mm dia. pin mounts each $193.00
Qty:




308 vacuum evaporator specimen holder for 4 x 10mm dia. stubs

Prod # Description Unit Price Order / Quote
8014 Sample Holder for 4 x 10mm dia. stubs each $193.00
Qty:




vacuum evaporator specimen holder for 4 x 15mm dia. stubs

Prod # Description Unit Price Order / Quote
8015 Sample Holder for 4 x 15mm dia. stubs each $193.00
Qty:




metallographic mount for vacuum evaporator for 1 x 25mm dia. stub or metallographic mount

Prod # Description Unit Price Order / Quote
8016 Sample Holder for 1 x 25mm dia. stub or metallographic mount each $193.00
Qty:




vacuum evaporator mount holder for 1 x 32mm dia. stub or metallographic mount

Prod # Description Unit Price Order / Quote
8017 Sample Holder for 1 x 32mm dia. stub or metallographic mount each $193.00
Qty:
8017A Adapter for 32mm mount to 25mm mount each 82.00
Qty:

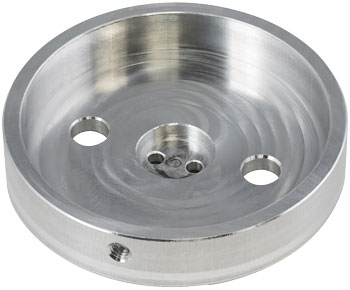

8020 for 1 x 40mm dia. stub or metallographic mount

Prod # Description Unit Price Order / Quote
8020 NEW Sample Holder for 1 x 40mm dia. stub or metallographic mount each $193.00
Qty:




rotary planetary tilting stage holder for 4 x 12.5mm dia. stubs

Prod # Description Unit Price Order / Quote
8018 Sample Holder for 4 x 12.5mm dia. stubs each $193.00
Qty:





Top

Bottom
for 3 x M4 + 3 x 12.5mm dia. pin mounts

Prod # Description Unit Price Order / Quote
8021 Sample Holder for 3 x M4 + 3 x 12.5mm dia. pin mounts each $193.00
Qty:






Large Sample Adapters for Rotary-Planetary-Tilting Stage

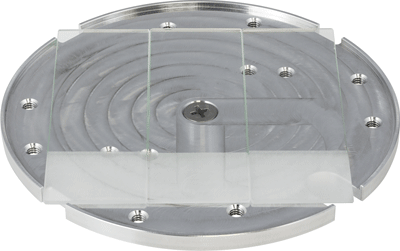

Large Sample Adapter for holding slides Top view showing location of threaded holes, with a 4” wafer, and with three glass slides.

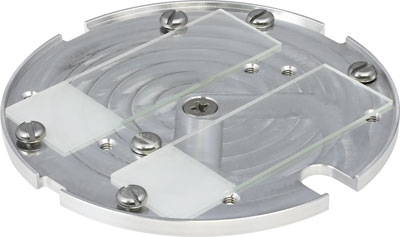

Shown with screws holding two glass slides.
Large Sample Adapter for RPT Stage

For temporary conversion of the Rotary-Planetary-Tilting Stage into a Rotary-Tilting Stage, 4" (103mm) OD. Holder is made to fit a 4" wafer, three standard 3 x 1" glass sides, or to accommodate larger samples. Also, provided with 12 x M4 threaded holes and screws to secure two standard slides or mount samples. Fits over RPT Stage on central spindle.

Prod # Description Unit Price Order / Quote
8011 Large Sample Adapter for RPT Stage, 4" (103mm) each $295.00
Qty:


large sample holder for RPT stage Cross Section Adapter for RPT Stage (geological)

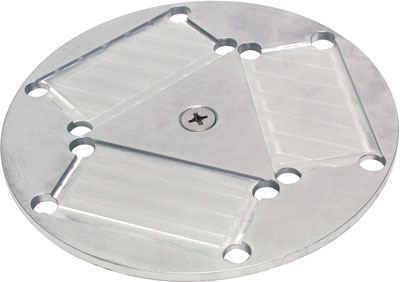

Holds three geological or petrographic cross sections up to 47 x 27mm. Compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm and 47 x 27mm. Converts RPT Stage into RT Stage. Fits over R-P-T sample holders on central spindle. Diameter is 4" (102mm).

Prod # Description Unit Price Order / Quote
8011A Geological Cross Section Adapter for RPT Stage, holds 3 cross sections 47 x 27mm each $385.00
Qty:





Optional Sample Tables for Rotary-Tilting Stage

These sample tables are compatible with rotary-tilting stages #9660 purchased 2019 or later only.

large sample holder for RPT stage

Large Sample and 4" Wafer Table

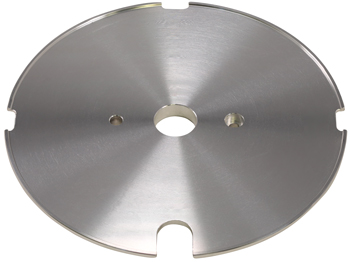

This optional table for the rotary-tilting stage #9660 is made to fit a 4" wafer, three standard glass sides, or to accommodate larger samples. This stage has an outer diameter of 105mm. Not compatible with MTM-10 Thickness Monitor or MTM-20 Thickness Controller.

Prod # Description Unit Price Order / Quote
9660-100 Large Sample and 4" Wafer Table for #9660 Stage each $315.00
Qty:


large sample holder for RPT stage

Petrographic Slide Table

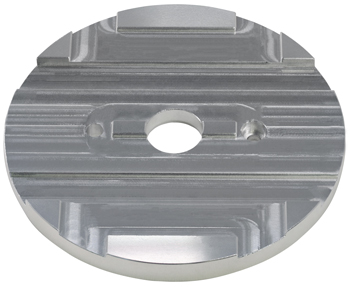

This optional table for the rotary-tilting stage #9660 is made to fit 2 petrographic slides with dimensions from 26 x 46 to 28 x 48mm. It has an outer diameter of 75mm.

Prod # Description Unit Price Order / Quote
9660-80 Petrographic Slide Table for #9660 Stage each $293.00
Qty:
