RVP Series Dual Stage Rotary Vane Vacuum Pumps

The RVP Series line of quality rotary vane pumps will meet your demands for high pumping speed combined with high ultimate vacuum. These dual stage rotary vane pumps are reliable, efficient and competitively priced. High quality engineering has resulted in corrosive-resistant pumps with a compact design coupled to quiet and low vibration operation.

These pumps are ideally suited for many applications in labs and small production systems such as analytical instruments, electron microscopes, sputter coaters, carbon coaters, vacuum deposition systems, freeze drying, vacuum ovens and furnaces, or as backing pumps for high vacuum turbo or diffusion pumps.

Features:

  • 6m³, 12m³ and 24m³ pumping capacity
  • Extremely quiet operation
  • Virtually vibration free
  • Compact design
  • Corrosion resistant
  • Anti-suck-back design
  • Multiple voltage motors

VRL Rotary Vane Vacuum Pumps VRL Rotary Vane Vacuum Pump Model 200-7 VRL Rotary Vane Vacuum Pump Model 400-14
RVP 100-3.5
#92080
VRL Rotary Vane pump Model 200-7 graph
view larger graph
RVP 200-7
#92081
VRL Rotary Vane pump Model 200-7 graph
view larger graph
RVP 400-14
#92082
VRL Rotary Vane pump Model 400-14 graph
view larger graph
ideal for sputter coaters, vacuum
desiccators and small ovens
ideal for electron microscopes
and backing pumps
suitable for large volumes
and industrial applications


Specifications

RVP 100-3.5

RVP 200-7

RVP 400-14

Product Number #92080
#92080-220
#92081
#92081-220
#92082
#92082-220
Pumping Speed @ 60Hz 100 l/min,
3.5CFM, 6m3/hr
200 l/min,
7.1CFM, 12m3/hr
400 l/min,
14.1 CFM, 24m3/hr
Noise (dB) 50 50 52

Overall Dimensions

W 150mm (5.9") 150mm (5.9") 170mm (6.7")
L 392mm (15.4") 423mm (16.7") 484mm (19.1")
H 250mm (9.8") 250mm (9.8") 287mm (11.3")
Motor Speed (rpm) 1700
Ultimate Pressure w/ Gas Ballast Closed ≤1 x 10-3 Torr (1.3 x 10-1 Pa)
Ultimate Pressure w/ Gas Ballast Open 5 x 10-2 Torr (6.7 Pa)
Intake & Exhaust Type NW25
Oil Capacity 500cc 600cc 1500cc
Recommended Pumping Fluid PELCO® Ultra 19
#891-31
PELCO® Ultra 19
#891-31
PELCO® Ultra 19
#891-31
Full Load Power (kw) 0.4 (0.5HP) 0.75 (1HP)
Power Input Options 115VAC 1ø 50/60Hz
230VAC 1ø 50/60Hz
Weight, Net 23kg (51 lb) 23kg (51 lb) >35kg (77 lb)
Ambient Operating Temperature 7º to 40º C (45º to 104º F)


Prod # Description Unit Price Order / Quote
92080 Rotary Vane Pump RVP 100-3.5, 6m³/hr, 115volts, 50/60Hz each $1395.00
Qty:
92080-220 Rotary Vane Pump RVP 100-3.5, 6m³/hr, 230volts, 50/60Hz each 1395.00
Qty:
92081 Rotary Vane Pump RVP 200-7.1, 12m³/hr, 115volts, 50/60Hz each 1725.00
Qty:
92081-220 Rotary Vane Pump RVP 200-7.1, 12m³/hr, 230volts, 50/60Hz each 1725.00
Qty:
92082 Rotary Vane Pump RVP 400-14.1, 24m³/hr, 115volts, 50/60Hz each 2325.00
Qty:
92082-220 Rotary Vane Pump RVP 400-14.1, 24m³/hr, 230/380volts, 50/60Hz each 2325.00
Qty:

Vacuum Pump Oil for RVP 100-3.5, RVP 200-7, and RVP 400-14
Prod # Description Unit Qty Price Order / Quote
891-31 PELCO® Ultra 19 Rotary Pump Oil 1 liter 1-3 $17.80
Qty:
4+ 16.90
891-34 PELCO® Ultra 19 Rotary Pump Oil 4 liter 1+ 44.00
Qty:
12938-3 Polypropylene Funnels, set of three with 2, 4 and 8 oz each 1+ 8.25
Qty:
808-16 Cotton Shop Cleaning Towels, Blue, 14 x 14" pkg/10 1+ 6.30
Qty:

PELCO® Ultra 19 Pump Oil #891-31, 891-34 SDS 93KB PDF)



exhaust filter
#92061
Exhaust Filter Adapter
#92061

Exhaust Filter and Adapter for Rotary Vane Vacuum Pumps, 1/2" NPT

Oil mist eliminator

  • Permits discharge into clean work areas. Return collected oil to sump or discard.
  • Rugged construction, simple installation. For non-hazardous, non-corrosive applications.
  • Connection: 1/2" male NPT thread. Color of filter material may vary from white to yellow.
  • For use with #92080, 92078, and 92098

Prod # Description Unit Price Order / Quote
92061 Exhaust Filter, Max Flow Rate 3CFM, without adapter, 1/2" male NPT thread each $160.75
Qty:
92466-25 Exhaust Filter Adapter, NW/KF 25 to 1/2" NPT, stainless each 35.00
Qty:




Compact Oil Mist Eliminator
#92066
Compact Oil Mist Eliminator replacement Cartridge
#92066-10

Compact Oil Mist Eliminator

Compact Oil Mist Eliminator with KF25 connection and 1/8" drain plug. Max flow rate 10 CFM (5 ltr/sec or 16m³/hr). Baked enamel steel housing, ø89 x 127mm H (ø3.5 x 5" H). Use replacement filter #92066-10.

Suitable for RVP Series, VRP-8, VRP-16, and VRI-8.The VRP-4 and Pfeiffer DUO 3.0 have a KF16 exhaust connection, so the mist eliminator can be used with these pumps if a NW/KF 25 to 16 conical reducer #92450-2516 and appropriate NW/KF 25 clamp/centering ring #92210-25 and #92220-25 are purchased. For use with the smaller VRI-2 and VRI-4 Pumps, the Connection Kit #92068-VRI is required. See Technical Notes for #92068-VRI (549KB PDF).

Prod # Description Unit Price Order / Quote
92066 Compact Oil Mist Eliminator, including cartridge, NW/KF 25 each $270.65
Qty:
92066-10 Replacement Filter Cartridge for #92066 Oil Mist Eliminator and #92068 vacuum pump exhaust filter. each 83.35
Qty:
92068-VRI NEW Exhaust Connection Kit to use #92066 and #92068 with VRI-2 and VRI-4 Pumps each 189.35
Qty:

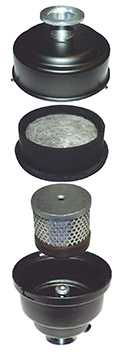

Two-Stage Vacuum Pump Exhaust Filter Assembled Two-Stage Vacuum Pump Exhaust Filter Kit

Two-Stage Vacuum Pump Exhaust Filter

For rotary vacuum pumps it is recommended that they should be vented outside the room or to a laboratory exhaust hood to prevent indoor air contamination. This two-stage vacuum pump exhaust filter kit enables venting rotary vacuum pumps in rooms where an outside line is either not practical or possible. The two stage filters contains a replaceable oil mist eliminator element to trap vacuum oil and a replaceable activated charcoal element for the lighter hydrocarbon fractions.

Features:

  • Provides a safe lab environment
  • Purifies vacuum exhaust gases
  • Separate replaceable elements for oil mist and lighter fractions
  • Only 6-1/4" tall with standard NW/KF 25 connection
  • Low cost solution

It is recommended that both filters are replaced on a regular basis. For application such as electron microscopes and mass spectrometers, the oil mist filters (#92066-10) need to be replaced every 4-6 months and the final activated charcoal filter (#92068-20) once a month. Rated for vacuum pumps up to 10 CFM (5 ltr/sec or 16m³/hr).

Suitable for RVP Series, VRP-8, VRP-16, and VRI-8.The VRP-4 and Pfeiffer DUO 3.0 have a KF16 exhaust connection, the Two-Stage Vacuum Pump Exhaust Filter can be used with these pumps if a NW/KF 25 to 16 conical reducer (#92450-2516) and appropriate NW/KF 25 clamp/centering ring (#92210-25/92220-25) are purchased. For use with the smaller VRI-2 and VRI-4 Pumps, the Connection Kit #92068-VRI is needed. See Technical Notes for #92068-VRI (549KB PDF).

Prod # Description Unit Price Order / Quote
92068 Two-stage Vacuum Pump Exhaust Filter Kit, NW/KF 25 each $273.30
Qty:
92068-20 Replacement Activated Charcoal Filter Element for 92068 each 26.50
Qty:
92066-10 Replacement Oil Mist Eliminator Cartridge for 92068 each 83.35
Qty:
92068-VRI NEW Exhaust Connection Kit to use #92066 and #92068 with VRI-2 and VRI-4 Pumps each 189.35
Qty:





foreline trap

Foreline Traps

Highly recommended to prevent oil backstreaming from rotary vane pumps. Keeps your vacuum system clean in applications where pumps are running constantly such as mass spectrometer, electron microscope, and vacuum drying systems. Protect vacuum gauges when mounted in front of the gauges. Includes a 150ml Activated Alumina charge (renew the charge every 3 months with #92090-50).

Available with both NW/KF 16 and NW/KF 25 flanges and, with appropriate flange selection, are compatible with the RVP, VRP, Pfeiffer DUO 3.0, VRI-4, and VRI-8 pumps available. Compatible with smaller VRI-2 #92092/92092-230 pump with addition of Connection Kit #92090-VRI. See Technical Notes for #92090-VRI (483KB PDF).

These compact, reliable and efficient foreline traps offer maximum mounting flexibility and have the following features:
  • Orientation in any direction - spring-loaded sorbent basket
  • Positive creep-proof design with O-ring seal
  • Suitable for pumps up to 34m3/hr, 20cfm, 550 ltr/min
  • Leak tested to better than 2 x 10-9 scc/sec
  • Available in both Right Angle and Inline design
  • No tools needed for easy sorbent replacement
  • Aluminum body and sorbent basket, 316 StS spring
  • Color may be black or aluminum
foreline trap

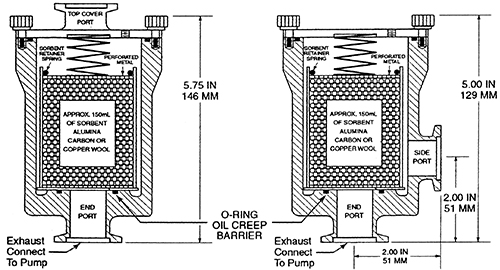

Inline Style Foreline Trap Right Angle Foreline Trap

Prod # Description Unit Price Order / Quote
92090-10 Inline Style Foreline Trap NW/KF 16 each $548.00
Qty:
92090-20 Inline Style Foreline Trap NW/KF 25 each 657.75
Qty:
92090-30 Right Angle Foreline Trap NW/KF 16 each 432.00
Qty:
92090-40 Right Angle Foreline Trap NW/KF 25 each 432.00
Qty:
92090-VRI NEW Connection kit to use Foreline Trap #92090-10 or #92090-30 with VRI-2 Pump each 72.85
Qty:




exhaust filter for 7010 and GD6 vacuum pumps

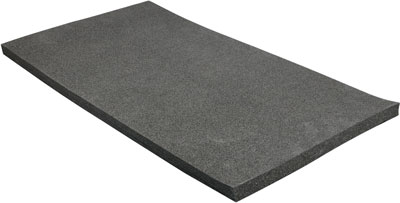

Large Anti-Vibration Pads for Vacuum Pumps

Anti-vibration pads to be placed under vacuum pumps to dampen vibration. Soft closed-cell foam mat made of a blend of Buna-N, neoprene, and vinyl. Oil resistant and flame retardant.

Pad Dimensions: 15 x 8 x 0.5" (38.1 x 20.3 x 1.3cm)

Prod # Description Unit Price Order / Quote
91020-29 Large Anti-Vibration Pad each $28.50
Qty:




Cord for connecting Dual Stage, Rotary Vane Vacuum Pumps to Cressington Coaters
Adapter Cord for Connecting Pumps to Cressington Coaters

Prod # Description Unit Price Order / Quote
92080-10 Adapter Cord, IEC/NEMA 5-15P each $7.35
Qty:

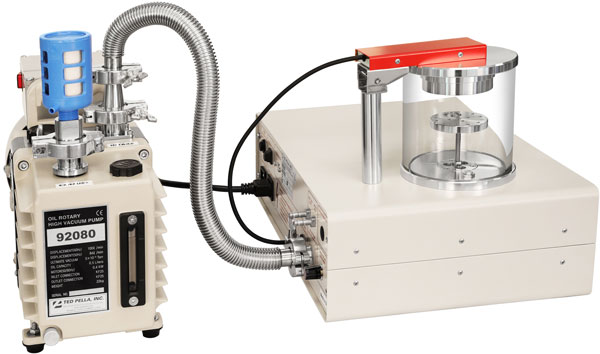

Premium Dual Stage, Rotary Vane Vacuum Pump connected to a Cressington Coater
All Metal Connection Kit #92080-108
All Metal Connection Kit for Cressington 108 Series Coaters
Connect 108 series Coaters to the #92080 or #92081 RVP Rotary Vane Pumps.

Technical Notes, All Metal Connection Kit (PDF 801KB)

Prod # Description Unit Price Order / Quote
92080-108 All Metal Connection Kit each $390.00
Qty:




Dual-VacSet
Connect two Cressington 108 Coaters to one #92080 pump.

Technical Notes, Dual-VacSet (PDF 556KB)

Prod # Description Unit Price Order / Quote
92080-200 Dual-VacSet for 92080 Pump, fits Cressington 108 Coaters each $425.00
Qty:
