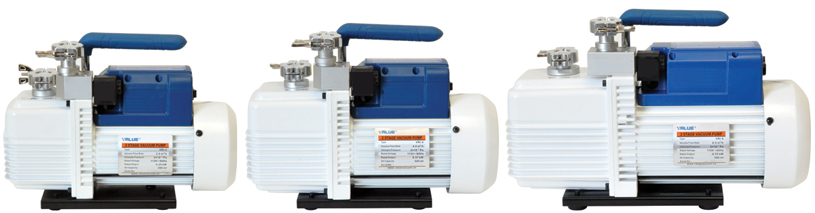

Value VRI Series Compact Rotary Vacuum Pumps
VRI-2
VRI-4
VRI-8


oil sight glass

The Value VRI Series dual stage rotary vacuum pumps are compact, lightweight, and cost efficient. Ideally suited for a variety of light duty laboratory, research and production vacuum applications. They are equipped with an active solenoid valve to prevent oil-suck-back. Available with pumping speeds of 2, 4 or 8m3/hr with an ultimate pressure of 10-2 mbar.

Applications include laboratory vacuum equipment, air-out systems, vacuum desiccator, backing pump, coating systems, small freeze drying/vacuum food packaging and vacuum molding systems. Excellent specifications, good quality with a low cost. Low weight for easy handling.


Model
 VRI-2 VRI-4 VRI-8
Product Number
 #92092
#92092-230		 #92089
#92089-230		 #92098
#92098-230
Pumping speed 60 Hz / 50Hz
m³/h
l/min
cf/m
60Hz50Hz
2.11.8
3530
1.251.05
60Hz50Hz
4.33.6
7260
2.52.1
60Hz50Hz
8.67.2
143120
5.04.2
Ultimate Part. Pressure, mbar
 1x10-3 1x10-3 1x10-3
Ultimate Total Pressure, mbar
 1x10-2 1x10-2 1x10-2
Intake Connection
 KF16 KF16 KF16
Exhaust Connection
 KF16 KF16 KF25
Oil Type
 PELCO® Ultra 19 PELCO® Ultra 19 PELCO® Ultra 19
Oil capacity, l
 0.2 0.3 0.5
Power Supply
 Single Phase
115V or 230V		 Single Phase
115V or 230V		 Single Phase
115V or 230V
Power Rating, kW
 0.25 0.37 0.55
Motor Speed (rpm)
50Hz
60Hz
1440
1720
1440
1720
1440
1720
Ambient Temperature °C (°F)
 5-40 (41-104) 5-40 (41-104) 5-40 (41-104)
Noise Level, dB
 <62 <62 <65
Weight, kg (lbs)
 9 (19.8) 11 (24.2) 17 (37.4)
Dimensions, L x W x H
mm
inches
318 x 124 x 234
12.5" x 4.9" x 9.2"
337 x 138 x 244
13.3" x 5.4" x 9.6"
395 x 145 x 257
15.6" x 5.7" x 10.1"


Prod # Description Unit Price Order / Quote
92092 VRI-2 Dual Stage Rotary Vacuum , 2.1 m³/h, 115V each $525.00
Qty:
92092-230 VRI-2 Dual Stage Rotary Vacuum , 1.8 m³/h, 230V each 525.00
Qty:
92089 VRI-4 Dual Stage Rotary Vacuum , 4.3 m³/h, 115V each 625.00
Qty:
92089-230 VRI-4 Dual Stage Rotary Vacuum , 3.6 m³/h, 230V each 625.00
Qty:
92098 VRI-8 Dual Stage Rotary Vacuum , 8.6 m³/h, 115V each P.O.R.
Qty:
92098-230 VRI-8 Dual Stage Rotary Vacuum , 7.2 m³/h, 230V each P.O.R.
Qty:
12938-3 Polypropylene Funnels, Set of Three with 2, 4 and 8 oz. each 8.25
Qty:
808-16 Cotton Shop Cleaning Towels, Blue, 14" x 14" pkg/10 6.30
Qty:

Vacuum Pump Oil for VRI-2, VRI-4, VRI-8
Prod # Description Unit Qty Price Order / Quote
891-31 Ultragrade 19 Rotary Pump Oil 1 liter 1-3 $17.80
Qty:
4+ 16.90
891-34 Ultragrade 19 Rotary Pump Oil 4 liter 1+ 44.00
Qty:

PELCO® Ultra 19 Pump Oil 891-31, 891-34 - SDS (93KB PDF)



exhaust filter for 7010 and GD6 vacuum pumps
# 9609

Exhaust Filter and Adapter for VRI-2 and VRI-4 Compact Rotary Vacuum Pump, 1/4" NPT

(mist eliminators)

Filter for removing oil mist from vacuum pump exhaust on the VRI-2 and VRI-4 Compact Rotary Vacuum Pumps (#92092, 92092-230, 92089, 92089-230) and to be used with #92465-16 adapter. Can be used with other rotary vane pump with NW/KF 16 output flange. Creates a cleaner work environment for operators and surrounding equipment. Connection: 1/4" male NPT thread.

Prod # Description Unit Price Order / Quote
9609 Exhaust Filter, without adapter, 1/4" male NPT thread each $96.60
Qty:
92465-16 Exhaust Filter Adapter, NW/KF 16 Adapter to 1/4" Female NPT, stainless each 24.00
Qty:
exhaust filter
#92061
Exhaust Filter Adapter
#92061

Exhaust Filter and Adapter for VRI-8 Compact Rotary Vacuum Pump, 1/2" NPT

(mist eliminators)

To be used with VRI-8 Compact Rotary Vacuum Pump (#92098 and 92098-230) with adapter #92466-25. Permits discharge into clean work areas. Return collected oil to sump or discard. Rugged construction, simple installation. For non-hazardous, non-corrosive applications. Connection: 1/2" male NPT thread. Color of filter material may vary from white to yellow.

Prod # Description Unit Price Order / Quote
92061 Exhaust Filter, Max Flow Rate 3CFM, without adapter, 1/2" male NPT thread each $163.10
Qty:
92466-25 Exhaust Filter Adapter, NW/KF 25 to 1/2" NPT, stainless each 35.00
Qty:




Compact Oil Mist Eliminator
#92066 		Compact Oil Mist Eliminator replacement Cartridge
#92066-10

Compact Oil Mist Eliminator

Compact Oil Mist Eliminator with KF25 connection and 1/8" drain plug. Max flow rate 10 CFM (5 ltr/sec or 16m³/hr). Baked enamel steel housing, ø89 x 127mm H (ø3.5 x 5" H). Use replacement filter #92066-10.

Suitable for RVP Series, VRP-8, VRP-16, and VRI-8.The VRP-4 and Pfeiffer DUO 3.0 have a KF16 exhaust connection, so the mist eliminator can be used with these pumps if a NW/KF 25 to 16 conical reducer #92450-2516 and appropriate NW/KF 25 clamp/centering ring #92210-25 and #92220-25 are purchased. For use with the smaller VRI-2 and VRI-4 Pumps, the Connection Kit #92068-VRI is required. See Technical Notes for #92068-VRI (549KB PDF).

Prod # Description Unit Price Order / Quote
92066 Compact Oil Mist Eliminator, including cartridge, NW/KF 25 each $270.65
Qty:
92066-10 Replacement Filter Cartridge for #92066 Oil Mist Eliminator and #92068 vacuum pump exhaust filter. each 83.35
Qty:
92068-VRI Exhaust Connection Kit to use #92066 and #92068 with VRI-2 and VRI-4 Pumps each 189.35
Qty:




Two-Stage Vacuum Pump Exhaust Filter Assembled Two-Stage Vacuum Pump Exhaust Filter Kit

Two-Stage Vacuum Pump Exhaust Filter

For rotary vacuum pumps it is recommended that they should be vented outside the room or to a laboratory exhaust hood to prevent indoor air contamination. This two-stage vacuum pump exhaust filter kit enables venting rotary vacuum pumps in rooms where an outside line is either not practical or possible. The two stage filters contains a replaceable oil mist eliminator element to trap vacuum oil and a replaceable activated charcoal element for the lighter hydrocarbon fractions.

Features:

  • Provides a safe lab environment
  • Purifies vacuum exhaust gases
  • Separate replaceable elements for oil mist and lighter fractions
  • Only 6-1/4" tall with standard NW/KF 25 connection
  • Low cost solution

It is recommended that both filters are replaced on a regular basis. For application such as electron microscopes and mass spectrometers, the oil mist filters (#92066-10) need to be replaced every 4-6 months and the final activated charcoal filter (#92068-20) once a month. Rated for vacuum pumps up to 10 CFM (5 ltr/sec or 16m³/hr).

Suitable for RVP Series, VRP-8, VRP-16, and VRI-8.The VRP-4 and Pfeiffer DUO 3.0 have a KF16 exhaust connection, the Two-Stage Vacuum Pump Exhaust Filter can be used with these pumps if a NW/KF 25 to 16 conical reducer (#92450-2516) and appropriate NW/KF 25 clamp/centering ring (#92210-25/92220-25) are purchased. For use with the smaller VRI-2 and VRI-4 Pumps, the Connection Kit #92068-VRI is needed. See Technical Notes for #92068-VRI (549KB PDF).

Prod # Description Unit Price Order / Quote
92068 Two-stage Vacuum Pump Exhaust Filter Kit, NW/KF 25 each $273.30
Qty:
92068-20 Replacement Activated Charcoal Filter Element for 92068 each 26.50
Qty:
92066-10 Replacement Oil Mist Eliminator Cartridge for 92068 each 83.35
Qty:
92068-VRI Exhaust Connection Kit to use #92066 and #92068 with VRI-2 and VRI-4 Pumps each 189.35
Qty:





foreline trap

Foreline Traps

Highly recommended to prevent oil backstreaming from rotary vane pumps. Keeps your vacuum system clean in applications where pumps are running constantly such as mass spectrometer, electron microscope, and vacuum drying systems. Protect vacuum gauges when mounted in front of the gauges. Includes a 150ml Activated Alumina charge (renew the charge every 3 months with #92090-50).

Available with both NW/KF 16 and NW/KF 25 flanges and, with appropriate flange selection, are compatible with the RVP, VRP, Pfeiffer DUO 3.0, VRI-4, and VRI-8 pumps available. Compatible with smaller VRI-2 #92092/92092-230 pump with addition of Connection Kit #92090-VRI. See Technical Notes for #92090-VRI (483KB PDF).

These compact, reliable and efficient foreline traps offer maximum mounting flexibility and have the following features:
  • Orientation in any direction - spring-loaded sorbent basket
  • Positive creep-proof design with O-ring seal
  • Suitable for pumps up to 34m3/hr, 20cfm, 550 ltr/min
  • Leak tested to better than 2 x 10-9 scc/sec
  • Available in both Right Angle and Inline design
  • No tools needed for easy sorbent replacement
  • Aluminum body and sorbent basket, 316 StS spring
  • Color may be black or aluminum
 foreline trap
Inline Style Foreline Trap Right Angle Foreline Trap

Prod # Description Unit Price Order / Quote
92090-10 Inline Style Foreline Trap NW/KF 16 each $548.00
Qty:
92090-20 Inline Style Foreline Trap NW/KF 25 each 657.75
Qty:
92090-30 Right Angle Foreline Trap NW/KF 16 each 657.60
Qty:
92090-40 Right Angle Foreline Trap NW/KF 25 each 733.95
Qty:
92090-VRI NEW Connection kit to use Foreline Trap #92090-10 or #92090-30 with VRI-2 Pump each 72.85
Qty:





large pad

Anti-Vibration Pads for Vacuum Pumps

Anti-vibration pads to be placed under rotary-vane backing pumps to dampen vibration. Soft closed-cell foam mat made of a blend of Buna-N, neoprene, and vinyl. Oil resistant and flame retardant. Available in two sizes. Smaller size #91020-27 is suitable for the VRI-2 and VRI-4 Pumps and larger #91020-29 size for the VRI-8, RVP, and VRP-series Pumps.

Small Pad Dimensions (shown left): 12 x 6 x 0.25" (30.5 x 15.2 x 0.6cm)
Large Pad Dimensions (shown right): 15 x 8 x 0.5" (38.1 x 20.3 x 1.3cm)

Prod # Description Unit Price Order / Quote
91020-27 Small Anti-Vibration Pad each $12.65
Qty:
91020-29 Large Anti-Vibration Pad each 28.50
Qty:

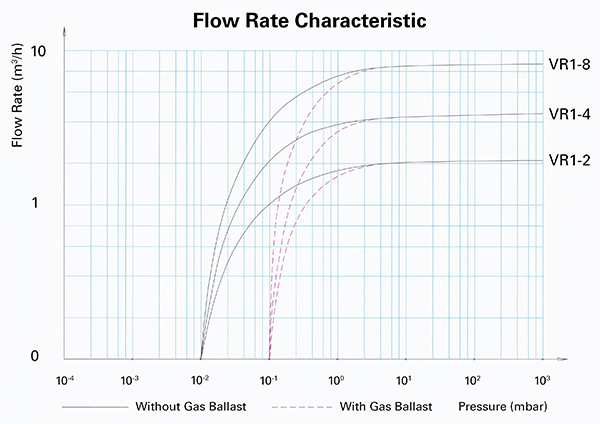

VRI Graph
