PELCO® NW/KF Style Vacuum Connection Parts
NW/KF Caps, Clamps & Rings

NW/KF Conical Reducers & Stub Flanges

Used to connect different sizes of NW/KF flanges.
For adapting NW/KF 10 to NW/KF 16 use NW/KF 16/10 Adaptive Centering Ring #92220-1610.

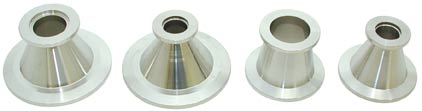

NW/KF Compact Conical Reducers, 304 Stainless Steel

NW/KF Compact Conical Reducers, 304 Stainless Steel drawing

Prod # Description Unit Price Order / Quote
NOTE: Dimension A=40mm on all Compact Conical Reducers
92450-2516 NW/KF 25 to 16 Compact Conical Reducer, 304 SS each $41.00
Qty:
92450-4016 NW/KF 40 to 16 Compact Conical Reducer, 304 SS each 48.00
Qty:
92450-4025 NW/KF 40 to 25 Compact Conical Reducer, 304 SS each 44.00
Qty:
92450-5016 NW/KF 50 to 16 Compact Conical Reducer, 304 SS each 49.00
Qty:
92450-5025 NW/KF 50 to 25 Compact Conical Reducer, 304 SS each 55.00
Qty:
92450-5040 NW/KF 50 to 40 Compact Conical Reducer, 304 SS each 60.50
Qty:




NW/KF Stub Flanges in 304 Stainless Steel and Aluminum, Unbored

NW/KF Stub Flanges in 304 Stainless Steel and Aluminum, Unbored NW/KF Stub Flanges drawing
Used to blank off ports not being used. Can be used to modify for specific applications. The stub offers extra material to modify and connect non-standard vacuum connections.

Prod # Description Unit Price Order / Quote
Unbored NW/KF Stub Flanges in 304 Stainless Steel
92470-16 NW/KF 16 Stub Flange, 304 Stainless Steel,
A=19mm, B=19mm
each $12.00
Qty:
92470-25 NW/KF 25 Stub Flange, 304 Stainless Steel,
A=25mm, B=19mm
each 14.00
Qty:
92470-40 NW/KF 40 Stub Flange, 304 Stainless Steel,
A=38mm, B=25mm
each 19.00
Qty:
92470-50 NW/KF 50 Stub Flange, 304 Stainless Steel,
A=50mm, B=25mm
each 30.00
Qty:
Unbored NW/KF Stub Flanges in Aluminum
92472-16 NW/KF 16 Stub Flange, Aluminum,
A=19mm, B=19mm
each 9.95
Qty:
92472-25 NW/KF 25 Stub Flange, Aluminum,
A=25mm, B=19mm
each 11.25
Qty:
92472-40 NW/KF 40 Stub Flange, Aluminum,
A=38mm, B=25mm
each 14.70
Qty:
92472-50 NW/KF 50 Stub Flange, Aluminum,
A=50mm, B=25mm
each 21.00
Qty:
