PELCO® 3536 Microwave Vacuum Chamber
Desiccators, Desiccant

3436 Diaphragm Vacuum Pump
and PELCO® "Air-Out" Vacuum System

Diaphragm Vacuum Pump, oil-less
3436 Diaphragm
Vacuum Pump 		PELCO Air-Out Vacuum System with Diaphragm Vacuum Pump and Polycarbonate Desiccator
PELCO® Air-Out Vacuum System with Diaphragm
Vacuum Pump and Polycarbonate Desiccator



Diaphragm Vacuum Pump, oil-less

3436 Diaphragm Vacuum Pump

Oil-less diaphragm vacuum pump for use the glass, polycarbonate and steel vacuum desiccators. This oil-less pump has an 1/8 hp ball bearing type motor with internal thermal protector, two gauges and 3/8" hose nipples. The pump can also be used as a compressor. Available for 115V or 230V operation.



Specifications
Model number3436 (115V) / 3436-220 (230V)
Max. Vacuum -25.5"Hg / 150mbar @60Hz / -24"Hg / 200mbar @50Hz
Free Air Capacity1.1CFM/31L/min @60Hz / 1CFM/28.3L/min @50Hz
Inlet Port Size1/4"NPT Female or 3/8" hose barb
Outlet Port Size1/4"NPT Female or 3/8" hose barb
Max. Temperature100° F / 38° C
Max. Pressure60psi / 4.2bar
Compressor TypeDiaphragm
Stages1
Motor TypePermanent split capacitor
Duty CycleContinuous
Noise Level65-73dB vacuum / 54-56dB pressure
Vacuum Gauge-"Hg / -Bar
Pressure Gaugepsi / Bar
Power115V, 4.5A, 60Hz / 230V, 2.2A, 50Hz
Dimensions H x W x D11" x 5-1/4" x 7.7" / 279 x 133 x 195mm
Weight14.4lbs / 6.5kg

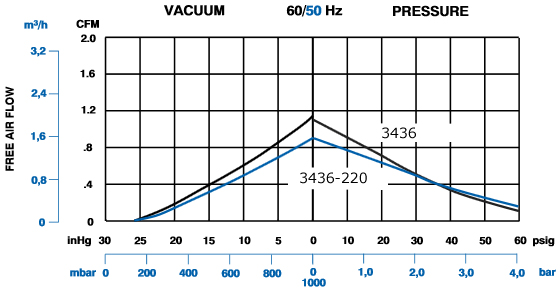

Product Performance

Vacuum pressure specs

Prod # Description Unit Price Order / Quote
3436 Oil-less Diaphragm Vacuum Pump, 115V, 60Hz each $1106.50
Qty:
3436-220 Oil-less Diaphragm Vacuum Pump, 220V, 50Hz each 1366.00
Qty:
3436-10 Replacement Diaphragm for 3436 each 140.00
Qty:
Service Kit contains: filter elements, screws, leaf valves, valve limiter, valve retainer and cover gasket
3436-20 Service Kit for 3436 each 92.40
Qty:
Thick walled silicone vacuum hose with 1/4" (6.35mm) inside diameter and 1/2" (12.7mm) outside diameter
92490-253 1/4" ID Silicone Vacuum Hose 3 ft. 13.25
Qty:
92490-256 1/4" ID Silicone Vacuum Hose 9 ft. 35.50
Qty:

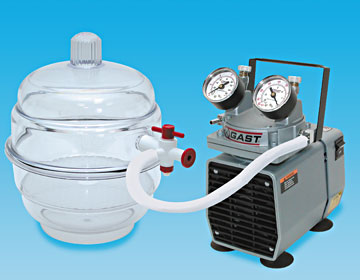

PELCO Air-Out Vacuum System with Diaphragm Vacuum Pump and Polycarbonate Desiccator

PELCO® “Air-Out” Vacuum System

For removal of air bubbles from the epoxy resin mixture, providing enhanced bonding and embedding quality. The PELCO® "Air-Out" Vacuum system comprises the 2246-1 large, clear Polycarbonate Desiccator; the 3436 or 3436-200 oil-free Diaphragm Pump and 4 ft. Silicone Vacuum Hose. The large, clear desiccator allows for monitoring the air from the embedding epoxy. The large 9" plate provides room for a large number of samples for simultaneous out gassing.

Specifications for the 2246-1 Large, All-Clear Vacuum Desiccator
inches
mm
Flange O.D.
10-3/4
273
Inside Diameter
9-7/16
240
Plate Diameter
9
230
Overall Height
12-1/8
311
Maximum Clearance above plate
7-3/4
197

3436 Oil-less Diaphragm Vacuum Pump, 115V, 60Hz
3436-220 Oil-less Diaphragm Vacuum Pump, 220V, 50Hz

see pump specifications above

Prod # Description Unit Price Order / Quote
813-600 PELCO® “Air-Out” Vacuum System, 115V each $1360.00
Qty:
813-600-220 PELCO® “Air-Out” Vacuum System, 220V each 1320.00
Qty:
