Introducing the NEW

PELCO Embedding Studio™

Paraffin Tissue Block Preparation for both High Volume and Low Volume Histology Laboratories



PELCO Embedding Studio

The new PELCO Embedding Studio™ introduces features that improve efficiency and functionality over existing embedding centers on the market, meeting the needs for both high and low volume histology laboratories. It is built with the latest innovations on top of trusted technology. The addition of the PELCO Freezer™ module allows partially solidified Super Mega blocks, as well as standard size blocks, to be moved from the PELCO Chiller™ cold plate into the PELCO Freezer™ to complete polymerization. This clears the PELCO Chiller™ cold plate to allow continued embedding, greatly increasing throughput. The PELCO Freezer™ is a both holding chamber for all tissue blocks as well as a place to complete polymerization at the optimal temperature to solidify paraffin. Thermoelectric cooling is used, eliminating the use of refrigerant gases. This meets new green regulatory requirements coming into force in various countries.

The PELCO Embedding Studio™ enhances tissue embedding workflow and is specifically designed to accommodate the embedding of large super mega tissue blocks. The PELCO Freezer™ is unique in histology, bringing a workflow enhancement that no other tissue embedding center provides.


Innovative Embedding & Block Management

  • Continuous embedding up to 240 standard blocks or 72 Super Mega blocks
  • 20 standard blocks or 6 Super Mega blocks per tray ready for sectioning
  • PELCO Freezer™ module allows optimization of PELCO Chiller™ cold plate
  • Super Mega blocks and normal sized blocks may be transferred to complete polymerization without filling the PELCO Chiller™ cold plate
  • Thermoelectric cooling technology for longer instrument life and regulatory compliance


PELCO Embedding Studio Freezer with Trays   PELCO Embedding Studio Chiller Plate   PELCO Embedding Studio Silicone Rubber Waste Trays   PELCO Embedding Studio Paraffin Trimming Plates
Freezer accommodates
a variety of Transfer Trays		   PELCO Chiller™ cold plate shown with Transfer Tray   Heated silicone rubber waste
collection inserts		   Paraffin trimming plates and
heated forceps holder

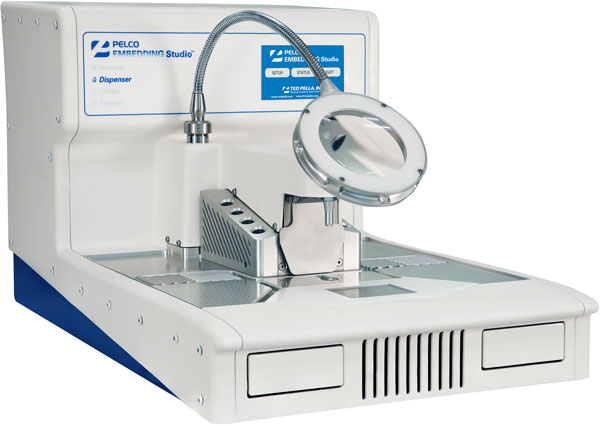

The PELCO Dispenser™ dispenses paraffin and provides paraffin management. It is also the control module which contains the control center for the PELCO Embedding Studio™ as a whole. At the top right side of the module is an easy to program touchscreen control panel for setting days of the week, start time, stop time, and temperature.

The 3.9-Liter paraffin reservoir is filled through the top access lid. The dispensing arm has four heated forceps holders on each side with a precise paraffin flow control knob for the dispensing nozzle. The PELCO Dispenser™ has a large heated work surface (ranging from 45°C to 75°C) to accommodate warmed embedding molds and tissue cassettes ready for embedding. This includes vertical trimming plates on both forceps holder/warmers and two horizontal trimming plates on the heated work surface. It also includes a 69 x 54mm cold spot (ranging from -10°C to 15°C) for tissue orientation with any size of embedding mold.

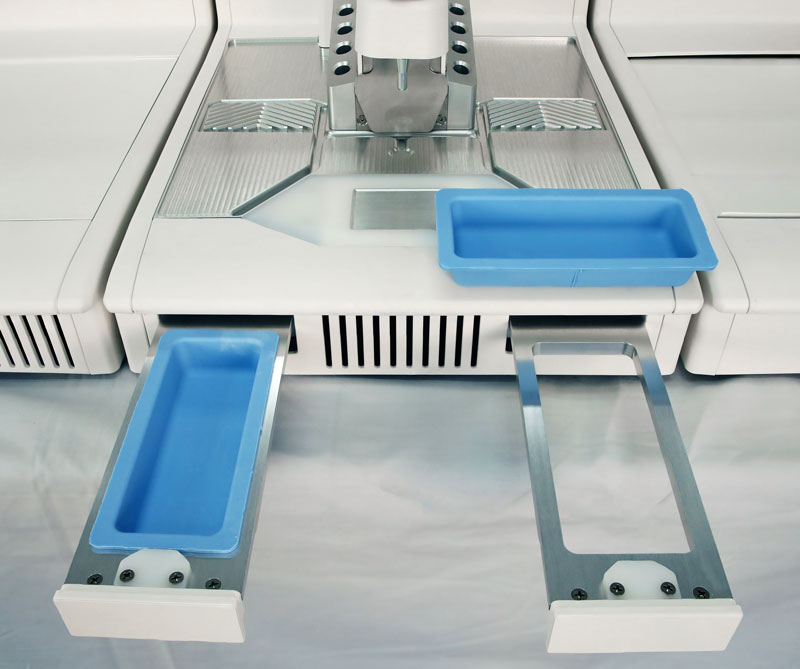

Waste paraffin is collected in two heated paraffin collection trays. These silicone rubber trays are heated to prevent the buildup of polymerized paraffin and allows easy removal of the waste paraffin.


Depth: 24" (70cm)
Width: 14" (35.6cm)
Height: 13.25" (33.7cm)
Weight: 42 lbs (19.1 kg)
Capacity: 3.9L
Temperature Range: 45°C to 70°C
Power Supply: 100-240 VAC, 15/10 A, 50/60 Hz

   PELCO Embedding Studio Dispenser

PELCO Embedding Studio Waste Trays PELCO Embedding Studio Trimming Plates

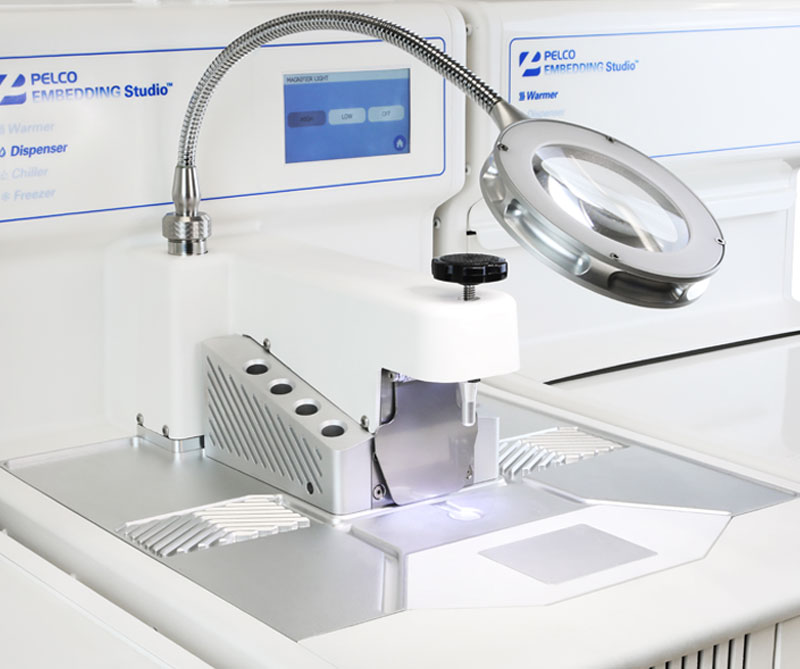

Focused LED lighting Paraffin trimming plates and
heated forceps holder




PELCO Embedding Studio Warmer

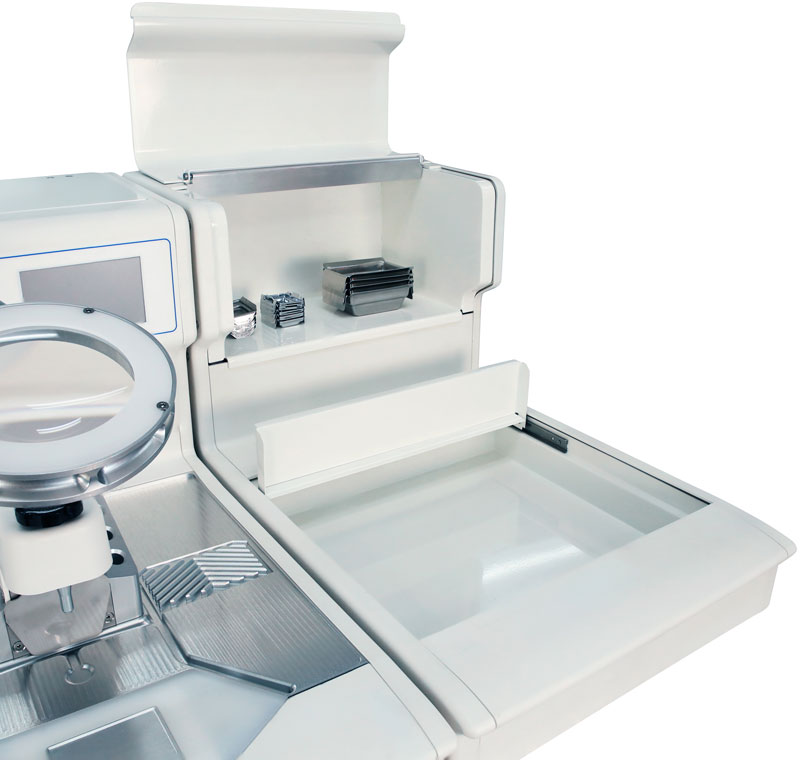

The PELCO Warmer™ module will hold 800+ standard embedding molds or up to 100 Super Mega molds. The door of the warming chamber folds back for efficient access. The base has a large warming tray with a sliding cover, which accommodates most tissue processing baskets. The PELCO Warmer™ has a temperature range of 45°C to 70°C.

Depth: 24" (70cm)
Width: 14" (35.6cm)
Height: 13.25" (33.7cm)
Weight: 20 lbs (9.1 kg)
Warming Chamber Capacity:
800+ Standard Embedding Molds;
up to 100 Super Mega Embedding Molds plus two Cabinet Tray Inserts (#13000-30-1) to retain molten paraffin
Warming Tray: will hold most tissue processing baskets plus two Tray Inserts (#13000-30-2)
Temperature Range: up to 70°C
Power Supply: 100-240 VAC, 15/10 A, 50/60 Hz
PELCO Embedding Studio Dispenser   warmer cabinet tray and tray insert   warmer cabinet insert
PELCO Warmer™ shown with filled
Cabinet and Warming Tray Inserts		   PELCO Warmer™ Cabinet Tray Insert (above)
and Warming Tray Insert (below)		   PELCO Warmer™ Cabinet Tray Insert
shown with embedding molds








The PELCO Chiller™ cold plate module may be operated independently or connected and controlled by the PELCO Embedding Studio™ control program.

The PELCO Chiller™ is cooled by thermoelectric cooling technology with a temperature range of -5°C to 5°C. The PELCO Chiller™ cold plate surface, without using the Transfer Trays, accommodates up to 45 standard embedding molds or 12 Super Mega embedding molds. Using Transfer Trays, two trays will hold 40 standard embedding molds. When filled, the Trays may be quickly transferred to the PELCO Freezer™ to allow continuous embedding. This is especially important when embedding Super Mega tissue blocks as they may take 30+ minutes to complete polymerization.

   PELCO Embedding Studio Dispenser
PELCO Embedding Studio Transfer Trays

   PELCO Embedding Studio Dispenser

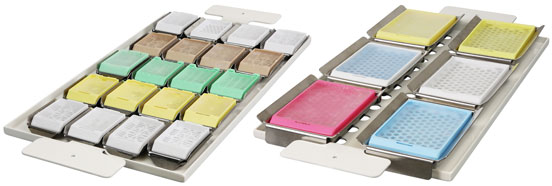

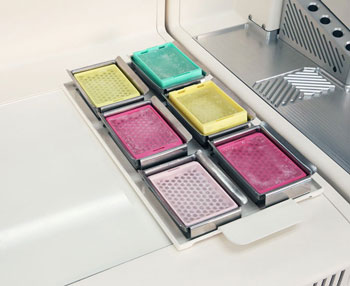

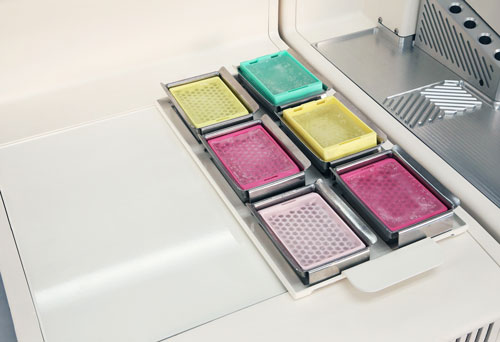

Transfer Trays shown with standard and Super Mega embedding molds.   PELCO Chiller™ plate shown with Transfer Tray

Depth: 24" (70cm)
Width: 14" (35.6cm)
Height: 13.25" (33.7cm)
Weight: 42 lbs (19.1 kg)
Capacity:
40 Standard Embedding Molds (when using Transfer Trays);
12 Super Mega Embedding Molds
Temperature Range: -5° C to 5° C
Power Supply: 100-240 VAC, 15/10 A, 50/60 Hz
PELCO Embedding Studio Dispenser



The PELCO Freezer™ is the fourth module for the PELCO Embedding Studio™. It may be used alongside the other three modules or on its own. The PELCO Freezer™ operates at a temperature range of -5°C to 5°C, mirroring the operating temperature of the PELCO Chiller™ cold plate module. This is the optimal temperature range for paraffin polymerization as colder temperatures may cause paraffin blocks to crack.

The PELCO Freezer™ utilizes thermoelectric cooling (TEC) technology rather than freon gas compressors used in most refrigeration systems. It has five shelves and each shelf accommodates two Transfer Trays. It has a capacity of up to 200 standard paraffin embedded tissue blocks or up to 60 Super Mega paraffin embedded tissue blocks.

Because tissue blocks may be transferred to the PELCO Freezer™ to complete polymerization, the PELCO Chiller™ will always be available for more. This is particularly helpful with Super Mega tissue blocks that require a long polymerization time. These tissue blocks may be stored in the PELCO Freezer™ until ready to pick up for sectioning at a microtome station. The large viewing window allows good visibility for whether tissue blocks are available and ready for sectioning without opening the door of the PELCO Freezer™.


Depth: 23" (58.5cm)
Width: 17.7" (45cm)
Height: 14.2" (36cm)
Weight: 42 lbs (19.1 kg)
Capacity: 5 Shelves; 10 Transfer Trays;
200 Standard Embedding Molds; 60 Super Mega Embedding Molds
Temperature Range: -5° C to 5° C
Power Supply: 100-240 VAC, 15/10 A, 50/60 Hz
PELCO Embedding Studio Dispenser PELCO Embedding Studio Freezer with Trays
Freezer accommodates

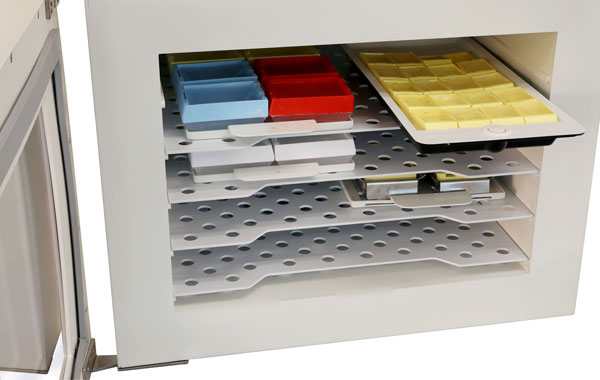

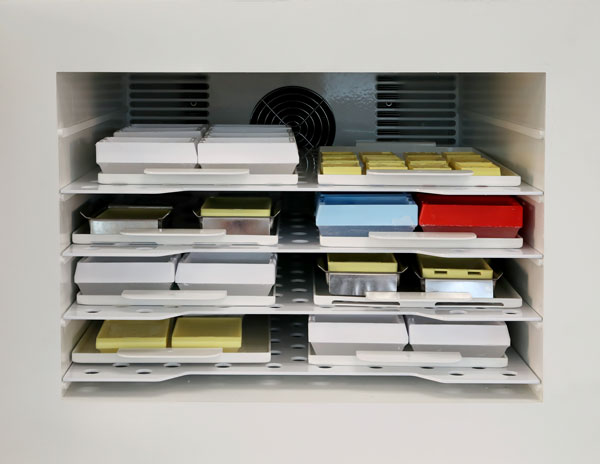

a variety of Transfer Trays		 Freezer inside shown
with shelves at 100% capacity

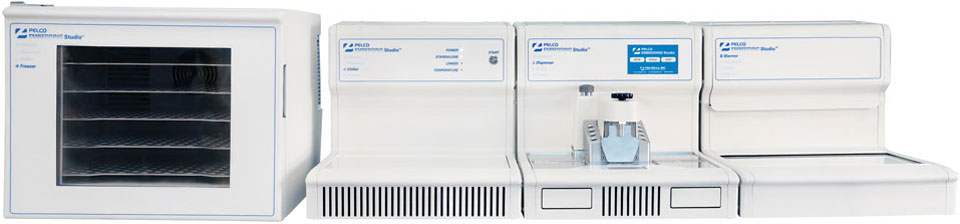

PELCO Embedding Studio



Specifications for the PELCO Embedding Studio™

Total Depth 24" (70cm)
Total Width 59.7" (152cm)
Total Height 13.25" (33.7cm)
Total Weight 146 lbs (66.2 kg)
Power Supply 100-240 VAC, 15/10 A, 50/60 Hz
Total Block Capacity Continuous embedding up to 240 standard blocks (using Transfer Trays)
or 72 Super Mega blocks








Ordering Information for the PELCO Embedding Studio™
Manufactured in USA

Prod # Description Unit Price Order / Quote
13000 PELCO Embedding Studio™ each P.O.R.
Qty:
Includes: PELCO Dispenser™ module, PELCO Warmer™ module with one Cabinet Tray Insert and one Tray Divider Insert (Tray Inserts are also available separately.), PELCO Chiller™ module, PELCO Freezer™ module which comes with 10 Embedding Transfer Trays
13000-30-1 Replacement PELCO Warmer™ Cabinet Tray Insert each 110.00
Qty:
13000-30-2 Replacement PELCO Warmer™ Tray Divider Insert each 125.00
Qty:

Available Stand-alone Modules
Prod # Description Unit Price Order / Quote
13000-10 PELCO Chiller™ each P.O.R.
Qty:
13000-40 PELCO Freezer™, comes with 10 Embedding Transfer Trays each P.O.R.
Qty:








PELCO Embedding Center™ Accessories & Consumables
13000-42

Transfer Trays

Allow for continuous embedding of standard or Super Mega molds

A Transfer Tray may be used on the PELCO Chiller™ cold plate. Each Transfer Tray holds up to 20 embedding molds or 6 Super Mega Molds. When filled, the Tray may be quickly transferred to the PELCO Freezer™ to allow continuous embedding. This is especially important when embedding Super Mega tissue blocks as they may take 30+ minutes to complete polymerization.

Prod # Description Unit Price Order / Quote
13000-41 Transfer Tray pkg/2 $200.00
Qty:




13000-42

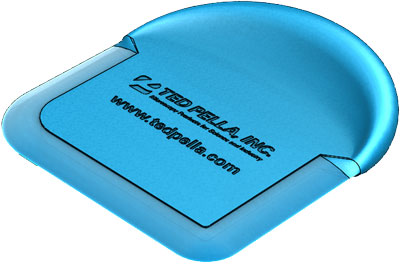

Paraffin Scraper

The highly-durable Paraffin Scraper can be used to remove paraffin wax from the PELCO Embedding Studio™ and work station surfaces.

Prod # Description Unit Price Order / Quote
4013 Paraffin Scraper each $11.00
Qty:




PELCO Embedding Studio Dispenser

Silicone Rubber Paraffin Collection Tray

Waste paraffin from the PELCO Dispenser™ is collected in heated paraffin collection trays. These silicone rubber trays are heated to prevent the buildup of polymerized paraffin and allows easy removal of the waste paraffin.

Prod # Description Unit Price Order / Quote
13000-20-1 Replacement Silicone Rubber Paraffin Collection Tray each $50.00
Qty:








PELCO Embedding Center™ Supplies & Tools
parapro blue bag parapro blue bag

ParaPro™ Blue

Tissue processing and embedding medium (paraffin) composed of light blue pellets. ParaPro™ Blue may be used with all tissues, but is ideal to use with small biopsy tissue specimens for better visualization of the tissue. Optimized for dermatology and urology specimens. A blend of highly refined paraffin with additives of synthetic polymers. Section down to 3µm thickness with excellent ribbon continuity; melting point 56°C.

Sold in cases of 8 bags, 1kg/bag.

SDS (407KB PDF)

Prod # Description Unit Price Order / Quote
18392 ParaPro Blue™, case of 8 bags, 1kg/bag case/8 bags $164.50
Qty:




parapro blue bag

NEW Paraplast®

Paraplast® is recommended for general tissue processing and embedding. Paraplast® is very compatible with tissue processor rotary valves. It is composed of a refined mixture of highly purified paraffin containing plastic polymers of regulated molecular weights. This supports improved tissue infiltration and quality sections with minimal compression. Paraplast® gives brittle, difficult to section tissue an innate elasticity, promoting wrinkle-free sections. Melting point: 56°C (133°F) (ASTM).

Sold in cases of 8 bags, 1kg/bag.

SDS (555KB PDF)

Prod # Description Unit Price Order / Quote
18398 Paraplast®, case of 8 bags, 1kg/bag case/8 bags $119.30
Qty:




paraplast

Paraplast Plus®

Tissue embedding medium for faster penetration. Paraplast Plus® is recommended for large tissues and tissues which are difficult to process. Section down to 2µm thickness with excellent ribbon continuity; melts rapidly at 56-67°C. Double filtered paraffin containing plastic polymers of regulated molecular weights and a small percent (0.8%) of dimethyl sulphoxide (DMSO) for more efficient infiltration of dense and difficult to process tissues. No stainable residue.

Sold in cases of 8 bags, 1kg/bag.

SDS (102KB PDF)

Prod # Description Unit Qty Price Order / Quote
18393 Paraplast Plus®, case of 8 bags, 1kg/bag case/ 8 bags 1-9 $134.50
Qty:
10+ 127.80




paraplast x-tra

Paraplast X-TRA® Tissue Embedding Medium

Optimum tissue embedding medium composed of clear pellets of low-molecular weight polymers and highly purified paraffin. A low viscosity paraffin. Low melting point of 52° to 54°C. Recommended for low temperature processing, small biopsy tissues and for general tissue embedding. Excellent sectioning qualities. Sections down to 2µm thickness with exceptional compression resistance and ribbon continuity. Cut sections are free of distortion; sample morphology is preserved. Low viscosity permits complete infiltration of dense tissue. Sections adhere perfectly to slides without leaving stainable residue.

Sold in case of 8 bags, 1kg/bag.

SDS (100KB PDF)

Prod # Description Unit Qty Price Order / Quote
18394 Paraplast X-TRA®, case of 8 bags, 1kg/bag case/ 8 bags 1+ $138.50
Qty:




parapro blue bag

NEW TissueGuard™ Gel

TissueGuard™ is an aqueous gel used to stabilize fragile histology and cytology specimens during processing. It encapsulates and retains specimens during histological processing while allow chemical reagents to penetrate the specimen. This is an alternate to other agarose stabilizers, appropriate for cytology and histology applications such as fine needle aspirates, urine specimens, needle biopsies, nerves, small arteries, aggregates, lymph nodes, small tissue fragments, or any other specimens utilizing cell block preparation. Product can be applied in either centrifuge tube, or in conjunction with BioMesh tissue cassettes, or using tissue paper. After application, specimen is ready for processing within minutes, or sooner if aided with a cooling block.

This box contains 12 tubes, each with 10mL of Hydroxyethyl Agarose TissueGuard™ Gel. Cytology specimens must be ethanol preserved cell suspensions and histology specimens can be either formalin-fixed or unfixed tissue. Keep refrigerated when not in use and out of direct light. Once a tube of TissueGuard™ Gel has been opened, it is not recommended to use for longer than one week. For further technical information and protocols see the technical note below:

Technical Notes, 27207 (358KB PDF)
SDS (630KB PDF)

Prod # Description Unit Price Order / Quote
27207 TissueGuard™ Gel pkg/12 bags $400.00
Qty:




PELCO Base Molds

PELCO® Stainless Steel Base Molds

High quality, yet economically priced stainless steel base molds for use with all standard tissue and biopsy cassettes. The reusable molds are 5mm deep and have extended legs for improved stability. Smooth stainless steel surface and rounded corners to facilitate easy removal. Flat base for maximum thermal transfer. Available in 5 sizes. Sold in packs of 12. Fully comparable to more expensive brands - great savings - high quality.

Prod # Description Unit Price Order / Quote
27280 PELCO® Stainless Steel Base Mold, 7 x 7 x 5mm pk/12 $38.50
Qty:
27281 PELCO® Stainless Steel Base Mold, 15 x 15 x 5mm pk/12 88.50
Qty:
27282 PELCO® Stainless Steel Base Mold, 24 x 24 x 5mm pk/12 88.50
Qty:
27283 PELCO® Stainless Steel Base Mold, 30 x 24 x 5mm pk/12 88.50
Qty:
27284 PELCO® Stainless Steel Base Mold, 37 x 24 x 5mm pk/12 88.50
Qty:




super mega cassette stainless steel base mold

Super Mega Cassette Stainless Steel Base Molds

These molds are suited for all applications in specimen embedding with the 27198, and 22100 Series Super Mega Cassettes. Manufactured from high quality stainless steel for optimal thermal transfer, the mold has a highly polished surface for easy paraffin block removal. Reusable. Stackable for easy storage.

27197-1, 27197-2 and 27197-4 have higher sides than competitor super mega base molds. The higher sides allow for more paraffin to be used during embedding assuring a stronger bond of the paraffin block to the cassette.

Use HISTOBOND® + Super Mega Slides and Coverslips for large sections.

Prod # Description Unit Price Order / Quote
27197-1 Super Mega Cassette Base Mold, 60 x 45 x 15mm pkg/5 $65.05
Qty:
27197-2 Super Mega Cassette Base Mold, 36 x 36 x 10mm pkg/5 65.05
Qty:
27197-3 Super Mega Slim Cassette Base Mold, 60 x 45 x 8mm pkg/5 65.05
Qty:
27197-4 Super Mega Mothership Cassette Base Mold, 60 x 45 x 8mm pkg/5 65.05
Qty:




Polyshield Paraffin Repellent

Polyshield® Paraffin Repellent

PolyShield® is a liquid paraffin repellent used as a protective coating on laboratory surfaces that are exposed to paraffin residue. PolyShield® can also be used to clean paraffin that has adhered to lab countertops and equipment.

SDS (223KB PDF)

Prod # Description Unit Qty Price Order / Quote
27210 Polyshield® Paraffin Repellent, 4oz. pump spray bottle each 1-5 $44.00
Qty:
6+ 41.10



aesculap delicate forceps
View our complete selection of Embedding Forceps.
