NEW PELCO® Pressure Pot

Pressure chamber for bubble-free cold mounts

  pelco pressure pot
pelco pressure pot components

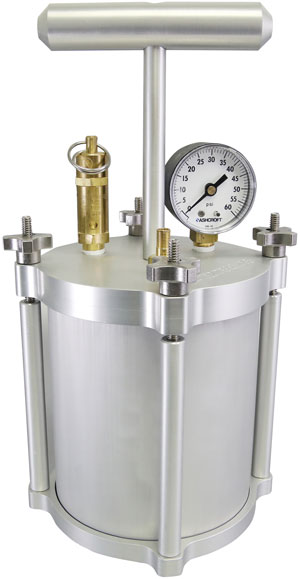

PELCO® Pressure Pot

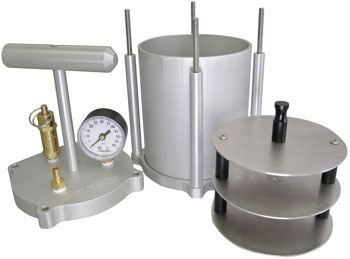

System Components
pressure cast vs as is

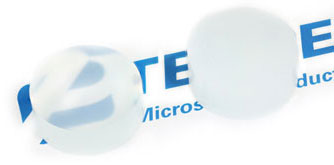

Pressure cast (left) vs. as-cast (right)
with Kulzer 4006 Resin (#813-560)

The PELCO® Pressure Pot provides an efficient way to reduce bubble formation in metallographic mounts and other cast resin, including acrylic or epoxy-embedded samples. Working pressure is 30 PSI, maximum pressure is 40 PSI with a safety release in the case of overpressure. The chamber is pressurized via a standard Schrader valve. Quick lock knobs allow the chamber to be sealed, or unsealed, in under 30 seconds.

Overall Internal Dimensions: 4.75" Dia. x 5.5" H (12 x 14cm)

With its 3-tiered design and an internal volume larger than our competitors', the PELCO® Pressure Pot enables curing of up to eighteen 1" samples at the same time. Sample curing time will vary by embedding material.

Tray Capacity
Molds Nominal Size (ID) Per Tier Total
#813-172 1" 6 18
#813-174 1.25" 5 15
#813-176 1.5" 4 12
#813-177 2" 1 2
#813-178 1.25" 5 15
#813-179 1.5" 4 12
#813-180 2" 1 2

This PELCO® Pressure Pot system is highly recommended for use with our Embedding Resins to achieve water-clear mounts.

Any air or gas pump with a Schrader valve attachment can be used to pressurize the chamber. Pressure is released by pulling up on the ring on the safety valve.

The PELCO® Pressure Pot is engineered and manufactured in the USA.

Prod # Description Unit Price Order / Quote
2242 PELCO® Pressure Pot each $400.00

foot pump

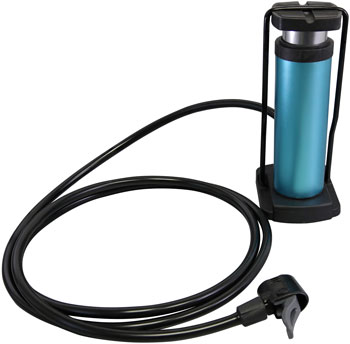

Manual Foot Pump for #2242 PELCO® Pressure Pot

A simple manual pump with suitable Schrader connector for pressurizing the PELCO® Pressure Pot.

Prod # Description Unit Price Order / Quote
2242-1 Manual Foot Pump each $25.00
