round silicone mold
#813-172
round silicone mold
#813-174-C, #813-172-C

Round Silicone Rubber Molds

Reusable, White or Clear

Reusable molds for cold embedding made from sturdy, yet flexible, white or clear silicone.

Made in USA

Prod # Description Unit Price Order / Quote
813-172 Round Silicone Rubber Mold, white, 1" (25.4mm) dia. pkg/10 $71.00
Qty:
813-172-C NEW Round Silicone Rubber Mold, Clear, 1" (25.4mm) dia. pkg/10 71.00
Qty:
813-174 Round Silicone Rubber Mold, white, 1-1/4" (31.75mm) dia. pkg/10 74.80
Qty:
813-174-C NEW Round Silicone Rubber Mold, clear, 1-1/4" (31.75mm) dia. pkg/10 74.80
Qty:
813-176 Round Silicone Rubber Mold, white, 1-1/2" (38.1mm) dia. pkg/10 83.60
Qty:
813-176-C NEW Round Silicone Rubber Mold, clear, 1-1/2" (38.1mm) dia. pkg/10 83.60
Qty:
813-177 Round Silicone Rubber Mold, white, 2" (50.8mm) dia. pkg/5 83.60
Qty:
813-177-C NEW Round Silicone Rubber Mold, clear, 2" (50.8mm) dia. pkg/5 83.60
Qty:




materials science mold
#813-184, #813-183
round silicone mold

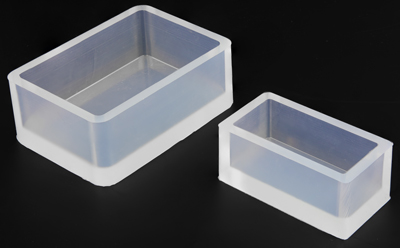

#813-184-C, #813-183-C

Rectangular Silicone Rubber Molds

Reusable, White or Clear

Both sizes are 1" high with 3/4" internal depth. Internal dimensions are 2 -1/8 x 1" and 3 x 2".

Prod # Description Unit Price Order / Quote
813-183 Rectangular Silicone Rubber Mold, white, 2-1/8 x 1" pkg/5 $76.40
Qty:
813-183-C NEW Rectangular Silicone Rubber Mold, clear, 2-1/8 x 1" pkg/5 76.40
Qty:
813-184 Rectangular Silicone Rubber Mold, white, 3 x 2" each 28.10
Qty:
813-184-C NEW Rectangular Silicone Rubber Mold, clear, 3 x 2" each 28.10
Qty:





materials science mold

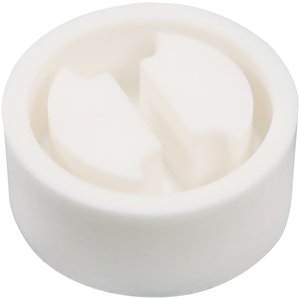

#813-180
materials science

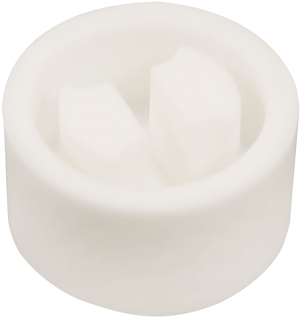

#813-179
materials science mold

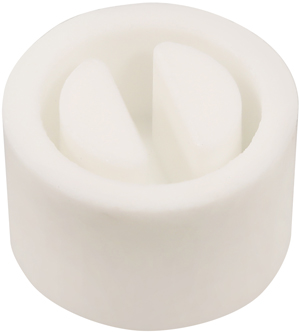

#813-178

EDFA Silicone Rubber Molds

White or Clear, 1.25", 1.5" and 2" internal diameters

Even in well-established procedures such as sample embedding, new developments are being made. Following a recently published development in sample preparation (see the 2020 article by Khatkhatay and Pichumani cited below, working with semiconductor flip-chip packaged devices), we have developed new silicone rubber molds for better performance, particularly in failure analysis.

These molds are designed for molding small samples, cross sections, or similar. In these types of samples the area of the sample makes up a small proportion of the surface area and polishing becomes limited by the large surface of embedding media. Also, with small samples it can be difficult to monitor the polishing progress.

materials science mold

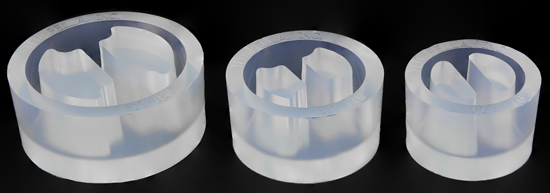

#813-180-C #813-179-C #813-178-C

These molds drastically reduce the surface area of exposed resin while providing a much better view of thin, tall samples such as electronic circuit chips and boards. The more economical volume of resin required and smaller surface area also results in a significant reduction in the consumption of polishing supplies.

The optimal sample size for these molds is 3/8" (10mm) or less in thickness (for cross sections). The central portion of the mold accommodates the device during the resin pour and set up. The large blocks on either side exclude resin to funnel it into the central channel around the device and into the channel around the perimeter. This reduces the surface area of the cast resin by up to 48%, with a dramatic reduction in the grinding and polishing time required to reach the feature of interest.

Resin volumes to fill molds (nominal): 8mL, 15 mL, 20 mL compares favorably with 20 mL, 30 mL, 50 mL for standard molds. These molds are compatible with any of our Embedding Resins.

    materials science mold materials science mold

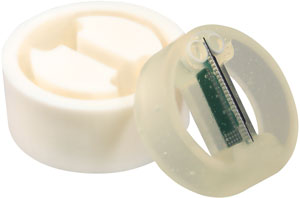

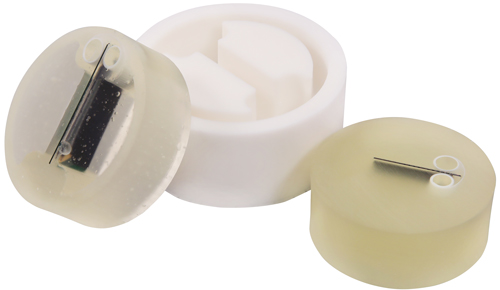

    #813-180 2" diameter EDFA Mold.
Shown with cast sample at right.
Top down view of sample cast in 1.5" EDFA Mold #813-179.

Khatkhatay, F. and Pichumani, P.S., Innovative puck design for the mechanical cross-sectioning and subsequent analysis of semiconductor packaged samples in failure analysis, Electronic Device Failure Analysis, 2020 22:2, 4-12

Prod # Description Unit Price Order / Quote
813-178 EDFA Mold, white, 1.25" internal diameter each $11.80
Qty:
813-178-C NEW EDFA Mold, clear, 1.25" internal diameter each 11.80
Qty:
813-179 EDFA Mold, white, 1.5" internal diameter each 12.30
Qty:
813-179-C NEW EDFA Mold, clear, 1.5" internal diameter each 12.30
Qty:
813-180 EDFA Mold, white, 2" internal diameter each 23.60
Qty:
813-180-C NEW EDFA Mold, clear, 2" internal diameter each 23.60
Qty:





2-part plastic molds

2-Part Plastic Molds

For making cold embeddings with epoxy. Separate cap for easy removal. Use Mold Release before pouring resin. Sold in packs of 12 for 1", 1-1/4", and 1-1/2".

Product # 813-165 813-167 813-169
ID Top 1.0" 1.25" 1.50"
OD Top 1.15" 1.38" 1.62"
OD Base 1.38" 1.56" 1.87"
Height Overall 1.30" 1.30" 1.30"
Height Less Base 1.21" 1.21" 1.21"
Interior Depth 1.10" 1.10" 1.10"

Prod # Description Unit Price Order / Quote
813-165 2-Part Plastic Mold, 1" pkg/12 $40.40
Qty:
813-167 2-Part Plastic Mold, 1-1/4" pkg/12 41.00
Qty:
813-169 2-Part Plastic Mold, 1-1/2" pkg/12 48.40
Qty:




plastic molds

2-Part Polyethylene Mounting Molds

For making cold mounts with epoxy or acrylic resin in metric diameters. Their translucence makes them ideal for ensuring good penetration of the blue curing light to all regions of the resin in the mold when cured in the Kulzer Technotray® POWER Light Curing Unit or POWER LED. Separate cap for easy removal. If needed, use Mold Release before pouring resin. Sold in packs of 3 for 15, 25, 30, 40 and 50mm.

Prod # Description Unit Price Order / Quote
813-615 Two-piece Polyethylene Mounting Mold, 15mm internal diameter pkg/3 $27.50
Qty:
813-625 Two-piece Polyethylene Mounting Mold, 25mm internal diameter pkg/3 27.50
Qty:
813-630 Two-piece Polyethylene Mounting Mold, 30mm internal diameter pkg/3 27.50
Qty:
813-640 Two-piece Polyethylene Mounting Mold, 40mm internal diameter pkg/3 27.50
Qty:
813-650 Two-piece Polyethylene Mounting Mold, 50mm internal diameter pkg/3 27.50
Qty:
