Materials Science Overview
Materials Science Embedding Supplies Overview

Kulzer Technovit® Materials Embedding
& Impressioning Supplies



TechnovitTechnovit Cast
NEW Kulzer Technovit® Acrylic
Resin Systems & Sample Kits
kulzer technotray unitkulzer light cure
NEW Kulzer Technovit® 2000
Light Curing LC System
pelco pressure pot
NEW PELCO® Pressure Pot
pelco pressure pot
NEW Kulzer Technovit® 2200 Light Curing Impression System
technovit 3040

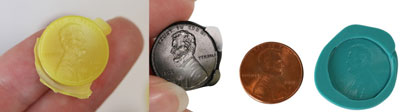

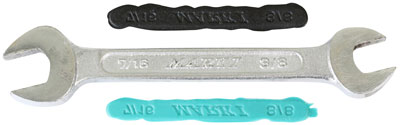

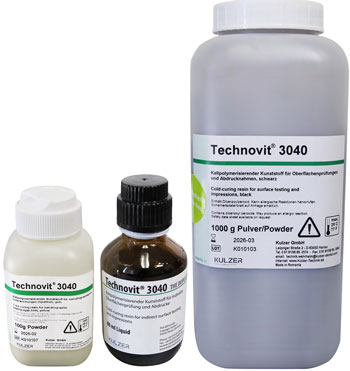

NEW Kulzer Technovit® 3040 Impression System
technovit provil

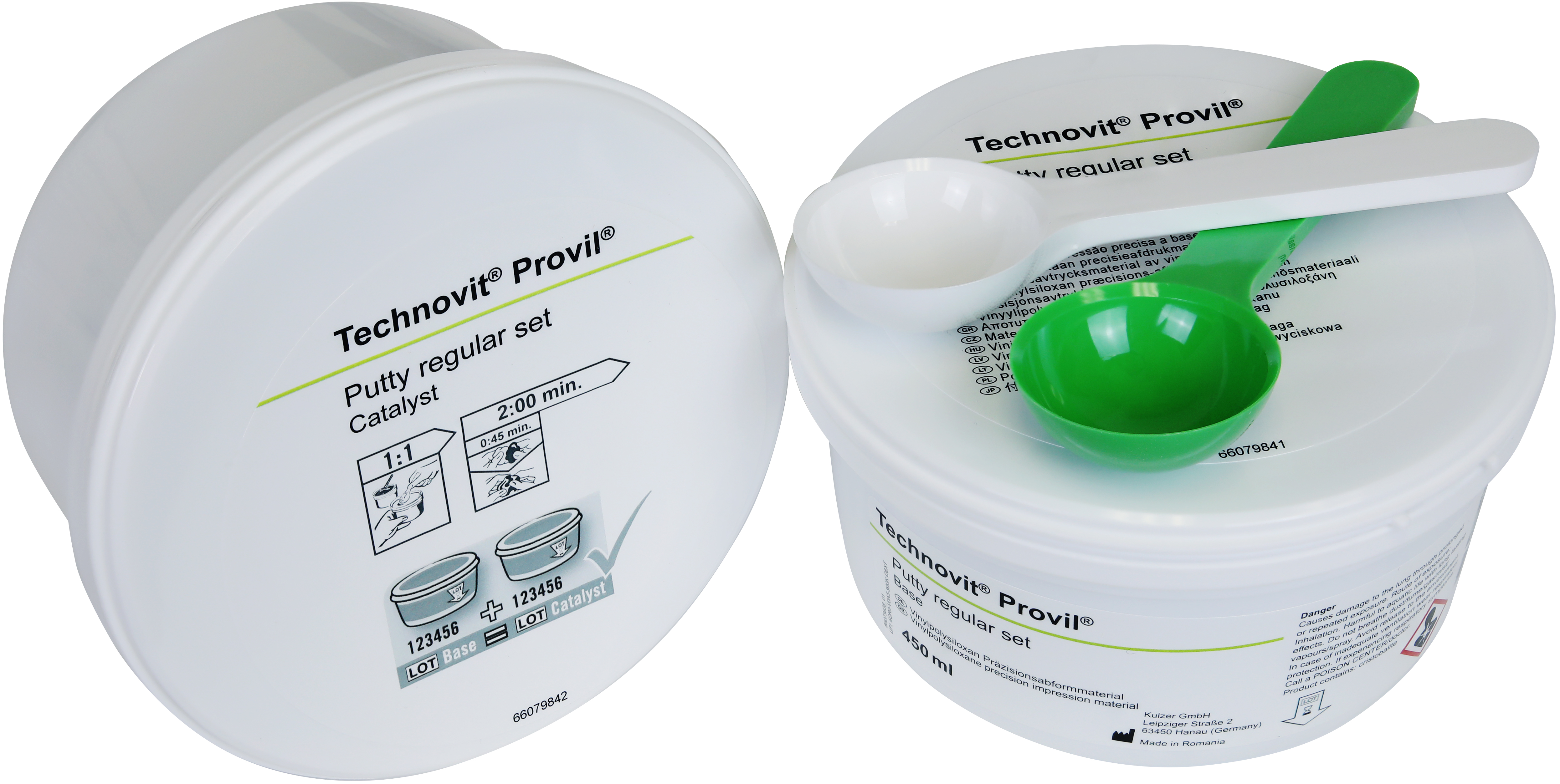

NEW Kulzer Technovit® Provil
Impression System


PELCO Acrylimet Epoxy Kit Technovit Cast 4006

NEW Kulzer Technovit® 4000 Resin System

Kulzer Technovit® 4000 is a three-component polyester-based resin composed of a powder and two syrups. This resin is best for applications that require a harder mount, low shrinkage, and high edge definition, particularly useful for harder metals and ceramics. It has a short polymerization time, and is suitable for all routine, quick turnaround work. A mixing ratio of 2:2:1 (powder: syrup I: syrup II) is recommended. Handling time is up to 4 minutes after mixing and curing time is 8 minutes at 22° C.


#813-584, 813-585 SDS (175KB PDF)
#813-586, 813-587 SDS (252KB PDF)
#813-588, 813-889 SDS (258KB PDF)

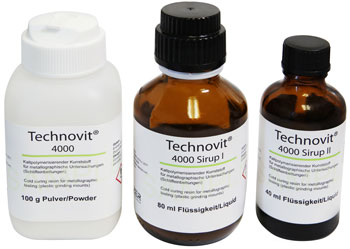

Sample kit shown here, #813-574 As-cast in EDFA Mold

Prod # Description Unit Price Order / Quote
813-574 Kulzer Technovit® 4000 sample kit (comprises one each of 100g powder, 80mL syrup I, 40mL syrup II) each $41.80
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-582 Kulzer Technovit® 4000 small kit (comprises one each of 750g powder, 500mL syrup I, 250mL syrup II) each 88.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-583 Kulzer Technovit® 4000 large kit (comprises one each of 1.5kg powder, 1 syrup I, 500mL syrup II) each 154.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-584 Kulzer Technovit® 4000 Powder 1.5kg each 154.00
Qty:
813-585 Kulzer Technovit® 4000 Powder 7.5kg each 588.50
Qty:
813-586 Kulzer Technovit® 4000 Syrup I 1L each 121.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-587 Kulzer Technovit® 4000 Syrup I 5L each 418.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-588 Kulzer Technovit® 4000 Syrup II 500mL each 73.70
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-589 Kulzer Technovit® 4000 Syrup II 2.5L each 209.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees



PELCO Acrylimet Epoxy Kit Technovit Cast 4006

NEW Kulzer Technovit® 4004 Acrylic System

Kulzer Technovit® 4004 is a transparent methyl methacrylate-based two-component embedding medium consisting of powder and liquid. This resin is designed for applications that require a transparency for sample inspection during preparation. With its short polymerization time, it is particularly suitable for routine, quick turnaround work. A 2:1 powder/liquid ratio is standard, but can be anywhere from 1:1 to 3:1. Handling time is up to 3 minutes after mixing and curing time is 4-6 minutes at 22° C.

#813-591 SDS (279KB PDF)
#813-592 SDS (230KB PDF)

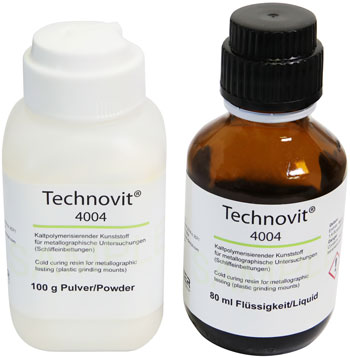

Sample kit shown here, #813-575 As-cast in EDFA Mold

Prod # Description Unit Price Order / Quote
813-575 Kulzer Technovit® 4004 Acrylic sample kit (comprises one each of 100g powder, 80mL liquid) each $41.80
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-591 Kulzer Technovit® 4004 Powder, 1kg each 126.50
Qty:
813-592 Kulzer Technovit® 4004 Liquid, 500mL each 60.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees




PELCO Acrylimet Epoxy Kit Technovit Cast 4006

NEW Kulzer Technovit® 4006 Acrylic System

Kulzer Technovit® 4006 is a highly transparent* methyl methacrylate-based two-component embedding medium consisting of powder and liquid. Kulzer Technovit® 4006 is used for applications that require a high degree of transparency such as electronic device failure analysis and printed wiring board quality control. With its short polymerization time, it is particularly suitable for routine, quick turnaround work. While the mixing ratio can be varied according to the desired fluidity, a ratio of 2:1 is recommended. Handling time is up to 4 minutes after mixing and curing time is 9 – 13 minutes at 22° C.

#813-561 SDS (36KB PDF) | #813-562, 813-564 SDS (52KB PDF)

Technovit Cast 4006

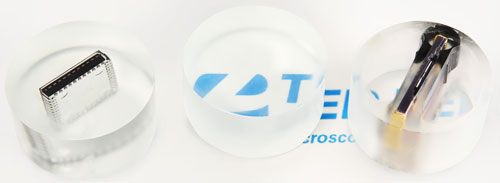

1kg kit shown here, #813-560 As-cast in EDFA Mold *Water clear mounts achievable when cast under pressure (~35psi)

Prod # Description Unit Price Order / Quote
813-560 Kulzer Technovit® 4006 Acrylic Kit for high transparency mounts, 1kg (comprises one each of #813-561 and #813-562) each $174.90
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-561 Kulzer Technovit® 4006 Powder for high transparency acrylic mounts, 1kg each 117.70
Qty:
813-562 Kulzer Technovit® 4006 Liquid for high transparency acrylic mounts, 500ml each 57.20
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-563 Kulzer Technovit® 4006 Acrylic Kit for high transparency mounts, 2kg (comprises 2x #813-561 and one bottle of #813-564) each 342.10
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-564 Kulzer Technovit® 4006 Liquid for high transparency acrylic mounts, 1000ml each 106.70
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-559 Kulzer Technovit® 4006 Acrylic Resin Starter Kit, 100g powder/80ml liquid each 39.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees




PELCO Acrylimet Epoxy Kit Technovit Cast 4006

NEW Kulzer Technovit® 4021 Resin System

Kulzer Technovit® 4021 is an odor-free, methyl methacrylate-free two-part embedding system. This resin is a universal mounting medium with a short polymerization time and does not contain methyl methacrylate, tetrahydrofurfuryl methacrylate or styrene so itcan be used outside of a fume hood. It is recommended for routine work. A mixing ratio of 2:3 (powder: liquid) is standard. Polymerization time is 5 minutes at 22° C. Resin is black when cured.

#813-598, 813-598-10 SDS (165KB PDF)
#813-599, 813-599-10 SDS (247KB PDF)

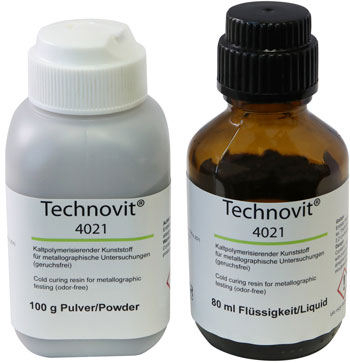

Sample kit shown here, #813-597 As-cast in EDFA Mold

Prod # Description Unit Price Order / Quote
813-597 Kulzer Technovit® 4021 Sample Kit (comprises one each of 100g powder, 80mL liquid) each $41.80
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-598 Kulzer Technovit® 4021 Liquid, 500mL each 71.50
Qty:
813-599 Kulzer Technovit® 4021 Powder, 1kg each 121.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-598-10 Kulzer Technovit® 4021 Liquid, 5L each 687.50
Qty:
813-599-10 Kulzer Technovit® 4021 Powder, 10kg each 1072.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees


PELCO Acrylimet Epoxy Kit

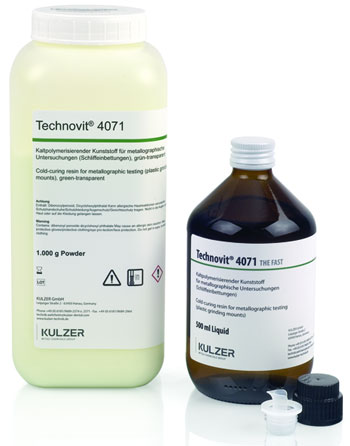

NEW Kulzer Technovit® 4071 Resin System for Embedding

Kulzer Technovit® 4071 is a two-part universal methyl methacrylate-based embedding resin composed of a powder and a liquid. This resin has good grinding characteristics for rapid polishing and cures in 5 minutes. Useful for all metallographic, ceramic, and other materials samples.

#813-593 SDS (273KB PDF)
#813-594 SDS (312KB PDF)

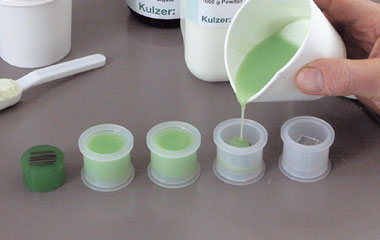

500mL Liquid and 1kg Powder,
#813-594, #813-593


Prod # Description Unit Price Order / Quote
813-576 Kulzer Technovit® 4071 Sample Kit (comprises one each of 100g powder, 80mL liquid) each $41.80
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-593 Kulzer Technovit® 4071 Powder, 1kg each 126.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-594 Kulzer Technovit® 4071 Liquid, 500mL each 60.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees


PELCO Acrylimet Epoxy Kit Technovit Cast 5071

NEW Kulzer Technovit® 5000 Acrylic System

Kulzer Technovit® 5000 is an electrically conductive polymer based on a modified methyl methacrylate containing dendritic copper particles.

Kulzer Technovit® 5000 has a handling time of approximately 1 minute after mixing and has a curing time of 7 – 12 minutes. It is particularly suitable for embedding samples that are to be: examined with a scanning electron microscope or with microprobe; or processed in an electro-polishing device.

#813-566 SDS (48KB PDF)
#813-567 SDS (52KB PDF)

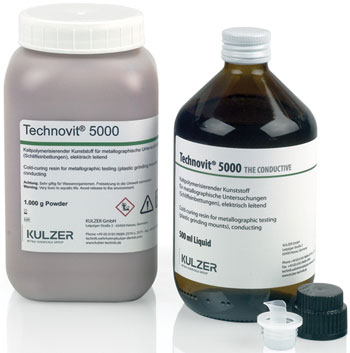

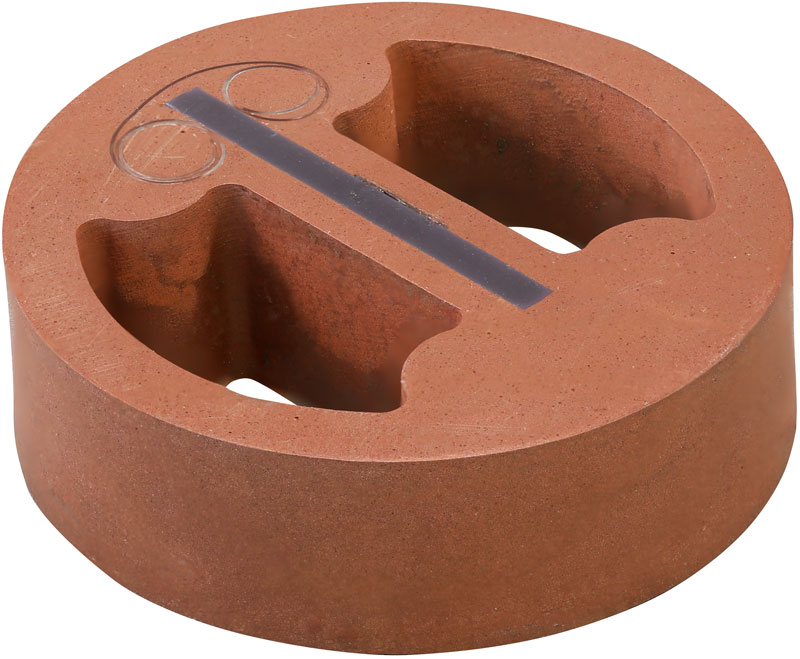

1kg kit shown here, #813-565 As-cast in EDFA Mold

Prod # Description Unit Price Order / Quote
813-565 Kulzer Technovit® 5000 Acrylic kit for conductive mounts, 1kg (comprises one each of #813-566 and 3813-567) each $242.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-566 Kulzer Technovit® 5000 powder with copper particles for conductive acrylic mounts, 1kg each 171.60
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-567 Kulzer Technovit® 5000 liquid for acrylic mounts, 500ml each 71.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-571 Kulzer Technovit® 5000 Conductive Acrylic Resin Starter Kit, 100g powder/80ml liquid each 39.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees




PELCO Acrylimet Epoxy Kit Technovit Cast 5071

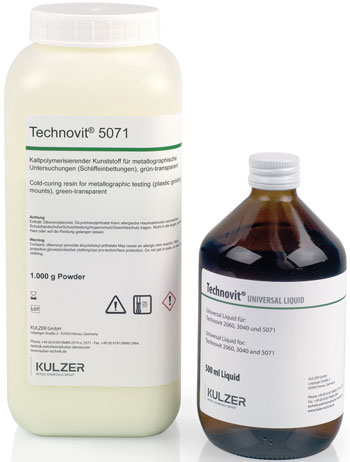

NEW Kulzer Technovit® 5071 Acrylic System

The special distinguishing feature of Kulzer Technovit® 5071 is that it can be re-dissolved chemically. This enables the resin to be removed from samples that require further analysis without the encapsulating resin following sample preparation. Kulzer Technovit® 5071 can be dissolved with acetone, trichloroethylene or dichloromethane. Kulzer Technovit® 5071 is suitable for use in SEMs. With its excellent surface wettability and adhesive properties Kulzer Technovit® 5071 can be used as an adhesive for metals and can also be used for the application of strain gauges to a variety of materials.

Kulzer Technovit® 5071 is versatile and suitable for routine embedding work due to the range of mixing ratios and fast polymerization time (4 – 6 minutes). It can be mixed at ratios of 1:1 up to 3:1 of powder/liquid depending on the respective requirements and the required flow properties. A mixing ratio of 2:1 is generally recommended. Handling time after mixing is 2 minutes at 22° C.

#813-568 SDS (92KB PDF) | #813-569 SDS (168KB PDF)

sample soak in acetone

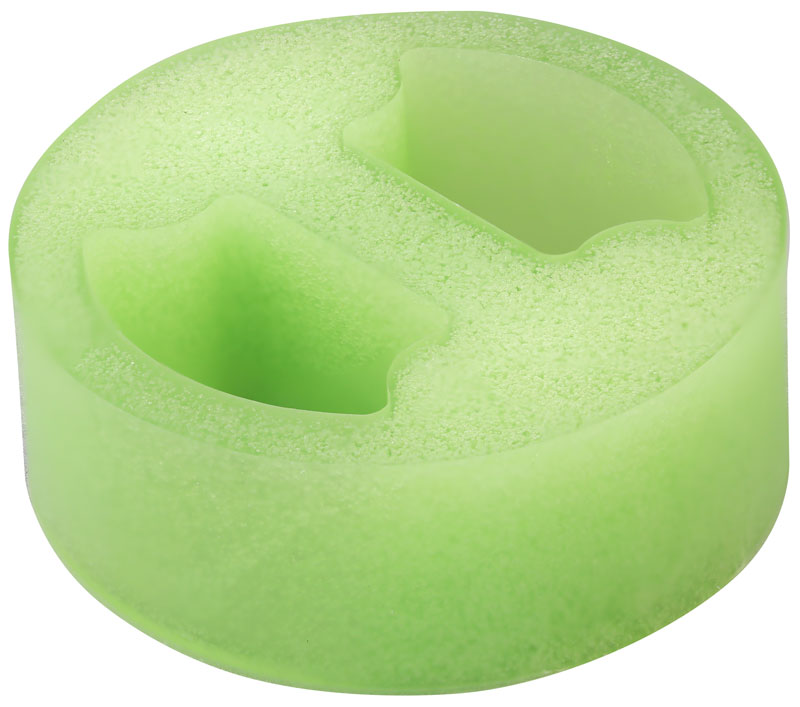

1kg kit shown here, #813-570 As-cast in EDFA Mold Sample removable by soaking in acetone

Prod # Description Unit Price Order / Quote
813-570 Kulzer Technovit® 5071 Acrylic kit for dissolvable mounts, 1kg comprises one each of #813-568 and #813-569) each $173.80
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-568 Kulzer Technovit® 5071 Powder for dissolvable acrylic mounts, 1kg each 117.70
Qty:
813-569 Kulzer Technovit® 5071 liquid for dissolvable acrylic mounts, 500ml each 57.20
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-572 Kulzer Technovit® 5071 Acrylic Resin Starter Kit, 100g powder/80ml liquid each 39.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees




PELCO Acrylimet Epoxy Kit

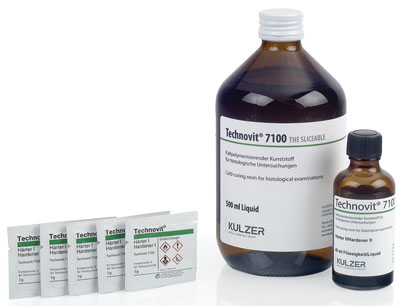

NEW Kulzer Technovit® 7100 Acrylic System

Kulzer Technovit® 7100 is a hydrophilic acrylic resin system based on HEMA (2-hydroxyethyl methacrylate) suitable for use with materials to be sectioned on a microtome -- including biological samples as well as plastics, foils, wires, etc. The resin is cold-curing and is both stable and elastic enough to allow slicing of sections down to 1μm thickness. Applications for Kulzer Technovit® 7100 include histological staining and enzyme detection for light microscopy.

#813-590 Hardener 1 SDS (330KB PDF)
#813-590 Hardener 2 SDS (150KB PDF)
#813-590 Liquid SDS (164KB PDF)

Prod # Description Unit Price Order / Quote
813-590 Kulzer Technovit® 7100 combipack (500mL liquid, 100mL hardener, 5 x 1g hardener) each $143.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees




epoxy pump epoxy pump

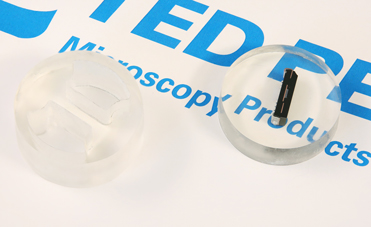

NEW Kulzer Technovit® 2000 Light Cure LC Acrylic System

Kulzer Technovit® 2000 Light Cure LC is a single component blue light curing resin that provides high transparency mounts cured at up to 90° C for a 1" / 25mm mount in as little as 20 minutes using the Kulzer Technotray® POWER Light Curing module. For temperature sensitive components, the polymerization generated heat can be lessened to about 50° C by pouring and curing thin successive layers over a longer time period along with power cycling the blue light. Kulzer Technovit® 2000 Light Cure LC comes in a 1 liter bottle. An 80ml sample bottle is also available but will need a 430-490nm blue light source for polymerization, such as the Kulzer Technotray® POWER Light Curing Unit below. Best used with clear polyethylene molds.

#813-573 SDS (168KB PDF) | #813-577 SDS (168KB PDF)

epoxy pump

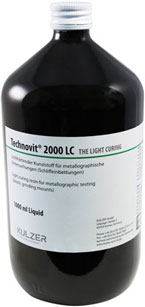

Kulzer Technovit® 2000 Light Cure (LC) resin, 1000ml, #813-577 and 80ml #813-573

Prod # Description Unit Price Order / Quote
813-573 Kulzer Technovit® 2000 Light Cure (LC) Resin, Sample Size, 80ml each $41.80
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-577 Kulzer Technovit® 2000 Light Cure (LC) Resin, 1000ml each 231.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees




PELCO Acrylimet Epoxy Kit

NEW Kulzer Technovit® 2021 Acrylic System

Kulzer Technovit® 2021 Light Cure LC is a single component blue light curing resin that provides high transparency mounts with a maximum curing temperature of 90° C for a 1" (25mm) mount in as little as 5 minutes, using the Kulzer Technotray® POWER Light Curing module. This resin uses the same 430-490nm blue light source for polymerization as the Kulzer Technovit® 2000 above, but is much lower in odor so it is suitable to be used outside of a fume hood. Best used with clear polyethylene molds.

#813-595,_813-596 SDS (175KB PDF)

Prod # Description Unit Price Order / Quote
813-595 Kulzer Technovit® 2021 Light Cure (LC) Resin, Sample Size, 80ml each $41.80
Qty:
813-596 Kulzer Technovit® 2021 Light Cure (LC) Resin, 1000ml each 231.00
Qty:




epoxy pump epoxy pump

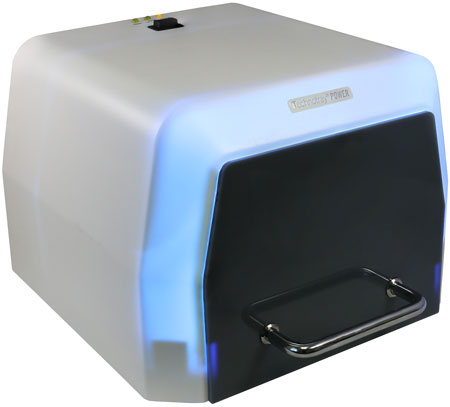

NEW Kulzer Technotray® POWER Light Curing Unit

The Kulzer Technotray® POWER Light Curing Unit is a blue light (430-490nm) cure unit designed for the polymerization of Kulzer Technovit light-curing resins.

With six 9W blue light emitting lamps, enough power is generated such that transparent mounting cups filled as deep as 30mm with Kulzer light curing resin can be fully polymerized.

Operates on 230V/50Hz or 110V/60Hz (voltage input switchable).

Prod # Description Unit Price Order / Quote
813-580 Kulzer Technotray® POWER Light Curing Unit each $1369.50
Qty:




Pekalux Power LED Light Curing Unit Kit

NEW Kulzer Pekalux® POWER LED Light Curing Unit

Kulzer Pekalux® POWER LED Light Curing Unit is a blue light (430-490nm) curing unit designed for the polymerization of Kulzer Technovit 2200 Series.

The Pekalux® POWER LED is portable, with a rechargeable battery, recharging stand, and 4 irradiation settings with timer-controlled automatic shut-off. It is particularly useful when paired with light-curing resins for impressioning and field metallography.

Operates on a 230V/50Hz or 110V/60Hz (voltage input switchable).

Prod # Description Unit Price Order / Quote
813-730 Kulzer Pekalux® POWER LED Light Curing Unit each $1083.50
Qty:




inside cureLC 2000mold
LC fixing paste

Additional items to complement Kulzer Technovit® Light Curing Resins:



NEW Kulzer Technovit® 2000 Inside Cure (#813-579)

An additive used to mix in with the Kulzer Technovit® 2000 Light Cure LC resin prior to pouring. It promotes polymerization in portions of the mounted sample that are shaded from the blue light of the Kulzer Technotray® POWER unit.

#813-579 SDS (51KB PDF)

fixing paste

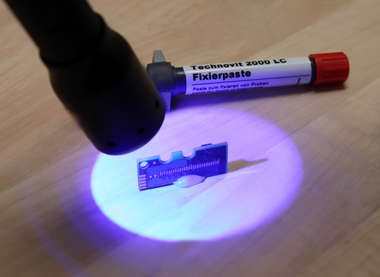

NEW Kulzer Technovit® 2000 LC Fixing Paste (#813-578) & Blue LED Flashlight (#813-610)

A thick, light-curable paste used to position specimens that would otherwise fall over in the mounting mold. Also shown here – the #813-610 Technovit® Blue LED Flashlight.

#813-578 SDS (37KB PDF)

LC Covering Varnish

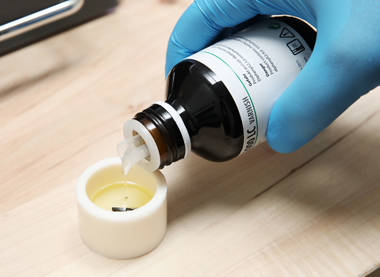

NEW Kulzer Technovit® 2000 LC Covering Varnish (#813-581)

Used to prevent the possibility of a dispersion layer forming on the reverse side of the mounted specimen (top of mount). It provides a clear, dry, hard surface following polymerization. It is applied about half way through the curing process in a single layer of a few millimeters on top of the partly polymerized Kulzer Technovit® 2000 Light Cure LC. It is also useful for embedding sample identification labels on top of the mount.

#813-581 SDS (165KB PDF)

plastic molds

NEW Kulzer Technovit® 2-part Polyethylene Plastic Molds (#813-615 through 813-650)

Their translucence makes them ideal for ensuring good penetration of the blue curing light to all regions of the resin in the mold when cured in the Kulzer Technotray® POWER Light Curing Unit. Available in metric sizes only.

Prod # Description Unit Price Order / Quote
813-578 Kulzer Technovit® 2000 Fixing Paste each $71.50
Qty:
813-579 Kulzer Technovit® 2000 Inside Cure each 148.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-581 Kulzer Technovit® 2000 Covering Varnish each 71.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees

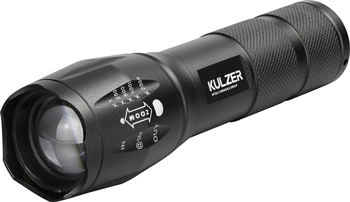

813-610 Technovit® Blue LED Flashlight each 368.50
Qty:
813-615 Two piece Polyethylene mounting mold, 15mm internal diameter pkg/3 27.50
Qty:
813-625 Two piece Polyethylene mounting mold, 25mm internal diameter pkg/3 27.50
Qty:
813-630 Two piece Polyethylene mounting mold, 30mm internal diameter pkg/3 27.50
Qty:
813-640 Two piece Polyethylene mounting mold, 40mm internal diameter pkg/3 27.50
Qty:
813-650 Two piece Polyethylene mounting mold, 50mm internal diameter pkg/3 27.50
Qty:




technovit provil with tips
Technovit® Provil Light (#813-710)
with mixing gun (#813-715),
mixing cannulas (#813-711),
and mixing cannula tips (#813-712)

NEW Kulzer Technovit® Provil Impressioning System

Kulzer Technovit® Provil is a self-mixing, low-viscosity silicone impressioning system. Useful for applications such as field metallography, these products come in either light blue or black and can be used to replicate surfaces with <0.1µm deviation. The impression can be cast without loss of surface infomation. Provil products are flexible when cured and leave no residue when removed. Once mixed, the silicone cures quickly at room temperature so mixing cannulas and tips should be considered as consumables.

Kits (#813-710 or #813-716) each contain two cartridges of resin, 12 mixing cannulas, and tips. The Mixing Gun is sold separately.

#813-710,_813-716 SDS (165KB PDF)

technovit provil
Above #813-716, below #813-710



Prod # Description Unit Price Order / Quote
813-710 Kulzer Technovit® Provil Light cartridge (2 x 50mL cartridges and 12 mixing cannulas) each $71.50
Qty:
813-716 Kulzer Technovit® Provil Black cartridge (2 x 50mL cartridges and 12 mixing cannulas) each 74.00
Qty:
813-715 Kulzer Technovit® Provil Mixing Gun each 109.00
Qty:
813-711 Kulzer Technovit® Provil Mixing Cannulas (48 pcs) each 59.00
Qty:
813-712 Kulzer Technovit® Provil Mixing Cannula Tips (96 pcs) each 53.00
Qty:




technovit 2200 with brushes
Technovit® 2220 blue and clear with application brushes,
and replaceable tips #813-722, #813-723
technovit 2200
Technovit® 2200 Light Curing Liquid
#813-720

NEW Kulzer Technovit® 2200 Impressioning System

Kulzer Technovit® 2200 is a two-component impressioning system composed of a low viscosity liquid and a mid-viscosity paste. These products come in either blue or clear and can be used for coating of damaged parts, stabilization of corroded metals, and the fixation of electronic parts. Polymerization time is 40 seconds when using the Pekalux® POWER LED (#813-730) or 5 minutes using the Kulzer Technotray® (#813-580). Technovit® 2210 liquid can be used as a mounting aid or for sample edge protection.

#813-720 SDS (195KB PDF)
#813-721 SDS (166KB PDF)
#813-722,_813-723 SDS (168KB PDF)

Prod # Description Unit Price Order / Quote
813-722 Kulzer Technovit® 2220 Blue (1 x 15g paste, 1 brush, 25 brush tips) each $108.90
Qty:
813-723 Kulzer Technovit® 2220 Clear (1 x 15g paste, 1 brush, 25 brush tips) each 108.90
Qty:
813-720 Kulzer Technovit® 2200 Light Curing Liquid (4 x 15mL liquid, 2 brushes, 25 brush tips) each 292.60
Qty:
813-721 Kulzer Technovit® 2210 Liquid (2 x 1mL syringe, 20 replacement cannulas) each 68.20
Qty:
813-724 Syringes for Kulzer Technovit® 2210 Liquid (5 syringes, 5 end caps) each 30.80
Qty:
813-725 Replacement Cannula Tips for syringes (5 pcs) each 12.70
Qty:



technovit 3040

NEW Kulzer Technovit® 3040 Impressioning System

Kulzer Technovit® 3040 is a methyl methacrylate-based two-part impression system that can be used to create impressions for indirect surface testing. Impression accuracy is 1μm.

#813-700,_813-701 SDS (248KB PDF)
#813-569 SDS (223KB PDF)


impressioning penny

Kulzer Technovit® 3040 1kg Powder (yellow) #813-700, 500mL Universal Liquid #813-569, 1kg Powder (black) #813-701

(Left) #813-700 cast from #813-710 impression. (Right) Impression in #813-701 and #813-710.

Prod # Description Unit Price Order / Quote
813-700 Kulzer Technovit® 3040 Powder, Yellow, 1kg each $107.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-701 Kulzer Technovit® 3040 Powder, Black, 1kg each 107.00
Qty:
813-702 Kulzer Technovit® 3040 Yellow Combipack, (100g Yellow Powder, 80mL Universal Liquid) each 36.00
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
813-569 Kulzer Technovit® Universal Liquid, 500mL each 57.20
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
