PELCO® UVC3 Cryo Chamber

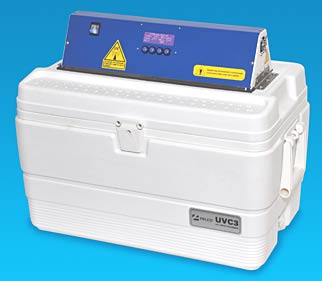

PELCO UVC3 Cryo Chamber
PELCO® UVC3 Exterior/Control Panel		 ultraviolet cryo chamber for low temperature curing / ultraviolet curing of polymers or resins
PELCO® UVC3 Interior


6202 UVC2 control panel
Control Panel

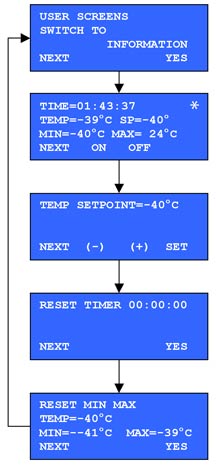

UVC3 UV Cryo Chamber Screen Chart for Intuitive Programming		 The PELCO® UVC3 Cryo Chamber has been specifically designed to provide an economical yet precisely controlled low temperature environment for polymerization of polymers and resins for cryo specimen preparation. It can also be used for dehydration and infiltration of cryo specimens. This simple and functional unit has a large insulated chamber and comprises fully automatic temperature control for the polymerization process of embedding resins and polymers.

Features

  • Liquid crystal display and PLC control
  • Fan cooled electronic ballast for UV lamp tubes
  • Temperature range can be set from -10°C to -40°C (14°F to -40°F)
  • Includes memory function for Min/Max temperatures during any run
  • 365nm ultraviolet lamps thermally shielded by dual pane Plexiglas
  • Holds up to 66 samples with BEEM® Cryo Capsule Holders
  • Perfect for Unicryl, LR White, LR Gold, Lowicryls, JB-4, Quetols and all other resins cured by 365nm UV radiation
  • Universal voltage

Operation

  • Add dry ice to the chamber
  • Set temperature (-10°C to -40°C / 14°F to -40°F)
  • Turn on UV lamp and cure embedding resins

Specifications

UV Light Source Two 15-watt self-filtering long wavelength tubes
1600 µW/cm_ of 365nm UV radiation at 15cm (6")
Temperature Control -10°C to -40°C (14°F to -40°F) Typically +/- 1.5 °C
Control Type LCD Display with PLC with function buttons
Exterior Dimensions 64.l L x 36.8 W x 48.9cm H (25.25" L x 14.50" W x 19.25" H)
Interior Dimensions 56.5 L x 30.5 W x 33.7cm H (22.25" L x 12" W x 13.4" H)
Power Requirements 110 - 240VAC, 50/60Hz (240V-0.5A, 110V-1A)
Weight 11.4 kg (25 lbs.) / Shipping weight: 18.2kg (40 lbs.)

Manufactured in USA

Prod # Description Unit Price Order / Quote
6202 PELCO® UVC3 Cryo Chamber, 110 - 240VAC, 50/60Hz, includes 3 BEEM® Cryo Capsule Holders each $2950.00
Qty:
6207 BEEM® Cryo Capsule Holder for UV Curing each 16.25
Qty:
10506 Flat Embedding Mold, PTFE, with metal frame, 16 cavities each 76.50
Qty:
10506-10 Flat Embedding Mold, PTFE, with metal frame, 11 size 00 cavities each 75.00
Qty:
10508 Flat Embedding Mold, PTFE, with metal frame, 3 cavities each 76.50
Qty:
23065 Ultraviolet Tube, 15 watts (2 required) each 51.25
Qty:
