SEM Supplies & Accessories Overview

SEM Pin Mount Specimen Holders

for Scanning Electron Microscopy

A large selection of SEM Specimen Holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8") pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9). Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs.



Variable Tilt Holders
NEW style available!

Multi-Pin Stub Holders

PELCO® Q Multi Pin Holders

Multi Purpose / Bulk Holders

Vise Clamp Holders

Angled Pin Stub Holders

FIB Grid Holders
NEW style available!

TEM Grid Holder

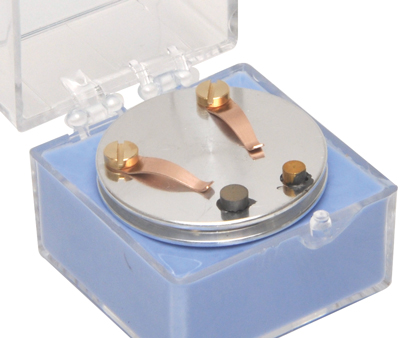

TEM 4 Grid Holder for SEM

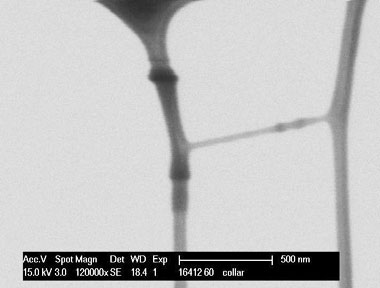

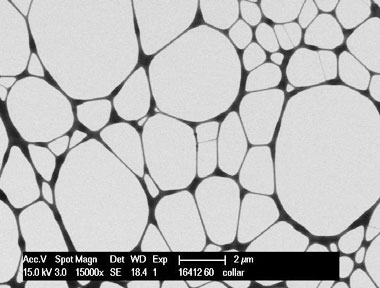

STEM Imaging Holder

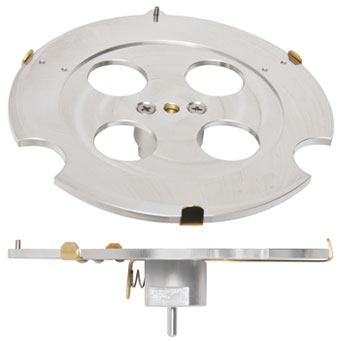

Wafer Holders; 1-6"



Slotted Pin Stubs

Bulk Specimen Holders

Carbon Planchet Holders

Metallographic Mount Holders

Filter Holders, Pin

PELCO SEMClamp™ Holders

PELCO SEMClip™ Geological
Thin Section Holders


E-Beam Lithography Mount

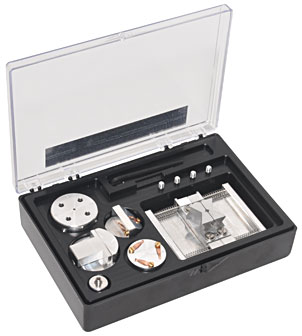

PELCO® SEM Pin Mount
Sample Holder Set


PELCO® Universal SEM
Sample Holder Set





Variable Tilt Holders

Made in USA
cross sectional holder SEM specimen mount

Cross-Sectional Holder

3.2mm pin (1/8") and flat point to allow easy angle changes. Insert specimens edge-on and observe the break directly. Accommodates sample thickness up to 6.35mm (1/4"). Non-magnetic stainless steel. Overall height is 30mm (1.2") from the pivot point. The clamping part is a 16mm (0.62") cube w/o thumb screws.

Screw used is 4-40 x 1/2 Thumb

Prod # Description Unit Price Order / Quote
15325 Cross-Sectional Holder each $99.00
Qty:
Compact Variable Tilt Mount

Compact Variable Tilt Mount

This compact variable tilt specimen mount allows for easy mounting and tilting small samples from 0° – 90° and SEM investigation with small working distances. Markings for 30°, 45°, 70° and 90°. Table size is 11x14mm (0.46" x 0.55"). Overall size is 14 x 14.3 x14.5mm (0.55" x 0.56" x 0.57"). Made of aluminum with stainless steel screw. Allen wrench included.

Screw used is M2 x 0.4mm x 12mm Hex SHCS

Prod # Description Unit Price Order / Quote
15339 Compact Variable Tilt Mount, pin each $70.95
Qty:

cross sectional holder SEM specimen mount

Variable Tilt Specimen Holder

Accommodates pin stubs up to 18mm (.7") (pin stub can be locked with set screw in tilt table) or larger specimens with a maximum size of 26 x 20mm. Tilts 0 - 90° with 10° markings. Additional markings for 30°, 45°, and 70°. Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H. Made of aluminum with stainless steel screws. Allen wrench included.

Screws used are M2 x 0.4mm x 6mm Hex SHCS and M2 x 0.4mm x 3mm Hex Socket type 1 Cup Pt-SS

Prod # Description Unit Price Order / Quote
15450 Variable Tilt Specimen Holder each $324.50
Qty:
tilt pin mount front tilt pin mount back view
front back

Tilt Mount

This tilt specimen mount allows for easy mounting and tilting of small samples from 0° – 70°. It has index angle markings, with maximum 70° stop for EBSD. Specimen platform is 12.7mm (0.50" in diameter). Overall height is 12.7mm (0.50").  Made of aluminum with stainless steel screw. Allen wrench included.

Prod # Description Unit Price Order / Quote
15452 Tilt Mount, pin each $68.20
Qty:
cross sectional holder SEM specimen mount

NEW Fiber Holder, Pin Stub

This spring-closing vise mount allows for easy clamping and tilting of small rod or fiber samples up to 3mm (0.12") in diameter, It has a tilt range from 0° – 90° with index angle markings. Specimen platform is 12.7mm (0.50" in diameter), clamp is ~19mm (0.75")  long and the fixture has an overall height is approximately 19mm (0.75"). Made of aluminum and stainless steel.

Prod # Description Unit Price Order / Quote
15453 Fiber Holder, Pin Stub each $71.00
Qty:


Multi-Pin Stub Holders

Made in USA
Multi-Pin Specimen Mount

Multi-Pin Specimen Mount

Accommodates up to four standard 12.7mm (1/2") pin stubs, with 3.2mm (1/8") diameter pin. Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Dimensions are Ø31.5 x 10.7mm (1.24 x 0.42") w/o pin. Standard Ø3.2mm (1/8") pin with a length of 9.5mm (3/8").

Multi-Pin Specimen Mount

Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
15310 Multi-Pin Specimen Mount, 4 x 3.2mm each $54.75
Qty:
Multi Holder for 6 Pin Stubs

Multi Holder for 6 Pin Stubs

Accommodates up to six standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin on numbered positions. Can hold up to three 25.4mm (1") pin stubs. Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Holder size is Ø42 x 10.7mm (Ø1.65" x 0.42") height w/o pin.

Multi Holder for 6 Pin Stubs Multi Holder for 6 Pin Stubs
Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
15310-6 Multi Holder for 6 pin stubs each $83.60
Qty:


Multi Holder for 8 Pin Stubs

Accommodates up to eight standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin on numbered positions. Can hold up to four 25.4mm (1") pin stubs. Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Holder size is Ø50 x 10.7mm (Ø1.97" x 0.42") height w/o pin.

Multi Holder for 8 Pin Stubs Multi Holder with Pin Stubs
Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
15310-8 Multi Holder for 8 pin stubs each $105.60
Qty:
Multi Specimen Holder for 12 pin stubs
Multi Holder for 12 Pin Stubs

Multi Holder for 12 Pin Stubs

Accommodates up to twelve standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin on numbered positions. Can hold up to four 25.4mm (1") pin stubs. Material: machined aluminum with stainless steel allen set screws. Holder size is Ø62 x 10.7mm (Ø2.44" x 0.42") height w/o pin.

Multi Holder with pin stubs Multi Holder for 12 pin stubs with large mounts
Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
15310-12 Multi Holder for 12 pin stubs each $116.60
Qty:
Multi Holder for 29 Pin Stubs

Multi Holder for 29 Pin Stubs

Accommodates up to 29 standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. Made of aluminum with 302 type stainless steel springs to hold the pin stubs. Holder size is Ø90 x 5mm (Ø3.5" x 0.2") height w/o pin.

Screw used is 2-56 x 3/16, Flat Head, SS

Prod # Description Unit Price Order / Quote
15310-29 Multi Holder for 29 pin stubs each $263.45
Qty:

Multi Holder for 49 Pin Stub

Multi Holder for 49 Pin Stubs

Accommodates up to 49 standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. Made of aluminum with 302 type stainless steel springs to hold the pin stubs. Holder size is Ø117 x 5mm (Ø4.6" x 0.2") height w/o pin.

Screw used is 2-56 x 3/16, Flat Head, SS

Prod # Description Unit Price Order / Quote
15310-49 Multi Holder for 49 pin stubs each $438.35
Qty:

16142-25P
4 Pin Holder, 25mm Diameter
(#16142-25P)

16142-25P

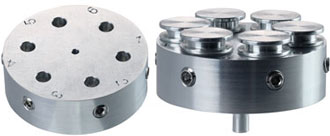

6 Pin Holder, 32mm Diameter
(#16142-32P)

16142-25P
Ø9.6mm Small Pin Stub
(#16142)

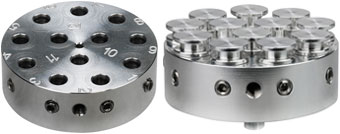

Multi Holders for Smaller Diameter Pin Stubs

The 25mm diameter holder (#16142-25P) can accommodate up to four Small Diameter Pin Stubs, and the larger 32mm diameter (#16142-32P) holder can accommodate up to six. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Shown with and without Small Pins Stubs (Product #16142 Special Small Head Ø9.6mm, pin 8mm length x 3.2mm diameter), which are sold separately.

#16142-25P Dimensions are Ø25 x 10mm (0.98 x 0.39") without pin.
#16142-32P Dimensions are Ø32 x 10mm (1.26 x 0.39") without pin.

Standard Ø3.1mm (1/8") pin with a length of 9.5mm (3/8").

Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
16142-25P Multi Holder for 4 x Small Ø9.6mm Pin Stubs, pin each $85.90
Qty:
16142-32P Multi Holder for 6 x Small Ø9.6mm Pin Stubs, pin each 102.55
Qty:

Prod # Description Unit Price Order / Quote
16142 Special Small Pin Stub, aluminum, grooved edge pkg/50 $92.50
Qty:
Multi Holder for 49 Pin Stub

Multi Holder for 49 Pin Stub

PELCO® Q Multi Holders

Square PELCO® Q Multi Pin Stub Holders with 1/8" mounting pin enable easier location of the pin stubs with X-Y stage movements. The 4 and 8 stub holders use M3 set screws to secure pin stubs. The 16, 24, 36 and 48 stub holders have a unique spring assisted holding design to securely hold pin stubs. They have a notch for indexing and lines for alignment when using the square PELCO® Q Pin Stubs. Available for 4, 8, 16, 24, 36 and 48 of the 12.7mm (1/2") pin stubs. The multi holders for 8 or more pin stubs are also compatible with a lower number of 25.4mm (1") pin stubs or a mixture of 12.7 and 25.4mm pin stubs.

Screw used is M3 x 6mm, Flat, Set, SS

Prod # Description Unit Price Order / Quote
15334-22 PELCO® Multi Holder for 4 ea 12.7mm (1/2") pin stubs, 29 x 29 x 10mm each $65.45
Qty:
15334-33 PELCO® Multi Holder for 8 ea 12.7mm (1/2") pin stubs, 43 x 43 x 10mm each 98.45
Qty:
15334-44 PELCO® Multi Holder for 16 ea 12.7mm (1/2") or 4 ea 25mm (1") pin stubs, 57 x 57 x 10mm each 131.45
Qty:
15334-55 PELCO® Multi Holder for 24 ea 12.7mm (1/2") pin stubs, 71 x 71 x 10mm each 208.45
Qty:
15334-66 PELCO® Multi Holder for 36 ea 12.7mm (1/2") or 9 ea 25mm (1") pin stubs, 85 x 85 x 10mm each 323.95
Qty:
15334-77 PELCO® Multi Holder for 48 ea 12.7mm (1/2") pin stubs, 99 x 99 x 10mm each 468.05
Qty:

Multi Specimen Mount Holder for SEM cylinder mounts

Multi-Unit Specimen Mount

Holds five 9.5mm specimen mounts. Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Holder size is Ø31.5 x 11.5mm

Screw used is 6-32 x 1/8, Hex Set, SS

Prod # Description Unit Price Order / Quote
15315 Multi-Unit Specimen Mount, 5 x 9.5mm each $68.20
Qty:


Multi Purpose / Bulk Holders

Made in USA
multi purpose SEM specimen mount
bulk specimen holder metallurgical mount
15305 may be used for bulk specimens (left) or metallurgical mounts (right)

Multi-Purpose Specimen Mount

compatible with 3.2mm pin stub holder
bulk or irregularly shaped specimens up to 25mm or 1"

Accepts up to 25mm (1") diameter metallurgical mounts. Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Holder size is Ø31.5 x 11mm.

Screw used is 6-32 x 1/2, Hex Set, SS

Prod # Description Unit Price Order / Quote
15305 Multi-Purpose Specimen Mount each $69.10
Qty:
Specimen holder for cylinders up to 22mm

Cylinder Holder, 22mm (7/8")

Specimen holder for cylinders up to 22mm (7/8"), standard pin stub 3.2mm (1/8"). Made of aluminum with stainless steel Allen screw. Allen wrench included.

Screw used is M3 x 6mm, Soc Cap, SS

Prod # Description Unit Price Order / Quote
15302 Specimen Holder for Cylinders up to 22mm (7/8") each $48.40
Qty:
bulk SEM specimen holder for Scanning Electron Microscopy bulk specimen holder for SEM

Bulk Specimen Holder

Shown holding a mineral specimen. Maximum diameter of specimen area is 32mm (1.25"). Machined aluminum with short and long stainless steel allen set screws. Allen wrench included.

Screws used are M3 x 20mm, Set, SS and M3 x 10mm, Set, SS

Prod # Description Unit Price Order / Quote
15308 Bulk Specimen Holder, 32mm, pin, aluminum each $99.00
Qty:
Large Bulk Specimen Holder Large Bulk Specimen Holder with 32mm pin

Large Bulk Specimen Holder

The large bulk specimen holder holds irregular or round specimens up to 51mm (2") diameter. Machined aluminum with short and long stainless steel allen set screws. Allen wrench included

Screw used is M3 x 20mm, SS

Prod # Description Unit Price Order / Quote
15324 Large Bulk Specimen Holder, 51mm, pin, aluminum each $119.90
Qty:


Vise Clamp Holders

Made in USA
Micro Vise Scanning Electron Microscopy specimen holder

Micro Vise

compatible with pin stub holder

A fast and clean way to hold specimens for SEM. The jaws are 25.4mm (1") wide. Maximum gap is 11mm (7/16"). Material: machined aluminum with stainless steel allen screw. Allen wrench included.

Screws used are 6-32 x 3/4 Soc Head, Vent and 6-32 x 5/16 Flat Head, SS

Prod # Description Unit Price Order / Quote
15340 Micro Vise, 3.2mm (1/8") pin each $126.50
Qty:

Small Springloaded Vise Clamp closed
closed position with pushrod in place

Small Springloaded Vise Clamp with specimen
holding specimen in place with pushrod removed

Small Springloaded Vise Clamp with pin
side angle to show pin placement

Small Springloaded Vise Clamp

Small Springloaded vise clamp for samples up to 12.7mm (1/2"). The jaws are 25mm (1") wide. Jaws also accommodate 1/16 x 1/2" stainless steel pins for more awkward shaped samples. 4 pins are included. Removable pushrod for easy loading is provided. Material: machined aluminum with stainless steel pins and springs. Overall size of vise clamp w/o pin and pushrod 30 x 25 x 12.5mm (1.18 x 1 x 1/2").

Technical Notes, Small Springloaded Vise Clamp (276KB PDF)

Screw used is 2-56 x 1/8, Set Cup, SS

Prod # Description Unit Price Order / Quote
15341 Small Springloaded Vise Clamp, Pin each $218.35
Qty:
15341-20 Replacement Pins for Vise Clamp, 1/2" long pkg/10 35.75
Qty:

Springloaded Vise Clamp

Springloaded Vise Clamp

Springloaded vise clamp for samples up to 26mm. The jaws are 25mm (1") wide. Jaws also accommodate 1/16" x 1/2" stainless steel pins for more awkward shaped samples. 4 pins are included. Removable pushrods for easy loading are provided. Material: machined aluminum with stainless steel pins and springs. Overall size of vise clamp w/o pin and push rods 50 x 25 x 15mm (2 x 1 x 5/8").

Technical Notes, Springloaded Vise Clamp (169KB PDF)

Screw used is 2-56 x 1/8, Set Cup, SS

Prod # Description Unit Price Order / Quote
15343 Springloaded Vise Clamp, pin each $338.80
Qty:
15341-20 Replacement Pins for Vise Clamp, 1/2" long pkg/10 35.75
Qty:

Universal Spring Loaded Vise Clamp
Universal Springloaded Vise holding a bolt
shown holding a screw

Universal Springloaded Vise

Springloaded vise clamp with reversible jaws for an opening up to 38mm. The universal jaws have special slots to firmly hold round samples of various diameters both horizontally and vertically. Maximum width of the jaws is 32mm. Material: machined aluminum with stainless steel springs, rods, screws, washers, and brass sliders. Overall size of the vise clamp w/o pin is 67 x 52 x 20mm (2.64 x 2 x 0.8").

Screw used is 2-56 x 1/8, Set Cup, SS

Prod # Description Unit Price Order / Quote
15342 Universal Springloaded Vise with Reversible Clamps, Pin each $249.15
Qty:

PELCO® Large Universal Vise Clamp

PELCO® Large Universal Vise Clamp

The large and extremely versatile vise clamp is intended for large and heady samples or awkwardly shaped samples. Will clamp samples between 0-90mm. The two bases move 0-25mm. The array of holes take precision stainless steel 1/16" pins (10 pins are included) for either clamping the sample or for positioning the vise clamps (included). Each base has 9 positions for the vise clamp to enable optimum holding of samples up to 90mm. Overall size is 40W x 90L x 25mmH (1.6" x 3.5" x 1"). Standard 3.2mm (1/8") pin with 9.5mm (3/8") length.

Screw used is 2-56 x 1/8, Set Cup, SS

Prod # Description Unit Price Order / Quote
15475 PELCO® Large Universal Vise Clamp, Pin each $742.50
Qty:
15475-10 Replacement Vise Clamps for Large Universal Vise pkg/2 126.50
Qty:
15475-20 Replacement Pins for Large Universal Vise, 3/4" long pkg/10 35.75
Qty:
PELCO
#15477 / 102mm (4")
#15476 / 152mm (6")
#15478 / 203mm (8")

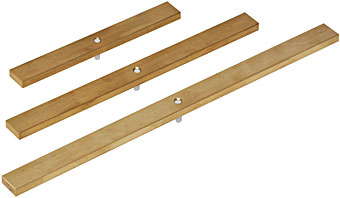

PELCO Bar for Bar Clamp Vise with pin
#15477-40 / 102mm (4")
#15476-60 / 152mm (6")
#15478-80 / 203mm (8")

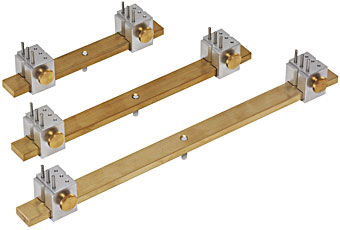

PELCO® Bar Clamp Vise, 4", 6" and 8"

The PELCO® Bar Clamp Vise is available in three lengths; 102mm (4"), 152mm (6") and 203mm (8") with the same clamps for each version. This bar type clamp can accommodate specimens up to 72mm (3"), 127mm (5") and 178mm (7") in length respectively. The jaws are reversible, offering different clamping options and they operate independently anywhere on the clamping bar. This will allow for positioning the region of interest of the specimen within the travel range of the SEM stage. Stainless steel 1/16" pins (6 pins are included) can be placed on the clamps for awkwardly shaped samples. Clamping bars and clamps can be purchased additionally to make up the best functional set for the job at hand. Made of vacuum grade aluminum with brass bar and brass thumbscrews and stainless steel type 316 dowels. Standard 3.2mm (1/8") pin with 9.5mm (3/8") length.

Replacement Clamp for PELCO Bar Clamp Vise
#15477-10
Overall size for the 102mm(4") version: LxWxH 102 x 22 x 19mm (4" x 7/8" x ¾")
Overall size for the 152mm (6") version: LxWxH 152 x 22 x 19mm (6" x 7/8" x ¾")
Overall size for the 203mm (8") version: LxWxH 203 x 22 x 19mm (8" x 7/8" x ¾")

PELCO® Technical Notes: PELCO® Bar Clamp Vise, 4, 6, and 8" (80KB PDF)

Screw used is 4-40 x 3/8, Thumb, Brass

Prod # Description Unit Price Order / Quote
15477 PELCO® Bar Clamp Vise, 102mm (4"), complete with bar and two clamps, Pin each $445.50
Qty:
15476 PELCO® Bar Clamp Vise, 152mm (6"), complete with bar and two clamps, Pin each 473.00
Qty:
15478 PELCO® Bar Clamp Vise, 203mm (8"), complete with bar and two clamps, Pin each 500.50
Qty:
15477-10 Additional Clamp for 102mm (4"), 152mm (6") or 203mm (8") bar each 170.50
Qty:
15477-40 Additional 102mm (4") bar, Pin each 137.50
Qty:
15476-60 Additional 152mm (6") bar, Pin each 159.50
Qty:
15478-80 Additional 203mm (8") bar, Pin each 187.00
Qty:
15341-20 Replacement Pins for Vise Clamp, 1/2" long pkg/10 35.75
Qty:



Small FIB Grid Holder, ø12.7mm, pin
#15464 shown
holding two FIB grids

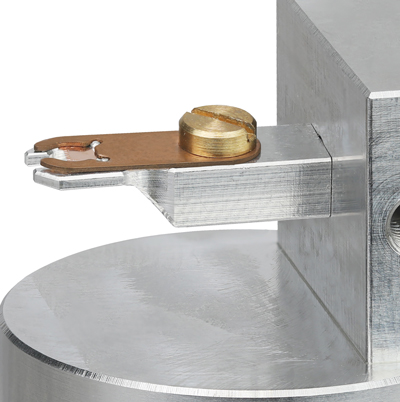

PELCO® Small FIB Grid Holder

Simple, but effective PELCO® FIB grid holder based on a standard ø12.7mm (1/2") pin stub. This holder holds up to 2 FIB grids of the same thickness. Can also be used to safely store FIB grids with thin sections with attached to them. Overall dimensions are ø12.7mm (1/2") x 7.8mm (0.3") H w/o pin. Pin is standard ø3.2mm (1/8"). Material: vacuum grade aluminum with brass screw. Philips screwdriver #0 included.

Prod # Description Unit Price Order / Quote
15464 PELCO® Small FIB Grid Holder, ø12.7mm, Pin each $60.00
Qty:
15464-20 Replacement Brass Screws pkg/10 8.50
Qty:

15467 Drawing
#15467 profile view
PELCO® Single 1/2" FIB Sample and Grid Holder
#15467

15487 Drawing
#15487 profile view
Low Profile PELCO® Single 1/2" FIB Sample and Grid Holder
#15487 shown
with one FIB grid

NEW PELCO® Single 1/2" FIB Sample & Grid Holder

The PELCO® Single FIB Sample and Grid Holder holds a FIB sample mounted on a pin stub for FIB milling and lift-out procedures. It also holds two FIB grids conveniently close to the sample to mount and prepare TEM lamellae on the FIB grid for subsequent TEM imaging.

There are two height options: standard and low profile. The standard height comes with a #16111 pin stub and the pin length of the mount is 9.5mm (3/8") while the low profile comes with a #16176 pin stub and the pin length of the mount is 6.5mm (1/4"). The low profile holder is primarily for systems that require shorter pin mounts and/or sample heights.  This compact and cost effective holder is suitable for all FIB/SEM systems which accept pin mount holders, such as the Thermo Fisher/FEI, ZEISS and TESCAN systems. For the JEOL and Hitachi systems a pin mount adapter is needed.

The standard height (#15467) is made of vacuum grade aluminum with brass screws. Philips screwdriver #0 included. Overall size of 15467 is 22.4 x 12.7 x 11.7mm (0.88 x 0.5 x 0.46"). Pin is 3.2mm (1/8") diameter x 9mm (3/8") length.

The low profile (#15487) is made of vacuum grade aluminum with stainless steel screws. Hex key is included. Overall size of 15487 (excluding pin height) is 22.4 x  12.7 x 7mm (0.88 x 0.5 x 0.28"). Pin is 3.2mm (1/8") diameter x 6.5mm (1/4") length.

Prod # Description Unit Price Order / Quote
15467 PELCO® Single 1/2" FIB Sample and Grid Holder, Pin each $302.50
Qty:
15464-20 Replacement Brass Screws pkg/10 8.50
Qty:
15487 Low Profile PELCO® Single 1/2" FIB Sample and Grid Holder, Pin each 320.00
Qty:

15467 Drawing
#15468 profile view
PELCO® Small FIB Grid Holder#15468

15487 Drawing
#15488 profile view
PELCO® Single 1/2" FIB Sample and Grid Holder
#15488 shown
with two FIB grids

NEW PELCO® Double 1/2" FIB Sample & Grid Holder

The PELCO® Double FIB Sample and Grid Holder holds FIB samples mounted on two standard 1/2" (12.7mm) pin stubs for FIB milling and lift-out procedures. It also holds two FIB grids of the same thickness conveniently close to the sample to mount prepared TEM lamellae on the FIB grid for subsequent TEM imaging.

There are two height options: standard and low profile. The standard height comes with two #16111 pin stubs and the pin length of the mount is 9.5mm (3/8") while the low profile comes with two #16176 pin stubs and the pin length of the mount is 6.5mm (1/4"). The low profile holder is primarily for systems that require shorter pin mounts and/or sample heights. Compact and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders, such as the Thermo Fisher/FEI, ZEISS and TESCAN systems. For the JEOL and Hitachi systems a pin mount adapter is needed.

The standard height (#15468) is made of vacuum grade aluminum with brass screws. Philips screwdriver #0 included. Overall size is 36.5 x 12.7 x 11.6mm (1.44 x 0.5 x 0.46"). Pin is 3.2mm (1/8") diameter x 9.5mm (3/8") length.

The low profile (#15488) is made of vacuum grade aluminum with stainless steel screws. Hex key is included. Overall size of #15488 (excluding pin height) is 36.5 x  12.7 x 7mm (1.44 x 0.5 x 0.28") . Pin is 3.2mm (1/8") diameter x 6.5mm (1/4") length.

Prod # Description Unit Price Order / Quote
15468 PELCO® Double 1/2" FIB Sample and Grid Holder, Pin each $357.50
Qty:
15464-20 Replacement Brass Screws pkg/10 8.50
Qty:
15488 Low Profile PELCO® Double 1/2" FIB Sample and Grid Holder, Pin each 370.00
Qty:

Multiple FIB Grid Holder

PELCO® Multiple FIB Grid Holder

Larger FIB grid holder capable of holding multiple FIB grids of the same thickness. Can also be used to safely store FIB grids with thin section (lamellae) attached to them. Brass thumbscrews facilitate easy loading and unloading. Overall dimensions 22.5 x 29 x 13.5mm (7/8 x 1-1/8 x 5/8"). Standard 3.2mm (1/8") pin. Material: vacuum grade aluminum with brass thumbscrews.

Screw used is 4-40 x 3/8, Thumb, Brass

Prod # Description Unit Price Order / Quote
15466 PELCO® Multiple FIB Grid Holder each $125.00
Qty:

FIB Sample Prep and Grid Holder

PELCO® 1" FIB Sample and Grid Holder

The FIB Sample Prep and grid Holder holds an FIB sample mounted on a standard 25mm (1") pin stub for FIB milling and lift out procedures. It also holds FIB grids of the same thickness to mount the prepared lamellae on an FIB grid for subsequent TEM imaging. Versatile and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders such as the FEI, ZEISS and Tescan systems. For the JEOL and Hitachi systems a pin mount adapter is needed. Brass thumbscrews facilitate easy loading and un-loading.

Overall size is 50 x 29 x 13.5mm (2 x 1-1/8 x 5/8"). Standard ø3.2mm (1/8") pin. Material: vacuum grade aluminum with brass screws.

Screws used are 4-40 x 3/8, Thumb, Brass and 6-32 x 1/2, Thumb, Brass

Prod # Description Unit Price Order / Quote
15465 PELCO® 1" FIB Sample and Grid Holder, Pin each $275.00
Qty:

16175-12
PELCO Fortress FIB Holder and Sample Loader PELCO Fortress FIB Holder and Sample Loader
#15484 #15484-1

PELCO® Fortress FIB Holder™ & Sample Loader

The PELCO® Fortress FIB Holder™ is used for TEM sample preparation and storage. The PELCO® Fortress FIB Holder™ is the former South Bay Technology Fortress FIB Holder. FIB lift-out grids are clamped securely in place by a tensioned spring without the need for adhesives. Sample loading is easy when the PELCO® Fortress FIB Holder™ is paired with the Sample Loader. Paired with a pin stub desiccator or other pin stub storage container, the PELCO® Fortress FIB Holder™ securely stores FIB grids with lamella attached. This holder is suitable for all FIB/SEM systems which accept pin mount holders such as Thermo Fisher Scientific/FEI, ZEISS and Tescan systems. For the JEOL and Hitachi systems a pin mount adapter is needed.

Overall size is 20.7 x 14.6 x 13.2mm (0.81 x 0.5 x 0.52"), pin included. Standard ø3.2mm (1/8") pin. Material: vacuum grade aluminum with stainless steel thumbscrew.

Screw used is 4-40 x 1/2, Thumb, Stainless Steel

PELCO® Technical Notes, PELCO® Fortress Holder™ & PELCO® Fortress Sample Loader™ (612KB PDF)

Prod # Description Unit Price Order / Quote
15484 PELCO® Fortress FIB Holder™, Pin each $135.00
Qty:
15484-1 PELCO® Fortress Sample Loader™ each 58.00
Qty:


Angled Pin Stub Holders

Made in USA
45° Pin Stub Holder

45° Pin Stub Holder

Accepts standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. 45° gives higher SE signal w/o tilting specimen stage. Grooved, machined aluminum with stainless steel Allen set screw. Allen wrench included.

Screw used is M3 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
15329 45° Pin Stub Holder, 3.2mm (1/8") Pin each $43.45
Qty:

45° Multi Holder for 3 Pin Stubs

45° Multi Holder for 3 Pin Stubs

Accepts standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. Pre-Tilt 45° gives higher SE signal w/o tilting specimen stage. Material: machined aluminum with stainless steel Allen set screws. Allen wrench included. Diameter of holder is 25.4mm (1")

Screw used is M3 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
15329-3 45° Multi Holder for 3 Pin Stubs, 3.2mm (1/8") Pin each $74.80
Qty:

45° Multi Holder for 6 Pin Stubs

45° Multi Holder for 6 Pin Stubs

Accepts standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. Pre-Tilt 45° gives higher SE signal w/o tilting specimen stage. Material: machined aluminum with stainless steel Allen set screws. Allen wrench included. Diameter of holder is 35mm (1-3/8")

Screw used is M3 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
15329-7 45° Multi Holder for 6 Pin Stubs, 3.2mm (1/8") Pin each $126.50
Qty:
 - 15329-70

70° EBSD Pre-Tilt Stub Holder, pin

70° EBSD Pre-Tilt Holder accepts standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. Grooved, made of machined aluminum with stainless steel Allen set screw. Allen wrench included.

Screw used is M3 x 3mm, Set, stainless steel set screw, stainless steel

Prod # Description Unit Price Order / Quote
15329-70 70° and 20° EBSD Pre-Tilt Stub Holder, pin each $53.90
Qty:
Large Set Screw Vise sem specimen holder

70° and 20° EBSD Pre-Tilt Stub Holder, Pin

70° and 20° EBSD Pre-Tilt Holder accepts standard pin stubs. Holder is machined from aluminum with pin 7.9mm (5/16") long and standard 3.2mm (1/8") diameter. Allen set screw is M3 x 3mm made of stainless steel. Allen wrench included.

Prod # Description Unit Price Order / Quote
15463-70 70° and 20° EBSD Pre-Tilt Stub Holder, pin each $74.80
Qty:
36° Pre-Tilt Pin Stub Holder - 15329-36

36° Pin Stub Holder ZEISS/LEO FIB Pre-Tilt

Accepts standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin. 36° Pre-Tilt for ZEISS/LEO Cross Beam & other FIB Systems. Grooved, machined aluminum with stainless steel Allen set screw. Allen wrench included.

Screw used is M3 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
15329-36 36° Pin Stub Holder ZEISS/LEO FIB Pre-Tilt, 3.2mm (1/8") Pin each $52.80
Qty:

45/90 degree Combination Holder for SEM 45 / 90 degree SEM Specimen Holder with pin
shown holding silicon chip and pin stub

45°/90° Combination Holder

Combined specimen holder for 90° cross sections of wafers or thin samples up to 6.35mm (1/4") and a pin stub at 45°. Made of aluminum with stainless steel set screws. Allen wrench included.

Screws used are 6-32 x 3/8, Set, 316 SS and 6-32 x 1/4, Set, 316 SS

Prod # Description Unit Price Order / Quote
15358 45° / 90° Combination Holder, Pin each $108.35
Qty:



Slotted Pin Stubs

Made in USA
split sem specimen mount

Thin Specimen Split Mount on Pin Stub

12.7mm (1/2") dia., 3.2mm (1/8") dia. pin
pin length 8mm (.314"
)

For examination of thin samples from textiles, plants, paper, plastics, metals, etc., in cross section. Special wide opening up to 6.4mm (1/4"). Grooved head. Height of head is 7.4mm (0.29"). Pin is centered. Material: machined aluminum with stainless steel allen set screw. Allen wrench included.

Screw used is 2-56 x 3/8, Hex, Set, Stainless Steel

Prod # Description Unit Price Order / Quote
15330 Thin Specimen Split Mount, 1/2", 8mm L pin each $35.40
Qty:

AMRAY SEM Split Mount SEM Specimen Holder

Thin Specimen Split Mount (AMRAY)

15mm (0.59") dia., 3.2mm (1/8") dia. pin
pin length 14.3mm (9/16")

Opens to 3.75mm (3/8"). Height of head is 10.2mm (0.4") and split is centered. Pin is off-center. Material: machined aluminum with two stainless steel allen set screws. Allen wrench included.

Screw used is 2-56 x 1/4 Hex Soc, Set, SS

Prod # Description Unit Price Order / Quote
15331 Thin Specimen Split Mount, AMRAY each $42.90
Qty:

SEM Set Screw Vise Specimen Holder

Set Screw Vise

Single stainless steel set screw into an open slot that is 4mm (.157") wide x 5mm (.197") deep.
12.7mm (1/2") dia. x 17.7mm (0.70") high. Material: machined aluminum with stainless steel allen set screw. 3.2mm (1/8") dia. pin. Allen wrench included.

Screw used is M3 x 6mm, Set, Stainless Steel

Prod # Description Unit Price Order / Quote
16350 Set Screw Vise, Ø12.7mm each $22.90
Qty:

Large Set Screw Vise sem specimen holder

Large Set Screw Vise

Set screw vise with an open slot of 10mm (.394") wide x 5mm (0.197") deep. ø25mm (1") x 17.5mm (0.69") high. Material: machined aluminum with stainless steel set screw. 3.2mm (1/8") dia. Pin. Allen wrench included.

Screws used are M3 x 6mm, Flat, Set, SS and M3 x 8mm, Flat, Set, SS

Prod # Description Unit Price Order / Quote
15471 Large Set Screw Vise, Ø25mm each $32.55
Qty:

Large Set Screw Vise sem specimen holder Large Set Screw Vise sem specimen holder

Wider Version Large Set Screw Vise

Set screw vise with an open slot of 13.2mm (0.520") wide x 3.9mm (0.155") deep. Ø25mm (1") x 17.5mm (0.69") high. Made of machined aluminum with stainless steel set screws. Two sizes of set-screws included, M3 x 6mm and M3 x 8mm. Holder has a 9.5mm long 3.2mm (1/8") diameter pin. Allen wrench included. Also shown on right holding a UHV-EL Reference Standard for EDS/WDS (not included).

Prod # Description Unit Price Order / Quote
15474 Wider Version Large Set Screw Vise, Ø25mm each $37.95
Qty:

SEM Double Slotted Set Screw Vise Specimen Holder

Double Slotted Mini Vise

Double Slotted set screw vise with 2 ea. 1mm wide by 3mm deep slots, pin 3.2mm (1/8"). Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M2 x 3mm, Set, Stainless Steel

Prod # Description Unit Price Order / Quote
16340 Double Slotted Set Screw Vise, Ø15mm each $23.55
Qty:

Large Double Slotted Vise specimen mount

Large Double Slotted Vise

Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots. Dimensions ø25x8 mm (1 x 0.32") with 3.2mm (1/8") pin. Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.d.

Screw used is M3 x 6mm, Flat, Set, SS

Prod # Description Unit Price Order / Quote
15472 Large Double Slotted Set Screw Vise, Ø25mm each $32.80
Qty:

SEM Tube/Needle Clamp

Tube/Needle Clamp

Small tube, needle or wire clamp based on a standard Ø12.7mm (1/2") pin stub. Ideal for examining wire cross-sections or needle tips. Holds tube, wires and needles up to Ø2mm (0.08"); hole is 6.5mm (1/4") deep. Material: vacuum grade aluminum with a stainless steel set screw. Allen wrench included.

Screw used is 2-56 x 1/8, Set Cup, SS

Prod # Description Unit Price Order / Quote
15290 Tube/Needle Clamp, Ø12.7mm, pin each $26.95
Qty:



Bulk Specimen Holders

Made in USA
sem bulk specimen mount

SEM Bulk Specimen Holder

clamps bulky, irregular samples

Opening is 15.9mm (5/8") wide x 25.4mm (1") long x 9.5mm (3/8") deep. 3.2mm (1/8") dia. pin. Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/2 Hex, Set, SS

Prod # Description Unit Price Order / Quote
15320 PELCO® SEM Bulk Specimen Holder each $90.20
Qty:

Large Bulk Specimen Holder
screws

Large Bulk Specimen Holder

Opening is 32mm (1-1/4") wide x 32mm (1-1/4") long x 13mm (1/2") deep. 3.2mm (1/8") dia. pin. Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/2 Hex, Set, SS

Prod # Description Unit Price Order / Quote
15321 PELCO® Large Bulk Specimen Holder each $114.40
Qty:

X-Large Bulk Specimen Holder
screws

X-Large Bulk Specimen Holder

for up to 2" specimens

Opening is 52mm (2") wide x 40mm (1-1/2") long x 13mm (1/2") deep. 3.2mm (1/8") dia. pin. Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/2 Hex, Set, SS

Prod # Description Unit Price Order / Quote
15322 PELCO® X-Large Bulk Specimen Holder each $145.20
Qty:

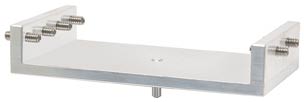

XX-Large Bulk Specimen Holder
screws

XX-Large Bulk Specimen Holder

for up to 3" specimens

Opening is 80mm (3-1/8") wide x 48mm (1-7/8") long x 13mm (1/2") deep. 3.2mm (1/8") dia. pin. Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/2 Hex, Set, SS

Prod # Description Unit Price Order / Quote
15323 PELCO® XX-Large Bulk Specimen Holder each $171.60
Qty:



Carbon Planchet Holders

for Carbon & Vitreous Carbon Planchets
Made in USA
Metallurgical Mount Holder, 25mm (1"

Prod # Description Unit Price Order / Quote
16536 Low Profile Holder for 1/2" (12.2 to 12.7mm) Carbon Planchets, with 6mm Pin each $68.20
Qty:
16537

Prod # Description Unit Price Order / Quote

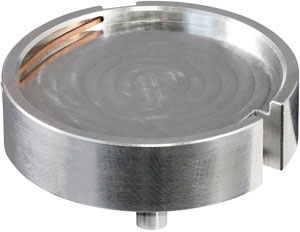

16537 Low Profile Holder for 1" (25.4mm) Carbon Planchets, with 6mm Pin each $74.80
Qty:
16538

Prod # Description Unit Price Order / Quote

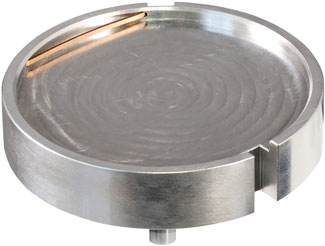

16538 Low Profile Holder for 1.25" (32mm) Carbon Planchets, with 6mm Pin each $79.20
Qty:
15539

Prod # Description Unit Price Order / Quote
15539 Low Profile Holder for 10mm Carbon Planchets, with 6mm Pin each $68.20
Qty:
15542

Prod # Description Unit Price Order / Quote
15542 Low Profile Holder for 15mm Carbon Planchets, with 6mm Pin each $71.50
Qty:
15542

Prod # Description Unit Price Order / Quote

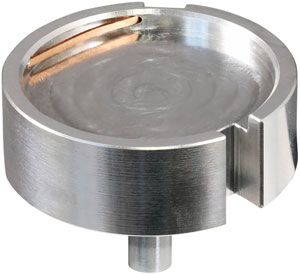

15543 Low Profile Holder for 18mm Carbon Planchets, with 6mm Pin each $71.50
Qty:


Metallographic Mount Holders

go to M4 Metallographic Mount Holders

Made in USA
Metallurgical Mount Holder, 25mm (1" Metallurgical Mount Holder, 25mm (1"

Metallographic Mount Holder, 1" and 25mm

Specimen holder for 1" and 25mm metallographic mounts. Standard pin stub 3.2mm (1/8"). Material: machined aluminum with stainless steel allen screws. Depth 8mm (5/16"). Allen wrench included. Shown holding a specimen, right.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15304 Metallographic Mount Holder, 1" and 25mm dia., 3.2mm (1/8") dia. Pin each $56.65
Qty:
Metallurgical Mount Holder, 31.8mm (1-1/4")

Metallographic Mount Holder, 1-1/4" and 30-32mm

Accepts the standard 1-1/4" and 30-32mm metallographic specimen mount. 3.2mm (1/8") pin . Depth = 8mm (5/16"). Material: machined aluminum with stainless steel allen set screw. Allen wrench included.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15307 Metallographic Mount Holder, 1-1/4" and 30-32mm dia., 3.2mm (1/8") dia. Pin each $68.75
Qty:
Metallurgical Mount Holder, 38.1mm (1-1/2")

Metallographic Mount Holder, 1-1/2" and 38-40mm

Specimen holder for 1-1/2" and 38-40mm metallographic mounts. Standard pin stub 3.2mm (1/8"). Material: machined aluminum with stainless steel allen screws. Depth is 8mm (5/16"). Allen wrench included. Shown holding a specimen, bottom.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15306 Metallographic Mount Holder, 1-1/2" and 38-40mm dia., 3.2mm (1/8") dia. Pin each $80.30
Qty:
Metallurgical Mount Holder, 50.8mm (2")

Metallographic Mount Holder, 2" and 50mm

Specimen holder for 2" and 50mm metallographic mounts. Standard pin stub 3.2mm (1/8"). Material: machined aluminum with stainless steel allen screws. Depth is 8mm (5/16"). Allen wrench included.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15298 Metallographic Mount Holder, 2" and 50mm dia., 3.2mm (1/8") dia. Pin each $86.90
Qty:
15304M

Multi Metallographic Mount Holder, 1" and 25mm

Specimen holder for 4 x 1" and 25mm metallographic mounts. Holder height is 0.41" (10.4mm), not including pin length, with recessed areas 0.31" (7.9mm) deep. Open sides for easier sample removal. Standard pin stub 3.1mm (1/8") diameter x 9.5mm (3/8") length. Material: machined aluminum with stainless steel allen screws. Allen wrench included. Shown holding one metallographic mount (not included).

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15304M Multi Metallographic Mount Holder, 4 x 1" and 25mm dia., 3.1mm (1/8") dia. Pin each $145.00
Qty:
15307M

Multi Metallographic Mount Holder, 1-1/4" and 30-32mm

Specimen holder for 3 x 1-1/4" and 30-32mm metallographic mounts. Holder height is 0.41" (10.4mm), not including pin length, with recessed areas 0.31" (7.9mm) deep. Open sides for easier sample removal. Standard pin stub 3.1mm (1/8") diameter x 9.5mm (3/8") length. Material: machined aluminum with stainless steel allen screws. Allen wrench included. Shown holding two metallographic mounts (not included).

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15307M Multi Metallographic Mount Holder, 3 x 1-1/4" and 30-32mm dia., 3.1mm (1/8") dia. Pin each $150.00
Qty:
15306M

Multi-Metallographic Mount Holder, 1-1/2" and 38-40mm

Specimen holder for 3 x 1-1/2" and 38-40mm metallographic mounts. Holder height is 0.41" (10.4mm), not including pin length, with recessed areas 0.31" (7.9mm) deep. Open sides for easier sample removal. Standard pin stub 3.1mm (1/8") diameter x 9.5mm (3/8") length. Material: machined aluminum with stainless steel allen screws. Allen wrench included. Shown holding three metallographic mounts (not included).

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS

Prod # Description Unit Price Order / Quote
15306M Multi Metallographic Mount Holder, 3 x 1-1/2" and 38-40mm dia., 3.1mm (1/8") dia. Pin each $155.00
Qty:
Low Profile

Metallographic Mount Holder, 2"or 51mm Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1" and 25mm

Specimen holder for 1" and 25mm metallographic mounts and other cylindrical 1" diameter samples. Holder height is 0.33" (8.4mm, not including pin) with a recessed area 0.15" (3.8mm) deep. Pin is short 6mm length with standard 3.2mm (1/8") diameter. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a UHV-EL Reference Standard for EDS/WDS (not included).

Prod # Description Unit Price Order / Quote
15603-9 Low Profile Metallographic Mount Holder, 1" and 25mm diameter, short 6mm pin each $52.80
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1-1/4" and 30-32mm

Specimen holder for 1-1/4" and 30-32mm metallographic mounts and other cylindrical 1-1/4" diameter samples. Holder height is 0.33" (8.4mm, not including pin) with a recessed area 0.15" (3.8mm) deep. Pin is short 6mm length with standard 3.2mm (1/8") diameter. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included.

Prod # Description Unit Price Order / Quote
15604-9 Low Profile Metallographic Mount Holder, 1-1/4" and 30-32mm diameter, short 6mm pin each $63.80
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1-1/2" and 38-40mm

Specimen holder for 1-1/2" and 38-40mm metallographic mounts and other cylindrical 1-1/2" diameter samples. Holder height is 0.33" (8.4mm, not including pin) with a recessed area 0.15" (3.8mm) deep. Pin is short 6mm length with standard 3.2mm (1/8") diameter. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a specimen (not included).

Prod # Description Unit Price Order / Quote
15605-9 Low Profile Metallographic Mount Holder, 1-1/2" and 38-40mm, short 6mm pin each $74.80
Qty:

15481 15481 with sample
#15481 pictured above

Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter

Spring-loaded specimen holder for single metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). Shown with, and without, an example of a mounted sample. The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. Supplied with a short M4 x 6mm removable pin stub. Fixture dimensions are 2.2" (56mm) in diameter overall, and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.

Prod # Description Unit Price Order / Quote
15481 Top Referencing Holder for Single Met Mount with Pin, max 0.5" (12.7mm) sample height each $383.90
Qty:
15481-1 NEW Top Referencing Holder for Single Met Mount with Pin, 0.5-1.125" (28.6mm) sample height each 398.90
Qty:

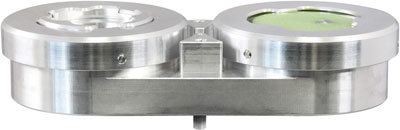

15482
#15482 pictured above

Dual Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter

Dual spring-loaded specimen holder for two metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. Two locations for 12.7 mm pin stubs are included for mounting of analysis standards with the samples. Four locations for 12.7 mm stubs are included for mounting of analysis standards with the samples. In order for standards to be at the mounted sample height when using the 0.5-1.125" cap, a pin stub extender (15318) is needed (not included). Supplied with a short M4 x 6mm removable pin stub. Fixture dimensions are 4.88 x 2.2" (124 x 56mm) overall, and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.

Prod # Description Unit Price Order / Quote
15482 Top Referencing Holder for Dual Met Mount with Pin, max 0.5" (12.7mm) sample height each $544.50
Qty:
15482-1 NEW Top Referencing Holder for Dual Met Mount with Pin, 0.5-1.125" (28.6mm) sample height each 574.50
Qty:

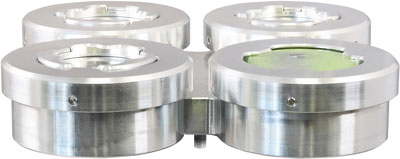

15483
#15483 pictured above

Quad Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 38mm) diameter

Spring-loaded specimen holder for four metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Four locations for 12.7 mm stubs are included for mounting of analysis standards with the samples. In order for standards to be at the mounted sample height when using the 0.5-1.125" cap, a pin stub extender (15318) is needed (not included). Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. Supplied with a short M4 x 6mm removable pin stub. Fixture dimensions are 4.9 x 4.9" (125 x 125mm) overall, and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.

Prod # Description Unit Price Order / Quote
15483 Top Referencing Holder for Quad Met Mount with Pin, max 0.5" (13mm) sample height each $1045.00
Qty:
15483-1 NEW Top Referencing Holder for Quad Met Mount with Pin, Top Referencing Holder for Quad Met Mount with Pin, 0.5-1.125" (30mm) sample height each 1105.00
Qty:
15480 15480-1
#15480 #15480-1

NEW Replacement Caps Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter

Replacement caps are available to freely swap between maximum sample height 0.5" and 0.5-1.125" variations using the same Top Referencing Metallographic Mount Holder base. Cap diameter is 2.2" (56mm) overall.

Prod # Description Unit Price Order / Quote
15480 Cap for Top Referencing Holder, max 0.5" (13mm) sample height each $60.00
Qty:
15480-1 Cap for Top Referencing Holder, 0.5-1.125" (30mm) sample height each 75.00
Qty:
15483-4

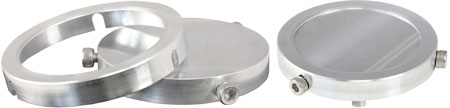

25mm Diameter (#15337-25)


15483-4

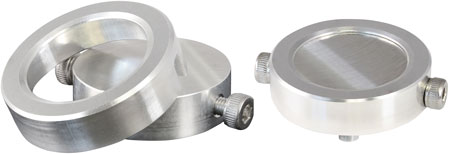

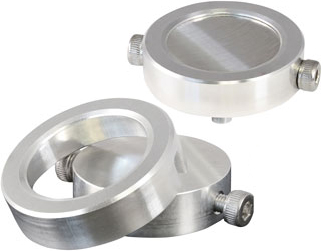

47mm Diameter (#15337-47)

Filter Holders, Pin

Five filter holders for filters ranging from 13mm to 90mm diameter. Machined aluminum clamp holds filters in place unto aluminum base. Clamp is attached with one (13mm), two (25mm and 35mm), or three (47 and 90mm) screws. Base is M4 threaded with short 6mm removable pin. Socket screws are stainless steel M3 x 6mm, except 13mm holder has a shorter M3 X 4mm screw. Allen key included.

go to M4 Filter Holders

Prod # Description Unit Price Order / Quote
15337-13 Holder for 13mm Ø Filter, short 6mm pin each $50.60
Qty:
15337-25 Holder for 25mm Ø Filter, short 6mm pin each 56.10
Qty:
15337-35 Holder for 35mm Ø Filter, short 6mm pin each 59.40
Qty:
15337-47 Holder for 47mm Ø Filter, short 6mm pin each 63.80
Qty:
15337-90 Holder for 90mm Ø Filter, short 6mm pin each 95.70
Qty:

EBSD Holder for 1"/25mm Mounts

EBSD Holder for 1"/25mm Mounts

70° pre-tilt EBSD holder for standard 1" /25mm embedding mounts. With this mount there is no need to tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis. Standard 3.2mm (1/8") pin. Material: vacuum grade aluminum with stainless steel set screws and allen key.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS and M3 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
15327 EBSD Holder for 1"/25mm Mounts, 70° Pre-Tilt, Pin each $154.00
Qty:
EBSD Holder for 1-1/4"/32mm Mounts

EBSD Holder for 1-1/4"/32mm Mounts

70° pre-tilt EBSD holder for standard 1-1/4" /32mm embedding mounts. With this mount there is no need to tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis. Standard 3.2mm (1/8") pin. Material: vacuum grade aluminum with stainless steel set screws and allen key.

Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS and M3 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
15328 EBSD Holder for 1-1/4"/32mm mounts, 70° Pre-Tilt, Pin each $166.10
Qty:


PELCO SEMClamp™ Holders

Made in USA
PELCO Mini SEMClamp™ ø12.7mm

PELCO Mini SEMClamp™ ø12.7mm

Mini SEMClamp™ on a standard ø12.7mm (1/2") pin stub. Convenient for holding flat or thin specimens such as Si chips, wires, foil and small tubes. Material: vacuum grade aluminum with brass screw.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15294 PELCO Mini SEMClamp™ ø12.7mm, Pin each $23.65
Qty:

Small PELCO SEMClamp™ 15 x 10mm
PELCO SEMClamp™ shown holding a wire
PELCO SEMClamp™
shown holding a wire

Small PELCO SEMClamp™ 15 x 10mm

SEMClamp™ 15mm (0.6") long with 10mm (0.4") wide clamping area. Standard pin stub 3.2mm (1/8"). Convenient holder for clamping down samples up to 7mm overall thickness can be clamped under the strips. Ideal for wires, small tubes, strips, and smaller flat samples.

Overall dimensions 23 x 20 x 9mm (0.9" x 0.78" x 0.35")
Material: machined aluminum with brass screws.

Screw used is M2 x 10mm, Pan, Brass and M2 x 6mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15347 Small PELCO SEMClamp™ 15 x 10mm, 3.2mm (1/8") Pin each $104.50
Qty:

Medium PELCO SEMClamp™ 25 x 15mm

Medium PELCO SEMClamp™ 25 x 15mm

SEMClamp™ 25mm (1") long with 15mm (0.6") wide clamping area. Standard pin stub 3.2mm (1/8"). Convenient holder for clamping down samples up to 7mm overall thickness can be clamped under the strips. Ideal for wires, small tubes, strips, and smaller flat samples.

Overall dimensions 33 x 25 x 9mm (1.3" x 1" x 0.35")
Material: machined aluminum with brass screws.

Screw used is M2 x 10mm, Pan, Brass and M2 x 6mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15348 Medium PELCO SEMClamp™ 25 x 15mm, 3.2mm (1/8") Pin each $114.40
Qty:

Recessed PELCO SEMClamp™ 15 x 10mm

Recessed PELCO SEMClamp™ 25 x 15mm

5mm recess allows for background free imaging and no contact with sample surface in imaging area. Clamping area is 25mm (1") long and 15mm (0.6") wide. Maximum thickness 7mm under the clamping strips. Overall dimensions 33 x 25 x 11mm 1.3" x 1" x 0.43"). Material: machined aluminum with brass screws.

Screw used is M2 x 10mm, Pan, Brass and M2 x 6mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15346 Recessed PELCO SEMClamp™ 25 x 15mm, 3.2mm (1/8") Pin each $126.50
Qty:





PELCO SEMClip™ Geological Thin Section Holders, Pin

Made in USA
Geological Thin Section Holder

PELCO SEMClip™ Geological Thin Section Holder

Holds a standard geological thin section or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). 2 clips are provided for secure holding. Tweezer inserts enable easy loading. Overall dimensions are 55 x 30 x 8mm. Pin length is 9.5mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15431 Geological Thin Section Holder, 3.2mm (1/8") Pin each $247.50
Qty:
Variable Size Geological Thin Section Holder, pin

PELCO SEMClip™ Variable Size Geological Thin Section Holder

This variable size geological thin section holder holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm. Two clips are provided for secure holding. Tweezers insert enables easy loading. Overall dimensions are 51 x 32 x 8mm. Standard ø3.2mm (1/8") pin length is 9.5mm. Material: vacuum grade aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15435 Variable Size Geological Thin Section Holder, 3.2mm (1/8") Pin each $247.50
Qty:

Dual Geological Thin Section Holder

PELCO SEMClip™ Dual Geological Thin Section Holder

Holds two standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 55 x 58 x 8mm. Pin length is 9.5mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15432 Dual Geological Thin Section Holder, 3.2mm (1/8") Pin each $280.50
Qty:

Quadruple Geological Thin Section Holder

PELCO SEMClip™ Quadruple Geological Thin Section Holder

Holds four standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 107 x 58 x 8mm. Pin length is 9.5mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15434 Quadruple Geological Thin Section Holder each $308.00
Qty:





E-Beam Lithography Mount

E-Beam Lithography Mount

The E-Beam Lithography Mount comprises:
- 2 ea PELCO SEMClips™ to hold the sample
- a Faraday (ø2.5mm with 100µm hole) cup to measure the beam current
- and a gold on carbon resolution sample (ø3mm) for resolution test
All mounted on a 25mm aluminum pin stub, positioned in such a way as to leave maximum sample space. The height of the gold on carbon test specimen is approximately 0.5mm above the surface of the mount. The Gold on Carbon is similar to #617 with gold particle size range from approx. 5nm to 150nm. Shipped in plastic storage box. Pin length is 8.5mm. Material: Aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
16405 E-Beam Lithography Mount, Pin each $533.50
Qty:



Made in USA

PELCO SEMClip™ Replacement Clips and Screws

PELCO SEMClip™ Replacement Clips and Screws PELCO SEMClip™ Clips are made from a spring grade beryllium-copper alloy. Thickness of clip is 0.25mm (0.01"), overall length is 12.7mm (1/2"), width at tip is 1.6mm (1/16"), hole diameter is 2.2mm (0.087").

Prod # Description Unit Price Order / Quote
16399 PELCO SEMClip™ Clips pkg/10 $82.50
Qty:
16399-10 PELCO SEMClip™ Screws, Brass, M2 x 3mm length pkg/10 20.65
Qty:




SEM Pin Stub for TEM Grids exploaded

TEM Grid Holder on Pin

This TEM grid holder holds up to 4 TEM grids. It enables imaging and analyzing specimens on TEM grids in the SEM. For EDS applications it is beneficial to place thin films on a TEM grid or small particles on a TEM grid with a support film. This can significantly reduce background in the EDS spectrum and increase detection limits of the EDS detector. Hole size in the top and base is ø2.1mm. Opening angle on the holes in the top and base is 120° to reduce electron scattering and improve X-ray collection. Overall diameter is 18mm (0.7"), standard 3.2mm (1/8") pin with a 15mm (0.6") long pin. The longer pin allows for a larger distance from the SEM stage pin holder and therefore greatly reduces electron and X-ray scattering contribution for the SEM stage. TEM grid locations are numbered. Material: vacuum grade aluminum with brass screw.

Screw used is 2-56 x 3/16, Flat, Brass

Prod # Description Unit Price Order / Quote
15469 TEM Grid Holder for 4 Grids, Pin each $170.50
Qty:








Made in USA
TEM Grid Holder for 4 Grids

TEM 4 Grid Holder for SEM

This low profile TEM grid holder holds up to 4 TEM grids. Thin copper spring clips hold the grids in place, providing a wider viewing angle suitable for both imaging and spectroscopy of samples on grids in SEM. It is often beneficial for films or small particle samples to be placed on a TEM grid with a support film. This can significantly decrease the background in an EDS spectrum, and improve the detection limit. The holder has a short 6mm pin. It is 25.3mm (0.996") in diameter with an overall height, not including the pin, of approximately 3.8mm (0.15").

Prod # Description Unit Price Order / Quote
15470 Holder for 4 TEM Grids, 6mm pin each $247.50
Qty:
15463-20 Replacement TEM Grid Holder Clips pkg/3 49.50
Qty:





PELCO STEM Imaging Holder

PELCO® STEM Imaging Holder

The PELCO® STEM imaging holder enables STEM imaging in the SEM by using the standard Everhart-Thornley SE detector in the SEM chamber. The standard 3mm TEM grid is placed in the grid holder and located under the scanning beam. The STEM image is created by the adjustable Pt conversion plate which must face the chamber SE-detector. Cost-effective method for STEM imaging by using the existing SE detector in the SEM chamber. The included conductive anti-scatter sleeve, placed between the holder and the SEM pole piece, contains secondary electron from the sample surface and prevents these from being detected; the result is clear STEM imaging. Overall height with anti-scatter sleeve is 37.5mm (1-1/2") and 29.2 (1.15") without the anti-scatter sleeve. Material: vacuum grade aluminum, brass grid holder, platinum conversion plate and conductive plastic.

PELCO® Technical Notes, STEM Imaging Holder (100KB PDF)

STEM Imagining Micrograph 1   STEM Imaging Micrograph 2
STEM images of Lacey carbon made with the PELCO® STEM Imaging Holder on an FEI XL30 FEG-SEM using 15kV.
Screws used are M2 x 10mm, Flat Head, Brass and M2 x 6mm, Pan, Brass and M2 x 3mm, Set, SS

Prod # Description Unit Price Order / Quote
16412 PELCO® STEM Imaging Holder, Pin each $1045.00
Qty:


Wafer Holders

Made in USA

Wafer Holders with Pin for Wafers with a Flat; 1 - 6"

Six wafer holders for diameters varying from 1"-6" are available.  Made of aluminum with brass clips.  Each wafer holder has two fixed clips and one spring-loaded clip to secure the wafer on the holder. Cut-outs are provided for easy wafer removal except for 5". The 1" Wafer Holder uses two fixed tapered cones and one spring loaded tapered cone to hold the wafer. Standard 3.2mm (1/8") pin with a length of 9.5mm (3/8").

Six wafer holders for diameters varying from 2"-8" wafer holder

100mm dia. (4") Wafer Holder holding a silicon wafer
Wafer Holder for 25mm dia.
25mm dia. (1") Wafer Holder securing a wafer with tapered cones


Six diameters available: 25mm (1"); 51mm (2"); 76mm (3"); 100mm (4"); 127mm (5"); 150mm (6")

Screws used are 4-40 x 1/4 Flat Head, SS and 4-40 x 1/4 Tress HD, SS (15388-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS (15390-P, 15369-P, 15389-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS and 4-40 x 3/8 Flat Head, SS (15382-P)

Prod # Description Unit Price Order / Quote
15388-P Wafer Holder for 25mm dia. (1"), Pin each $385.00
Qty:
15390-P Wafer Holder for 51mm dia. (2"), Pin each 385.00
Qty:
15369-P Wafer Holder for 76mm dia. (3"), Pin each 412.50
Qty:
15389-P Wafer Holder for 100mm dia. (4"), Pin each 385.00
Qty:
15382-P Wafer Holder for 150mm dia. (6"), Pin each 412.50
Qty:




Wafer Holders with Pin for Notch Style Wafers; 4 and 6"

Wafer holders for notch style wafers in 4" and 6" are available. Made of aluminum with brass clips. Each wafer holder has two fixed clips, a notch pin and a spring-loaded clip opposite the notch pin to secure the wafer on the holder.

4" Wafer Holder for notch style wafers
100mm (4")

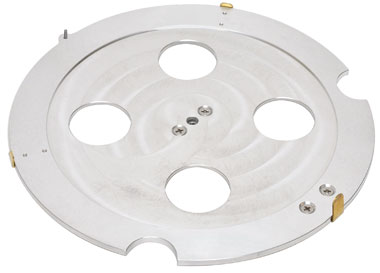

6" Wafer Holder for notch style wafers
150mm (6")
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS (15393-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS and 4-40 x 3/8 Flat Head, SS (15391-P)

Prod # Description Unit Price Order / Quote
15393-P Wafer Holder for Notch Style Wafers, 100mm / 4", Pin each $467.50
Qty:
15391-P Wafer Holder for Notch Style Wafers, 150mm / 6", Pin each 495.00
Qty:




Compact SEM Pin Mount Sample Holder Set

PELCO® Compact SEM Pin Mount Sample Holder Set

A kit of our most popular small SEM pin mount sample holders complete in a PELCO® Pin Mount Storage Box. Useful specimen holders for smaller and table top SEMs, compatible with pin type specimen mounts or holders. This favorably priced kit contains one of each of the following specimen holders/components:

#15339 Compact Variable Tilt Mount
#15310 Specimen Mounts for 4 Pin Stubs
#15329 45° Pre-Tilt Pin Stub Holder
#15330 Thin Specimen Split Mount
#16350 Mini Set Screw Vise, 4mm wide
#16340 Double Slotted Mini Vise, 1mm wide
#15290 Small Tube/Needle Clamp
#15294 PELCO Mini SEMClamp™
#16709 PELCO® SEM Pin Mount Storage Box
Allen Wrenches

Prod # Description Unit Price Order / Quote
16420 PELCO® Compact SEM Pin Mount Specimen Holder Set each $257.95
Qty:




PELCO® Universal SEM Sample Holder Set

PELCO® Universal SEM Sample Holder Set

The PELCO® Universal SEM Sample Holder Set extends the capabilities of your SEM by offering convenient sample holders for larger or awkwardly shaped samples, multiple samples, cross sections or pre-tilt imaging. This versatile specimen holder set can be used on most SEM brands since it includes pin mount adapters for FEI/Philips, ZEISS/LEO/Leica, Tescan. A 12.2mm stub adapter for JEOL is also included and the holders have M4 thread which is compatible with Hitachi SEMs. The set is comes in plastic styrene box with a convenient plastic sample holder tray to keep the sample holders dust free and ready to use.

The favorably priced PELCO® Universal SEM Sample Holder Set contains the following sample holders/components:

#15342-4 Universal Spring Loaded Vise
#15340-4 Micro Vise
#15310-4 Multi Holder for 4 standard 12.7mm pin stubs
#16327-30 SEMClip™ 25mm with 3 Clips, flat
#16357-20 SEMClip™ 25mm 45°/90° with 2 clips
#15319 Standard Pin Adapter to M4 (2 each)
#15319-9 Short Pin Adapter to M4 (ZEISS)
#15319-2 Long Pin Adapter to M4 (Amray)
#15367-25 JEOL 12.2 stub adapter to M4
Plastic Box with Sample Holder Tray
Allen wrenches

PELCO® Technical Notes, PELCO® Universal SEM Sample Holder Set, PDF

Prod # Description Unit Price Order / Quote
16430 PELCO® Universal SEM Sample Holder Set each $544.50
Qty:




Precision Hex Drivers

Precision Hex Drivers

Set of six precision hex drivers which would fit the small hex screws used on our SEM specimen holders. They are also useful for repairs and adjustments on microscopes and other instrumentation. Covers both small standard (inches) and metric allen screws.
Set contains sizes: 0.028"/ 0.7mm, 0.035"/ 0.9mm, 0.050"/ 1.3mm, 1.5mm, 1/16" and 5/64"/2mm.

Prod # Description Unit Price Order / Quote
53720 Precision Hex Drivers, Set of 6 each $43.80
Qty:
