SEM Supplies & Accessories

PELCO SEMClip™ Specimen Mounts

The PELCO SEMClip™ SEM specimen mounts have been specifically designed to provide an easy, quick and clean way to mount any type of thin specimen on a specimen stub. The spring loaded clips can accommodate samples with a thickness up to 2mm. The samples are held down securely by a small spring-loaded clip and allow for easy change of samples. They do not require the use of adhesives thus avoiding waiting times and possible outgassing issues. The PELCO SEMClip™ mounts are available with single and multiple clips and are ideal to hold silicon chips, paper, wire, threads, thin films, sheet metal, etc. The PELCO SEMClip™ mounts with multiple clips can be used to either hold larger samples or multiple smaller samples. The PELCO SEMClip™ mounts are also ideal to hold the silicon chip specimen support mounts ( #16006, #16007, and #16008). PELCO SEMClip™ versions with 45° and 90° are available for cross section examination. For low working distance and high tilt applications, consider the PELCO Low Profile SEMClip™ Mounts.

Pin stub versions of PELCO SEMClip™ are available in diameters from 18 to 100mm and can be used with all SEMs using pin stubs: FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan.

For clamping wires, small tubes, fabric, etc. consider our PELCO SEMclamp™ Holders.
The cylinder mount versions for JEOL SEMs are available in 25 and 32mm diameter. The SEMClip™ cylinder mount for Hitachi SEMs (with M4 thread) are available in 15, 25, 32 and 50mm diameter.

Special versions are available for 90°, 45° and variable tilt specimen stubs.



PELCO SEMClip™ Pin Mounts
for FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan SEMs

Made in USA
Ø18mm Pin Stub 18mm PELCO SEMClip™ Specimen Pin Mount with one clip

Prod # Description Unit Price Order / Quote
16119-10 PELCO SEMClip™, Ø18mm Pin Mount, 1 clip each $21.45
Qty:
Shorter version for ZEISS/LEO SEM/FIBs with 6mm pin height
16119-9-10 PELCO SEMClip™, Ø18mm Pin Mount, 6mm pin height, 1 clip each 21.75
Qty:



Made in USA
Ø25mm Pin Stub

25mm PELCO SEMClip™ Specimen Pin Mount with one, two and three clips

Prod # Description Unit Price Order / Quote
16144-10 PELCO SEMClip™, Ø25mm Pin Mount, 1 clip each $21.75
Qty:
16144-20 PELCO SEMClip™, Ø25mm Pin Mount, 2 clips each 32.45
Qty:
16144-30 PELCO SEMClip™, Ø25mm Pin Mount, 3 clips each 41.50
Qty:
Shorter version for ZEISS/LEO SEM/FIBs with 6mm pin height
16144-9-10 PELCO SEMClip™, Ø25mm Pin Mount, 6mm pin height, 1 clip each 22.55
Qty:
16144-9-20 PELCO SEMClip™, Ø25mm Pin Mount, 6mm pin height, 2 clips each 31.90
Qty:
16144-9-30 PELCO SEMClip™, Ø25mm Pin Mount, 6mm pin height, 3 clips each 41.25
Qty:



Made in USA
Ø32mm Pin Stub

32mm PELCO SEMClip™ Specimen Pin Mount with one, two and three clips

Prod # Description Unit Price Order / Quote
16148-10 PELCO SEMClip™, Ø32mm Pin Mount, 1 clip each $22.55
Qty:
16148-20 PELCO SEMClip™, Ø32mm Pin Mount, 2 clips each 31.90
Qty:
16148-30 PELCO SEMClip™, Ø32mm Pin Mount, 3 clips each 41.80
Qty:



Made in USA
Ø38mm Pin Stub

38mm PELCO SEMClip™ Specimen Pin Mount with one, two and three clips

Prod # Description Unit Price Order / Quote
16112-10 PELCO SEMClip™, Ø38mm Pin Mount, 1 clip each $26.70
Qty:
16112-20 PELCO SEMClip™, Ø38mm Pin Mount, 2 clips each 35.20
Qty:
16112-30 PELCO SEMClip™, Ø38mm Pin Mount, 3 clips each 43.45
Qty:



Made in USA
Ø50mm Pin Stub
50mm SEMClip Pin Mount - side view
side view

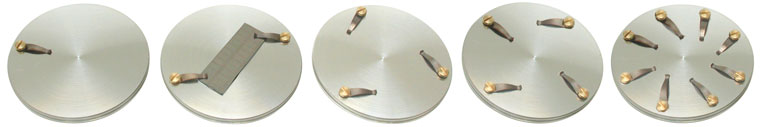

50mm PELCO SEMClip™ Specimen Pin Mount with one, two, three and four clips

Prod # Description Unit Price Order / Quote
16113-10 PELCO SEMClip™, Ø50mm Pin Mount, 1 clip each $28.05
Qty:
16113-20 PELCO SEMClip™, Ø50mm Pin Mount, 2 clips each 37.95
Qty:
16113-30 PELCO SEMClip™, Ø50mm Pin Mount, 3 clips each 47.30
Qty:
16113-40 PELCO SEMClip™, Ø50mm Pin Mount, 4 clips each 59.95
Qty:
16113-80 PELCO SEMClip™, Ø50mm Pin Mount, 8 clips each 109.45
Qty:



Made in USA
Ø63mm Pin Stub
Can hold a 2"/51mm wafer

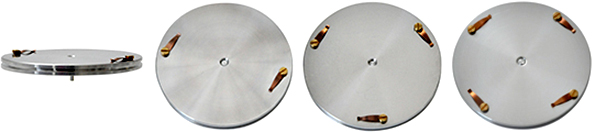

PELCO SEMClip, 63mm dia.

Prod # Description Unit Price Order / Quote
16114-20 PELCO SEMClip™, Ø63mm Pin Mount, 2 clips each $61.05
Qty:
16114-30 PELCO SEMClip™, Ø63mm Pin Mount, 3 clips each 69.85
Qty:
16114-40 PELCO SEMClip™, Ø63mm Pin Mount, 4 clips each 78.65
Qty:



Made in USA
Ø100mm Pin Stub

100mm dia. SEMclip pin stub mountside view

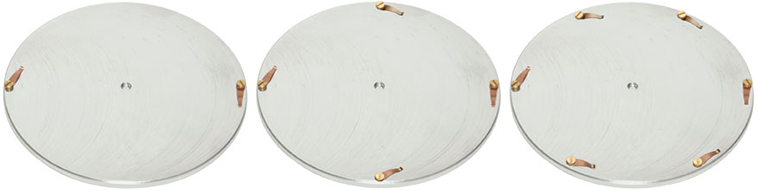

100mm diameter SEM Pin Stub Mount with Clips

Prod # Description Unit Price Order / Quote
16116-20 PELCO SEMClip™, Ø100mm Pin Mount, 2 clips each $123.75
Qty:
16116-40 PELCO SEMClip™, Ø100mm Pin Mount, 4 clips each 141.35
Qty:
16116-60 PELCO SEMClip™, Ø100mm Pin Mount, 6 clips each 158.95
Qty:




PELCO SEMClip™ Geological Thin Section Holders, Pin

Made in USA
Geological Thin Section Holder

PELCO SEMClip™ Geological Thin Section Holder

Holds a standard geological thin section or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). 2 clips are provided for secure holding. Tweezer inserts enable easy loading. Overall dimensions are 55 x 30 x 8mm. Pin length is 9.5mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15431 Geological Thin Section Holder, 3.2mm (1/8") Pin each $247.50
Qty:
Variable Size Geological Thin Section Holder, pin

PELCO SEMClip™ Variable Size Geological Thin Section Holder

This variable size geological thin section holder holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm. Two clips are provided for secure holding. Tweezers insert enables easy loading. Overall dimensions are 51 x 32 x 8mm. Standard ø3.2mm (1/8") pin length is 9.5mm. Material: vacuum grade aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15435 Variable Size Geological Thin Section Holder, 3.2mm (1/8") Pin each $247.50
Qty:

Dual Geological Thin Section Holder

PELCO SEMClip™ Dual Geological Thin Section Holder

Holds two standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 55 x 58 x 8mm. Pin length is 9.5mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15432 Dual Geological Thin Section Holder, 3.2mm (1/8") Pin each $280.50
Qty:

Quadruple Geological Thin Section Holder

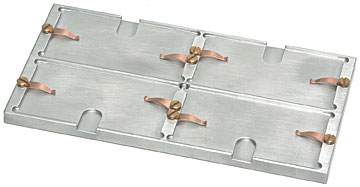

PELCO SEMClip™ Quadruple Geological Thin Section Holder

Holds four standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 107 x 58 x 8mm. Pin length is 9.5mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm, Pan, Brass

Prod # Description Unit Price Order / Quote
15434 Quadruple Geological Thin Section Holder each $308.00
Qty:



Ø12.5mm Pin Stub, Single 90°
PELCO SEMClip™, 12.5mm 90°, 1 clip

Made in USA
Prod # Description Unit Price Order / Quote
16143 PELCO SEMClip™, Ø12.5mm 90°, 1 clip each $41.70
Qty:



12 x 12mm Pin Stub, 4 x 90°
PELCO SEMClip™, 12x12x14mm H, 4 clips

Made in USA
Prod # Description Unit Price Order / Quote
16141 PELCO SEMClip™, 12x12x14mm H, 4 clips each $65.90
Qty:



Made in USA
12 x 48mm Block with Pin, 10 x 90°

PELCO SEMClip with 10 clips
Note: Numbered 1-10, engraved on top, not shown in picture.

Prod # Description Unit Price Order / Quote
16147 PELCO SEMClip™, 12x48x14mm H, 10 clips each $173.80
Qty:



Made in USA
12 x 48mm Block with Pin, 4 x 90° and 4 x 45°

PELCO SEMClip 45 degree 8 clips
Note: Numbered 1-8, engraved on top, not shown in picture.

Prod # Description Unit Price Order / Quote
16155 PELCO SEMClip™, 12x48x14mm H, 45/90°, 8 clips each $151.80
Qty:




Made in USA

Ø25mm Pin Stub, 2 x 90°

25mm SEMClip™ Specimen Pin Mount, Double 90°, with two clips

Prod # Description Unit Price Order / Quote
16354-20 PELCO SEMClip™, Ø25mm Double 90°, ø25x16mm, 2 clips each $38.45
Qty:



Made in USA
Ø25mm Pin Stub, 90° and 45°
25mm SEMClip™ Specimen Pin Mount, 45/90°, with two clips

Prod # Description Unit Price Order / Quote
16355-20 PELCO SEMClip™, 45/90°, Ø25x16mm, 2 clips each $38.45
Qty:



Made in USA
14 x 14mm with Pin, Variable Tilt 0-90°

PELCO SEMclip on variable tilt mount

Prod # Description Unit Price Order / Quote
15339-10 PELCO SEMClip™ on compact variable tilt mount 0-90°, table size 11x14mm, Overall size is 14x14.3x14.5mm, 1 clip, pin each $83.05
Qty:



PELCO SEMClip™ Cylinder Mounts for JEOL SEMs

Made in USA
Ø25mm Cylinder Mount

25mm PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips

Prod # Description Unit Price Order / Quote
16151-10 PELCO SEMClip™, Ø25x8mm JEOL Cylinder Mount, 1 clip each $21.45
Qty:
16151-20 PELCO SEMClip™, Ø25x8mm JEOL Cylinder Mount, 2 clips each 30.80
Qty:
16151-30 PELCO SEMClip™, Ø25x8mm JEOL Cylinder Mount, 3 clips each 40.15
Qty:



Made in USA
Ø32mm Cylinder Mount

32mm PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips

Prod # Description Unit Price Order / Quote
16216-10 PELCO SEMClip™, Ø32x10mm JEOL Cylinder Mount, 1 clip each $22.55
Qty:
16216-20 PELCO SEMClip™, Ø32x10mm JEOL Cylinder Mount, 2 clips each 31.90
Qty:
16216-30 PELCO SEMClip™, Ø32x10mm JEOL Cylinder Mount, 3 clips each 41.25
Qty:



Made in USA
Ø25mm Cylinder Mount, 45°

PELCO SEMClip™ Cylinder Mount with 45° angle and specimen clip

Prod # Description Unit Price Order / Quote
16157-10 PELCO SEMClip™, Ø25x20mm JEOL Cylinder Mount, 45°, 1 clip each $26.95
Qty:




Made in USA
Ø25mm Cylinder Mount, 90° and 45°

PELCO SEMClip™, 25x16mm Cylinder Mount, 45/90°, 2 clips

Prod # Description Unit Price Order / Quote
16359-20 PELCO SEMClip™, Ø25x16mm JEOL Cylinder Mount, 45/90°, 2 clips each $38.45
Qty:


Made in USA
Ø32mm Cylinder Mount, 90° and 45°

16379-20

Prod # Description Unit Price Order / Quote
16379-20 PELCO SEMClip™, Ø32x12mm JEOL Cylinder Mount, 45°/90°, 2 clips each $43.90
Qty:



Made in USA

Ø25mm Cylinder Mount, 2 x 90°

PELCO SEMClip™ Cylinder Mount 25x16mm Double 90° and two specimen clips

Prod # Description Unit Price Order / Quote
16358-20 PELCO SEMClip™, Ø25x16mm JEOL Cylinder Mount, Double 90°, 2 clips each $37.35
Qty:



PELCO SEMClip Mount

Prod # Description Unit Price Order / Quote
16378-20 PELCO SEMClip™, Ø32 x 12mm JEOL Cylinder Mount, Double 90°, 2 Clips each $43.90
Qty:



PELCO SEMClip™ Cylinder Mounts for Hitachi SEMs

Made in USA

Ø15mm Cylinder Mount, M4

18mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one clip for Hitachi SEMs PELCO SEMClip™ 18mmxM4 SEMClip back viewback view

Prod # Description Unit Price Order / Quote
16324-10 PELCO SEMClip™, Ø15 x 6mm x M4 Cylinder Mount, 1 clip each $20.75
Qty:


Made in USA

Ø25mm Cylinder Mount, M4

25mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips for Hitachi 25mmxM4 PELCO SEMClip™ back viewback view

Prod # Description Unit Price Order / Quote
16327-10 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 1 clip each $21.75
Qty:
16327-20 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 2 clips each 31.65
Qty:
16327-30 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 3 clips each 41.25
Qty:


Made in USA

Ø32mm Cylinder Mount, M4

32mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips for Hitachi 32mmxM4 PELCO SEMClip™ back viewback view

Prod # Description Unit Price Order / Quote
16326-10 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 1 clip each $21.75
Qty:
16326-20 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 2 clips each 31.65
Qty:
16326-30 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 3 clips each 41.50
Qty:


Made in USA
Ø50mm Cylinder Mount, M4

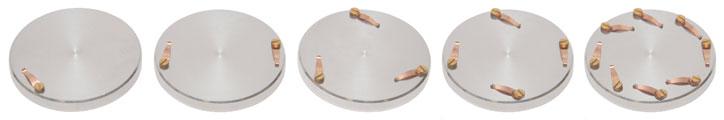

PELCO SEMClip, 50mm dia. 50 x 6mm x M4 Cylinder Mount
back view

Prod # Description Unit Price Order / Quote
16328-10 PELCO SEMClip™, Ø50 x 6mm x M4 Cylinder Mount, 1 clip each $32.45
Qty:
16328-20 PELCO SEMClip™, Ø50 x 6mm x M4 Cylinder Mount, 2 clips each 42.35
Qty:
16328-30 PELCO SEMClip™, Ø50 x 6mm x M4 Cylinder Mount, 3 clips each 51.15
Qty:
16328-40 PELCO SEMClip™, Ø50 x 6mm x M4 Cylinder Mount, 4 clips each 61.05
Qty:
16328-80 PELCO SEMClip™, Ø50 x 6mm x M4 Cylinder Mount, 8 clips each 109.45
Qty:


Made in USA
Ø63mm Cylinder Mount, M4
Can hold a 2"/51mm wafer

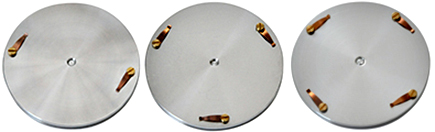

PELCO SEMClip, 63mm dia. 63 x 6mm x M4 Cylinder Mount
back view

Prod # Description Unit Price Order / Quote
16114-4-20 PELCO SEMClip™, Ø63 x 4.5mm, M4 Cylinder Mount, 2 clip each $61.05
Qty:
16114-4-30 PELCO SEMClip™, Ø63 x 4.5mm, M4 Cylinder Mount, 3 clips each 69.85
Qty:
16114-4-40 PELCO SEMClip™, Ø63 x 4.5mm, M4 Cylinder Mount, 4 clips each 78.65
Qty:


Made in USA
Ø100mm Cylinder Mount, M4
100mm diameter SEM Pin Stub Mount with Clips

Prod # Description Unit Price Order / Quote
16116-4-20 PELCO SEMClip™, Ø100 x 4.5mm x M4 Cylinder Mount, 2 Clips each $123.75
Qty:
16116-4-40 PELCO SEMClip™, Ø100 x 4.5mm x M4 Cylinder Mount, 4 Clips each 141.35
Qty:
16116-4-60 PELCO SEMClip™, Ø100 x 4.5mm x M4 Cylinder Mount, 6 Clips each 158.95
Qty:




PELCO SEMClip™ Geological Thin Section Holders, M4

Made in USA
Single Geological Thin Section Holder M4

PELCO SEMClip™ Geological Thin Section Holder

Holds a standard geological thin section or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). 2 clips are provided for secure holding. Tweezer inserts enable easy loading. Overall dimensions are 55 x 30 x 8mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

Prod # Description Unit Price Order / Quote
15431-4 Geological Thin Section Holder, M4 each $237.60
Qty:

Variable Size Geological Thin Section Holder, M4

PELCO SEMClip™ Variable Size Geological Thin Section Holder

This variable size geological thin section holder holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm. Two clips are provided for secure holding. Tweezers insert enables easy loading. Overall dimensions are 51 x 32 x 8mm. Material: vacuum grade aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

Prod # Description Unit Price Order / Quote
15435-4 Variable Size Geological Thin Section Holder, M4 each $237.60
Qty:
Dual Geological Thin Section Holder

PELCO SEMClip™ Dual Geological Thin Section Holder

Holds two standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 55 x 58 x 8mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

Prod # Description Unit Price Order / Quote
15432-4 Dual Geological Thin Section Holder, M4 each $270.60
Qty:

Quadruple Geological Thin Section Holder

PELCO SEMClip™ Quadruple Geological Thin Section Holder

Holds four standard geological thin sections or petrographic slides of up to 47 x 27mm (compatible with 45 x 25mm, 46 x 26mm, 46 x 27mm, and 47 x 27mm). Tweezer inserts enable easy loading. Clips are provided for secure holding. Overall dimensions are 107 x 58 x 8mm. Material: aluminum with copper clips and brass screws.

Screw used is M2 x 3mm pan head screw, brass.

Prod # Description Unit Price Order / Quote
15434-4 Quadruple Geological Thin Section Holder, M4 each $299.20
Qty:



Made in USA

Ø25mm Cylinder Mount, M4, 2 x 90°

PELCO SEMClip™, 25x16mm x M4 Cylinder Mount, Double 90°, 2 clips

Prod # Description Unit Price Order / Quote
16356-20 PELCO SEMClip™, 25 x 16mm x M4 Cylinder Mount, Double 90°, 2 clips each $37.35
Qty:


PELCO SEMClip Mount

Prod # Description Unit Price Order / Quote
16314-20 PELCO SEMClip™, Ø32 x 12mmxM4 Cylinder Mount, Double 90°, 2 Clips each $43.90
Qty:


Made in USA

12 x 12mm Mount, M4, 4 x 90°

PELCO SEMClip™, 12x12x14mm H, M4, 4 clips

Prod # Description Unit Price Order / Quote
16241 PELCO SEMClip™, 12 x 12 x 14mm H, M4, 4 clips each $62.15
Qty:


Made in USA
12 x 48mm Mount, M4, 10 x 90° PELCO SEMClip - M4 - 10 clips
Note: Numbered 1-10, engraved on top, not shown in picture.

Prod # Description Unit Price Order / Quote
16147-4 PELCO SEMClip™, 12x48x14mm H, M4, 10 clips each $169.40
Qty:


Made in USA

12 x 48mm Mount, M4, 4 x 90° and 4 x 45°

PELCO SEMClip 45/90 8 clips
Note: Numbered 1-8, engraved on top, not shown in picture.

Prod # Description Unit Price Order / Quote
16155-4 PELCO SEMClip™, 12 x 48 x 14mm H, M4, 45/90°, 8 clips each $147.40
Qty:


Made in USA

14 x 14mm Mount, M4, Variable Tilt 0-90°

PELCO SEMClip

Prod # Description Unit Price Order / Quote
15439-10 PELCO SEMClip™ on compact variable tilt mount 0-90°, table size 11 x 14mm, Overall size is 14 x 14.3 x 14.5mm, M4 each $81.95
Qty:


Made in USA

Ø25mm Mount, M4, 90° and 45°

PELCO SEMClip™, 25x16mm x M4 Cylinder Mount, Double 45/90°, 2 clips

Prod # Description Unit Price Order / Quote
16357-20 PELCO SEMClip™, Ø25 x 16mm x M4 Cylinder Mount, 45/90°, 2 clips each $38.45
Qty:


Made in USA

Ø32mm Mount, M4, 90° and 45°

Ø32mm Mount, M4, 90° and 45°

Prod # Description Unit Price Order / Quote
16315-20 PELCO SEMClip™, Ø32x12mm x M4 Cylinder Mount, 45/90°, 2 clips each $43.90
Qty:


Made in USA

PELCO SEMClip™ Replacement Clips and Screws

PELCO SEMClip™ Replacement Clips and Screws PELCO SEMClip™ Clips are made from a spring grade beryllium-copper alloy. Thickness of clip is 0.25mm (0.01"), overall length is 12.7mm (1/2"), width at tip is 1.6mm (1/16"), hole diameter is 2.2mm (0.087").

Prod # Description Unit Price Order / Quote
16399 PELCO SEMClip™ Clips pkg/10 $82.50
Qty:
16399-10 PELCO SEMClip™ Screws, Brass, M2 x 3mm length pkg/10 20.65
Qty:
