Motic^® K-400 Stereo Microscope

Motic® K-400L

The K-series stereo microscopes use a superior common main objective (cmo) infinity optical system. This results in exceptional optical features with Widefield view, high clarity and high resolution. There are many options and accessories available for these high quality stereo microscopes.

The K-series comprises 3 models:
K-400L, standard magnification from 6x – 50x with a 4 step magnification changer, see K-400 System Diagram

The K-Series stereo microscopes provide an excellent platform for discussion with the optional dual head and offer extensive documentation possibilities with drawing devices, photo and video tubes. Well suited for use in education, research, manufacturing and quality control. The K-Series Stereo heads are available with integrated incident illumination and without illumination, both to combine with a wide variety of stands or to integrate on existing 32mm stands.

Optical System

• Common Main Objective high quality stereo head with 10x super widefield eyepieces, dual dioptric compensation and interpupillary distance adjustment from 54 to 76mm. Modular unit with infinity optics. Eyepiece tube diameter is 30mm
• Multi-coated optical components are free from chromatic and spherical aberrations.
• Viewing head rotates 360°, available with optional video/photo tube and drawing device.
• Available with step change and zoom magnification.
• 89mm working distance with standard lenses.
• Variable magnification range with optional lenses.

Illumination with Streamline base post stand

• Top light is 12V/10W halogen for incident illumination with adjustable beam and variable control, includes blue filter.
• Bottom light is 12V/10W halogen light which provides bright light for transmitted illumination.
• 4 position light control: top only/bottom only, top&bottom on/off.

Focusing

• Ergonomic dual focusing knobs with d tension and specially engineered to provide smooth, precise and accurate focusing.
• Stereo head and focusing block is one complete unit and fits 32mm diameter post.
• Working distance range with optional lenses 25 - 236mm.

Streamline Base Post Stand

• Large Base Post Stand with built-in transformer for extra stability and space saving.
• Auto-switch power supply for 110-240V, 50/60Hz.
• Stage working surface approx. 200 x 200mm deep.
• Includes two 95mm frosted glass and black/white contrast plates.
• Locked on stage clips.

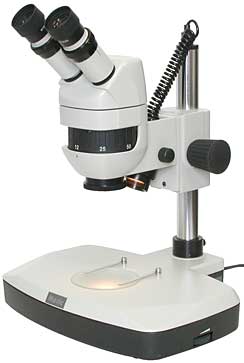

Model K-400L Stereo Microscope

The K-400L aims at the research and industrial market for precision imaging and measurements. It comes with a 4 step magnification changer at 6x, 12x, 25x and 50x, standard 1.0x objective and super widefield eyepieces 10x / FN23. The fixed magnifications enable exact comparison and precise measurements. Total magnification range with optional lenses is 3.0x - 320x. See the K-400 Optical Specification Chart for other magnifications and working distances. The large streamline base stand provides a stable workstation and includes halogen 12V/10W or optional LED incident and transmitted illumination. See the K-400 System Diagram to configure the K-400 to your exact requirements.
K Series Accessories Below.

K Series Optional Accessories

Prod #	Description	Unit	Price	Order / Quote
Accessories and Options for the K-Series Stereo Microscopes
2279-100	K400HS, Binocular Stereo Head with focusing block, no light, 45° head and WF 10x/FN23 eyepieces	each	$1490.00	Qty:
2279-102	K400HI, Binocular Stereo Head, with focusing block, incident light, 45° head and WF 10x/FN23 eyepieces	each	1521.00	Qty:
2279-110	K500HS, Binocular Stereo Head with focusing block, no light, 45° head and WF 10x/FN23 eyepieces	each	1245.00	Qty:
2279-112	K500HI, Binocular Stereo Head, with focusing block, incident light, 45° head and WF 10x/FN23 eyepieces	each	1252.00	Qty:
2279-120	K700HS, Binocular Stereo Zoom Head with focusing block, no light, 45° head and WF 10x/FN23 eyepieces	each	1685.00	Qty:
2279-122	K700HI, Binocular Stereo Zoom Head with focusing block, incident light, 45° head and WF 10x/FN23 eyepieces	each	1693.00	Qty:
Bases and Stands
2282-200	Plane Large Base Stand, no illumination	each	122.00	Qty:
2282-215	Transmitted Large Area Stand	each	261.00	Qty:
2282-216	Transmitted Large working area stand 3W transmitted LED illumination	each	351.00	Qty:
2282-226	FBGG LED: Incident/transmitted large working area stand 3W Incident/Transmitted LED illumination	each	554.00	Qty:
2282-226-10	3W Incident LED illumination assembly *must be combined with head holder and LED stand.	each	82.00	Qty:
2279-210	Universal Stand, Round Base 2105, heavy duty	each	466.00	Qty:

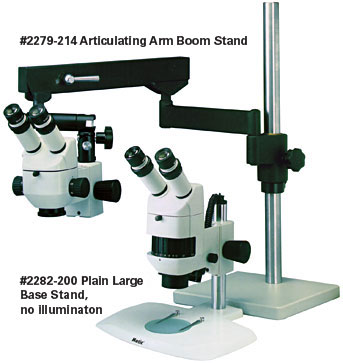

2279-214	Articulating Arm Boom Stand, Square Base 2107, heavy duty	each	737.00	Qty:
2279-216	Ball Bearing Boom Stand, Square Base 2108, heavy duty	each	792.00	Qty:
2279-218	Articulating Boom Stand, Table Clamp 2109, heavy duty	each	702.00	Qty:
2279-220	Ball Bearing Boom Stand, Table Clamp 2110, heavy duty	each	793.00	Qty:

Widefield Eyepieces	Micrometer Eyepieces	Auxiliary Objectives

Prod #	Description	Unit	Price	Order / Quote
Eyepieces
2282-310	Widefield Eyepiece WF 5x (FN23)	each	$116.00	Qty:
2282-311	Widefield Eyepiece WF 6.25x (FN23)	each	112.00	Qty:
2282-312	Widefield Eyepiece WF 10x (FN23)	each	116.00	Qty:
2282-314	Widefield Eyepiece WF 15x (FN17.6)	each	90.00	Qty:
2282-315	Widefield Eyepiece WF 20x (FN13.4)	each	104.00	Qty:
2282-316	Widefield Eyepiece WF 30x (FN8)	each	116.00	Qty:
2282-317	Widefield Eyepiece WF 32x (FN8)	each	116.00	Qty:
2282-320	Micrometer Eyepiece WF 10x (FN23), 360/12 div, ø25mm	each	141.00	Qty:
2282-321	Micrometer Eyepiece WF 10x (FN23), 14mm/0.2mm, ø25mm	each	141.00	Qty:
2282-322	Micrometer Eyepiece WF 10x (FN23), 14mm/0.1mm, ø25mm	each	200.00	Qty:
2282-323	Micrometer Eyepiece WF 20x (FN13.4), 10mm/0.1mm, ø25mm	each	184.00	Qty:
Auxiliary Objectives
2279-244	Auxiliary Objective 0.3x (WD 236mm) for K400/500	each	141.00	Qty:
2279-245	Auxiliary Objective 0.5x (WD 148mm) for K400/500	each	141.00	Qty:
2279-246	Auxiliary Objective 0.625x (WD 111mm) for K400/500	each	141.00	Qty:
2279-248	Auxiliary Objective 1.5x (WD 43mm) for K400/500	each	141.00	Qty:
2279-249	Auxiliary Objective 2.0x (WD 25mm) for K400/500	each	141.00	Qty:
2279-254	Auxiliary Objective 0.3x (WD 236mm) for K700	each	141.00	Qty:
2279-255	Auxiliary Objective 0.5x (WD 148mm) for K700	each	141.00	Qty:
2279-256	Auxiliary Objective 0.625x (WD 111mm) for K700	each	141.00	Qty:
2279-258	Auxiliary Objective 1.5x (WD 43mm) for K700	each	141.00	Qty:
2279-259	Auxiliary Objective 2.0x (WD 25mm) for K700	each	141.00	Qty:
2282-429	Eye Cups	pair	19.00	Qty:

CCD Attachment	Camera Adapters	Polarizing Equipment, 2279-414	LED Ring Illumination 2282-242	Jewelry Clip 2282-416

Gliding Stage	Mechanical Stage	Darkfield Condenser (top/bottom view) 2282-410

Prod #	Description	Unit	Price	Order / Quote
Digital Accessories
2279-300	CCD Attachment 1500.4 for K400, C-mount base only	each	$250.00	Qty:
2279-302	CCD Attachment 1500.3 for K500/700, C-mount base only	each	258.00	Qty:
2282-300	0.35x C-Mount Camera Adapter for 1/4"	each	140.00	Qty:
2282-301	0.45x C-Mount Camera Adapter for 1/3"	each	140.00	Qty:
2282-302	0.65x C-Mount Camera Adapter for 1/2"	each	140.00	Qty:
2282-303	1.0x C-Mount Camera Adapter (no lens/16mm)	each	140.00	Qty:
2279-303	Photo Equipment 1501.4, for K400 with T2 mount (M42)	each	258.00	Qty:
2279-304	Photo Equipment 1501.3, for K500/700 with T2 mount (M42)	each	250.00	Qty:
2279-305	Drawing Device 1508.4, for K400	each	351.00	Qty:
2279-306	Drawing Device 1508.3, for K500/700	each	351.00	Qty:
Stage Accessories
2282-410	Darkfield Attachment, with iris diaphragm	each	125.00	Qty:
2279-414	Polarizing Kit, 1 piece for K-series	each	124.00	Qty:
2282-416	Jewelry Clip for plane and streamline base	each	71.00	Qty:
2279-420	Gliding Stage	each	92.00	Qty:
2282-422	Mechanical Stage with 95mmØ adapter for plane and streamline bases. Travels 75 x 50mm, includes B/W contrast plate and two stage clips	each	319.00	Qty:
2282-422-1	Manual Rotary Plate for mechanical stage	each	89.00	Qty:
2282-422-2	Black/White Stage Plate for mechanical stage	each	30.00	Qty:
2282-422-3	Frosted Glass Stage Plate for mechanical stage	each	91.00	Qty:
2282-425	Black/White Contrast Stage Plate, plastic, 95mm	each	12.00	Qty:
2282-426	Frosted Glass Stage Plate, 95mm	each	12.00	Qty:
2282-427	Blue Filter for incident illumination	each	12.00	Qty:
Dustcover, Case
Illumination
2282-242	LED Ring Illumination	each	123.00	Qty:
Bulbs
2282-230	Halogen Bulb, 12V/10W, incident	each	17.50	Qty:
2282-232	Halogen Bulb, 12V/10W, transmitted	each	17.50	Qty:
2282-234	Fluorescent Bulb, 12V/5W, transmitted	each	23.00	Qty:
2282-236	Fluorescent Ring Bulb, 110V/12W, 6400K for 2401K	each	19.00	Qty:
2282-226-10	3W LED Replacement Illumination, incident	each	82.00	Qty:

Moticam® Digital Color Cameras for K400L / K500L / K700L Stereo Microscopes with CCD Attachment Requires CCD Adapter, Product No. 2282-302 (see above).
