Motic® MLC-150C Microscope Cold Light Source

Designed to deliver perfect fiber optic illumination for stereo microscopy

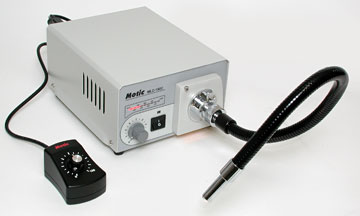

Motic MLC-150 Single Goose-neck Cold Light Source
Motic® MLC-150C Cold Light
Source with Single Gooseneck

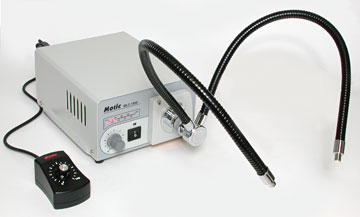

Motic MLC-150 Double Goose-neck Cold Light Source
Motic® MLC-150C Cold Light
Source with Double Gooseneck


The Motic® MLC-150C Cold Light Source can be used for many applications where a bright light illumination is needed. It is particularly useful for illumination when using stereo microscopes and digital imaging devices. The unit comprises a sturdy construction, practical design, minimal working noise, user friendly controls, switching power supply and a filter assembly. The unit comes standard with a remote control which can be conveniently placed beside the microscope stand
Motic SMZ-168 with Motic MLC-150C Single Goose-neck Cold Light Motic SMZ-168 with Motic MLC-150C Double Goose-neck Cold Light

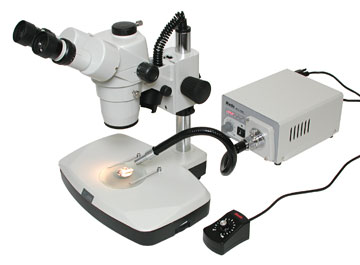

MLC-150C Single Gooseneck
with Motic® SMZ-168
MLC-150C Double Gooseneck
with Motic® SMZ-168

For microscopy illumination there is a choice of single or double goose neck fiber optics illuminator with a hard tube which can be bent to give optimum illumination conditions. There is also a ring light illuminator with flexible fiber optics available, optimized to fit on the Motic® SMZ-168 or K-series stereo microscopes.

An LED indicator on the front of the unit indicates the temperature of the light source from 2500 to 3200K. If the optional blue filter is used a value of 500K must be added to the displayed value.

Ring Light with flexible 5mm fiber optics for Motic SMZ-168 and K-series Stereo Microscopes Single Goose-Neck microscope illuminaiton Double Goose-Neck microscope illumination
Prod. No. 22415-10
Prod. No. 22415-12
Prod. No. 22415-14

Specifications
Internal illuminator 21V/150W EKE Halogen Lamp, Working life 200H
Illumination output >120,000 Lux
Color Temperature Output 2500 - 3200°K (no filter)
5000K max with filter
Temperature 0 - 45°C
Input rating 200W, 115/230 VAC ±15% 50/60Hz
Output rating 3-21V DC ±10% (working voltage), 7A max
Size of power supply 220 x 193 x 112mm W x L x H
(7.9" W x 7.6" L x 4.4" H)
Weight 3 kg (6.6 lb)

Prod # Description Unit Price Order / Quote
22415 MLC-150C Cold Light Source Power Supply each $490.00
Qty:
22415S MLC-150C Cold Light Source Power Supply with Single Gooseneck each 463.00
Qty:
22415D MLC-150C Cold Light Source Power Supply with Double Gooseneck each 541.00
Qty:
22415R MLC-150C Cold Light Source Power Supply with Ring Light each 639.00
Qty:
22415-10 Ring Light with flexible 5mm fiber optics for Motic® SMZ-168 and K-series Stereo Microscopes, length 100cm, inner diameter 61mm each 382.00
Qty:
22415-12 Single Gooseneck 8mm hard tube fiber optics illuminator, 50cm length, tube OD 16mm, tip OD 9mm each 135.00
Qty:
22415-14 Double Gooseneck 5.6mm hard tube fiber optics illuminator, 50cm length, tube OD 13.25mm, tip OD 9mm each 245.00
Qty:
22415-8 Blue Filter for MLC-150C each 49.00
Qty:
22425-1 Replacement Halogen Bulb for MLC-150C each 34.50
Qty:




Motic MLC-150 Single Goose-neck Cold Light Source

Dual Gooseneck Bright White LED Light

New dual gooseneck 6W LED work light provides excellent value with two focused spotlights and the convenience of a small footprint. The light fits easily on a desk top or lab bench and features two 45cm goosenecks which can be positioned to suit your specific requirements. Each gooseneck offers 3W output for very bright, shadow-free illumination. The LED lamp housing is made of aluminum alloy. The base unit includes a dimmer switch for controlling light intensity. Integral to the unit is an automatic universal voltage converter compatible with 100-240V, 50-60Hz. An ideal, cost effective solution for stereo microscope illumination, sample preparation, dissection, small parts assembly or any procedure requiring bright, task specific or targeted illumination.

Specifications
Two 3W LED Lights: Ø32 x 73mm (Ø1.3" x 2.9")
Adjustable Goosenecks: 51cm (20")
Compact Footprint: 11 x 14cm (4.3" x 5.5")
Adjustable Dimmer Switch
Approx. 300 Lumens (150 Lumens each)
Color Temperature: 5000°K
Long Lasting: 4000 Minimum Guaranteed Hours
Automatic Voltage Converter: 100-240V, 50-60Hz, 1A
Weight: 2.02 kg (4.5 lb)
Warranty: 1 Year



Motic MLC-150 Single Goose-neck Cold Light Source

Prod # Description Unit Price Order / Quote
22435 Dual Gooseneck Bright White LED Light each $241.00
Qty:




microscope light

Dolan-Jenner Mi-LED Fiber Optic Illuminator

Dual Gooseneck

Designed for light microscopy but equally good for any application requiring focused, cold light illumination. 2000+ Lumens, 5000K color temperature, high power white LED cold light source with a lamp life of 40,000 hours. Solid state intensity control is variable between 10 and 100%. Dual goosenecks feature focusable lenses for spot-size adjustment. Base unit incorporates fan cooled universal power supply. Base is 7" W x 4.9" H x 8.8" D (178 x 125 x 224mm); Dual goosenecks are 23" (584mm) each; Weight is 7lb (3.2kg).

  • High power white LEDs
  • Consistent 5000K color temperature
  • Excellent light output uniformity
  • Low (IR) heat
  • Universal power supply (100-240VAC, 50/60Hz)
  • Low energy consumption
  • Small footprint
  • 2-year warranty
  • ETL, CE & RoHS Certification

Prod # Description Unit Price Order / Quote
22425-LED Fiber-Lite® LED Dual Gooseneck Illuminator each $1238.00
Qty:




microscope light
gooseneck light

Dolan-Jenner Mi-150 Microscopy Illuminators

Cool to the touch, 0-100% solid state intensity control,
focusing lens on fiber optics.

Designed with the light microscopy user in mind. 380,000 foot-candles of high intensity cold light with a lamp life over 10,000 hours at 50% intensity. There is minimum light leakage for photo-sensitive applications.

  • Focusing lens has a 28mm focal length for focusing the light of the fiberoptics. Dimensions of the focusing head are: 22.25mm ø x 60.25mm L. Lens diameter is 19mm.
  • Fiberoptic flexible cable is .63"ø (16mm) with black PVC over a metal bore.
  • Internal fiberoptic: 0.364"ø (9.2mm)
  • Fiberoptic end-cap dimensions: 1/2"ø x 1-1/2"
  • Easy access lamp change channel
  • Noise level less than 25 db
  • Illuminator Weight: 9.25 pounds (4.19Kg)
  • 115 or 230VAC, 50/60Hz
  • UL, CE, C-UL approved
  • Small foot print: 6.0"L x 8.5"W x 5.3"H (15.3 x 21.6 x 13.5cm H)

Single Gooseneck
Prod # Description Unit Price Order / Quote
22424 Fiber-Lite Illuminator, 150 watts, with single Gooseneck 20" Fiberoptics Cable, EKE Lamp, 115VAC each $746.50
Qty:
22424-230 Fiber-Lite Illuminator, 150 watts, with single Gooseneck 20" Fiberoptics Cable, EKE Lamp, 230VAC each 706.75
Qty:
22424-20 Replacement 20" Fiberoptics Cable each 277.10
Qty:
Replacement EKE Lamp for above unit:
22425-1 Replacement EKE Lamp, 150 Watt each 34.50
Qty:

Double Gooseneck
Prod # Description Unit Price Order / Quote
22425 Fiber-Lite Illuminator, 150 watts, with double Gooseneck 23" Fiberoptics Cable, EKE Lamp, 115VAC each $910.00
Qty:
22425-230 Fiber-Lite Illuminator, 150 watts, with double Gooseneck 23" Fiberoptics Cable, EKE Lamp, 230VAC each 1115.00
Qty:
Replacement EKE Lamp for above unit:
22425-1 Replacement EKE Lamp, 150 Watt each 34.50
Qty:




microscope light

3x Magnifier with Table Clamp

This magnifier is the ideal tool to view objects at three times magnification. It has a large circular viewing area of 117mm diameter (4-5/8”).  The glass lens with the  integrated LED illumination provides bright light with high contrast and a sharply defined focus to deliver clear imaging and vivid details. Designed specifically for laboratory and assembly application requiring precise work. Useful in sample preparation, failure analysis, quality control, inspection, biological analysis, assembly and electronics.  Can be clamped either vertically or horizontally to bench top or side edge to a thickness of 2”. Hinged arm to raise and extend the magnifier lamp in any desired position. Maximum extension is 79cm (31”). Universal power supply, (100-240VAC, 50/60Hz).

  • 3x glass magnifier lens with integrated bright white 9.4W LED light
  • Clamps vertically or horizontally
  • 117mm ( 4-5/8”) diameter viewing area

Single Gooseneck
Prod # Description Unit Price Order / Quote
7411 3x Magnifier Lamp, 100-240VAC, 50/60Hz each $110.00
Qty:
