Motic® Panthera C2 Series Microscopes

The Motic^® Panthera C2 is a classic microscope that meets the demand for high contrast images. Full Koehler illumination with Motic LightTracer control, and Premium Plan UC optics deliver unmatched color fidelity and definition. It has 3W LED illumination easily interchangeable with different color temperature LED bulbs, and a newly designed 2-slide compact rackless stage.

Features:

UC-WF10X/22 Eye Pieces
Bino/Trino Head
Infinity Corrected Plan UC Achromatic 4X to 100X Objectives
Quintuple Nosepiece
N.A. 0.90/1.25 Abbe Condenser
Rackless Mechanical Stage
3W LED/30W Hal Transmitted Illumination
Kohler Illumination
USB for External Camera
LED Nosepiece Light Intensity Indicator

Siedentopf Observation Tube

The Panthera C2's Siedentopf observation tube is designed with an ergonomic viewing angle of 25° and incorporating an interpupillary distance of 48-75mm. The Panthera C2's observation tubes guarantee fatigue free viewing for hours. Large field of view (22mm) enables fast and comfortable screening of specimens. The trinocular tube allows digital documentation and integration to a wide variety of digital cameras.

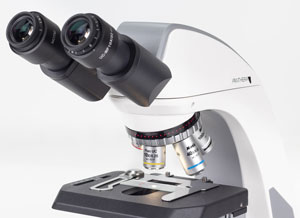

Eyepieces

The UC eyepieces are made of high quality optical glass and have a high-eyepoint for eyeglass wearers. The eyepieces provide consistent diopter adjustments for both eyes. This enables perfect usage of reticles for measuring, counting, etc. The new UC eyepieces feature a 22mm field of view.

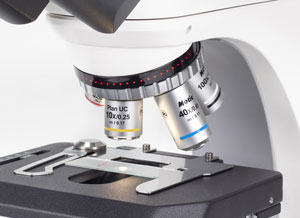

Reversed Quintuple Turret Revolving Nosepiece

The Panthera C2 has the capability for mounting up to five quality objectives. Precision positive click-stop mechanism ensures precise alignment of objectives.

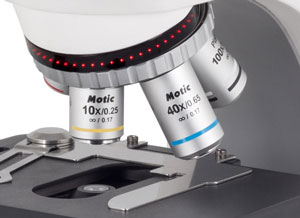

Objectives

To provide overall optical performance of the Panthera C2, Motic^® introduces a newly designed generation of Plan UC Achromatic Objectives made of high quality optical glass (Pb free): CCIS^®. The new UC lenses are multilayer coated for improved contrast to enhance images even with weak slide staining. Also available is a 100x/0.8 dry lens for oil free observation. All have standard RMS thread.

Fine/Coarse Coaxial Focusing

The brass, coaxial fine and course focusing mechanism uses a precise and reliable triangular rail system featuring adjustable tension. The focusing range is 25mm with minimum increments of 2µm.

Condenser

To ensure the best possible illumination quality, the Panthera C2 condenser is a full Koehler type, N.A. 0.90/1.25 Abbe with slider slot.

Illumination

The Panthera C2 features the new integrated intellligent illumination system from Motic^®. The LightTracer system combines a digital multi-function knob, a coded nose piece and an LED feedback indicator. The automated light management is controlled by the multi-function knob. It is responsible for adjusting the light intensity and works with coded nose piece to memorize the illumination for each objective position. The Panthera C2 3W LED illumination offers two options: 3500K or 5500K. Able to Perform BF, PH, POL, DF, FL (with LED Mouse), MMC Contrast Techniques.

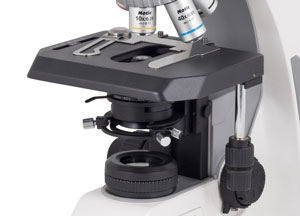

Stage

New, patented, rackless, compact stage features dual slide holder and one hand operation.

Phase Contrast

Universal turret condenser with all phase rings is offered as an option, available for magnifications of 10x, 20x, 40x and 100x.

Simple Darkfield

Darkfield is possible with a separate DF slider.

Simple Polarization

Convenient and simple polarization system consists of a polarizer and analyzer filters.

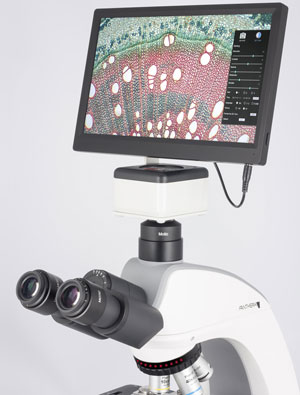

Digital Documentation

The integration of the Panthera C2 trinocular microscope and Moticam^® series of digital cameras delivers crisp and live images. All Moticam^®Cameras come equipped with software to transfer the Panthera C2 into an analysis and documentation station. The Panthera C2 features an integral USB 2.0 port for external camera power. The system provides high resolution imaging in both real time and capture modes. Motic^® provides a range of CCD-adapters which are necessary for trinocular port attachment.

Panthera C2 Technical Specifications
Optical System	Color Corrected Infinity Optical System (CCIS^®)
Observation Tube	Siedentopf, 25° Rotate 360°
Eyepiece	Widefield UC-WF10X/22mm with diopter adjustment
Nosepiece	Quintuple Reversed
Focusing	Coarse/Fine with tension adjustment
Stage	Rectangular 185 x 145mm, X and Y 75 x 50mm
Illumination	Motic^® LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
Power Requirements	Universal; 110-240V; 50/60Hz
Size	282 x 210 x 394mm (11.1 L x 8.3 W x 15.6" H); Weight: 7.7kg (17 lb.)
Warranty	5-year warranty excluding electrical parts

Motic® Panthera Microscope Comparison

Prod #

Description

Unit

Price

Order / Quote

Complete Systems for the Panthera C2

22471-10

Panthera C2 Binocular Microscope, N- WF10x/22 Eyepieces, Plan Achromat UC Objectives 4x, 10x, 40x S, 100x S-Oil, Focusable Abbe condenser NA 0.9, 3W LED illumination with intensity control

each

$1679.00

Qty:

22471-12

Panthera C2 Trinocular Microscope, N- WF10x/22 Eyepieces, Plan Achromat UC Objectives 4x, 10x, 40x S, 100x S-Oil, Focusable Abbe condenser NA 0.9, 3W LED illumination with intensity control

each

1889.00

Qty:

Prod #

Description

Unit

Price

Order / Quote

Accessories and Options for the Panthera C2

Eyepieces (each)

22469-309

UC-WF10x/22mm, focusable with diopter adjustment

each

$86.00

Qty:

22469-310

UC-WF10x/20mm, focusable with diopter adjustment

each

68.00

Qty:

22455-312

N-WF12.5x/18mm, focusable with diopter adjustment

each

211.00

Qty:

22455-313

N-WF15x/16mm, focusable with diopter adjustment

each

141.00

Qty:

Reticles (each)

22455-301

Cross Line, Ø25mm

each

61.00

Qty:

22455-302

Cross Line w Micrometer (100 div. in 10mm), Ø25mm

each

61.00

Qty:

22455-303

Micrometer (100 div. in 10mm), Ø25mm

each

60.00

Qty:

22455-305

Eyepiece Pointer, Ø25mm

each

59.00

Qty:

Objectives

22469-350

Plan Achromat UC Objective 2x/0.05 (WD 7.2mm)

each

249.00

Qty:

22469-351

Plan Achromat UC Objective 4x/0.1 (WD 30.5mm)

each

50.00

Qty:

22469-352

Plan Achromat UC Objective 10x/0.25 (WD 17.4mm)

each

61.00

Qty:

22469-353

Plan Achromat UC Objective 20x/0.45 (WD 0.8mm)

each

99.00

Qty:

22469-354

Plan Achromat UC Objective 40x/0.65/S (WD 0.6mm)

each

99.00

Qty:

22469-355

Plan Achromat UC Objective 60x/0.8/S (WD 0.35mm)

each

149.00

Qty:

22469-356

Plan Achromat UC Objective 100x/1.25/S-Oil (WD 0.16mm)

each

149.00

Qty:

22469-357

Plan Achromat UC Objective 100x/0.8/S-Dry (WD 2mm)

each

324.00

Qty:

Plan Phase Objectives

22469-345

Plan Achromat Phase UC PH Objective 10x/0.25(WD 17.4 mm) Ph1

each

185.00

Qty:

22469-346

Plan Achromat Phase UC PH Objective 20x/0.45(WD 0.8mm) Ph2

each

225.00

Qty:

22469-347

Plan Achromat Phase UC PH Objective 40x/0.65S (WD 0.6mm) Ph2

each

349.00

Qty:

22469-348

Plan Achromat Phase UC PH Objective 100x/1.25/S-oil (WD 0.16mm) Ph3

each

507.00

Qty:

No Cover Glass Objectives

22469-340

Plan Achromat UC NCG Objective 10x/0.25(WD 17.4 mm)

each

71.00

Qty:

22469-341

Plan Achromat UC NCG Objective 20x/0.45(WD 0.8mm)

each

113.00

Qty:

22469-342

Plan Achromat UC NCG Objective 40x/0.65S (WD 0.6mm)

each

129.00

Qty:

22469-343

Plan Achromat UC NCG Objective 100x/1.25/S-oil (WD 0.16mm)

each

182.00

Qty:

Darkfield Equipment

22455-410

Simple Darkfield Slider (10x-40x)

each

134.00

Qty:

Simple Polarizing (not applicable with LED illumination)

22467-412

Add on Analyzer

each

40.00

Qty:

22430-414

Add on Polarizer

each

47.00

Qty:

Photo and C-mount Video Adapters - Necessary for Camera Mounting on Trinocular Port

22455-400

2.5x SLR projection lens, requires photo eyepiece

each

153.00

Qty:

22455-402

Photo Eyepiece 2.5x for photo adapter

each

270.00

Qty:

22455-404

Photo Eyepiece 4x for photo adapter

each

212.00

Qty:

22455-405

1.0x C-mount Camera Adapter (no lens)

each

193.00

Qty:

22455-406

0.65x C-mount Adapter for 2/3" chip sensors

each

193.00

Qty:

22455-407

0.5x C-mount camera adapter for 1/2" chip sensors

each

165.00

Qty:

22439-408

0.35x C-mount camera adapter for 1/3" chip sensors

each

265.00

Qty:

Optional Accessories and Replacements

22430-420

Yellow Filter (45mm)

each

23.00

Qty:

22430-421

Green Filter (45mm)

each

23.00

Qty:

22431-422

Blue Filter (45mm)

each

17.00

Qty:

22469-422

Eyecup

each

5.00

Qty:

22469-422

Dust Cover

each

5.00

Qty:

22431-423

Didymium Filter (45mm)

each

91.00

Qty:

22432-424

Neutral Density Filter (45mm)

each

22.00

Qty:

22432-425

Green Interference Filter (45mm)

each

42.00

Qty:

22431-230

Quartz Halogen Lamp, 6V/30W

each

24.00

Qty:

LED Illumination Options (switchable Halogen-LED light source)

Moticam® Digital Color Cameras

go to: Motic® MLC-150C Fiber Optic Illumination System
go to: Standard Series Stage Micrometers for Transmitted and Reflected Light
go to: Pro Series Stage Micrometers for Transmitted and Reflected Light

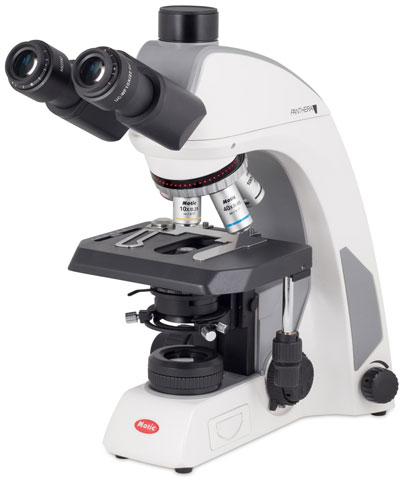

Motic^® Panthera C2 Binocular (#22471-10)	Motic^® Panthera C2 Trinocular (#22471-12)
