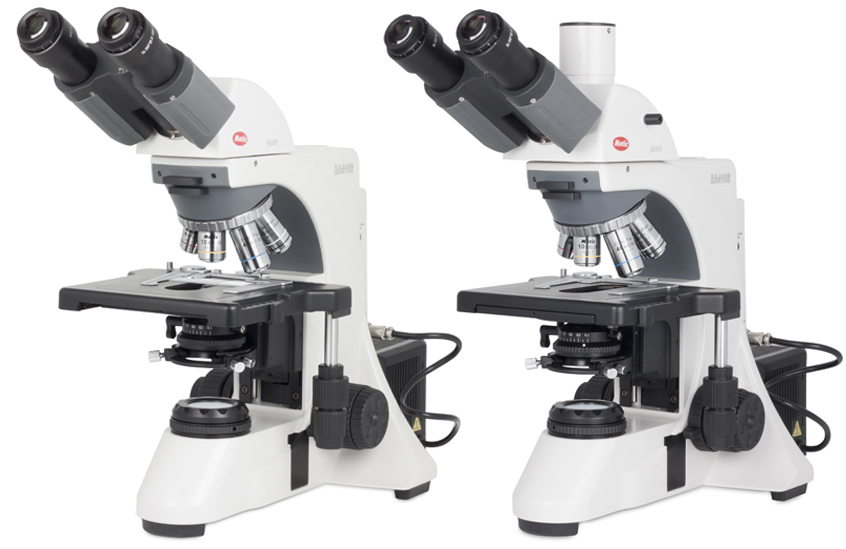

Motic® BA410 Elite Biological Light Microscope

The Motic^® BA410 Elite with CCIS^® optics allow new accessories and functions to be incorporated in the BA410 Elite series microscope. The CCIS^® (Color Corrected Infinity System) optics delivers uncompromised optical clarity and unrivalled versatility. The CCIS^® infinity design has succeeded in achieving longer working distance objectives with higher numerical aperture giving increased optical performance and versatility. The BA410 Elite microscope stand, with its innovative mechanical design, represents an excellent platform for high quality optical imaging and ease of use for longer periods of time. The microscope incorporates many features found on more expensive microscopes.

Motic BA410 Eyepieces
A complete range of eyepieces and objectives is available to configure the BA410 for your application.

Microscope Stand

The BA410 Elite has been designed for optimum performance coupled to ergonomic use. The microscope stand integrates all functions providing effective ergonomics and maximum expandability. The wide arm provides strength and rigidity, the inverted "Y" design gives enhanced lateral stability. The BA410 Elite is designed to meet the requirements of a professional microscope and has a minimized footprint to conserve the limited desk space in today's modern laboratories.

Light Source

The 6V/30W halogen Koehler illumination system provides bright, even illumination at any magnification. The centerable lamp is housed externally and has an externally operated control mechanism for all facets of illumination. A diffuser is located in the base of the microscope and can be easily operated through a selector switch.

Observation Tubes

In order to maintain absolute parfocality, the Siedentopf eyepiece tubes will not change their length when interpupillary adjustments are made. The inclination of 30° for the binocular and trinocular tubes is chosen for comfort and posture management. By using the optionally available eye level risers, the user can raise the eye level up to a maximum of 60mm in 20mm steps. Two trinocular versions are also available featuring professional light distribution sliders either for 100% binocular /100% photo tube or 100% binocular and 20/80% for binocular/photo. The trinocular heads are ideal for digital documentation and video projection.

Focusable Eyepieces

The standard Widefield 10x eyepieces of the BA410 Elite with an enlarged field of view of 22mm provides enlarged viewing fields for faster scanning and easier viewing. Parfocal focus is provided by independent diopter adjustment on each eyepiece. Users wearing eyeglasses will find the eyepieces' high eye point design very comfortable to use. Various reticles for measuring and counting are available for these eyepieces.

Sextuple Revolving Nosepiece

The reversed design of the nosepiece means that when using the BA410 Elite, the user has more space to change specimen slides offering easy access and limiting damages to slides or objectives. The nosepiece features a long-life ball bearing mechanism with positive click-stop to ensure that each change of objective is accurate and centered.

CCIS® Plan Achromat Phase

Objectives

Crisp and distortion-free with improved working distances, the CCIS^® objectives of the BA410 Elite continue to expand the microscope platform into different application realms. All objectives integrate effortlessly into the sextuple nosepiece of the BA410 Elite to keep the focus on the specimen and task. Developed with the worst environments envisioned, all CCIS^® objectives are anti-fungus treated to prolong the life of both the microscope and objectives. RMS thread.

Condenser

The newly developed swing-out Achromat condenser with a numerical aperture of 0.9 provides homogeneous illumination for observation and microphotography at all magnification from 2x to 100x. The substage condenser is height adjustable via a precise rack and pinion mechanism and has a dovetail mount with clamp screw.

The phase contrast turret condenser with a numerical aperture of 1.25 has four phase positions and a BF position with iris diaphragm. This type of condenser is particularly useful for studies where rapid change between illumination techniques is required.

Rectangular Mechanical Stage

The BA410 comprises a large (174mm x145mm) hard coated mechanical stage with a travel range of 76mm x 50mm. Controlling the movement of the stage is made easy by low positioned coaxial control knobs. The stage surface is protected with a hard coating against abrasion and wear. The user can set the upper stage drive stop to prevent damage to objectives or to accommodate slides of different thicknesses. The stage can be rotated for composition in photomicrography.

Polarized light

Two filter slots in the upper part of the stand accommodate slides with an analyzer and a first order red compensator (535nm) for screening possible cases of gout. The slide mounted analyzer is removable for quick changes between polarizing and standard bright field imaging. The polarizer is installed over the field lens.

BA410 Elite Technical Specifications
Optical System	Parfocal distance 45mm CCIS^® Optical System (Color Corrected Infinity System)
Observation Tube	Siedentopf 30° Binocular. Optional Trinocular heads.
Eyepiece	Widefield high eyepoint WF 10x (FN22) with diopter adjustment
Nosepiece	Sextuple reversed
Coarse/Fine Focusing	Coaxially positioned control knobs, coarse 42mm/rotation, fine 0.2mm/rotation. Min. increment 2µm. Coarse motion torque adjustable.
Stage	Rectangular 174 x 145mm surface area, 76 x 50mm cross travel. Hard coated surface, vertical movement range is 27mm.
Substage Illumination	6V/30w Quartz Halogen lamp in centerable housing and integrated diffuser
Power Requirements	Universal; 110-240V; 50/60Hz
Filter	Blue

Prod #

Description

Unit

Price

Order / Quote

BA410 Elite with Sextuple Nosepiece

22466-11

BA410 Elite Binocular Microscope, Sextuple Nosepiece, WF10x/22 Eyepieces, Plan Achromat Objectives 4x, 10x, 40x S, 100x S-Oil, Achromat swing-out condenser NA 0.9, 6V/30W Quartz illumination

each

$3994.00

Qty:

22466-13

BA410 Elite Trinocular Microscope, Sextuple Nosepiece, WF10x/22 Eyepieces, Plan Achromat Objectives 4x, 10x, 40x S, 100x S-Oil, Achromat swing-out condenser NA 0.9, 6V/30W Quartz illumination

each

3454.00

Qty:

Main Body

22466-16

BA410 Elite Main Body with Reversed Sextuple Nosepiece, Mechanical Stage, Koehler illumination 6V/30W

each

2507.00

Qty:

All BA410 Elite microscopes include 45mm blue filter, 5ml immersion oil, power cord, allen hex key, vinyl dust cover, universal power supply.
