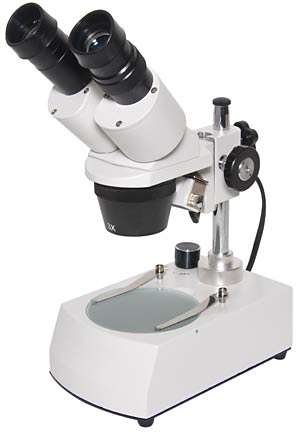

Model SMDM-1030 & SMDM-2040
Stereo Microscopes

SMDM-1030 10x or 30x Magnification SMDM-2040 20x or 40x Magnification

These economy stereo microscopes are designed as sturdy, reliable instruments for laboratory, education and industry applications. Change between two magnifications by simply turning the objective turret. The microscopes offer precise optical alignment which assures a clear three-dimensional upright, non-reversed image. The efficient and versatile cordless LED illumination system includes precisely controlled top light, bottom light or both. These stereo microscopes are ideal for adjustment and centering of filaments as well as preparing small samples or small parts assembly.

Optical System

• Paired standard widefield eyepieces 10x with eyepiece guards. Dual diopter adjustments. Interpupillary adjustment from 55 to 78mm.
• Magnification is changed by rotating objective turret 180° to positive click stops.
• Total magnification range 10x and 30x or 20x and 40x.
• 95mm working distance.

Illumination

• Top and bottom LED illumination provides bright, cool light for incident and transmitted illumination. Extra long bulb life: up to 10,000 hours.
• 4 position light control: top only/bottom only, top and bottom on/off.
• AC adapter & built in rechargeable battery.

Focusing

• Large dual focusing knobs, heavy-duty rack & pinion mechanism.

Standard Post Stand

• Standard post (15mm) stand for extra stability and space saving.
• Stage surface 110 x 120mm deep (4.5 x 5.0").
• Maximum specimen height 75mm.
• Includes 95mm frosted glass and black/white contrast plates.
• Locked on stage clips.
• Dimensions and weight
• Stand length: 190mm (7.5"), stand width 101mm (4.5"), overall height 305mm (12").
• Ship weight 3.2 kg (7 lbs)
