SEM Supplies & Accessories Overview
The PELCO® Modular SEM Specimen Holder Concept Explained
Modular Stage Adapters
Interchangeable Modular SEM Specimen Holders

SEM Specimen Holders for JEOL
or ISI/ABT/Topcon SEMs

  Split Mounts
Slotted Vises
Multi Pin Stub Holder
  TEM Grid Holders
E-Beam Lithography Mount
Stage Adapters for Pin Mounts

JEOL Thin Specimen Split Mount

Thin Specimen Split Mount
(JEOL or ISI/ABT/TOPCON)

Double hex screw tightening for a firm hold, fits directly into JEOL or ISI/ABT/TOPCON, ø15mm (0.591") x 10mm (0.394") high. Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Made in USA
Prod # Description Unit Price Order / Quote
15335 Thin Specimen Split Mount, Ø15 x 10mm each $26.40
Qty:

Hitachi Set Screw Vise
Top and Bottom

Small Set Screw Vise

Small set screw vise with an open slot of 4mm (0.157") wide and 5mm (0.197") deep. Ø15 x 12mm x M4. Material: machined aluminum with stainless steel allen set screw. Allen wrench included.

Screw used is M3 x 6mm set screw, stainless steel.

Made in USA
Prod # Description Unit Price Order / Quote
16335 Small Set Screw Vise, M4, Ø15 x 12mm H, M4 each $24.15
Qty:

Set Screw Vise Specimen Holder for JEOL

Large Set Screw Vise

Set screw vise with an open slot of 10mm (0.394") wide x 5mm (0.197") deep. ø25mm (1") x 10mm (0.394") high. Material: machined aluminum with stainless steel set screw.  Allen wrench included.

Made in USA
Prod # Description Unit Price Order / Quote
16271 Large Set Screw Vise, Ø25 x 10mm each $43.55
Qty:

SEM Double Slotted Set Screw Vise Specimen Holder

Double Slotted Mini Vise

Double Slotted set screw vise with 2 ea. 1mm wide by 3mm deep slots, for JEOL, ø12.2 x 10mm. Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Made in USA
Prod # Description Unit Price Order / Quote
16342 Double Slotted Set Screw Vise, Ø12.2 x 10mm each $23.55
Qty:

SEM Double Slotted Set Screw Vise Specimen Holder

Double Slotted Mini Vise

Double Slotted set screw vise with 2 ea. 1mm wide by 3mm deep slots, for JEOL or ISI/TOPCON/ABT, ø15 x 10mm. Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Made in USA
Prod # Description Unit Price Order / Quote
16344 Double Slotted Set Screw Vise, Ø15 x 10mm each $26.85
Qty:

Large Double Slotted Vise SEM mount

Large Double Slotted Vise

Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots. Dimensions ø25x10 mm (1 x 0.4"). Clamp thin specimens and cross sections without the need for tape of conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Made in USA
Prod # Description Unit Price Order / Quote
16272 Large Double Slotted Set Screw Vise, Ø25 x10mm each $32.80
Qty:

16312 Slotted Vise

Large Double Slotted Vise

Ø32mm Large double slotted set screw vise with 2 ea. 2.5mm wide by 5mm deep slots. Dimensions Ø32 x 10mm (1-1/4" x 0.394"). Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M3 x 8mm, flat head set screw, stainless steel.

Made in USA
Prod # Description Unit Price Order / Quote
16312 Large Double Slotted Set Screw Vise, Ø32 x 10mm, M4 each $48.95
Qty:
Multi Holder for 4 Pin Stubs

Multi Holder for 4 Pin Stubs

Accommodates up to four standard 12.7mm (1/2") pin stubs with 3.2mm (1/8) pin. Made of aluminum with stainless steel set screws. Allen wrench included.

Holder size is Ø31.8 x 11.25mm.

Screw used is 6-32 x 1/8 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15310-4 Multi Holder for 4 Pin Stubs, M4 each $53.90
Qty:

TEM Grid Holder on 12.2mm Stub

TEM Grid Holder on 12.2mm Stub

This TEM grid holder holds up to 4 TEM grids. It enables imaging and analyzing specimens on TEM grids in the SEM. For EDS applications it is beneficial to place thin films on a TEM grid or small particles on a TEM grid with a support film. This can significantly reduce background in the EDS spectrum and increase detection limits of the EDS detector. Hole size in the top and base is ø2.1mm. Opening angle on the holes in the top and base is 120° to reduce electron scattering and improve X-ray collection. Overall diameter is 18mm (0.7"), overall height is approximately 25mm (1") with a stand-off pin mounted on a ø12.2 x 10mm JEOL mount. The stand-off pin minimizes electron and X-ray scattering contribution from the stage. TEM grid locations are numbered. Material: vacuum grade aluminum with brass screw.

Made in USA
Prod # Description Unit Price Order / Quote
15469-12 TEM Grid Holder for 4 Grids, 12.2mm JEOL each $215.60
Qty:

TEM Grid Holder on 25mm Stub

TEM Grid Holder on 25mm Stub

This TEM grid holder holds up to 4 TEM grids. It enables imaging and analyzing specimens on TEM grids in the SEM. For EDS applications it is beneficial to place thin films on a TEM grid or small particles on a TEM grid with a support film. This can significantly reduce background in the EDS spectrum and increase detection limits of the EDS detector. Hole size in the top and base is ø2.1mm. Opening angle on the holes in the top and base is 120° to reduce electron scattering and improve X-ray collection. Overall diameter is 18mm (0.7"), overall height is approximately 25mm (1") with a stand-off pin mounted on a ø25 x 10mm JEOL mount. The stand-off pin minimizes electron and X-ray scattering contribution from the stage. TEM grid locations are numbered. Material: vacuum grade aluminum with brass screw.

Made in USA
Prod # Description Unit Price Order / Quote
15469-25 TEM Grid Holder for 4 Grids, 25mm JEOL each $215.60
Qty:

TEM Grid Holder on 25mm Stub

TEM Grid Holder on 32mm Stub

This TEM grid holder holds up to 4 TEM grids. It enables imaging and analyzing specimens on TEM grids in the SEM. For EDS applications it is beneficial to place thin films on a TEM grid or small particles on a TEM grid with a support film. This can significantly reduce background in the EDS spectrum and increase detection limits of the EDS detector. Hole size in the top and base is ø2.1mm. Opening angle on the holes in the top and base is 120° to reduce electron scattering and improve X-ray collection. Overall diameter is 18mm (0.7"), overall height is approximately 25mm (1") with a stand-off pin mounted on a ø32 x 10mm JEOL mount. The stand-off pin minimizes electron and X-ray scattering contribution from the stage. TEM grid locations are numbered. Material: vacuum grade aluminum with brass screw.

Made in USA
Prod # Description Unit Price Order / Quote
15469-32 TEM Grid Holder for 4 Grids, 32mm JEOL each $215.60
Qty:

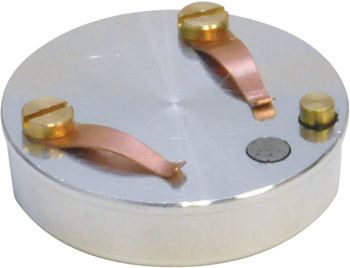

E-Beam Lithography Mount, M4

E-Beam Lithography Mount

The E-Beam Lithography Mount comprises:
- 2 ea PELCO SEMClips™ to hold the sample
- a Faraday cup (ø2.5mm with 100µm hole) to measure the beam current
- and a gold on carbon resolution sample (ø3mm) for resolution test
All mounted on a 25mm aluminum cylinder stub positioned in such a way as to leave maximum sample space. The height of the gold on carbon test specimen is approximately 0.5mm above the surface of the mount. M4 threaded hole in bottom. Material: Aluminum with copper clips and brass screws. The Gold on Carbon is similar to #617 with gold particle size range from approximately 5nm to 150nm. Shipped in plastic storage box.

Screw used is M2 x 3mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
16405-4 E-Beam Lithography Mount, M4 each $533.50
Qty:

JEOL Stage Adapter
Pin mount not included.

JEOL Stage Adapter for Pin Mounts

Fits JEOL SEM: 6510/6390/6380/6360/6010/5700/5600/5500/5410/5400/5300/T330/T220/T300/T200/TT100/T20

Aluminum dovetail stage adapter for using standard 3.2mm (1/8") pin mounts with the JEOL SEM's listed above.

Made in USA
Prod # Description Unit Price Order / Quote
15399-10 JEOL Stage Adapter for Pin Mounts each $269.50
Qty:
JEOL 6400/5800 Stage Adapter for Pin Mounts
Pin mount not included.

JEOL 6400/5800 Stage Adapter for Pin Mounts

Fits JEOL SEM: 5800/5900/5910/6460/6480/6490/6610

Aluminum dovetail stage adapter for using standard 3.2mm (1/8") pin mounts with the JEOL SEM's listed above.

Made in USA
Prod # Description Unit Price Order / Quote
15396-10 JEOL 6400/5800 Stage Adapter for Pin Mounts each $269.50
Qty:
JEOL 7000/6500 Stage Adapter for Pin Mounts
Pin mount not included.

JEOL 7000/6500 Stage Adapter for Pin Mounts

Fits JEOL SEM: 7800F/7601F/7600F/7500F/7100F/7000F/6700F/6500F/IT200/IT300/IT500/IT500HR/IT510/IT700HR/IT800

Solid brass dovetail stage adapter for using standard 3.2mm (1/8") pin mounts with the JEOL SEM's listed above. Can hold up to 5 standard 12.7mm (1/2") pin stubs or one larger pin stub.

Made in USA
Prod # Description Unit Price Order / Quote
15371-6710 JEOL 7000/6500 Stage Adapter for Pin Mounts each $412.50
Qty:
