SEM Supplies & Accessories
Modular SEM Stage Adapters
Adapter Buttons (Dovetail) & Stub Extensions (T-Base/Dovetail)
Interchangeable Modular SEM Specimen Holders

PELCO® SEM Specimen Holders,
the Modular Concept

The PELCO® Modular SEM Specimen Holder System offers the most comprehensive and cost effective range of specimen holders available today with full interchangeability between SEM models or brands. If you are using different models of SEMs in one location or your new SEM comes from a different manufacturer, you can continue to use the PELCO® Modular SEM Specimen Holders by adding just the appropriate SEM stage adapter. The PELCO® SEM Specimen Holders offer capabilities not available from SEM manufacturers or specimen holders supplied with the SEM. New specimen holders are added on a regular basis.

Features of the PELCO® Modular SEM Specimen Holder System:

  • Full interchangeability between SEM platforms
  • Stage adapters for all SEM brands:
    • Hitachi
    • Thermo / FEI / Philips
    • JEOL
    • ZEISS / LEO
    • Tescan
    • Amray
    • ISI / ABT / Topcon
    • CamScan
    • LEICA / Cambridge instruments
  • Built-in grounding contacts
  • Easy specimen load / unload
  • Low profile versions compatible with airlocks
  • Single and multiple specimen holders
  • Mix, match and upgrade to meet your needs
  • All PELCO® Modular SEM Specimen Holders have an M4 threaded connection and are compatible with any Hitachi SEM with an M4 thread stage adapter

The PELCO® Modular SEM Specimen Holder System consists of a selection of stage adapters for most commercially available SEMs, an extensive range of interchangeable SEM Specimen Holders and adapter buttons for some of the SEM stage adapters.

All Stage Adapters use either an M4 screw (supplied) or M4 thread to attach the SEM specimen holders. All SEM specimen holders have M4 thread in the bottom of the holders. The Modular SEM Specimen Holders will fit directly on the Hitachi style stage with M4 thread.

Only the Dovetail style Stage Adapters for JEOL and ZEISS/LEO need either a Short Button or an Extended Button to attach the Modular SEM Specimen Holder to the Stage Adapter.

short button short button in dovetail stage adapter extended button in dovetail stage adapter
Short Button with M4 Screw 15372
and installed on bottom of mount, top of picture
How Short Button 15372 fits into Dovetail Stage Adapter
(15371 or 15397)
Extended Button 15372-10 with M4 Screw, used in Dovetail Stage Adapter (15371 or 15397) with M4 Threaded Mount Specimen Holder.





Below are examples of how to connect the Stage Adapters to the Modular SEM specimen holders.
Hitachi T-Base Stage adapter 15370 uses an M4 screw to attach the Modular SEM specimen holders. No additional adapter is needed.

t-base adapter and cross section holder, 90 degrees t-base adapter with cross section holder, assembled
T-Base Adapter 15370 with M4 Screw and 15378-2 Cross Section Holder, 90° T-Base Adapter with Cross Section Holder, assembled





New style Hitachi T-base stage adapter 15370-1 uses an M4 screw to attach the Modular SEM specimen holders. No additional adapter is needed.

new style t-base adapter and single flat sample clip holder new style t-base adapter with single flat sample clip holder
New Style T-Base Adapter 15370-1 with M4 Screw and 15375-2 Single Flat Sample Clip Holder. New Style T-Base Adapter with M4 Screw Single Flat Sample Clip Holder, assembled.





Thermo/FEI/Philips stage adapters 15368 and 15368-2 have an M4 thread and fit directly into any of the Modular SEM specimen holders. No additional adapters needed.



modular stage adapter disassembled modular stage adapter assembled modular stage adapter with sem specimen holders attached
Modular Stage Adapter 15368
shown disassembled.
Base, Pillar and Locking Nuts may also be ordered separately.
Modular Stage Adapter 15368
shown assembled.
Modular Stage Adapter 15368
shown with SEM Specimen Holders Attached.






JEOL Dovetail Stage Adapter 15371 needs either the Short Button or the Extended Button. The Short Button is for the smaller Modular SEM specimen holders to reduce the height. The Extended Button is needed for the larger Modular SEM Specimen Holders.

cross section holder, 90 degrees to dovetail stage adapter cross section holder, 90 degrees and dovetail stage adapter multi purpose specimen holder to dovetail stage adapter  multi purpose specimen holder and dovetail stage adapter
Short Button 15372 with M4 Screw used to attach 15378-2 Cross Section Holder, 90° to Dovetail Stage Adapter 15371 15378-2 Cross Section Holder, 90 degrees and Dovetail Stage Adapter 15371, assembled. Extended Button 15372-10 with M4 Screw used to attach 15305 Multi Purpose Specimen Holder to Dovetail Stage Adapter 15371 15305 Multi Purpose Specimen Holder and Dovetail Stage Adapter 15371, assembled.





JEOL Dovetail Stage Adapter 15371-67A needs either the Short Button or the Extended Button. The Short Button is for the smaller Modular SEM specimen holders to reduce the height. The Extended Button is needed for the larger Modular SEM Specimen Holders.

Dovetail Stage Adapter with Straight Bulk Specimen Holder
15320 Straight Bulk Specimen Holder to Dovetail Stage Adapter 15371-67A.
Dovetail Stage Adapter with Straight Bulk Specimen Holder Assembled
15320 Straight Bulk Specimen Holder and Dovetail Stage Adapter 15371-67A, assembled.





ZEISS/LEO Dovetail Stage Adapter 15397 needs either the Short Button or the Extended Button. The Short Button is for the smaller Modular SEM Specimen Holders to reduce the height. The Extended Button is needed for the larger Modular SEM Specimen Holders.


single flat sample clip holder to dovetail stage adapter
Short Button 15372 with M4 Screw used to attach 15375 Single Flat Sample Clip Holder to Dovetail Stage Adapter 15397.
single flat sample clip holder and dovetail stage adapter
15375-2 Single Flat Sample Clip Holder and Dovetail Stage Adapter 15397, assembled.
multi specimen holder to dovetail stage adapter
Extended Button 15372-10 with M4 Screw used to attach 15315 Multi Specimen Holder to Dovetail Stage Adapter 15397.
multi specimen holder and dovetail stage adapter
15315 Multi Specimen Holder and Dovetail Stage Adapter 15397, assembled.






Stage Adapters: AMRAY 15367-10; ISI/ABT/Topcon 15367-20; CamScan or Tescan 15367-30; and the Pin Stub Adapter 15319 all have M4 thread and fit directly in any of the Modular SEM Specimen Holders.

stage adapter 15367-10 Stage Adapter with 15320 Straight Bulk Specimen Holder. stage adapter and straight bulk specimen holder, assembled 15367-10 Stage Adapter and 15320 Straight Bulk Specimen Holder, assembled.






The Stub Extensions: Extra Short 15373-21, Short 15373-2, Medium 15365-2 and Long 15374-2 can be used to extend the height of an SEM specimen mount or an SEM specimen holder on the T-Base or the Dovetail type Stage Adapters only. The locking nut ensures additional stability.

t-base with short stub extension
stub adapters

Stub Extensions: Extra Short 15373-21, Short 15373-2, Medium 15365-2 and Long 15374-2

t-base with short stub extension

t-base with short stub extension

Extra Short 15373-21
with T-Base 15370-1
without and with a mount attached

t-base with short stub adapter

stub adapter with mount

Short Stub Extension 15373-2 with T-Base 15370 without and with a mount attached

medium stub exchange adapter assemble
stub adapter with mount

Medium Stub Extension 15365-2 with T-Base 15370 without and with a mount attached

long stub adapter on dovetail
long stub adapter on dovetail with specimen mount

Long Stub Extension with Adapter Button 15372 and Dovetail Stage Adapter ( 15371 or 15397) without and with a mount attached




Modular SEM Stage Adapters


Compatible with all Interchangeable Modular SEM Specimen Holders

Adapter Buttons (Dovetail) and Stub Extensions (T-Base/Dovetail)


scanning electron microscopy t-base
Hitachi T-Base

hitachi S-4800, SU-70, SU6600 & SU8000 t-base for scanning electron microscopy
Hitachi S-4800, SU-70,
SU6600 & SU8000 T-Base

Stage Adapter for JEOL FESEM
NEW Dovetail Stage Adapter
for Hitachi SEM SU3900


stub adapters
Stage Adapter for Hitachi
SEM Series
S2000/S3000/S3500
stub adapters
Hitachi S-3400N/S-3700N

stub adapters
& Hitachi SU3500/SU3800/
SU5000/FlexSEM 1000
Stage Adapter for JEOL FESEM
JEOL FESEM Stage Adapter
JSM 7800F, 7601F, 7400F, 7100F, 7000F, 6700F, 6500F, IT200, IT300, IT 500, IT500HR, IT510, IT700HR, IT800
dovetail modular stage adapter for jeol scanning electron microscope
JEOL SEM: JSM35,
JSM50, JSM840, JXA733



Dovetail Style Adapter for JEOL

JEOL SEM 6000/5000/T

JEOL SEM Dovetail Adapter
JEOL SEM 6400/5800
ZEISS-LEO Mount Adapter
ZEISS/LEO

stage adapter for fei / philips sem / fesem and dualbeam scanning electron microscopy
Thermo/FEI/Philips
low pin stub adapter to m4 short pin stub adapter to m4 long pin stub adapter to m4
Pin Stub
modular stage adapter for sem
Amray
stage adapter for isi/abt/topcon sems
ISI/ABT/Topcon
stage adapter for camscan or tescan
Tescan/CamScan
Cylinder Adapter for JEOL Holders Cylinder Adapter for JEOL Holders stub adapters
Stub Extensions
JEOL NeoScope Stage Adapter Kit
JEOL NeoScope
Stage Adapter Kit




Made in USA
t-base adapter for hitachi s-4000, s-4200, s-4300, s-4500, s-4700, s-3600n

T-Base Adapter for Hitachi S-800, S-4000, S-4100, S-4200, S-4300, S-4500, S-4700 and S-3600N SEMs

Specimen exchange T-base adapter incorporates an aluminum body and self-aligning double sided brass thread block to facilitate smooth insertion on the SEM stage and to prevent binding. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15370 T-Base Adapter for Hitachi each $192.50
Qty:
15370-25 Brass Float Bar for Hitachi T-base adapter each 43.45
Qty:




Made in USA
new style t-base adapter for hitachi s-4800 and su-70 fesems

New Style T-Base Adapter for Hitachi S-4800, SU-70, SU6600, SU8200 and SU8000 series FESEMs

Made of vacuum grade aluminum with counterpart for airlock manipulator and locking rod. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15370-1 New Style Modular T-Base Adapter for Hitachi S-4800, SU-70, SU6600 and SU8000 each $544.50
Qty:




Made in USA
Stage Adapter for Hitachi SEM

Dovetail Stage Adapter for Hitachi SEM S-3400N

Made of vacuum grade aluminum to fit on the Hitachi S-3400N SEM. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15366-3400 Dovetail Stage Adapter for Hitachi S-3400N each $269.50
Qty:




Made in USA

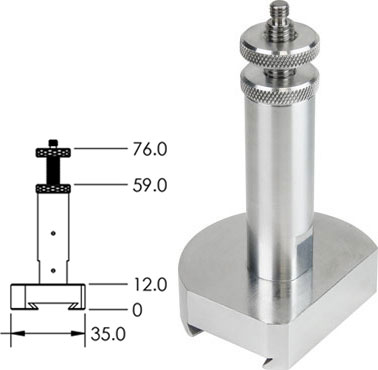

Stage Adapter for Hitachi SEM SU 3900

NEW Dovetail Stage Adapter for Hitachi SEM SU3900

Made of vacuum grade aluminum to fit on the Hitachi SU3900 SEM. Can be used with any of the Modular SEM Specimen Holders, provided holder dimensions are compatible. Includes M4 screw so that Modular Specimen Holders can also be attached directly to the dovetail, without pillar.

Prod # Description Unit Price Order / Quote
15366-3900 Dovetail Stage Adapter for Hitachi SU3900 each $412.50
Qty:




Made in USA
Stage Adapter for Hitachi SEM

Dovetail Stage Adapter for Hitachi SEM SU3500/SU3800/SU5000/FlexSEM 1000

Made of vacuum grade aluminum to fit on the Hitachi SU3500 and SU5000 SEM. Use the stub extensions (15373-21, 15373-2, 15365-2 or 15374-2) to increase height. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this.

Prod # Description Unit Price Order / Quote
15366-3500 Dovetail Stage Adapter for Hitachi SU3500/SU3800/SU5000/FlexSEM 1000 each $269.50
Qty:




Made in USA
Stage Adapter for Hitachi SEM

Dovetail Stage Adapter for Hitachi SEM S-3700N

Made of vacuum grade aluminum to fit on the Hitachi S-3700N SEM. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15366-3700 Dovetail Stage Adapter for Hitachi SEM S-700N each $412.50
Qty:




Made in USA

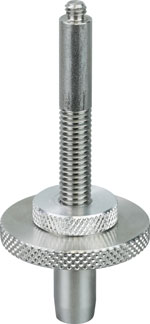

Stage Adapter for Hitachi SEM

Stage Adapter for Hitachi SEM series S2000/S3000/S3500

This Hitachi stage adapter for the S2000/S3000/S3500 series consists of a round base (Ø15x18mm), 25mm brass pillar and locking ring. The base and locking nut are made of vacuum grade aluminum, the brass pillar has standard M6 thread with an M4 thread on top which is compatible with the Hitachi specimen mounts and specimen holders with an M4 threaded hole. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this.

Prod # Description Unit Price Order / Quote
15285 Hitachi S2000/S3000/S3500 series SEM Stage Adapter each $159.50
Qty:




Made in USA
stage adapter for fei / philips sem / fesem and dualbeam
15368
fei/philips standard stage adapter pillar
15368-2

Stage Adapter for Thermo / FEI / Philips SEM / FESEM and DualBeam Systems

Made of brass pillar and aluminum base and locking nuts. This particular material choice prevents "binding" of parts in the SEM stage. Available in standard version with standard pillar, base and two locking nuts and short version with short pillar and two locking nuts. Pillar with M6-fine thread and M4 thread on top. Can be used with any of the of the Modular SEM Specimen Holders if the SEM stage travel permits this.

Prod # Description Unit Price Order / Quote
15368 Standard Modular Stage Adapter for Thermo/FEI/Philips (40mm H) (Standard Pillar, Base and two Locking Nuts) each $247.50
Qty:
15368-2 Short Modular Stage Adapter for Thermo/FEI/Philips (20mm H) (Short Pillar and two Locking Nuts) each 181.50
Qty:
15368-10 Thermo/FEI/Philips Stage Adapter Base only each 66.00
Qty:
15368-20 Thermo/FEI/Philips Standard Stage Adapter Pillar only, 40mm each 115.50
Qty:
15368-25 Thermo/FEI/Philips Short Stage Adapter Pillar only, 20mm each 115.50
Qty:
15368-45 Thermo/FEI/Helios Long Stage Pillar only, 45mm each 115.50
Qty:
15368-30 Thermo/FEI/Philips Stage Adapter Locking Nut only each 33.00
Qty:




Made in USA
dovetail modular stage adapter for jeol sem

Dovetail Stage Adapter for JEOL SEM: JSM35, JSM50, JSM840 and JXA733

Solid brass Dovetail Stage Adapter can be used on many JEOL SEMs and is compatible with the airlock used on JEOL SEMs.  The 14mm hole in the center is compatible with other JEOL holders. Two Button style adapters are available to connect the Modular SEM specimen holders. The Short Button (15372) is used for the smaller specimen holders only, whereas the Extended Button ( 15372-10) can be used with all Modular SEM Specimen Holders if the SEM stage travel permits this.

Prod # Description Unit Price Order / Quote
15371 Dovetail Stage Adapter for JEOL SEM 35/50/800/733 each $247.50
Qty:




Made in USA
Stage Adapter for JEOL FESEM

Dovetail Stage Adapter for JEOL SEM

Fits JSM7900F/7800F/7200F/7601F/7600F/7500F/7400F/7100F/7000F/6700F/6500F/IT200/IT300/IT500/IT500HR/IT510/IT700HR/IT800

Solid brass Dovetail Stage Adapter can be used on the JEOL FESEMs listed above. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15371-67A Dovetail Stage Adapter for JEOL FESEM 7000/6700/6500/IT-series each $412.50
Qty:




Made in USA
Stage Adapter for JEOL FESEM

Dovetail Stage Adapter for JEOL SEM

Fits 6510/6390/6380/6360/6010/5700/5600/5500/5410/5400/5300/T330/T220/T300/T200/TT100/T20/IT100

Aluminum Dovetail Stage Adapter compatible with the JEOL SEMs listed above. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15399 Dovetail Stage Adapter for JEOL SEM 6000/5000/T each $269.50
Qty:




Made in USA
Dovetail Stage Adapter for JEOL SEM

Dovetail Stage Adapter for JEOL SEM: 5800/5900/5910/6460/6480/6490/6610 and JIB-4500 FIB/SEM

Aluminum Dovetail Stage Adapter compatible with the JEOL SEMs listed above. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

Prod # Description Unit Price Order / Quote
15396 Dovetail Stage Adapter for JEOL SEM 6400/5800 each $269.50
Qty:




Made in USA
Cylinder Adapter for JEOL Holders

Cylinder Adapter for JEOL Holders

Made of aluminum in 3 sizes, Ø9.5 x 10mm, Ø12.2 x 10mm, Ø15 x 10mm with M4. Used directly on JEOL holders. Can be used with any of the modular SEM specimen holders.

Prod # Description Unit Price Order / Quote
15367-25 Ø9.5mm JEOL Cylinder Mount Adapter each $27.95
Qty:
15367-40 Ø12.2mm JEOL Cylinder Mount Adapter each 27.95
Qty:
15367-20 Ø15mm JEOL Cylinder Mount Adapter each 27.95
Qty:




Made in USA
Dovetail Stage Adapter for ZEISS - LEO SEM

Dovetail Stage Adapter for ZEISS/LEO SEM

The solid brass dovetail for the ZEISS/LEO SEMs is fully compatible with the ZEISS/LEO dovetail used on the stage or stage height adapters. Two button style adapters are available to connect the Modular SEM Specimen Holders. The Short Button (15372) is used for the smaller specimen holders only, whereas the Extended Button (15372-10) can be used with all Modular SEM Specimen Holders.

Prod # Description Unit Price Order / Quote
15397 Dovetail adapter for ZEISS/LEO each $247.50
Qty:




Made in USA
stage adapter for amray sems

Stage Adapter for AMRAY SEMs

Made of aluminum, 16mm dia x 25mm H with M4 screw. Can be used with any of the Modular SEM Specimen Holders.

Prod # Description Unit Price Order / Quote
15367-10 Stage Adapter for AMRAY each $42.35
Qty:




Made in USA
stage adapter for isi/abt/topcon sems

Stage Adapter for ISI/ABT/Topcon SEMs

Made of aluminum, 15mm dia x 10mm H with M4 screw. Can also be used on JEOL stage adapters or specimen holders which accommodate the 15mm cylinder stub. Can be used with any of the Modular SEM Specimen Holders.

Prod # Description Unit Price Order / Quote
15367-20 Stage Adapter for ISI/ABT/Topcon SEMs each $27.95
Qty:




Made in USA
stage adapter for camscan or tescan

Stage Adapter for CamScan and Tescan SEMs

Made of aluminum, 12.5mm dia x 20mm H with M4 screw. Used with the 12.7mm stage adapter found on the larger stages. Can be used with any of the Modular SEM Specimen Holders.

Prod # Description Unit Price Order / Quote
15367-30 Stage Adapter for Camscan or Tescan each $42.35
Qty:




Made in USA
low pin stub adapter to m4 short pin stub adapter to m4 long pin stub adapter to m4

Pin Stub Adapters to M4

Standard low profile, short and long pin with M4 threads to convert any of the Modular SEM Specimen Holders into a pin stub type holder. Can be used on Cambridge, Leica, CamScan, Tescan, and Thermo/FEI/Philips SEMs. Short pin for ZEISS/LEO SEMs, long pin for AMRAY SEMs. This arrangement will add height to the total assembly and is not recommended for larger specimen holders or heavy specimens.

Prod # Description Unit Price Order / Quote
15319 Standard Low Profile Pin Stub Adapter to M4, 9.50mm (0.374") pin length, 3.15mm (0.124") pin diameter each $26.95
Qty:
15319-9 Short Pin Stub Adapter to M4, 6.35mm (0.250") pin length, 3.15mm (0.124") pin diameter (ZEISS/LEO) each 26.95
Qty:
15319-2 Long Pin Stub Adapter to M4, 14.76mm (0.581") pin length, 3.15mm (0.124") pin diameter (AMRAY) each 26.95
Qty:




Made in USA

stub extensions
t-base with short stub extension
15373-2 Short Stub Extension
with T-Base 15370

t-base with short stub extensiont-base with short stub extension
15373-21 shown with T-Base
15370-1
(not included)

Hitachi Stub Extensions

Hitachi Stub Extensions with M4 thread (top and bottom) are intended to accommodate shorter working distance in the SEM. Available in 9, 12, 18, 25mm lengths. Stub extensions can be stacked. Material: brass with stainless steel M4, complete with aluminum locking nut. 12, 18, 25mm extensions come with 4mm thick 16mm Ø locking nut (#15373-22). 9mm extension comes with 2mm thick and 30mm Ø locking nut (#15373-23) included.

Prod # Description Unit Price Order / Quote
15373-21 Extra Short Stub Extension, 9mm, with Thin Locking Nut each $46.75
Qty:
15373-2 Short Stub Extension, 12mm, with Locking Nut each 46.75
Qty:
15365-2 Medium Stub Extension, 18mm, with Locking Nut each 46.75
Qty:
15374-2 Long Stub Extension, 25mm, with Locking Nut each 46.75
Qty:
15373-23 M6 Thin Locking Nut for Stub Extensions, Aluminum each 16.50
Qty:
15373-22 M6 Locking Nut for Stub Extensions, Aluminum each 16.50
Qty:




Made in USA

JEOL NeoScope Stage Adapter Kit

for use in the JEOL NeoScope JCM-6000 and JCM-5000 Benchtop SEMs

Aluminum stage plate with two adjustable height pillars and locking nut. Includes height guage. Can be used with all modular SEM holders with 35 x 35mm x-y movement that do not exceed total assembly height of 50mm.
PELCO® Technical Notes (106KB PDF)

Prod # Description Unit Price Order / Quote
15398 NeoScope Stage Adapter Kit, includes base plate adapter, 18mm and 25mm adjustable height adapters and height gauge. each $137.50
Qty:
15398-10 NeoScope Stage Base Adapter plate. each 93.50
Qty:
15365-2 18mm Adjustable Height Pillar with Locking Nut each 46.75
Qty:
15374-2 25mm Adjustable Height Pillar with Locking Nut each 46.75
Qty:
15373-22 M6 Locking Nut, Aluminum each 16.50
Qty:


Adapter Buttons (Dovetail) and Stub Extensions (T-Base/Dovetail)

Interchangeable Modular SEM Specimen Holders
