Tannic acid is a multidentate capping agent that can be displaced with many thiol containing ligands. As a general rule, tannic acid coated nanoparticles are more stable at high particle concentrations, while citrate capped nanoparticles are more stable in higher ionic strength solutions. Tannic acid capped particles are suspended in water.

The PELCO ® NanoXact™ and BioPure™ gold colloids (nanoparticles) are extensively characterized (see Technical Data below) and designed to meet the rigorous research demands in today’s market. They range in size from 5 to 100nm.

The gold colloids come with comprehensive specification sheets that provide all of the physical and optical characterization data necessary to integrate the nanoparticles into Surface Enhanced Raman Spectroscopy (SERS), plasmonic and photonic applications.

Product Description

  • Capped/stabilized with tannic acid and negatively charged
  • Tannic acid capped gold is characterized by UVVIS, TEM, DLS and zeta potential. Residual reactants have been removed.
  • NanoXact™ gold colloids are available in 25, 100 and 500ml volumes - supplied in water
  • BioPure™ gold colloids are 20X more concentrated than the NanoXact™ gold colloids and available in 1 and 5ml volumes - supplied in water
  • Both gold lines have been extensively washed without centrifugation to remove trace elements from the supernatant (<0.000001% of trace elements)
  • PELCO NanoXact™ also available with 20nm silica shells, zeta potential -25 to -55mV in ethanol and 20nm aminated silica shells, zeta potential +20 to +50mV in ethanol, in 1, 5, 10ml respectively

Stability and Storage

The PELCO® NanoXact™ and BioPure™ gold colloids should be stored at 4°C.

  • DO NOT FREEZE.
  • NanoXact™ line is stable for >6 months after purchase
  • BioPure™ line (high concentration) is stable for >3 months after purchase

Product testing indicates increased stability can be attained by following the storage recommendations.

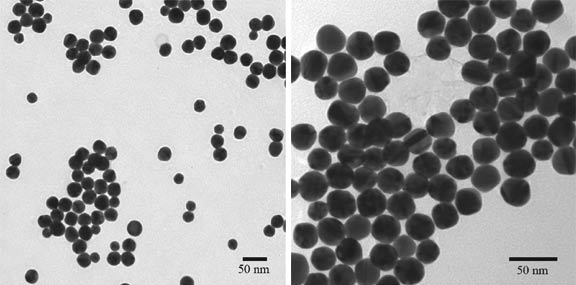

30nm Gold Colloid
30nm Gold Colloid


1X Concentration - Supplied in Water

20X Concentration - Supplied in Water
NanoXact™ Technical Data

BioPure™ Technical Data
Au Mass
Concentration
Atomic (Au) Molarity
Particle
Concentration
Au Mass Percent
Max Optical Density
Peak Wave-
length
Particle
Diameter
(nm)
Au Mass
Concentration
Atomic (Au) Molarity
Particle
Concentration
Au Mass Percent
Max Optical Density
Peak
Wave-
length
(mg/mL) ±0.005
(mmol/L)
(particles/mL)
(%)
(cm-1)
nm

(mg/mL)
±0.02
(mmol/L)
(particles/mL)
(%)
(cm-1)
nm
0.05
0.254
3.95 x 1013
0.005
0.80
520
5
 1 5.08 7.00 x 1014 0.1 16.0 520
- - - - - -
7
 1 5.08 2.88 x 1014 0.1 16.4 520
0.05
0.254
4.94 x 1012
0.005
0.82
520
10
 1 5.08 9.88 x 1013 0.1 16.4 520
- - - - - -
12
 1 5.08 5.72 x 1013 0.1 16.6 520
0.05
0.254
1.46 x 1012
0.005
0.83
520
15
 1 5.08 2.92 x 1013 0.1 16.6 520
0.05
0.254
6.18 x 1011
0.005
0.84
520
20
 1 5.08 1.24 x 1013 0.1 16.9 520
0.05
0.254
1.83 x 1011
0.005
1.11
520
30
 1 5.08 3.66 x 1012 0.1 22.1 520
0.05
0.254
7.72 x 1010
0.005
1.13
520
40
 1 5.08 1.54 x 1012 0.1 22.6 520
0.05
0.254
3.95 x 1010
0.005
1.45
525
50
 1 5.08 7.90 x 1011 0.1 29.1 525
0.05
0.254
2.29 x 1010
0.005
1.59
530
60
 1 5.08 4.58 x 1011 0.1 31.8 530
0.05
0.254
1.44 x 1010
0.005
1.59
535
70
 1 5.08 2.88 x 1011 0.1 31.8 535
0.05
0.254
9.65 x 109
0.005
1.57
545
80
 1 5.08 1.93 x 1011 0.1 31.5 545
0.05
0.254
4.94 x 109
0.005
1.01
555
100
 1 5.08 9.88 x 1010 0.1 20.1 555

Technical Data Sheet for 80nm PELCO® NanoXact™ Gold Nanoparticles

Technical Data Sheet for 5nm PELCO® Tannic NanoXact™ Gold Nanoparticles

Technical Data Sheet for 60nm PELCO® BioPure™ Gold Nanoparticles



NOTE:
All shipments of Gold Conjugate products must be for next day delivery due to temperature requirements.
No Friday (weekend) shipments.


NOTE: Empty cells in the product table below denote items that are no longer available from the manufacturer.

NanoXact Gold 20x

Tannic Acid Capped

PELCO® BioPure™ Gold Colloids - Supplied at 20X Concentration in Milli-Q Water

MSDS (100KB PDF)

Size (nm) Particles/ml   1 ml Price 265.00/ea   5 ml Price 1095.00/ea
5nm 7.00 x 1014         83130-5
Qty:
10nm 9.88 x 1013   83110-10
Qty:
  83130-10
Qty:
50nm 7.90 x 1011   83110-50
Qty:
  83130-50
Qty:
100nm 9.88 x 1010   83110-100
Qty:
  83130-100
Qty:




Silica Coated Gold

PELCO® NanoXact™ Gold Colloids Capped with a 20nm Thick Silica Shell (1ml and 5ml)

1mg/ml concentration supplied in ethanol - zeta potential of -25 to -55mV:

Size (nm) Particles/ml   1 ml Price 225.00/ea   5 ml Price 895.00/ea
20nm 1.24 x 1013   83410-20
Qty:
  83430-20
Qty:
50nm 7.92 x 1011   83410-50
Qty:
  83430-50
Qty:
100nm 9.90 x 1010   83410-100
Qty:
  83430-100
Qty:


PELCO®NanoXact™ Gold Colloids Capped with a 20nm Thick Silica Shell (10ml)

1mg/ml concentration supplied in ethanol - zeta potential of -25 to -55mV:

Size (nm) Particles/ml 10 ml Price 1495.00/ea
20nm 1.24 x 1013 83440-20
Qty:
50nm 7.92 x 1011 83440-50
Qty:
100nm 9.90 x 1010 83440-100
Qty:


PELCO® NanoXact™ Gold Colloids Capped with Amine Terminated 20nm Thick Silica Shell (1ml and 5ml)

1mg/ml concentration supplied in ethanol - zeta potential of +20 to +50mV:

Size (nm) Particles/ml   1 ml Price 225.00/ea   5 ml Price 895.00/ea
20nm 1.24 x 1013   83510-20
Qty:
  83530-20
Qty:
50nm 7.92 x 1011   83510-50
Qty:
  83530-50
Qty:
70nm 2.89 x 1011   83510-70
Qty:

100nm 9.90 x 1010   83510-100
Qty:
  83530-100
Qty:


PELCO® NanoXact™ Gold Colloids Capped with Amine Terminated 20nm Thick Silica Shell (10ml)

1mg/ml concentration supplied in ethanol - zeta potential of +20 to +50mV:

Size (nm) Particles/ml 10 ml Price 1495.00/ea
20nm 1.24 x 1013 83540-20
Qty:
50nm 7.92 x 1011 83540-50
Qty:
100nm 9.90 x 1010 83540-100
Qty:


NEW PELCO® NanoXact™
Gold Nanospheres-PVP (dried)

Gold nanoparticle powder has two big advantages, it allows the user to determine the final concentration of the solution, and gives the user a choice in the type of solvent they wish to use (such as water, DMSO, ethanol, methanol, etc). The spheres are coated with PVP (polyvinylpyrrolidone), which helps maintain the stability of the particles when they are deposited. We offer several sizes of spheres from 5-100nm.

Prod # Description Unit Price Order / Quote
83660-1 100nm gold nanospheres, dried, 1mg each $95.00
Qty:
83660-5 100nm gold nanospheres, dried, 5mg each 355.00
Qty:


NEW PELCO® BioReady NHS-activated
40nm Gold Nanospheres

Our NHS (N-hydroxysuccinimide) activated nanoparticles are optimized for covalently coupling biomolecules, such as antibodies, to the surface of the gold nanoparticle.

Each kit includes:

  • Lyophilized gold nanospheres that reconstitute to 20 OD; 50 µL per small unit and 500 µL per large unit
  • Easy-to-use detailed protocol
  • Desalting buffer for antibody, reaction buffer, quencher, and conjugate diluent
  • Amicon® Ultra 0.5 mL spin filters for antibody buffer exchange/desalt

Prod # Description Unit Price Order / Quote
83540 NHS-activated 40nm gold nanosphere conjugation kit, (small, 3 units) each $215.00
Qty:
83542 NHS-activated 40nm gold nanosphere conjugation kit, (small, 10 units) each 525.00
Qty:
83544 NHS-activated 40nm gold nanosphere conjugation kit, (large, 1 unit) each 525.00
Qty:
