Cressington Coaters Overview

108 Auto/SE Sputter Coater

for applications where the coating thickness must have a very high degree of uniformity

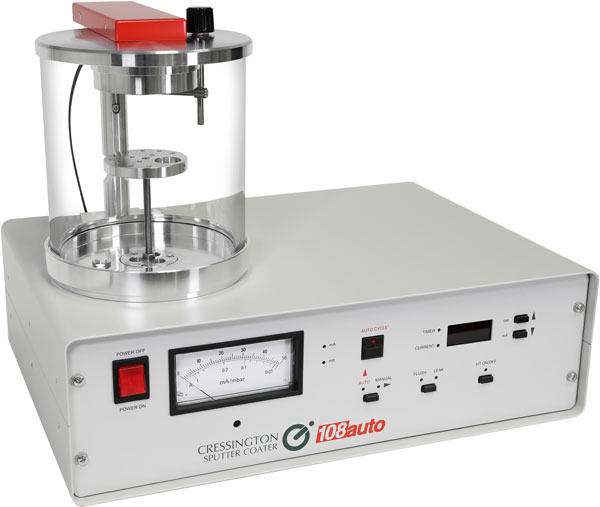

The 108 Auto/SE Sputter Coater with Ø150mm Chamber


The 108 Auto/SE Sputter Coater is the Special Equipment version of the 108 Auto Sputter Coater. The 108 Auto/SE is intended for use in applications where the coating thickness must have a very high degree of uniformity. Compared to the 108 Auto, the chamber size has been increased to 150mm outer diameter to accommodate the optional Rotary-Planetary-Tilting Stage or Rotary-Tilting Stage.


  9660
Optional Rotary-Planetary-Tilting (RPT) Stage (#9524) demonstrating variable speed settings and adjustable tilt. Shown with MTM crystal monitor installed, also optional.     Optional Rotary-Tilting (RT) Stage
(#9660)


The 108 Auto/SE Sputter Coater can also be fitted with an optional MTM-10 or MTM-20 Thickness Measurement System.

108 Auto/SE Sputter Coater with MTM-20 High Resolution Thickness Controller and RPT Stage


108 Auto/SE Sputter Coater Accessories & Consumables
RT Stage for 208 and 108Auto/SE
Rotary-Tilting/Rotary-Planetary-Tilting Stage
film thickness monitor MTM10, MTM_10
Thickness Measurement Systems
sputter targets
Targets
RVP pump for 108 coaters
Vacuum System
& Connections


Spares & Consumables for 108 Series Coaters
Specifications for the 108 Auto/SE Sputter Coater

Ordering Information

108 Auto/SE Sputter Coater
Prod # Description Unit Price Order / Quote
7009 108 Auto/SE Sputter Coater V2, 115VAC* each P.O.R.
Qty:
7009-220 108 Auto/SE Sputter Coater V2, 220VAC* each P.O.R.
Qty:
* The 108 Auto SE Sputter Coater includes: 91110 Gold Target; 7021 Specimen Mount Stage for 12 pin mounts; 150mm dia. Chamber; Manual Target Shutter; and Operating Instructions.

Accessories & Options for the 108 Auto/SE
Prod # Description Unit Price Order / Quote
Vacuum Pump & Connections
92080 Rotary Vane Pump RVP 100-3.5, 6m³/hr, 115volts, 50/60Hz each $1395.00
Qty:
92080-220 Rotary Vane Pump RVP 100-3.5, 6m³/hr, 230volts, 50/60Hz each 1395.00
Qty:
92080-108 All Metal Connection Kit each 359.00
Qty:
891-31 PELCO® Ultra 19 Rotary Pump Oil each 13.25
Qty:
92061 Exhaust Filter, Max Flow Rate 3CFM, without adapter, 1/2" male NPT thread each 160.75
Qty:
Accessories
9611 Filter for Venting Inlet, complete with 1/4" hose each 14.25
Qty:
896 PELCO Bell Jar Kleen™, 14 oz. each 14.36
Qty:
Optional Rotary-Planetary-Tilting & Rotary-Tilting Stages
9524 Rotary-Planetary-Tilting (RPT) Stage (variable speed 9V battery powered) each P.O.R.
Qty:
9660 Rotary-Tilting (RT) Stage (variable speed 9V battery powered) each P.O.R.
Qty:
9631 9VDC Converter Kit for 108 RT #7050, RT #9660, and RPT #9524 Stages 100-240VAC 50/60Hz each 110.00
Qty:
MTM-10 Thickness Monitor and MTM-20 Thickness Controller
93004 MTM-10 High Resolution Thickness Monitor System* 110VAC, 50/60Hz each 2475.00
Qty:
93004-220 MTM-10 High Resolution Thickness Monitor System* 220VAC, 50/60Hz each 2475.00
Qty:
93006 MTM-20 High Resolution Thickness Controller System* 115VAC, 50/60Hz each P.O.R.
Qty:
93006-220 MTM-20 High Resolution Thickness Controller System*220VAC, 50/60Hz each P.O.R.
Qty:
93005 MTM-10 High Resolution Thickness Monitor System, for RPT or RT Stage* 110VAC, 50/60Hz each 2600.00
Qty:
93005-220 MTM-10 High Resolution Thickness Monitor System, for RPT or RT Stage* 220VAC, 50/60Hz each 2600.00
Qty:
93007 MTM-20 High Resolution Thickness Controller System, for RPT or RT Stage* 115VAC, 50/60Hz each P.O.R.
Qty:
93007-220 MTM-20 High Resolution Thickness Controller System, for RPT or RT Stage* 220VAC, 50/60Hz each P.O.R.
Qty:
93008 Replacement Crystals for MTM-10/20 each 42.00
Qty:
93009 Replacement Crystals for MTM-10/20 each 93.30
Qty:
*The MTM-10 High Resolution Thickness Monitor System and MTM-20 High Resolution Thickness Controller System include: MTM Controller Box, BNC Cable, Oscillator, Vacuum feedthrough; Cables; Crystal holder, test crystal; Instructions
*RPT: Rotary-Tilting-Planetary Stage
