Scribing and Cleaving Kits and Accessories


The Cleaving Kit

The Cleaving Station

Small Sample Cleaving Kit

Carbide Cutter Cleaving Kit

Marker Scriber Kit


Scribing Tools & Accessories



Scribing & Cleaving Kits

The Cleaving Kit

The Cleaving Kit contains everything required for hand scribing and cleaving most samples. The kit can be purchased with or without the Large Cutting Mat (A3, 18 x 12" nominal size).

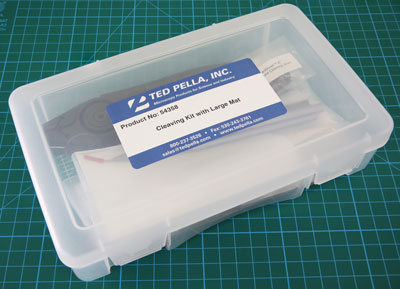

Cleaving Kit shown open with contents Cleaving Kit shown with Large Cutting Mat
Kit Includes:
  • CleanBreak™ Pliers
  • Small Sample Cleaving Pliers
  • Pen Style Diamond Scribe
  • Straight Tip Diamond Scribe
  • Angle Tip Diamond Scribe
  • Small Cutting Mat
  • Tweezers
  • Rulers, 6", Stainless Steel and Clear Plastic
  • Cleaving Wire

Prod # Description Unit Price Order / Quote
54358 Cleaving Kit, with Large Cutting Mat each $320.00
Qty:
54359 Cleaving Kit each 274.00
Qty:




The Cleaving Station

The Cleaving Station contains a comprehensive set of tools for scribing and cleaving both large and small samples. The kit can be purchased with or without the Large Cutting Mat (A3, 18 x 12" nominal size).


Cleaving Station shown

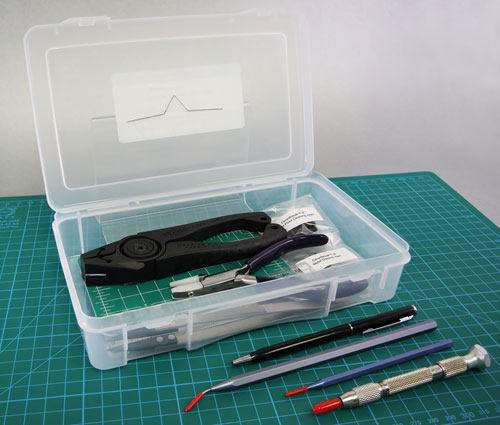

open with contents

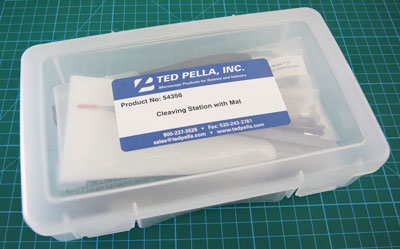

Cleaving Station shown with Large Cutting Mat
Kit Includes:
  • LatticeScriber™
  • CleanBreak™ Pliers
  • Small Sample Cleaving Pliers
  • Pen Style Diamond Scribe
  • Straight Tip Diamond Scribe
  • Angle Tip Diamond Scribe
  • Small Cutting Mat
  • Tweezers
  • Rulers, 6", Stainless Steel and Clear Plastic
  • Cleaving Wire

Prod # Description Unit Price Order / Quote
54356 Cleaving Station, with Large Cutting Mat each $639.00
Qty:
54357 Cleaving Station each 595.00
Qty:





Scribing & Cleaving Kit for Small Samples

The Small Sample Cleaving Kit contains tools for manually scribing and cleaving small samples down to 2-3mm.


Small Sample Cleaving Kit

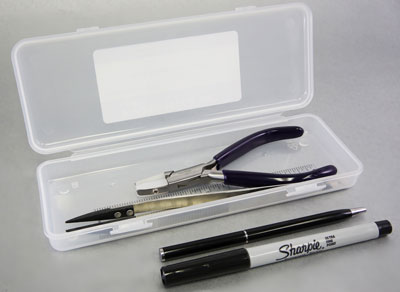

shown open with contents

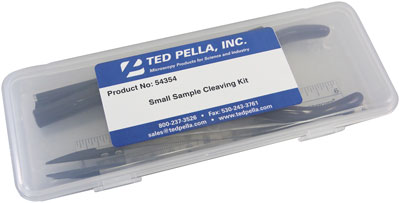

Small Sample Cleaving Kit
Kit Includes:
  • Small Sample Cleaving Pliers
  • Pen Style Diamond Scribe
  • Tweezers
  • Rulers, 6", Stainless Steel and Clear Plastic
  • Fine Tip Marker

Prod # Description Unit Price Order / Quote
54354 Scribing & Cleaving Kit for Small Samples each $145.00
Qty:




Carbide Cutter Cleaving Kit

Handheld tools for cutting and cleaving glass, silicon, and hard materials. Carbide wheels produce fewer particles when scribing, when comparted to diamond pointed scribes. Both large and small CleanBreak™ pliers are included for handling larger and thicker samples. The included cutters include: Standard cutter for general purposes cutting of glass, silicon, and other crystalline materials. Also suitable for thin glass 0.3-1.5 mm and hard glass 0.3-6mm thick; Laser cutter, allowing higher surface penetration and non-slip start. It is used for glass 0.1-2 mm think, hard glass 0.3-2 mm thick, and quartz, silicon, and III-V substrates; Cutter for ultra-thin glass 0.03-2mm and hard glass 0.3-2mm. It also excels at cutting thin quartz and III-V substrates.

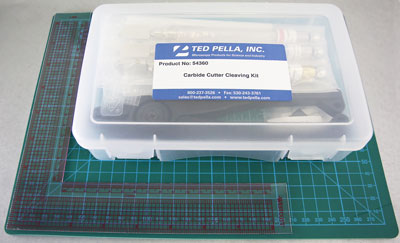

Carbide Cutter Cleaving Kit

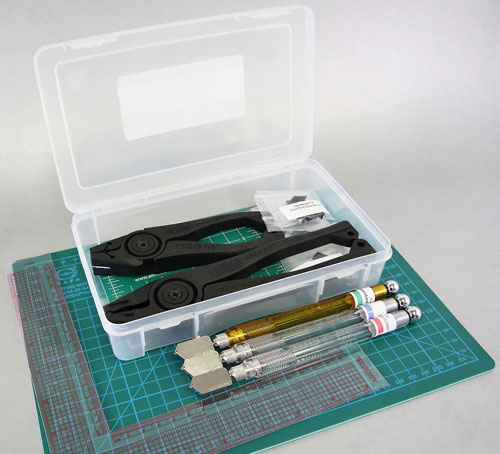

shown open with contents
Carbide Cutter Cleaving Kit
Kit Includes:
  • CleanBreak™ Pliers, 6"
  • CleanBreak™ Pliers, 8"
  • Carbide Cutter, Standard
  • Carbide Cutter, Laser
  • Carbide Cutter, Laser, for Ultra Thin Samples
  • L-square Ruler
  • Cutting Mat, Self Healing, A4 size (9 x 12")

Prod # Description Unit Price Order / Quote
54360 Carbide Cutter Cleaving Kit each $399.00
Qty:





Marker Scriber Kit

A diamond scriber set ideal for fine marks and scribing a wafer surface. Three diamond scribers are included.

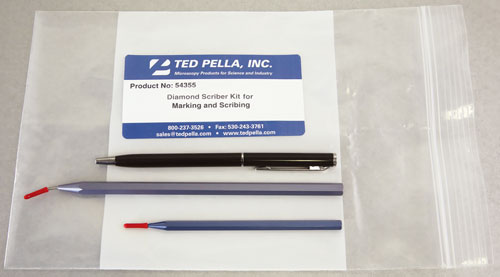

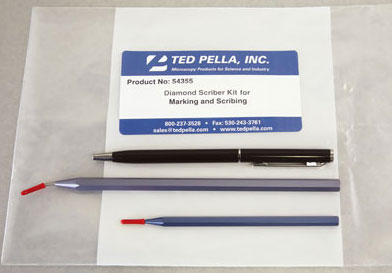

  54355
Kit Includes:
  • Pen-style Diamond Scriber, Retractable
  • Angled Tip Diamond Scriber
  • Straight Tip Fine Diamond Scriber

Prod # Description Unit Price Order / Quote
54355 Marker Scriber Kit each $120.00
Qty:




Scribing Tools & Accessories

LatticeScriber™

54351

The LatticeScriber™ is the optimal tool for scribing silicon, III-V semiconductors, and similar materials. The scribe tip is an 8-point diamond, allowing flexibility to meet demanding scribing requirements and long tool life.

Prod # Description Unit Price Order / Quote
54351 LatticeScriber™ each $168.00
Qty:

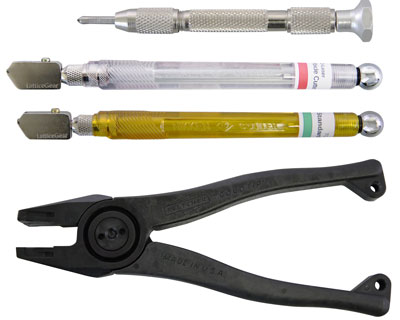

Carbide Wheel Cutter, Standard

54365

General purpose tungsten carbide cutter for glass, silicon, and other crystalline materials. Suitable for glass 0.3-1.5mm and hard glass 0.3-6mm. Wheel cutters produce a cleaner scribe line than pointed scribe, minimizing the number of particles produced. Plastic handle is 5" long.

Prod # Description Unit Price Order / Quote
54365 Carbide Cutter, Standard each $52.00
Qty:




Carbide Wheel Cutter, Laser

54366

In this carbide wheel cutter, Laser refers to the profile applied to the wheel. This allows for a non-slip start and deeper scoring. Good for glass 0.1-2mm and hard glass 0.3-2mm. This cutter excels at cutting thin glass, hard glass, quartz, silicon and III-V semiconductors. Wheel cutters produce a cleaner scribe line than point scribes and minimize the number of particles generated. Plastic handle is 5" long.

Prod # Description Unit Price Order / Quote
54366 Carbide Cutter, Laser each $115.00
Qty:




Carbide Wheel Cutter, Laser, Ultra-thin

54352

In this carbide wheel cutter, Laser refers to the profile applied to the wheel. This allows for a non-slip start and deeper scoring. Good for glass 0.1-2mm and hard glass 0.3-2mm. This cutter excels at cutting thin glass, hard glass, quartz, silicon and III-V semiconductors. Wheel cutters produce a cleaner scribe line than point scribes and minimize the number of particles generated. Plastic handle is 5" long.

Prod # Description Unit Price Order / Quote
54352 Carbide Cutter, Laser, Ultra-thin each $115.00
Qty:




CleanBreak™ Pliers, 6"

54361 54362

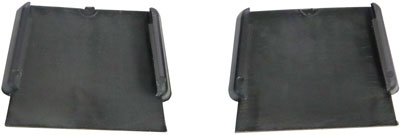

Replacement Running Jaws
(included)

High quality cleaving pliers, supplied with plastic 3-point cleaving jaws for crystalline substrates, and flat metal jaws for glass and ceramics. These 6" long pliers have a 0.75" jaw opening, suitable for crystals and glass up to 2mm thick. Supplied with a spare set of running jaws.

Prod # Description Unit Price Order / Quote
54361 CleanBreak™ Pliers, 6" long each $59.50
Qty:
54361-T Replacement Running Jaws Set, for 6" Pliers each 19.00
Qty:




CleanBreak™ Pliers, 8"

54362 54362
Replacement Running Jaws
(included)

High quality cleaving pliers, supplied with plastic 3-point cleaving jaws for crystalline substrates, and flat metal jaws for glass and ceramics. These 8" long pliers have a 0.9" jaw opening, suitable for thick substrates and hard materials such as sapphire. Supplied with a spare set of running jaws.

Prod # Description Unit Price Order / Quote
54362 CleanBreak™ Pliers, 8" long each $79.50
Qty:
54362-T Replacement Running Jaws Set, for 8" Pliers each 19.00
Qty:




Small Sample Cleaving Pliers

54363

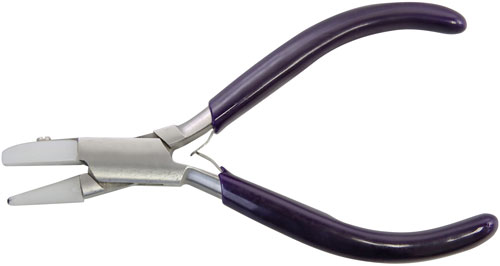

Soft-jaw sample cleaving pliers for small samples are ideal for cleaving scribed samples down to 2-3mm in size. The nylon jaws prevent marring of the sample during cleaving. Replacement tips available.

Prod # Description Unit Price Order / Quote
54363 Small Sample Cleaving Pliers each $39.00
Qty:

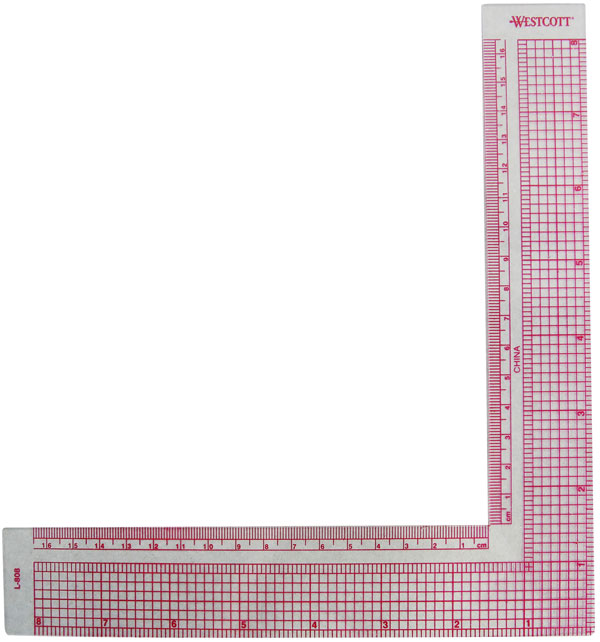

L-square Ruler

54486

8" and 16cm clear ruler and square. A handly layout tool for scribing.

Prod # Description Unit Price Order / Quote
54486 L-square Ruler, 8" each $11.00
