The PELCO® FlipScribe®

Precision Back Side Scribing for all Materials

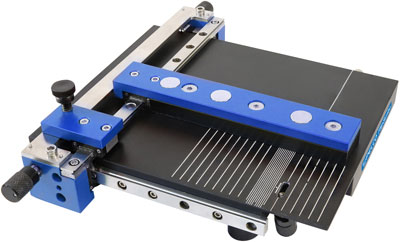

The PELCO® FlipScribe® (formerly from LatticeGear™) takes scribing to a new performance level, making clean, straight scribe lines on the back side to allow the user to accurately cleave front side targets, bonded wafers, glass, sapphire and other substrates. It integrates a robust diamond scribe into a sample platform with a fence guide design. The time required to align and scribe is about 1 minute. It allows users to accurately position the scribe mark relative to features on the front side, visualized either by eye or with a user-supplied high magnification microscope. The PELCO®FlipScribe® also offers a quick method for cleanly downsizing large area samples, by the use of a "scribe stop" which allows the operator to define the length of the scribe. The PELCO® FlipScribe®  is a compact, stable, accurate, fast and low cost scribing and cleaving solution suitable for any lab; no utilities are required for its operation.


  • Enables accurate cleaving through front side targets with a scribe made on the back side of the substrate
  • Avoids damaging the front side of the sample
  • Achieves an accuracy of ±200μm
  • Maintains a flexibility with respect to sample size and shape
  • Allows the length of the scribe to be varied from 1 to 100mm
  • Enables precise and repeatable sample alignment and sizing with a ruler embedded in platform
  • Retains a capability of scribing bonded crystalline and amorphous wafers and chips for subsequent cleaving


The sample is placed face up on the bed of the PELCO® FlipScribe®, with the left rail being used to set the position of the scribe and being locked in place. The depth and angle of the scriber tip is adjustable, with the optimal depth and angle depending on the sample type. The stop is set to prevent the blue bar from impacting the sample, and the sample is drawn over the scriber tip to make the scribe. A variety of sample holders are available with many form factors including standard wafer sizes, down to individual small dies. After scribing, the cleave is made using cleaving pliers.

Technical Note, PELCO® FlipScribe® Sample Holders (719KB PDF)

Product Video

Ordering Information

Prod # Description Unit Price Order / Quote
54330 PELCO® FlipScribe® Back-Side Scribing Tool each P.O.R.
54331 PELCO® FlipScribe® Extension for Scribing Large Samples each 195.00
54332 PELCO® FlipScribe® Holder for Small Samples from 5-25mm, 200-800 microns in thickness each 180.00
54333 PELCO® FlipScribe® Kit for Sample Holding (1 each of 54334, 54335, 54336 and 54337) each 1500.00
54334 PELCO® FlipScribe® Sample Holder for 2" Wafers each 400.00
54335 PELCO® FlipScribe® Sample Holder for 3" Wafers each 400.00
54336 PELCO® FlipScribe® Sample Holder for 4" Wafers each 400.00
54337 PELCO® FlipScribe® Sample Holder for 45° rotated lithography each 400.00
54338 PELCO® FlipScribe® Replacement Scribe in Cartridge each 375.00
