SEM Specimen Mount Storage Overview
Membrane Boxes
Grid Storage Boxes
Wafer Carrier Trays
SEM Mount Storage Boxes
Gel-Pak Substrate Carriers

SEM Specimen Storage Boxes
for Hitachi Mounts



PELCO® 10 Hitachi SEM Mount Storage Holder and Box

PELCO® 10 Hitachi SEM Mount Storage Holder and Box

Versatile storage box and holder for Hitachi SEM mounts with M4 threaded hole in the base. Tapered plastic posts allow easy storage and retrieval. Numbered 1 – 10 to accommodate Hitachi mounts from 15 to 32mm diameter. Can hold 10 of the 15mm mounts, 8 of the 25mm or 2 of the 32mm with enough space to place and remove the mounts. Maximum specimen height for 6mm high Hitachi SEM mounts is 15mm with closed lid. Box inside dimensions are: 4-5/8" x 2-2/4" x 1-5/16" (11.7 x 7.0 x 3.3cm)

Replaces the #16718 Storage Box

Prod # Description Unit Qty Price Order / Quote
16791 PELCO® SEM Storage box and holder for 10 Hitachi SEM Mounts each 1-9 $9.95
Qty:
10+ 9.45




PELCO® 10 Hitachi SEM Mount Storage Holder and Box

PELCO® X-TREME 10 Hitachi SEM Mount Storage Box with Holder

Very strong and rugged clear polycarbonate box to store standard Hitachi SEM mounts with M4 threaded hole in the base. This box is watertight, crushproof and dustproof. The strong hinges, locking clasps and soft silicone O-ring seal makes this an ideal transport, shipping and storage box for SEM samples on pin mounts. The holder insert is numbered 1-10 and accommodates Hitachi SEM mounts from 15-32 mm diameter. Same storage capacity as #16791.

Prod # Description Unit Qty Price Order / Quote
16795 PELCO® X-TREME SEM Storage Box and Holder for 10 Hitachi SEM Mounts each 1+ $22.00
Qty:




electron microscopy mount storge
#16712 holding 12 each 15mm Hitachi
mounts metal screws hold mounts
holder for 25mm electron microscopy mounts
#16712 holding 6 each 25mm Hitachi
mounts metal screws hold mounts

Hitachi SEM Mount Storage Box with M4 Screws

for Hitachi scanning electron microscopy specimen mounts

This storage box accepts threaded Hitachi Mounts.

Holds either 12 each of 15mm or 6 each of 25mm mounts.

Insert in base of the box has 12 M4 screws.
Maximum specimen height for 6mm high Hitachi SEM mounts is 12mm with closed lid.

Prod # Description Unit Price Order / Quote
16712 15/25mm Hitachi Mount Holder, metal screws and Box each $14.30
Qty:




Single Hitachi M4 Mount Storage, Mailer

Single Hitachi M4 Mount Storage Tube and Mailer

tube for SEM specimen Hitachi M4 mounts

A 15mm diameter, M4 threaded Hitachi mount can be protected and held securely in the cap (base) of the tube on a M4 screw.
Suitable for ø15mm Hitachi Mounts. Hitachi Mounts are sold separately. Inside dimension of clear tube: ø21mm (0.83"), max sample height on stub is 20mm (0.79"). Outside dimensions are ø23mm (0.9") with a height of 52mm (2.05"). Clear tube is made of polystyrene, cap is made of low density polyethylene (LDPE). Sold in packs of 10.

Prod # Description Unit Qty Price Order / Quote
16630-4 Single Hitachi Mount Storage Tube and Mailer, M4 pkg/10 1+ $16.00
Qty:

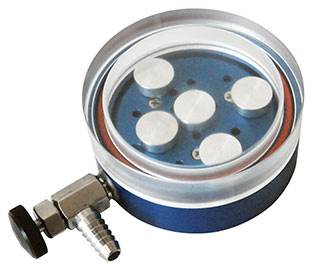

PELCO® SEM Sample Stub Vacuum Desiccator 16179-4

PELCO® Vacuum Desiccator for Hitachi M4 Sample Mount

The PELCO® Vacuum Desiccator for Hitachi M4 Sample Mounts holds either 5 of the 15mm diameter Hitachi M4 mounts or two of the 25mm diameter Hitachi M4 mounts. Storage under vacuum eliminates contamination or dust. Allows for a 7mm (0.27") specimen height on the mounts. The use of durable, non-outgassing, blue anodized aluminum and Viton® O-rings makes it suitable for pumping down to 10-3 mbar. Capable of holding vacuum for many weeks. Metal vacuum valve with PTFE shaft seal. Use a small vacuum pump to evacuate. Vacuum connection for pump-down is a 1/4" (6.35mm) barb fitting.

  • Keeps samples and calibration standards contamination free
  • Prevents oxidization of sensitive samples
  • Holds Hitachi M4 mounts secure on M4 screw adapters
  • Acrylic clear disc for easy locating of samples
  • Ideal for storing, transporting and shipping samples and calibration standards

Overall size without vacuum valve is ø76 x 35mm (3 x 1.4"). Cavity height is 13.7mm (0.54").

Also available for SEM Pin Mounts #16179 or as a TEM Grid Vacuum Desiccator #16178

PELCO® Technical Note, PELCO® Vacuum Desiccator for Hitachi M4 Sample Stubs, PDF (103KB)

Prod # Description Unit Price Order / Quote
16179-4 PELCO® Vacuum Desiccator for Hitachi M4 Sample Mounts each $329.50
Qty:
9611 Filter for Venting Inlet, complete with 1/4" hose each 14.25
