Storage Overview
Semiconductor Storage
Gel-Pak® Storage Boxes

Plastic Membrane Boxes

store, ship, and transfer delicate, sensitive articles between soft elastic membranes


plastic membrane boxes

plastic membrane box holding silicon wafer
plastic membrane box
#139-56 shown
holding silicon chips 		#139-63 double hinged
with one yellow clip		 #139-58 double hinged
with one yellow clip, shown
holding a silicon wafer		 #139-66 and #139-67
 double hinged with
twoyellow clips
139-68
 membrane box clip
 Membrane Box with two parts that snap together
NEW Square Membrane Boxes
#139-68, #139-69, #139-70
one part with single hinge at back		 #139-51 and #139-52
 two separable parts held together
with two clear clips, 180° apart		 #139-61 separable membrane lid that forms a
snug fit when pushed/snapped onto the membrane
base. No hinges, latches or clips are used. Press
both sides to un-snap and remove lid.

Polystyrene Plastic Boxes with micro thin, flexible polyurethane membranes top and bottom. The plastic membranes form around an enclosed object and hold it securely for storage and transport. Firmly hold small products or large within the wide assortment of box sizes available. Use with semiconductor and machine parts, electron microscopy parts or materials, samples, and many other applications.

One part and seperable two part Membrane Boxes available. Boxes are single or double hinged, with clip or pressure closure. Replacement Clips & Hinges also available.

Note: Membrane area listed below is actual area. The item(s) held in the membrane area must be smaller than the membrane area, depending on the thickness of the item(s) held.

139-68
#139-68

Prod # Description Unit Qty Price Order / Quote
One Part - hinged at back
Outside Dimensions: 33 x 33 x 25mm H (1.30 x 1.30 x 0.98" H)
Membrane Area: 25 x 25 mm (0.98 x 0.98")
139-68 NEW Membrane Box, Hinged, 33mm Square x 25mm H each 1-9 $2.55
Qty:
10-49 2.42
50-99 2.30
100+ 2.06
139-69
#139-69

Prod # Description Unit Qty Price Order / Quote
One Part - hinged at back
Outside Dimensions: 50 x 50 x 25mm H (1.97 x 1.97 x 0.98" H)
Membrane Area: 40 x 40 mm (1.57 x 1.57")
139-69 NEW Membrane Box, Hinged, 50mm Square x 25mm H each 1-9 $2.83
Qty:
10-49 2.69
50-99 2.55
100+ 2.41
139-70
#139-70

Prod # Description Unit Qty Price Order / Quote
One Part - hinged at backOutside
Dimensions: 75 x 75 x 38mm H (2.95 x 2.95 x 1.50" H)
Membrane Area: 60 x 60 mm (2.36 x 2.36")
139-70 NEW Membrane Box, Hinged, 75mm Square x 38mm H each 1-9 $5.90
Qty:
10-49 5.61
50-99 5.31
100+ 5.02
Two Part - two clear clips
#139-50

Prod # Description Unit Qty Price Order / Quote
Two Part - press together
Outside Dimensions: 38 x 38 x 16mm H (1.52 x 1.52 x 0.67" H)
Membrane Area: 31.8 x 31.8mm (1.25 x 1.25")
139-50 Membrane Box, 38mm Square x 16mm H pkg/12 1-4 $50.65
Qty:
5-8 48.15
9-41 45.60
42+ 44.55
Two Part - two clear clips
#139-55

Prod # Description Unit Qty Price Order / Quote
Two Part - press together
Outside Dimensions: 55 x 55 x 25mm H (2.17 x 2.17 x 0.98" H)
Membrane Area: 45 x 45 mm (1.77 x 1.77")
139-55 Membrane Box, 55mm Square x 25mm H pkg/4 1-9 $31.50
Qty:
10-49 29.93
50+ 29.30

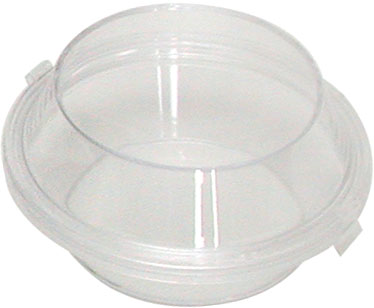

Two Part - two clear clips
#139-51

Prod # Description Unit Qty Price Order / Quote
Two Part - two clear clips
Outside Dimensions: 82mm dia. x 40mm H (3.22" dia. x 1.57" H)
Membrane Area: 69.9mm dia. (2.75" dia.)
139-51 Membrane Box, Round, 82mm dia. x 40mm H each 1-9 $22.70
Qty:
10-49 21.55
50+ 20.45

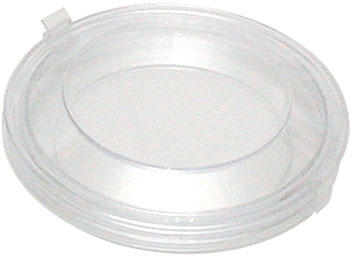

Two Part - two clear clips
#139-52

Prod # Description Unit Qty Price Order / Quote
Two Part - two clear clips
Outside Dimensions: 82mm dia. x 17.5mm H (3.22" dia. x 0.69" H)
Membrane Area: 69.9mm dia. (2.75" dia.)
139-52 Membrane Box, Round, 82mm dia. x 17.5mm H each 1-9 $21.20
Qty:
10-49 20.15
50+ 19.10
Two Part - press together
#139-59

Prod # Description Unit Qty Price Order / Quote
Two Part - press together
Outside Dimensions: 71 x 71 x 12mm H (2.8 x 2.8 x 0.47" H)
Membrane Area: 60 x 60mm (2.36 x 2.36")
139-59 Membrane Box, 71mm Square x 12mm H each 1-9 $9.80
Qty:
10-49 9.00
50+ 8.50
Two Part - snap together/press to remove

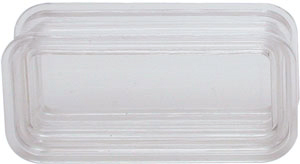

#139-60

Prod # Description Unit Qty Price Order / Quote
Two Part - press together
Outside Dimensions: 39.6 x 79.4 x 19mm H (1.56 x 3.125 x 0.75" H)
Membrane Area: 25.4 x 66.7mm (1 x 2.625")
139-60 Membrane Box, Rectangular, 39.6 x 79.4 x 19mm H each 1-9 $11.55
Qty:
10-49 10.60
50+ 10.00
Two Part - snap together/press to remove
#139-61

Prod # Description Unit Qty Price Order / Quote
Two Part - snap together/press to remove
Outside Dimensions: 50 x 160 x 30mm H (1.97 x 6.3 x 1.18" H)
Membrane Area: 30 x 140mm (1.18 x 5.51")
139-61 Membrane Box, Snap Together, Rectangular, 50 x 160 x 30mm H each 1-9 $17.00
Qty:
10-49 15.00
50+ 13.00
Double Hinged - one yellow clip

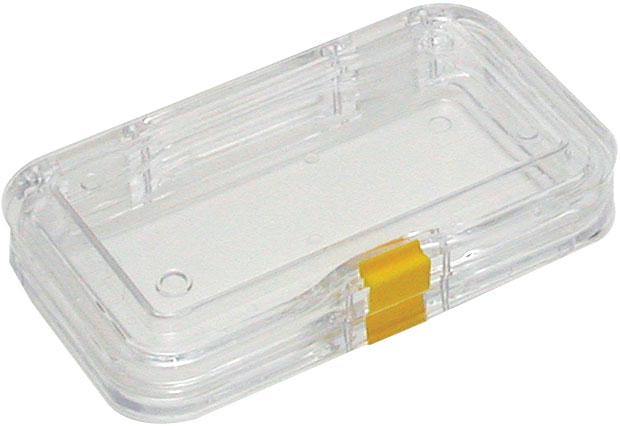

#139-56

Prod # Description Unit Qty Price Order / Quote
Double Hinged - one yellow clip
Outside Dimensions: 75 x 124 x 26.7mm H (3 x 4.87 x 1.05" H)
Membrane Area: 60.5 x 114.3mm (2.38 x 4.5")
139-56 Membrane Box, Hinged, Rectangular, 75 x 124 x 26.7mm H each 1-9 $25.90
Qty:
10-49 24.60
50+ 23.30

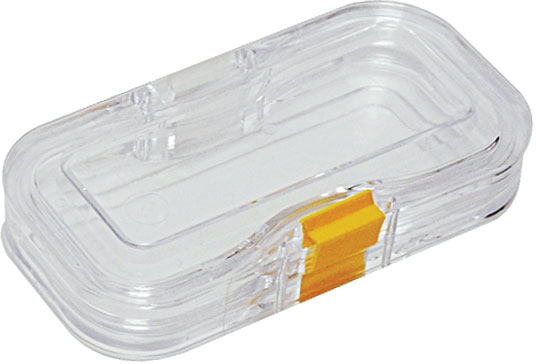

Single Hinged - one yellow clip
#139-62

Prod # Description Unit Qty Price Order / Quote
Single Hinged - one yellow clip
Outside Dimensions: 100 x 50 x 25mm H (4 x 2 x 1" H)
Membrane Area: 30 x 90mm (1.18 x 3.54")
139-62 Membrane Box, Hinged, Rectangular, 100 x 50 x 25mm H each 1-9 $18.95
Qty:
10-49 17.85
50+ 17.05

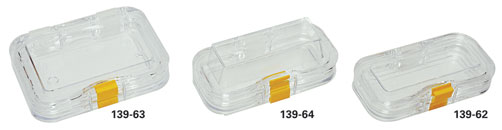

Double Hinged - one yellow clip
#139-63

Prod # Description Unit Qty Price Order / Quote
Double Hinged - one yellow clip
Outside Dimensions: 100 x 75 x 25mm H (4 x 3 x 1" H)
Membrane Area: 60 x 90mm (2.36 x 3.54")
139-63 Membrane Box, Hinged, Rectangular, 100 x 75 x 25mm H each 1-9 $27.40
Qty:
10-49 26.05
50+ 24.65
Single Hinged - one yellow clip

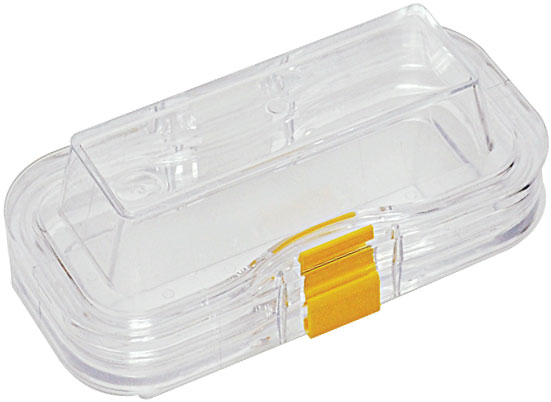

#139-64

Prod # Description Unit Qty Price Order / Quote
Single Hinged - one yellow clip
Outside Dimensions: 100 x 50 x 50mm H (4 x 2 x 2" H)
Membrane Area: 30 x 90mm (1.18 x 3.54")
139-64 Membrane Box, Hinged, Rectangular, 100 x 50 x 50mm H each 1-9 $27.40
Qty:
10-49 26.05
50+ 24.65

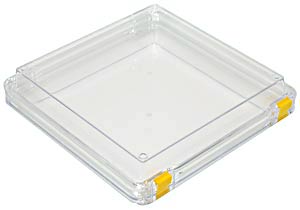

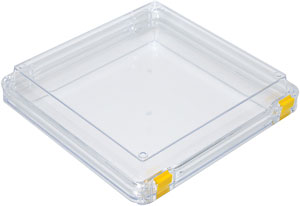

Double Hinged - two yellow clips
#139-66

Prod # Description Unit Qty Price Order / Quote
Double Hinged - two yellow clips
Outside Dimensions: 197 x 197 x 49mm H (7.75 x 7.75 x 1.94" H)
Membrane Area: 180 x 187mm (7 x 7.375")
139-66 Membrane Box, Hinged, Square, 197 x 197 x 49mm H each 1-9 $40.30
Qty:
10-49 38.30
50+ 36.25

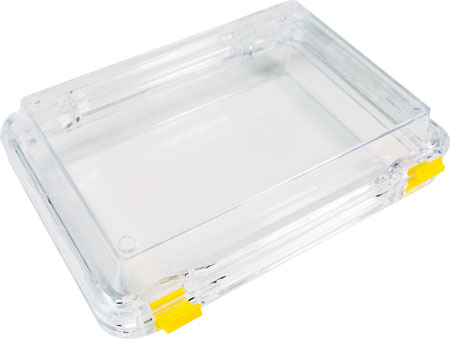

Double Hinged - two yellow clips
#139-67

Prod # Description Unit Qty Price Order / Quote
Double Hinged - two yellow clips
Outside Dimensions: 175 x 125 x 50mm H (6.89 x 4.92 x 2" H)
Membrane Area: 150 x 100mm (5.91 x 3.94")
139-67 Membrane Box, Hinged, Rectangular, 175 x 125 x 50mm H each 1-9 $34.90
Qty:
10-49 33.15
50+ 31.45

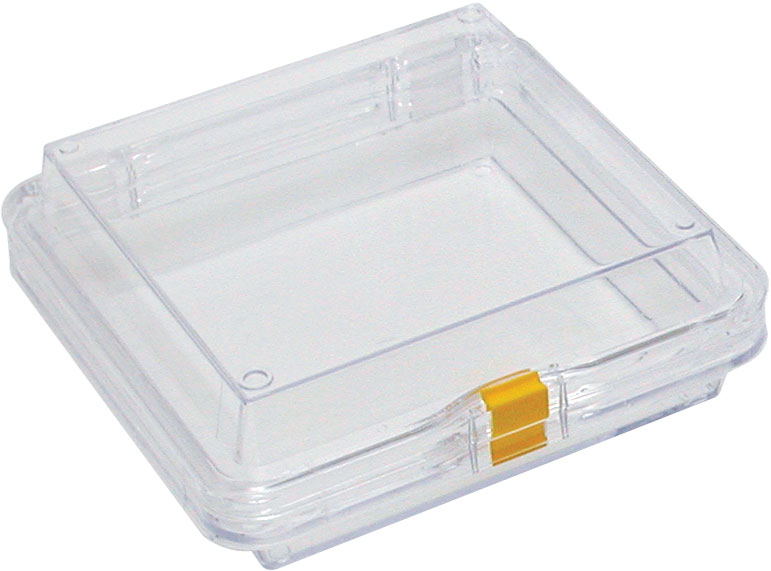

Double Hinged - one yellow clip
#139-58

Prod # Description Unit Qty Price Order / Quote
Double Hinged - one yellow clip
Outside Dimensions: 149 x 149 x 51.8mm H (5.87 x 5.87 x 2.04" H)
Membrane Area: 133.4 x 138.2mm (5.25 x 5.44")
139-58 Membrane Box, Hinged, 149mm Square x 51.8mm H each 1-9 $37.75
Qty:
10-49 35.90
50+ 33.95
replacement clips

Prod # Description Unit Qty Price Order / Quote
Clear Replacement Clips
139-51-10 Clear Replacement Clips for Membrane Box #139-51 and #139-52 pkg/10 1+ $4.00
Qty:
Replacement Yellow Clips and Hinges for Hinged Boxes
139-57 Yellow Clips for Hinged Boxes: #139-56, #139-58, #139-62, #139-63, #139-64, #139-66 pkg/10 1+ 5.45
Qty:
139-54 Clear Hinges for Hinged Boxes: #139-56, #139-58, #139-62, #139-63, #139-64, #139-66 pkg/10 1+ 6.00
Qty:
