pelco grid storage box

PELCO® Grid Storage Box

holds 50 transmission electron microscopy grids, compartments widely spaced for ease of use

Widely used compact grid box for 50 standard 3.05mm TEM grids with smoothly sliding clear plastic cover is matched to a tough, clean, self-lubricating base. The diamond-shaped grid compartments are designed to minimize awkward wrist or hand movements. The depth of the holes restricts grid movement when transported. The materials selected for the PELCO® Grid Box are static dissipative to avoid static charges on the grids. Dimensions: 77.5 x 41 x 9mm.

Prod # Description Unit Qty Price Order / Quote
160 PELCO® TEM Grid Storage Box each 1-4 $5.75
Qty:
5-9 5.30
10-49 4.80
50-99 4.75
100+ 4.70




tabbed transmission electron microscopy grid storage box

PELCO® Tabbed Grid Storage Box

Holds up to 50 tabbed, 3.05mm TEM grids in alphanumeric labeled compartments. The box is similar to #160 Grid Storage Box except that the body is made deeper to accommodate the extra length necessary when PELCO® Tabbed TEM Grids are used. Dimensions: 77.5 x 41 x 9mm.

Prod # Description Unit Price Order / Quote
161 PELCO® Tabbed Grid Storage Box each $5.95
Qty:
Record Keeping (folds in thirds to fit the Grid Box size)
160-14 PELCO® Grid Box I.D. Sheets, pad/100 each 12.00
Qty:




pelco grid storage box
4 digits maximum for numbered PELCO® Grid Boxes.
Numbering Service for PELCO® Grid Storage Boxes No. 160 & 161

Grid Storage Boxes style 160 Standard and style 161 Tabbed may be ordered consecutively numbered. Numbers are permanently stamped into the end as shown. 100 piece minimum for numbering.

Choosing Your Numbers: Use No. 160-7 or 161-7 when ordering a 1-100 numbered set and use No. 160-9 or 161-9 for a special number sequence. Note: special numbering sequence sets are limited to four digits and are non-returnable. Orders are non-cancellable.

Prod # Description Unit Price Order / Quote
160-7 PELCO® Grid Storage Boxes, Numbered 1-100 pkg/100 $518.00
Qty:
160-9 PELCO® Grid Storage Boxes, Special Numbering, specify sequence, Max. 4 digits pkg/100 528.00
Qty:
161-7 PELCO® Tabbed Grid Storage Boxes, Numbered 1-100 pkg/100 518.00
Qty:
161-9 PELCO® Tabbed Grid Storage Boxes, Special Numbering, specify sequence, Max 4 digits pkg/100 528.00
Qty:





PELCO® Grid ID Cards

TEM grid identification cards which fold (in thirds) close the same size as the PELCO® Grid Storage Box #160 or #161. Can be stored with the gridbox in plastic bag or envelope. Fifty spaces are provided with alphanumeric listing, and two spaces next to it are used for data such as experiment number, patient or case number, etc. Pad of 100 sheets. Courtesy of Robert F. Bils.

grid Box Storage Card Pad

Grid ID Pad

Grid Box I.D. Sheet

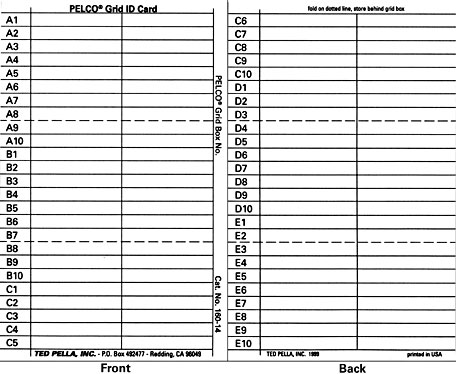

Grid ID Card Front and Back

Grid Box Storage Card Instructions

Grid ID Card Folding
and Placement Instructions

Prod # Description Unit Price Order / Quote
160-14 PELCO® Grid ID Sheets, pad/100 each $12.00
Qty:




gilder grid storage box

Gilder Grid Box

for 100 Grids

Intended for use in both routine grid handling and long term grid storage. Holds 100 transmission electron microscopy grids. Each of the diamond shaped compartments will accept a standard 3.05mm grid. Each position has a letter and number molded into the surface of the box. To further ease grid handling, the plastics are anti-static treated. A central access position in the lid reduces the number of grids exposed when selecting any particular grid. Dimensions: 85 x 59 x 7mm.

Grid Storage Record Card
A record card is supplied free with each SB 100 grid box. The folding card has a durable coated exterior and the interior is suitable for writing with normal pen or pencil.

Prod # Description Unit Qty Price Order / Quote
SB100 Grid Storage Box for 100 Grids, with a Record Card each 1-9 $20.00
Qty:
10+ 19.00




grid storage box

Gilder Grid Box, Numbered

Numbered on the front of the box, and on the end. The individual box numbers are never repeated, they are truly unique. They are also supplied in sequence.

Prod # Description Unit Qty Price Order / Quote
SB100BN Gilder Grid Box, Numbered each 1-9 $21.50
Qty:
10+ 20.42




gilder grid storage box

Gilder Grid Storage Box

for routine handling and long time storage of 50 standard size TEM grids

The clear cover can be rotated smoothly once the slight resistance of the park position has been overcome, exposing a maximum of 2 or 3 diamond shaped holes at a time. The material is antistatic and the cover is self-lubricating, reducing friction.
The 50 diamond shaped holes have an alphanumeric reference system and each box is supplied with an indexed record card. The boxes can be stacked. Dimensions: 75 x 65 x 7.3mm. Also available with unique, individual, identification number stamped on each box.

Prod # Description Unit Qty Price Order / Quote
SB50 Grid Storage Box for 50 Grids each 1-9 $19.00
Qty:
10+ 17.98
SB50N Grid Storage Box for 50 Grids, Numbered each 1-9 21.00
Qty:
10+ 19.98




gilder grid compact storage box

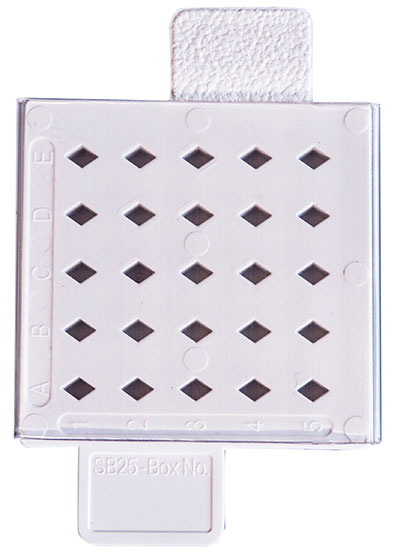

Gilder Grid Compact Storage Box

These convenient smaller 25-grid storage boxes are for experiments that require fewer grids, for those users who prefer to have a separate grid box for each experiment or sample. Intended for both routine grid handling and long term storage, they also make a low cost alternative for multi-user facilities. The plastic material contains a special anti-static additive.

The ergonomic design of the grid box with side tabs to allow it to be firmly gripped on either side while sliding the cover back on the box to reveal the grids a row of five at a time provides easy access to your grids. Additionally one side tab has a matte finish that is ideal for notation with a Fine-tip Lab Marker.

Dimensions: 56mm L x 36mm W x 6mm H

Prod # Description Unit Price Order / Quote
SB25 Gilder Grid Compact Storage Box each $6.50
Qty:
SB25N Gilder Grid Compact Storage Box, numbered each 5.90
Qty:




gsb50 tem grid box
162-50
gsb100 tem grid box
162-100

GSB50 and GSB100 TEM Grid Boxes

gsb50 grid box record card side 1
gsb50 grid box record card side 2
front and back of
162-50 record card

The GSB50 and GSB100 TEM Grid Storage Boxes are used to store TEM grids for routine grid handling, transport and long term TEM grid storage for standard 3.05mm grids. Compartments are diamond shaped for safe grid storage. Easy position identification with number/letter combination printed on the white grid body. Both body and clear sliding lid are anti-static treated. A paper grid storage record card with printed ID numbers is included with both the GSB50 and GSB100 TEM Grid Storage Box. Dimensions for both boxes 75 x 55 x 6.5mm.

Prod # Description Unit Qty Price Order / Quote
162-50 GSB50 Grid Storage Box for 50 Grids, Record Card included each 1-9 $7.25
Qty:
10+ 6.45
162-100 GSB100 Grid Storage Box for 100 Grids, Record Card included each 1-9 8.25
Qty:
10+ 7.35




multi purpose em grid box
#161-96
multi purpose em grid boxes for grids and specimen blocks
#161-32
multi purpose mem grid box record card grid storage record card inserted in slot on back of box

MEM - Multi Purpose EM Grid Boxes

The MEM grid boxes incorporate a number of innovations for improved ease of use, more secure storage and integrated documentation.
grid being placed in a multi purpose em grid box
grid being placed in #161-32

Innovations integrated in the MEM grid boxes are:

  • "Tree" shaped TEM grid storage cavity virtually eliminates the chances of damaging the TEM grids - The grid storage cavity and the tweezers cavity have a separation wall so that the tweezers will only be able to grip the edge of the grids
  • The additional slider with a window between cover and grid storage box exposes only 4 grids at the time and prevents grids from falling or "jumping" out of the storage box.
  • Integrated grid storage record card inserted in a dedicated slot on the back of the MEM grid box.
  • The storage box body is made of white plastic providing good contrast. The cover lid and the slider with window are both made from clear plastic providing clear visibility.

There are two versions of the MEM grid boxes:
  • 161-96 - store up to 96 grids, size 81 x 54 x 10mm
  • 161-32 - store up to 32 grids and up to 8 blocks, size 81 x 54 x 14mm
  • US Patent #7619225
Technical Notes, MEM Grid Boxes (392KB PDF)

Prod # Description Unit Price Order / Quote
161-96 MEM Grid Storage Box for 96 grids each $13.00
Qty:
161-32 MEM Grid Storage Box for 32 grids / 8 blocks each 13.00
Qty:




PELCO® TEM Grid Vacuum Desiccator
PELCO® TEM Grid Vacuum Desiccator
Optional Quartz Cap
(#16179-1)

PELCO® TEM Grid Vacuum Desiccator

This robust PELCO® TEM Grid Vacuum Desiccator holds up to 50 TEM grids in the grid box with a rotary lid with a slot hole to prevent the rest of the grids from falling out. Storage under vacuum eliminates contamination or dust and is ideal to preserve hygroscopic samples. The use of durable, non-outgassing, anodized aluminum and Viton® O-rings makes it suitable for pumping down to 10-3 mbar. The desiccator is capable of holding vacuum for many months. The metal vacuum valve has a PTFE shaft seal. Use a small vacuum pump to evacuate. Vacuum connection for pump-down is a 1/4" (6.35mm) barb fitting. The desiccator comes with a standard clear acrylic lid. An optional quartz glass and clear anodized aluminum lid is available for where cleanliness is paramount.

  • Keeps TEM samples and calibration standards contamination free
  • Prevents oxidization of sensitive samples
  • Holds up to 50 TEM grids secured under lid
  • Acrylic disc for visibility
  • Optional quartz glass caps available
  • Ideal for storing, transporting and shipping

Overall size without vacuum valve is ø76 x 35mm (3 x 1.4").

Also available as a Pin Stub Vacuum Desiccator (#16179) or Vacuum Desiccator for Hitachi M4 Stubs (#16179-4).

PELCO® Technical Notes, PELCO® TEM Grid Vacuum Desiccator (97.4KB PDF)

Prod # Description Unit Price Order / Quote
16178 PELCO® TEM Grid Vacuum Desiccator each $287.50
Qty:
16179-1 NEW Desiccator Cap for sample storage, 12mm height each 194.50
Qty:
9611 Filter for Venting Inlet, complete with 1/4" hose each 14.25
Qty:




TEM Calibration Grid Holder

TEM Calibration Grid Holder

Protect your valuable TEM calibration and test samples with this sturdy, clean storage and transportation box, manufactured out of vacuum grade aluminum. Holds one standard 3mm TEM grid. Easy access for loading and retrieving with tweezers. Lid can be secured with thumb screw. Shown in open position. Turn lid to close and secure with black knob.

Prod # Description Unit Price Order / Quote
650-10 TEM Calibration Grid Holder each $44.50
Qty:



GSB-100 Storage Box for FIB Lift Out Grids

GSB-100 Storage Box for FIB Lift Out Grids

GSB-100 Storage Box for 100 FIB lift out grids or storing standard 3mm TEM grids flat.
No adhesive in tray (made from ABS). Cavity size is 3.34 x 3.34 x 1.5mm (0.13" x 0.13" x 0.06"). Complete with clear polystyrene lid and clear polypropylene clip. Stackable.

Overall size is 55 x 51 x 10.7mm (2.16" x 2" x 0.42")

Prod # Description Unit Price Order / Quote
460-200B GSB-100 Storage Box for 100 FIB Lift Out Grids each $7.50
Qty:




anti-static gsb-100 storage box for 100 grids

Anti-Static GSB-100 Storage Box for FIB Lift Out Grids

Same internal and external dimensions as standard GSB-100 storage box, but with anti-static tray made of black conductive polypropylene. Complete with anti-static cover and polypropylene clip. Stackable.

Overall size is 55 x 51 x 10.7mm (2.16" x 2" x 0.42")

Prod # Description Unit Price Order / Quote
460-200SD Anti-Static GSB-100 Storage Box for 100 FIB Lift Out Grids each $8.50
Qty:




FIB Grid Box with Lid for lift-out or half grids

FIB Grid Box for Lift-Out Grids or Half Grids

Four position grid box with lid for holding FIB lift-out grids or half grids. The grid box cavity depth is only 1.7mm, thus preventing the grids from rotating in the diamond shaped cavity. The FIB grids can be relatively easily loaded/unloaded using sharp tweezers.

Prod # Description Unit Price Order / Quote
160-54 4 Position FIB Grid Box with Lid each $10.85
Qty:
