The K-series stereo microscopes use a superior common main objective (cmo) infinity optical system.
This results in exceptional optical features with Widefield view, high clarity and high resolution.
There are many options and accessories available for these high quality stereo microscopes.
The K-series comprises 3 models:
K-400L, standard magnification from 6x 50x with a 4 step magnification changer, see K-400 System Diagram
K-500L, standard magnification from 6.4x 40x with a 5 step magnification changer, see K-500 Sytem Diagram
K-700L, zoom system with standard magnification from 6x 31x, see K-700 System Diagram
The K-Series stereo microscopes provide an excellent platform for discussion with
the optional dual head and offer extensive documentation possibilities with drawing
devices, photo and video tubes. Well suited for use in education, research, manufacturing
and quality control. The K-Series Stereo heads are available with integrated incident
illumination and without illumination, both to combine with a wide variety of stands
or to integrate on existing 32mm stands.
Optical System
- Common Main Objective high quality stereo head with 10x super widefield eyepieces, dual dioptric compensation
and interpupillary distance adjustment from 54 to 76mm. Modular unit with infinity optics.
Eyepiece tube diameter is 30mm
- Multi-coated optical components are free from chromatic and spherical aberrations.
- Viewing head rotates 360°, available with optional video/photo tube and drawing device.
- Available with step change and zoom magnification.
- 89mm working distance with standard lenses.
- Variable magnification range with optional lenses.
Illumination with Streamline base post stand
- Top light is 12V/10W halogen for incident illumination with adjustable beam and variable control, includes blue filter.
- Bottom light is 12V/10W halogen light which provides bright light for transmitted illumination.
- 4 position light control: top only/bottom only, top&bottom on/off.
Focusing
- Ergonomic dual focusing knobs with adjustable tension and specially engineered to provide smooth, precise and accurate focusing.
- Stereo head and focusing block is one complete unit and fits 32mm diameter post.
- Working distance range with optional lenses 25 - 236mm.
Streamline Base Post Stand
- Large Base Post Stand with built-in transformer for extra stability and space saving.
- Auto-switch power supply for 110-240V, 50/60Hz.
- Stage working surface approx. 200 x 200mm deep.
- Includes two 95mm frosted glass and black/white contrast plates.
- Locked on stage clips.

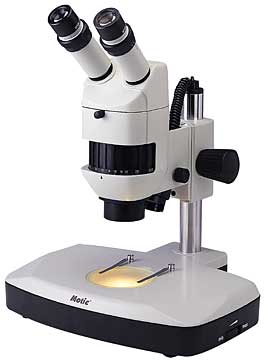

Model K-400L Stereo Microscope
|
|
|
The K-400L aims at the research and industrial market for precision imaging and measurements.
It comes with a 4 step magnification changer at 6x, 12x, 25x and 50x, standard 1.0x
objective and super widefield eyepieces 10x / FN23. The fixed magnifications enable
exact comparison and precise measurements. Total magnification range with optional
lenses is 3.0x - 320x. See the
K-400 Optical Specification Chart for other magnifications and working distances. The large streamline base stand provides a stable workstation and includes halogen 12V/10W or optional LED incident and transmitted illumination. See the
K-400 System Diagram to configure the K-400 to your exact requirements.
K Series Accessories Below.
Prod #
| Description
| Unit
| Price
| Order / Quote
|
Complete Systems Motic® K-400
|
2279-10
| K-400P, Binocular Stereo Microscope with plane base stand, no illumination, 45° head and WF 10x/FN23 eyepieces
| each
| $1469.00
|
|
2279-11
| K-400L, Binocular Stereo Microscope with large streamline base, including dual illumination, 45° head and WF 10x/FN23 eyepieces
| each
| 1541.00
|
|
2279-12
| K-400-2107, Binocular Stereo Head K-400HS, no illumination, WF 10x/FN23 eyepieces and heavy duty articulating boom stand, base version
| each
| 2124.00
|
|
2279-13
| K-400-2109, Binocular Stereo Head K-400HS, no illumination, WF 10x/FN23 eyepieces and heavy duty articulating boom stand, clamp version
| each
| 2124.00
|
|
2279-14
| K-400HS, Binocular Stereo Microscope, with large streamline base, including dual LED illumination, 45° head and WF 10x/FN23 eyepieces
| each
| 2126.40
|
|
Model K-500L Stereo Microscope
|
|
|
The K-500L is a perfect measurement and quality assurance stereo microscope. It has
a 5step magnification changer at 6.4x, 10x, 16x, 25x, and 40x, standard 1.0x objective
and super widefield eyepieces 10x / FN23. Fixed magnifications enable precise measurements.
Total magnification range with optional lenses is 1.0x-256x. See the
K-500 Optical Specification Chart for other magnifications and working distances. The large streamline base stand provides a stable workstation and includes halogen 12V/10W incident and transmitted illumination. See the
K-500 System Diagram to configure the K-400 to your exact requirements.
The dual head discussion system with clear imaging is ideal for educational, training
and quality assurance applications.
K Series Accessories Below.
Prod #
| Description
| Unit
| Price
| Order / Quote
|
Complete Systems Motic® K-500
|
2279-15
| K500P, Binocular Stereo Microscope with plane base stand, no illumination, 45° head and WF 10x/FN23 eyepieces
| each
| $1200.00
|
|
2279-16
| K500L, Binocular Stereo Microscope with large streamline base, including dual illumination, 45° head and WF 10x/FN23 eyepieces
| each
| 1475.00
|
|
2279-17
| K500DSK, Dual Stereo discussion head on large working surface stand, no illumination, 45° heads and WF 10x/FN21 eyepieces
| each
| 4274.00
|
|
2279-18
| K500-2107, Binocular Stereo Head K-500HS, no illumination, WF 10x/FN23 eyepieces and heavy duty articulating boom stand, base version
| each
| 1925.00
|
|
2279-19
| K500-2109, Binocular Stereo Head K-500HS, no illumination, WF 10x/FN23 eyepieces and heavy duty articulating boom stand, clamp version
| each
| 1925.00
|
|

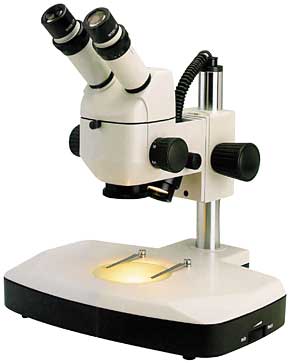

Model K-700L Stereo Zoom Microscope
|
|
|
The model K-700L stereo zoom microscope is an ideal system for applications with
variable magnifications and where searches with are needed. Find your area of interest
and then zoom in to see all the details. The zoom range is 6x-31x with the standard
1.0x objective and the paired WF 10x / FN23 super widefield eyepieces. The zoom system
is designed on a self-centering dovetail ring mechanism for effort free magnification
changes and hours of fatigue-free viewing. Total magnification range with optional
lenses is 0.9x - 198.4x. See the
K-700 Optical Specification Chart for other magnifications and working distances.
The large streamline base stand provides a stable workstation and includes halogen 12V/10W incident and transmitted illumination. See the
K-700 System Diagram to configure the K-400 to your exact requirements.
The dual head discussion system with clear imaging is ideal for educational, training
and quality assurance applications.
K Series Accessories Below.
Prod #
| Description
| Unit
| Price
| Order / Quote
|
Complete Systems Motic® K-700
|
2279-20
| K700P, Binocular Stereo Zoom Microscope with plane base stand, no illumination, 45° head and WF 10x/FN23 eyepieces
| each
| $1760.00
|
|
2279-21
| K700L, Binocular Stereo Zoom Microscope with large streamline base, including dual illumination, 45° head and WF 10x/FN23 eyepieces
| each
| 2075.00
|
|
2279-22
| K700DSK, Dual Stereo Zoom discussion head on large working surface stand, no illumination, 45° heads and WF 10x/FN21 eyepieces
| each
| 4751.00
|
|
2279-23
| K700-2107, Binocular Stereo Zoom Head K-700HS, no illumination, WF 10x/FN23 eyepieces and heavy duty articulating boom stand, base version
| each
| 2365.00
|
|
2279-24
| K700-2107, Binocular Stereo Zoom Head K-700HS, no illumination, WF 10x/FN23 eyepieces and heavy duty articulating boom stand, clamp version
| each
| 2365.00
|
|
K Series Optional Accessories
Prod #
| Description
| Unit
| Price
| Order / Quote
|
Accessories and Options for the K-Series Stereo Microscopes
|
2279-100
| K400HS, Binocular Stereo Head with focusing block, no light, 45° head and WF 10x/FN23 eyepieces
| each
| $1490.00
|
|
2279-102
| K400HI, Binocular Stereo Head, with focusing block, incident light, 45° head and WF 10x/FN23 eyepieces
| each
| 1521.00
|
|
2279-110
| K500HS, Binocular Stereo Head with focusing block, no light, 45° head and WF 10x/FN23 eyepieces
| each
| 1245.00
|
|
2279-112
| K500HI, Binocular Stereo Head, with focusing block, incident light, 45° head and WF 10x/FN23 eyepieces
| each
| 1252.00
|
|
2279-120
| K700HS, Binocular Stereo Zoom Head with focusing block, no light, 45° head and WF 10x/FN23 eyepieces
| each
| 1685.00
|
|
2279-122
| K700HI, Binocular Stereo Zoom Head with focusing block, incident light, 45° head and WF 10x/FN23 eyepieces
| each
| 1693.00
|
|
Bases and Stands
|
2282-200
| Plane Large Base Stand, no illumination
| each
| 122.00
|
|
2282-215
| Transmitted Large Area Stand
| each
| 261.00
|
|
2282-216
| Transmitted Large working area stand 3W transmitted LED illumination
| each
| 351.00
|
|
2282-226
| FBGG LED: Incident/transmitted large working area stand 3W Incident/Transmitted LED illumination
| each
| 554.00
|
|
2282-226-10
| 3W Incident LED illumination assembly *must be combined with head holder and LED stand.
| each
| 82.00
|
|
2279-210
| Universal Stand, Round Base 2105, heavy duty
| each
| 466.00
|
|
2279-214
| Articulating Arm Boom Stand, Square Base 2107, heavy duty
| each
| 737.00
|
|
2279-216
| Ball Bearing Boom Stand, Square Base 2108, heavy duty
| each
| 792.00
|
|
2279-218
| Articulating Boom Stand, Table Clamp 2109, heavy duty
| each
| 702.00
|
|
2279-220
| Ball Bearing Boom Stand, Table Clamp 2110, heavy duty
| each
| 793.00
|
|
|
|
|
Widefield Eyepieces
|
Micrometer Eyepieces
|
Auxiliary Objectives
|
Prod #
| Description
| Unit
| Price
| Order / Quote
|
Eyepieces
|
2282-310
| Widefield Eyepiece WF 5x (FN23)
| each
| $116.00
|
|
2282-311
| Widefield Eyepiece WF 6.25x (FN23)
| each
| 112.00
|
|
2282-312
| Widefield Eyepiece WF 10x (FN23)
| each
| 116.00
|
|
2282-314
| Widefield Eyepiece WF 15x (FN17.6)
| each
| 90.00
|
|
2282-315
| Widefield Eyepiece WF 20x (FN13.4)
| each
| 104.00
|
|
2282-316
| Widefield Eyepiece WF 30x (FN8)
| each
| 116.00
|
|
2282-317
| Widefield Eyepiece WF 32x (FN8)
| each
| 116.00
|
|
2282-320
| Micrometer Eyepiece WF 10x (FN23), 360/12 div, ø25mm
| each
| 141.00
|
|
2282-321
| Micrometer Eyepiece WF 10x (FN23), 14mm/0.2mm, ø25mm
| each
| 141.00
|
|
2282-322
| Micrometer Eyepiece WF 10x (FN23), 14mm/0.1mm, ø25mm
| each
| 200.00
|
|
2282-323
| Micrometer Eyepiece WF 20x (FN13.4), 10mm/0.1mm, ø25mm
| each
| 184.00
|
|
Auxiliary Objectives
|
2279-244
| Auxiliary Objective 0.3x (WD 236mm) for K400/500
| each
| 141.00
|
|
2279-245
| Auxiliary Objective 0.5x (WD 148mm) for K400/500
| each
| 141.00
|
|
2279-246
| Auxiliary Objective 0.625x (WD 111mm) for K400/500
| each
| 141.00
|
|
2279-248
| Auxiliary Objective 1.5x (WD 43mm) for K400/500
| each
| 141.00
|
|
2279-249
| Auxiliary Objective 2.0x (WD 25mm) for K400/500
| each
| 141.00
|
|
2279-254
| Auxiliary Objective 0.3x (WD 236mm) for K700
| each
| 141.00
|
|
2279-255
| Auxiliary Objective 0.5x (WD 148mm) for K700
| each
| 141.00
|
|
2279-256
| Auxiliary Objective 0.625x (WD 111mm) for K700
| each
| 141.00
|
|
2279-258
| Auxiliary Objective 1.5x (WD 43mm) for K700
| each
| 141.00
|
|
2279-259
| Auxiliary Objective 2.0x (WD 25mm) for K700
| each
| 141.00
|
|
2282-429
| Eye Cups
| pair
| 19.00
|
|
|
|
|
Gliding Stage
|
Mechanical Stage
|
Darkfield Condenser (top/bottom view)
2282-410 |
Prod #
| Description
| Unit
| Price
| Order / Quote
|
Digital Accessories
|
2279-300
| CCD Attachment 1500.4 for K400, C-mount base only
| each
| $250.00
|
|
2279-302
| CCD Attachment 1500.3 for K500/700, C-mount base only
| each
| 258.00
|
|
2282-300
| 0.35x C-Mount Camera Adapter for 1/4"
| each
| 140.00
|
|
2282-301
| 0.45x C-Mount Camera Adapter for 1/3"
| each
| 140.00
|
|
2282-302
| 0.65x C-Mount Camera Adapter for 1/2"
| each
| 140.00
|
|
2282-303
| 1.0x C-Mount Camera Adapter (no lens/16mm)
| each
| 140.00
|
|
2279-303
| Photo Equipment 1501.4, for K400 with T2 mount (M42)
| each
| 258.00
|
|
2279-304
| Photo Equipment 1501.3, for K500/700 with T2 mount (M42)
| each
| 250.00
|
|
2279-305
| Drawing Device 1508.4, for K400
| each
| 351.00
|
|
2279-306
| Drawing Device 1508.3, for K500/700
| each
| 351.00
|
|
Stage Accessories
|
2282-410
| Darkfield Attachment, with iris diaphragm
| each
| 125.00
|
|
2279-414
| Polarizing Kit, 1 piece for K-series
| each
| 124.00
|
|
2282-416
| Jewelry Clip for plane and streamline base
| each
| 71.00
|
|
2279-420
| Gliding Stage
| each
| 92.00
|
|
2282-422
| Mechanical Stage with 95mmØ adapter for plane and streamline bases. Travels 75 x 50mm, includes B/W contrast plate and two stage clips
| each
| 319.00
|
|
2282-422-1
| Manual Rotary Plate for mechanical stage
| each
| 89.00
|
|
2282-422-2
| Black/White Stage Plate for mechanical stage
| each
| 30.00
|
|
2282-422-3
| Frosted Glass Stage Plate for mechanical stage
| each
| 91.00
|
|
2282-425
| Black/White Contrast Stage Plate, plastic, 95mm
| each
| 12.00
|
|
2282-426
| Frosted Glass Stage Plate, 95mm
| each
| 12.00
|
|
2282-427
| Blue Filter for incident illumination
| each
| 12.00
|
|
Dustcover, Case
|
Illumination
|
2282-242
| LED Ring Illumination
| each
| 123.00
|
|
Bulbs
|
2282-230
| Halogen Bulb, 12V/10W, incident
| each
| 17.50
|
|
2282-232
| Halogen Bulb, 12V/10W, transmitted
| each
| 17.50
|
|
2282-234
| Fluorescent Bulb, 12V/5W, transmitted
| each
| 23.00
|
|
2282-236
| Fluorescent Ring Bulb, 110V/12W, 6400K for 2401K
| each
| 19.00
|
|
2282-226-10
| 3W LED Replacement Illumination, incident
| each
| 82.00
|
|
|
|
Requires CCD Adapter, Product No. 2282-302 (see above). |
