A selection of premium polishing cloths for coarse and fine polishing of hard, soft and composite materials. Most cloths are available with plain or PSA backing for easy mounting on the polishing platen. Plain polishing cloths need to be clamped on the edge of the polishing platen with a clamping ring. To facilitate this these cloths are approximately 2" larger than the polishing platen so that the cloth folds over the edge of the platen for clamping. 8" plain polishing cloths are 10" diameter and 10" plain polishing cloths are 12" diameter. Our polishing cloths can be used with diamond compound, diamond slurry / suspension, diamond spray, alumina suspension or colloidal silica.

Hard Cloths
  • Low resilience, (e.g. Woven Nylon)
  • Used for rough and intermediate polishing
Soft Cloths
  • High resilience
  • Low nap (e.g. Rayon pile)
  • Used for final polishing


Rough Polishing
(Hard Cloths)
Intermediate Polishing
(General Purpose)
Finishing
(Soft Cloths)
Nylon Polishing Cloth
Nylon Cloth,
Adhesive Back
Alpha-A Polishing Cloth
Alpha-A Cloth, Plain
& Adhesive Back
Alpha-B Polishing Cloth
Synthetic Velvet Cloth,
Adhesive Back
Final B Polishing Cloth
Final B,
Adhesive Back
Met-X Polishing Cloth
Met-X Cloth,
Adhesive Back
Alpha-B Polishing Cloth
Alpha-B Cloth,
Adhesive Back
Rayon Velvet Polishing Cloth
Rayon Velvet Cloth,
Plain Back
HS Red
PELCO® HS Red,
Adhesive Back
Met-X Polishing Cloth
Cotton (high grade) Cloth,
Plain Back
static free selvyt cloth
Selvyt Cloth,
Plain Back
Rayon Velvet Polishing Cloth
MultiTex Cloth,
Adhesive Back

  HS 10x Polishing Cloth
PELCO® HS,
Adhesive Back
HB Blue
PELCO® HB Blue,
Adhesive Back


NOTE: Cloths can be used in more than one stage of the polishing process, and some are included in more than one category. The best cloth for a given polishing step will depend on the particular process. The table above gives general guidlines, but for any polishing process, some experimentation will be needed.





Rough Polishing/Stiff Cloth for Flatness & High Edge Retention

Woven and nonwoven cloth with very low nap



Nylon Polishing Cloth micrograph50x   Nylon Polishing Cloth10x

Nylon Polishing Cloth

Adhesive back for polishing most materials with diamond or alumina while maintaining flatness.

Comparable performance to former South Bay Technology PNY08A-10.

Prod # Description Unit Price Order / Quote
816-63 Nylon Polishing Cloth, 8" PSA pkg/10 $68.20
Qty:




Met-X Polishing Cloth micrograph50x   Met-X Polishing Cloth10x

Met-X Polishing Cloth

Adhesive back. Popular first polish cloth for diamond, high cutting rate with good edge retention.

Comparable performance to former South Bay Technology PCNW08A-10.

Prod # Description Unit Price Order / Quote
816-37 Met-X Polishing Cloth, 8" PSA pkg/10 $73.70
Qty:
816-38 Met-X Polishing Cloth, 10" PSA pkg/10 108.90
Qty:




Cotton Polishing Cloth micrograph50x

Cotton (high grade) Polishing Cloth

Plain back. Natural, low nap first polish cotton cloth used on soft materials with diamond, alumina and oxides.

Prod # Description Unit Price Order / Quote
816-92 Cotton (high grade) Cloth, 8" Plain (actual size 10") pkg/10 $97.90
Qty:





Intermediate & General Purpose Polishing Cloths

Cloths for intermediate to final polishing medium


Alpha-A Polishing Cloth micrograph50x   Alpha-A Polishing Cloth10x

Alpha-A Polishing Cloth

Plain and adhesive back. Popular final polish, low nap cloth used with diamond or alumina for most materials.

Comparable performance to former South Bay Technology PCM08A-10.

Alpha-A Polishing Cloth, Plain and Adhesive Back
Popular final polish, low nap cloth used with diamond or alumina for most materials.
Prod # Description Unit Price Order / Quote
816-16 Alpha-A Polishing Cloth, 8" Plain (actual size 10") pkg/10 $59.40
Qty:
816-17 Alpha-A Polishing Cloth, 8" PSA pkg/10 69.90
Qty:
816-18 Alpha-A Polishing Cloth, 10" Plain (actual size 12") pkg/10 92.40
Qty:
816-19 Alpha-A Polishing Cloth, 10" PSA pkg/10 92.40
Qty:




Alpha-A Polishing Cloth micrograph50x   Alpha-B Polishing Cloth10x

Alpha-B Polishing Cloth

Low nap mylar backed variation of Alpha-A for final polishing of most materials, not used with alcohol thinners.

Prod # Description Unit Price Order / Quote
816-24 Alpha-B Polishing Cloth, 8" PSA pkg/10 $59.70
Qty:

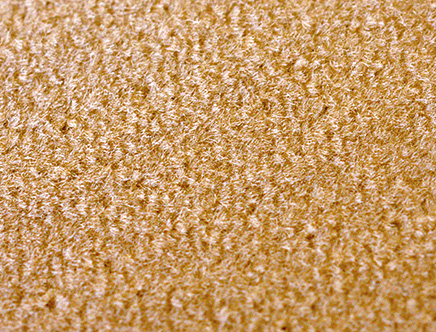

static free selvyt cloth   Selvyt Polishing Cloth micrograph50x   static free selvyt cloth10x

Selvyt Polishing Cloth

Plain back. Cotton medium nap used for first and final polishing of metals and ceramics with alumina.

Prod # Description Unit Price Order / Quote
816-72 Selvyt Polishing Cloth, Plain, 8" Plain (Actual size 10") pkg/10 $115.50
Qty:




HS cloth 50x50x   HS 10x Polishing Cloth10x

PELCO® HS Polishing Cloth

Adhesive back. Satin weave acetate silk. Produces a good finish without edge rounding. Recommended for polishing of plastics.

Comparable performance to former South Bay Technology PAS08-10.

Prod # Description Unit Price Order / Quote
816-111 PELCO® HS Polishing Cloth, 8" PSA pkg/10 $67.00
Qty:





Soft Cloths, Suitable for Intermediate to Final Polishing



Alpha-A Polishing Cloth micrograph50x   Alpha-B Polishing Cloth10x

Synthetic Velvet Cloth

For intermediate and final polishing. This is an adhesive-backed short nap cloth with thin fabric backing for high quality finishing with minimal relief or edge rounding.

Equivalent performance to former South Bay Technology PSV08A-10.

Prod # Description Unit Price Order / Quote
816-4 Synthetic Velvet Cloth, 8" PSA pkg/10 $57.20
Qty:




Rayon Velvet Polishing Cloth micrograph50x   Rayon Velvet Polishing Cloth10x

Rayon Velvet Cloth

Plain back. Synthetic rayon velvet for polishing and final polishing soft materials such as gold, lead and tin with alumina.

Prod # Description Unit Price Order / Quote
816-109 Rayon Velvet Polishing Cloth, 8" Plain (Actual size 10") pkg/10 $111.30
Qty:




Rayon Velvet Polishing Cloth micrograph50x   Rayon Velvet Polishing Cloth10x

Multi-Tex Cloth

A superior fine polishing cloth with short nap for obtaining an optical quality finish. Compatible with diamond pastes and suspensions, alumina suspensions & colloidal silica.

Equivalent performance to former South Bay Technology PMT08A-10.

Prod # Description Unit Price Order / Quote
816-12 MultiTex Cloth, 8", PSA pkg/10 $210.10
Qty:




Final B 50x Polishing Cloth micrograph50x   Final B 10x Polishing Cloth10x

Final B Polishing Cloth

Adhesive back. Short nap used for first and final polishing. Popular choice for semiconductor delayering with diamond slurries and suspensions.

Prod # Description Unit Price Order / Quote
816-13 Final B Polishing Cloth, 8" PSA pkg/10 $52.00
Qty:




Final B 50x Polishing Cloth micrograph50x   Final B 10x Polishing Cloth10x

PELCO® HB Polishing Cloth

Adhesive back. Soft, short nap viscose fibers used for final polishing.

Comparable performance to former South Bay Technology PRA08A-10.

Prod # Description Unit Price Order / Quote
816-110 PELCO® HB Polishing Cloth, 8" PSA pkg/10 $50.00
Qty:

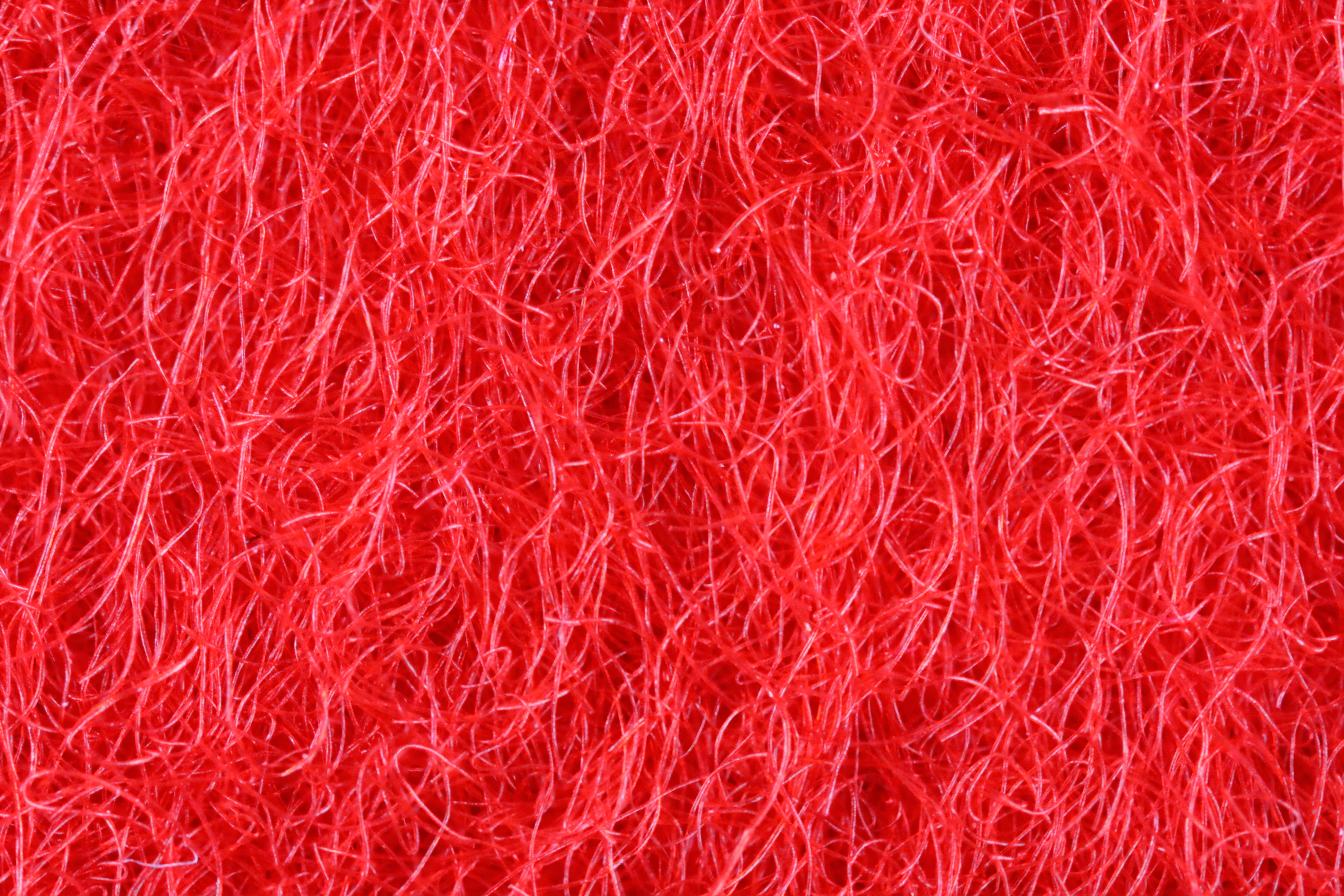

Final B 50x Polishing Cloth micrograph50x   Final B 10x Polishing Cloth10x

PELCO® Short Nap Red Polishing Cloth

Adhesive back. Extra soft, short nap used for first and final polishing. Popular choice for semiconductor delayering with diamond slurries and suspensions-- comparable performance to Final C. Available in regular PSA (816-112) or PSA with a stiff plastic sealing layer between the PSA and cloth (816-113).

Comparable performance to former South Bay Technology PRF08A-10.

Prod # Description Unit Price Order / Quote
816-112 PELCO® HS Red Short Nap Polishing Cloth, 8" PSA pkg/10 $100.00
Qty:
816-113 PELCO® W Red Short Nap Polishing Cloth, 8" PSA with plastic stiffener pkg/10 200.00
Qty:




diamond lapping film View our Selection of Lapping Films/Disks/Belts/Sheets




3M Adhesive Remover

3M™ Adhesive Remover

Powerful replacement for mineral spirits, solvents and other unfriendly cleaners. Ideally suited for removing used grinding/lapping/polishing discs with PSA backing from their support discs. New food-grade citrus-based 3M™ Adhesive Remover is also very effective in removing overspray of any aerosol adhesives, grease, oil, grime, tape residue, tar, wax, etc. A solvent-free formulation that provides wipe-away convenience with no filmy residue. No CFC's.

Active ingredient is listed as GRAS (Generally Regarded As Safe) for food contact applications under FDA21 CFR 182.20.

Flammable propellent (propane). Note: Not for sale in California.
I, F - SDS (48KB PDF)

Prod # Description Unit Price Order / Quote
For Sale in U.S.A. Only
80924-1 3M™ Adhesive Remover, 18.5 oz. can each $61.60
Qty:
There are Hazard Shipping Fees associated with this product! - Hazard Shipping Fees
80924-10 3M™ Adhesive Remover, 18.5 oz. cans case/6 247.50
Qty:
There are Hazard Shipping Fees associated with this product! - Hazard Shipping Fees
