Materials Science Overview
AFM Supplies

NEW First Contact®
Photonic Cleaning Solutions

The solution for atomically clean surfaces

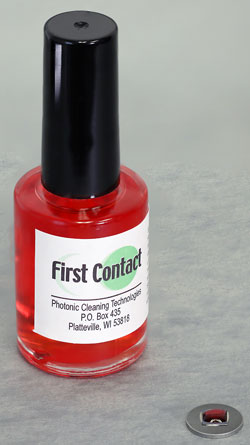

First Contact® Sample Kit (#24501)

First Contact® Standard Kit (#24502)

Specially formulated to safely remove all contaminants from optical surfaces, First Contact® is a proprietary blend of solvents designed to clean first surface mirrors, diffraction grating and diffractive optics to the molecular level. First Contact® is low-adhesion, leaves no residue, and is carefully designed not to thermally shock or remove coatings–apply, dry and peel to reveal an atomically clean, contaminant-free surface.

First Contact® may also be used to clean and protect sample surfaces for AFM, profilometry, STM, and other surface-sensitive measurements. It can also be used to clean some etched or patterned surfaces. For example, our AFM Test Gratings.

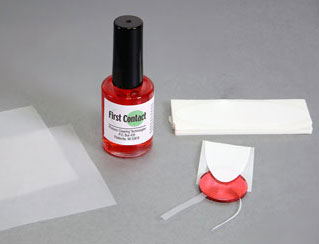

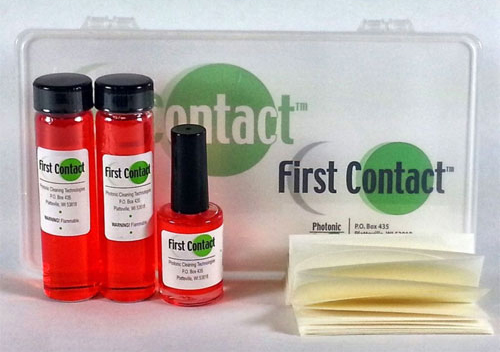

The small kit (#24501) contains the polymer, an example coated sample, showing the mesh, string and tabs used to make it easy to remove the coating, and a complete set of instructions. The standard size kit (#24502) contains enough material to clean 280 sq. inches (1800 cm2) of surface area.

SDS (599KB PDF)


Using First Contact® Cleaning Solution

An example of a SiO2 on silicon etched AFM XY standard. The polymer is applied to the surface and allowed to dry. This is an excellent means of cleaning a surface, or protecting it for storage/shipping. When ready, the film is simply peeled off.





First Contact® shown
on the Standard
Apply Solution Allow to Dry


First Contact® Cleaning Solution Results

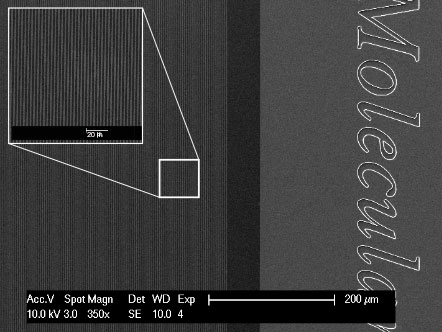

Shown below, is the AFM Block Test Grating (#629-10AFM) before (left) and after (right) a single application of First Contact® Polymer. After cleaning, SEM shows no contamination in the patterned area.





Before Cleaning After Cleaning SEM Image of Patterned Area


First Contact® Ordering Information

Prod # Description Unit Price Order / Quote
24501 First Contact® Sample Kit each $41.30
Qty:
24502 First Contact® Standard Kit each 137.50
Qty:
There are Hazard Shipping Fees associated with this product. - Hazard Shipping Fees
