PELCO® NW/KF Style Vacuum Connection Parts
NW/KF Caps, Clamps & Rings

Vacuum Hose, Hose Clamps & NW/KF Hose Adapters



NW/KF hoses with wire reinforced pvc vacuum hoses

NW/KF Hose Flanges with Wire Reinforced PVC Vacuum Hose

Low cost alternative for flexible stainless vacuum hoses.

Wire reinforced PVC tubing with 304 stainless steel NW/KF flanges on each end and secured with stainless steel hose clamps.

Prod # Description Unit Price Order / Quote
92422-1620 NW/KF 16 with PVC Hose, A=20", B=3/4" each $116.80
Qty:
92422-1640 NW/KF 16 with PVC Hose, A=40", B=3/4" each 136.80
Qty:
92422-2520 NW/KF 25 with PVC Hose, A=20", B=1" each 130.00
Qty:
92422-2540 NW/KF 25 with PVC Hose, A=40", B=1" each 158.50
Qty:
92422-4020 NW/KF 40 with PVC Hose, A=20", B=1-1/2" each 158.50
Qty:
92422-4040 NW/KF 40 with PVC Hose, A=40", B=1-1/2" each 208.50
Qty:
92422-5020 NW/KF 50 with PVC Hose, A=20", B=2" each 216.80
Qty:
92422-5040 NW/KF 50 with PVC Hose, A=40", B=2" each 266.80
Qty:

NW/KF hose adapter, aluminum dimensions

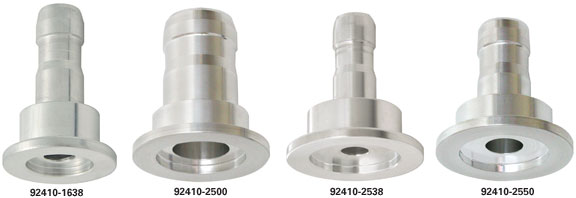

NW/KF Hose Adapters, Aluminum

Machined from solid bar, no welds

NW/KF Hose Adapters

Prod # Description Unit Price Order / Quote
92410-1638 NW/KF 16 - 3/8" Hose Adapter, Aluminum
A=12mm, B=44mm 		each $22.30
Qty:
92410-1650 NW/KF 16 - 1/2" or 5/8" Hose Adapter, Aluminum
A=16mm, B=42mm 		each 10.70
Qty:
92410-1675 NW/KF 16 - 5/8" or 3/4" Hose Adapter, Aluminum
A=19mm, B=42mm 		each 10.70
Qty:
92410-2538 NW/KF 25 - 3/8" Hose Adapter, Aluminum
A=12mm, B=44mm 		each 18.50
Qty:
92410-2550 NW/KF 25 - 1/2" or 5/8" Hose Adapter, Aluminum
A=16mm, B=42mm 		each 15.00
Qty:
92410-2575 NW/KF 25 - 5/8" or 3/4" Hose Adapter, Aluminum
A=19mm, B=42mm 		each 16.80
Qty:
92410-2500 NW/KF 25 - 3/4" or 7/8" Hose Adapter, Aluminum
A=22.5mm, B=44mm 		each 16.50
Qty:
92410-40 NW/KF 40 - 1-1/2" or 1-5/8" Hose Adapter, Aluminum
A=41.5mm, B=55mm 		each 16.00
Qty:
92410-50 NW/KF 50 - 1-1/2" or 1-5/8" Hose Adapter, Aluminum
A=41.5mm, B=55mm 		each 18.50
Qty:


NW/KF hose adapter, 304 stainless steel dimensions

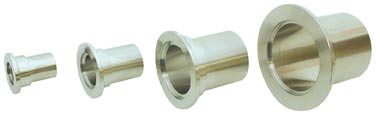

NW/KF Hose Adapter, 304 Stainless Steel

NW/KF hose adapter, 304 stainless steel
Machined from solid bar, no welds

Prod # Description Unit Price Order / Quote
92420-16 NW/KF 16 - 3/4" Hose Adapter, 304SS
A=18.3mm, B=32mm, C=20 		each $21.00
Qty:
92420-25 NW/KF 25 - 1" Hose Adapter, 304SS
A=25.4mm, B=38mm, C=26 		each 23.50
Qty:
92420-40 NW/KF 40 - 1-1/2" Hose Adapter, 304SS
A=38.1mm, B=50mm, C=38 		each 31.25
Qty:
92420-50 NW/KF 50 - 2" Hose Adapter, 304SS
A=50.8mm, B=55mm, C=40 		each 42.55
Qty:




wire reinforced thick wall pvc vacuum hose

Wire Reinforced Thick Wall PVC Vacuum Hose

Use with hose adapters and hose clamps to make custom vacuum hoses. Can be ordered per ft. with minimum length of 3 ft. and maximum length of 50 ft. Wire is embedded in PVC hose.
Permits full vacuum capabilities (29.9 in./Hg.) for all sizes without hose collapse. Constructed of corrosion-resistant PVC, can be used to transport various chemicals in areas with tight turns and sharp bends. Its bend radius is approximately four times the I.D. Can be used at Temperatures from +10° to +140°F (-12° to +60°C)

Prod # Description Unit Price Order / Quote
Minimum length 3 ft. - Maximum length 50 ft.
92424-25 1/4" ID; 0.447" OD, Wire Reinforced PVC Hose ft. $3.00
Qty:
92424-38 3/8" ID; 0.600" OD, Wire Reinforced PVC Hose ft. 5.00
Qty:
92424-50 1/2" ID; 0.736" OD, Wire Reinforced PVC Hose ft. 6.00
Qty:
92424-75 3/4" ID;1.028" OD, Wire Reinforced PVC Hose ft. 6.00
Qty:
92424-100 1" ID; 1.290" OD, Wire Reinforced PVC Hose ft. 7.35
Qty:
92424-150 1-1/2" ID; 1.854" OD, Wire Reinforced PVC Hose ft. 12.00
Qty:
92424-200 2" ID; 2.394" OD, Wire Reinforced PVC Hose ft. 18.00
Qty:

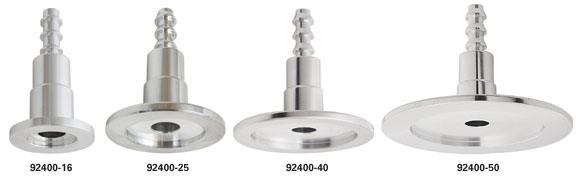

NW/KF Multiple Hose Adapter, Aluminum

3 step aluminum adapter for 1/4", 1/2" and 5/8" hoses

NW/KF Multiple Hose Adapters

Prod # Description Unit Price Order / Quote
92400-16 NW/KF 16 Multiple Hose Adapter, 5mm ID, aluminum each $36.00
Qty:
92400-25 NW/KF 25 Multiple Hose Adapter, 5mm ID, aluminum each 60.48
Qty:
92400-40 NW/KF 40 Multiple Hose Adapter, 5mm ID, aluminum each 70.56
Qty:
92400-50 NW/KF 50 Multiple Hose Adapter, 5mm ID, aluminum each 88.74
Qty:



hose clamps for vacuum hose, stainless steel

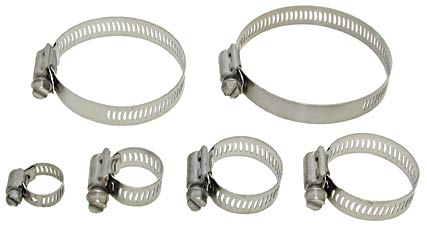

Hose Clamps for Vacuum Hose, Stainless Steel

These clamps are compatible with the wire reinforced, thick wall PVC vacuum hose we offer. They are quick, economical and reusable. Bands are 0.023" thick x 5/16" wide (1/4") and 1/2" wide (all other sizes) with temperature range of –50° to +250° F. Not recommended for use with silicone hose. Clamps tighten with a wrench, slotted screwdriver or hex nutdriver. Made from type 301 stainless steel with stainless steel screw.

Prod # Description Unit Price Order / Quote
92426-25 1/4" Vacuum Hose Clamp, stainless steel pkg/2 $4.32
Qty:
92426-38 3/8" Vacuum Hose Clamp, stainless steel pkg/2 5.85
Qty:
92426-50 1/2" Vacuum Hose Clamp, stainless steel pkg/2 5.85
Qty:
92426-75 3/4" Vacuum Hose Clamp, stainless steel pkg/2 6.00
Qty:
92426-100 1" Vacuum Hose Clamp, stainless steel pkg/2 6.65
Qty:
92426-150 1-1/2" Vacuum Hose Clamp, stainless steel pkg/2 6.75
Qty:
92426-200 2" Vacuum Hose Clamp, stainless steel pkg/2 7.20
Qty:




vacuum hose

1/2" and 3/4" ID Vacuum Hose

Heavy wall, versatile and resilient natural, pure gum rubber tubes. These cost effective vacuum hoses have a good oxidation resistance, are vibration resistant and have excellent rebound characteristics. Durometer 45+-5. Meets or exceeds standard ZZ-T831C, minimum tensile strength 3000PSI. Use #92426-50 1-1/2" stainless steel vacuum hose clamp on either 1/2" or 3/4" ID rubber hose to secure connection.

Prod # Description Unit Qty Price Order / Quote
1/2" ID (12.7mm)
894-5 1/2" ID, Rubber Vacuum Hose per foot 1-9 $15.50
Qty:
10+ 14.41
3/4" ID (19mm)
894-7 3/4" ID, Rubber Vacuum Hose per foot 1-9 20.00
Qty:
10+ 19.00




silicone vacuum hose

1/4" ID Silicone Vacuum Hose

Thick walled silicone vacuum hose with 1/4" (6.35mm) inside diameter and 1/2" (12.7mm) outside diameter. Sturdy, yet flexible material with wall thickness of 1/8" (3.2mm), will not collapse under vacuum. Can be used with NW/KF Multiple Hose Adapter to KF-16. Sold in lengths of 3 and 9 ft. Use #92426-25 clamp or this vacuum hose.

go to Vacuum Desiccators

Prod # Description Unit Price Order / Quote
92490-253 1/4" ID, Silicone Vacuum Hose 3 ft $13.25
Qty:
92490-256 1/4" ID, Silicone Vacuum Hose 9 ft 35.50
Qty:
