Vacuum Supplies & Equipment Overview

High Purity Materials and Wires
for Vacuum Evaporation Deposition


High Purity Metal Evaporation pellets
High Purity Metal Evaporation Materials		 vacuum deposition wire
Wires for Evaporation		 Tungsten Wire
Tungsten Wire



Wires for Evaporation

Wires for Evaporation

High purity Al, Au, Au/Pd, Pd, Pt, Pt/Ir, Ag and Nichrome thin wires for EM and thin film applications. Use Tungsten Filaments for evaporation in high vacuum evaporation systems made by Cressington, Denton, Edwards, Jeol, Ladd or others. W thin wire is offered for additional deposition/evaporation/filament applications.

Prod # Description Unit Price Order / Quote
Aluminum
20/10-1 Aluminum, 99.99% Al, ø0.25mm/15.2m (ø.010"/50 ft.), SDS each $26.00
Qty:
20/15-1 Aluminum, 99.99% Al, ø0.38mm/15.2m (ø.015"/50 ft.), SDS each 21.95
Qty:
Gold
21-2 Gold, 99.95% Au, ø0.20mm/0.6m (ø.008"/2 ft.), SDS each 90.00
Qty:
21-10 Gold, 99.95% Au, ø0.20mm/3m (ø.008"/10 ft.), SDS each 380.00
Qty:
21-50 Gold, 99.95% Au, ø0.20mm/15.2m (ø.008"/50 ft.), SDS each 1750.00
Qty:
21-100 Gold, 99.95% Au, ø0.20mm/30.4m (ø.008"/100 ft.), SDS each 3353.00
Qty:
Gold/Palladium
22-2 Gold/Palladium 60:40, 99.95% Au:Pd, ø0.20mm/0.6m (ø.008"/2 ft.) each 78.50
Qty:
22-10 Gold/Palladium 60:40, 99.95% Au:Pd, ø0.20mm/3.05m (ø.008"/10 ft.) each 236.00
Qty:
22-50 Gold/Palladium 60:40, 99.95% Au:Pd, ø0.20mm/15.2m (ø.008"/50 ft.) each 1075.00
Qty:
Nichrome
13082 Nichrome Wire, 60% Ni, 16% Cr, and 24% Fe alloy, 30 gauge (0.010", 10mil, 0.25mm) diameter, 30.48 meters (100 ft.) each 12.10
Qty:
Palladium
26-2 Palladium, 99.95% Pd, ø0.20mm/0.6m (ø.008"/2 ft.), SDS each 65.00
Qty:
26-10 Palladium, 99.95% Pd, ø0.20mm/3m (ø.008"/10 ft.), SDS each 252.00
Qty:
26-50 Palladium, 99.95% Pd, ø0.20mm/15.2m (ø.008"/50 ft.), SDS each 725.00
Qty:
Platinum
23-2 Platinum, 99.95% Pt, ø0.20mm/0.6m (ø.008"/2 ft.), SDS each 135.00
Qty:
23-10 Platinum, 99.95% Pt, ø0.20mm/3m (ø.008"/10 ft.), SDS each 485.00
Qty:
23-50 Platinum, 99.95% Pt, ø0.20mm/15.2m (ø.008"/50 ft.), SDS each 2245.00
Qty:
Platinum/Iridium
24-6-2 Platinum/Iridium 80:20, 99.95% Pt:Ir, ø0.20mm/0.6m (ø.008"/2 ft.) each 171.00
Qty:
24-6-10 Platinum/Iridium 80:20, 99.95% Pt:Ir, ø0.20mm/3m (ø.008"/10 ft.) each 535.00
Qty:
Platinum/Palladium
24-2 Platinum/Palladium 80:20, 99.95% Pt:Pd, ø0.20mm/0.6m (ø.008"/2 ft.) each 151.00
Qty:
24-10 Platinum/Palladium 80:20, 99.95% Pt:Pd, ø0.20mm/3m (ø.008"/10 ft.) each 613.55
Qty:
Silver
25-10 Silver, 99.99% Ag, ø0.20mm/3m (ø.008"/10 ft.), SDS each 39.50
Qty:
25-50 Silver, 99.99% Ag, ø0.20mm/15.2m (ø.008"/50 ft.), SDS each 174.50
Qty:




Tungsten Wire

Tungsten Wire

Tungsten, Vacuum Grade, Cleaned and Coiled

Prod # Description Unit Price Order / Quote
27-20 Tungsten, 99.95% W, ø0.51mm/6.1m (ø.020"/20 ft.) each $42.72
Qty:
27-2-20 Tungsten, 99.95% W, ø0.64mm/6.1m (ø.025"/20 ft.) each 78.50
Qty:
27-3-20 Tungsten, 99.95% W, ø0.76mm/6.1m (ø.030"/20 ft.) each 33.50
Qty:
27-11 Tungsten, 99.95% W, ø0.13mm/6.1m (ø.005"/20 ft.) each 18.50
Qty:




High Purity Evaporation Materials

High Purity Evaporation Materials
High Purity Evaporation Materials in form of pieces, granules or pellets. Packed in glass vials in quantities varying from 5-25 grams. Used for thin film research, thermal evaporation and electron microscopy coatings. Use Tungsten Boats or Alumina Coated Baskets for evaporation. Use our Scales for precise weighing.
For Cr we offer Chromium Plated Tungsten Rod as an alternative.

Prod # Description Unit Price Order / Quote
29-12 Magnesium, Mg, Purity 99.95%, ø1/4" x 1/4" pellets 10g $37.50
Qty:

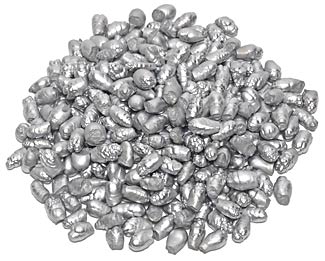

29-13 Aluminum, Al, Purity 99.999%, ø1/4" x 1/4" pellets, SDS 25g 35.00
Qty:
29-14 Silicon, Si, Purity 99.999%, 1-3mm random sized pieces 10g 39.00
Qty:
29-22 Titanium, Ti, Purity 99.995%, ø1/4" x 1/4" pellets, SDS 10g 34.50
Qty:
29-23 Vanadium, V, Purity 99.7%, ø1/4" x 1/4" pellets 5g 52.00
Qty:
29-24 Chromium, Cr, Purity 99.95%, 1-3mm random sized pieces, SDS 25g 40.00
Qty:
29-25 Manganese, Mn, Purity 99.7%, 1-3mm random sized pieces 25g 28.60
Qty:
29-26 Iron, Fe, Purity 99.9%, ø1/4" x 1/4" pellets 25g 29.50
Qty:
29-27 Cobalt, Co, Purity 99.95%, ø1/4" x 1/4" pellets, SDS 10g 33.50
Qty:
29-28 Nickel, Ni, Purity 99.995%, ø1/8" x 1/8" pellets, SDS 25g 63.60
Qty:
29-2824 Nichrome, Ni (80%) / Cr (20%), Purity 99.9%, ø1/4" x 1/4" pellets 25g 52.50
Qty:
29-29 Copper, Cu, Purity 99.999%, 1-3mm random sized pieces 10g 44.50
Qty:
29-30 Zinc, Zn, Purity 99.99%, 1-3mm random sized pieces 25g 64.50
Qty:
29-32 Germanium, Ge, Purity 99.999%, 1-3mm random sized pieces, MSDS 5g 39.00
Qty:
29-39 Yttrium, Y, Purity 99.9%, 1-3mm random sized pieces 5g 44.20
Qty:
29-40 Zirconium, Zr, Purity 99.7%, ø1/4" x 1/4" pellets 25g 56.50
Qty:
29-41 Niobium, Nb, Purity 99.95%, ø1/4" x 1/4" pellets, SDS 10g 33.25
Qty:
29-46 Palladium, Pd, Purity 99.99%, ø1/8" x 1/8" pellets, SDS 10g 1505.00
Qty:
29-47 Silver, Ag, Purity 99.99%, 1-3mm random sized pieces, SDS 10g 152.30
Qty:
29-49 Indium, In, Purity 99.99%, 1-3mm random sized pieces, SDS 10g 132.60
Qty:
29-50 Tin, Sn, Purity 99.999%, 1-3mm random sized pieces 10g 23.20
Qty:
29-51 Antimony, Sb, Purity 99.999%, 1-3mm random sized pieces, MSDS 10g 50.95
Qty:
29-52 Tellurium, Te, Purity 99.999%, 1-3mm random sized pieces 25g 49.10
Qty:
29-79 Gold, Au, Purity 99.99%, 1-3mm random sized pieces, SDS 10g 1325.00
Qty:
29-7946 Gold/Palladium, (60:40), Purity 99.99%, ø1/8" x 1/8" pellets 10g 915.00
Qty:
29-82 Lead, Pb, Purity 99.999%, 1-3mm random sized pieces 25g 34.50
Qty:
29-83 Bismuth, Bi, Purity 99.999%, 1-3mm random sized pieces, For Sale in U.S.A. Only 25g 61.60
Qty:




Chromium Plated Tungsten Rod
Chromium Plated Tungsten Rod

Chromium Plated Tungsten Rods are an alternative for Cr evaporation when only a low power evaporation power supply is available. 0.05" (1.27mm) W rod, plated with a 0.01" (0.25mm) high purity Cr layer.
Available in 2" (51mm) and 4" (102mm) length.

Settings for 2" L: 1.05V / 78A / 82W for 1800°C

Settings for 4" L: 2.02V / 78A / 158W for 1800°C

Prod # Description Unit Price Order / Quote
29-242 Cr Plated Tungsten Rod, 2" each $13.50
Qty:
29-244 Cr Plated Tungsten Rod, 4" each 14.50
Qty:




Evaporation Materials Pricing
Please call or email for pricing on precious evaporation materials/wires. Actual prices may vary due to sudden price changes for precious metals.
