Histology Supplies Overview
Histology Laboratory Equipment Overview

NEW Precison Rotary Microtomes,
Sliding Microtomes, Accessories & Consumables

All Slee microtomes are equipped with high-precision guideways with cage roller bearings and micrometer feed mechanism to ensure highest stability and precision. A large variety of accessories offers the possibility and flexibility to customize your equipment and allows for the use of any type of material or specimen in medical research, routine diagnostics, or materials science applications.


272400
CUT 4062 Manual
Rotary Microtome		 272601
CUT 5062 Semi-Automatic
Rotary Microtome		 272801
CUT 6062 Fully-Automatic
Rotary Microtome
272400
Accessories & Consumables
for Slee Rotary Microtomes		 272450
Cuttec S Manual Sliding Microtome		 27245-1
MTR Benchtop Quick-Freeze Unit
& Accessories for Cuttec S



NEW CUT-Series Precision Rotary Microtomes

CUT-series microtomes are the basis for almost all applications where high-quality sectioning is required. Together with add-on equipment and accessories, such as the MTR Benchtop Quick-Freeze Unit, CUT-series microtomes from Slee are ready for any kind of high-performance cutting for applications in medical research, routine diagnostics, or materials science.

Review the specifications and features of each Slee rotary microtome at a glance in the Slee Rotary Microtomes Comparison Table.



272400

NEW CUT 4062 Precision Manual Rotary Microtome

The Slee CUT 4062 is designed for all applications in medical research, routine diagnostics, or materials science. The CUT 4062 combines high-precision and user friendliness as well as ergonomic comfort.

Key Features:

  • Ergonomic design
  • Spacious, integrated section waste tray
  • Wide range of accessories
  • Hand wheel lock in any position
  • Blade holder levers changeable (for left-handed users)
  • Specimen retraction with upstroke
  • Section counter (optional)
  • Second hand wheel brake (optional)
  • Coarse feed wheel reversible direction (on demand)

Slee microtomes come with a complete set of standard components along with a comprehensive selection of accessories to adapt to a variety of sectioning needs for both biological and materials science specimens.

Optional Accessories & Consumables
Slee Rotary Microtomes Comparison Table
272400 272400
CUT 4062 Standard Components   CUT 4062 Specifications
Specimen Orientation Section thickness range 0.5 – 60μm
Universal Cassette Clamp, orientable
Alternatively: Standard Specimen Clamp, orientable		 Section thickness settings 0.5 – 2μm in 0.5μm steps
2 – 10μm in 1μm steps
10 – 60μm in 2μm steps
Disposable Blade Holder
Alternatively: Standard Knife Holder		 Trim thickness settings 10μm, 20μm, 30μm, 40μm
Section Waste Tray Horizontal advance 28mm
Disposable Blades, low-profile (box/50)
 Vertical stroke 60mm
Dust Cover Maximum specimen size 50 x 50mm
Mains Cable Specimen orientation ± 8°
Operations Manual Dimensions (W x D x H) 560 x 550 x 325mm
  Weight 33kg


CUT 4062 Ordering Information

Prod # Description Unit Price Order / Quote
272400 CUT 4062 Manual Rotary Microtome each P.O.R.
Qty:




272601

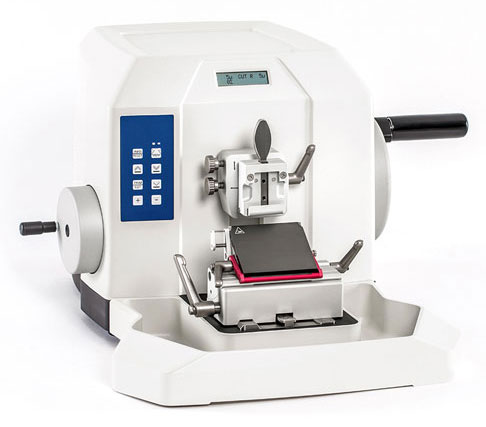

NEW CUT 5062 Semi-Automatic Precision Rotary Microtome

The Slee CUT 5062 Semi-Automatic Precision Microtome is designed for all applications in medical research, routine diagnostics, or materials science. The CUT 5062 combines highest precision with user friendliness as well as best comfort.

Key Features:

  • Ergonomic design
  • Spacious, integrated section waste tray
  • Wide range of accessories
  • Intuitive control panel
  • Hand wheel lock in any position
  • Blade holder levers changeable (for left-handed users)
  • Two operation modes (standard and rocking mode)
  • Motorized trimming up to 750µm, programmable
  • Motorized advance/return of specimen (2 speeds)
  • Display of section counter, section sum and remaining travel
  • Precise specimen approach
  • Two specimen feed memory positions
  • Variable retraction
  • External control panel (optional, image shown at left)
  • Second hand wheel brake (optional)

Slee microtomes come with a complete set of standard components along with a comprehensive selection of accessories to adapt to a variety of sectioning needs for both biological and materials science specimens.

Optional Accessories & Consumables
Slee Rotary Microtomes Comparison Table
272400 272400
CUT 5062 Standard Components   CUT 5062 Specifications
Specimen Orientation Section thickness range 0.5 – 100μm
Universal Cassette Clamp, orientable
Alternatively: Standard Specimen Clamp, orientable		 Section thickness settings 0.5 – 2μm in 0.5μm steps
2 – 20μm in 1μm steps
20 – 50μm in 2μm steps
50 – 100μm in 5μm steps
Disposable Blade Holder
Alternatively: Standard Knife Holder		 Trim thickness settings 0.5 – 2μm in 0.5μm steps
2 – 20μm in 1μm steps
20 – 50μm in 2μm steps
50 – 150μm in 5μm steps
150 – 750μm in 10μm steps
Section Waste Tray Horizontal advance 28mm
Disposable Blades, low-profile (box/50)
 Fast speed SLOW 75, 150, 300, 600μm/s
Dust Cover Fast speed normal 3,000μm/s
Mains Cable Vertical stroke 72mm
Operations Manual Specimen retraction 0 – 200µm, selectable
  Specimen orientation ± 8°
  Electrical parameters 100 – 240V, 50/60Hz
  Dimensions (W x D x H) 520 x 600 x 325mm
  Weight 33kg


CUT 5062 Ordering Information

Prod # Description Unit Price Order / Quote
272601 CUT 5062 Semi-Automatic Precision Rotary Microtome each P.O.R.
Qty:
27260-1 CUT 5062 External Control Panel each 1500.00
Qty:




272801

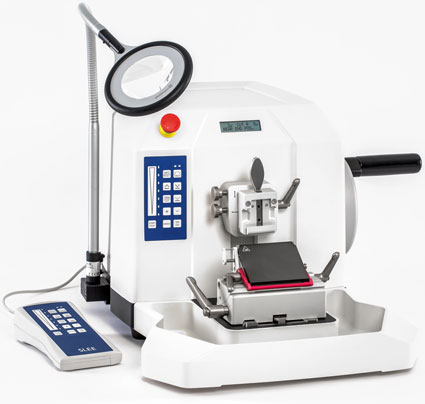

NEW CUT 6062 Fully-Automatic Precision Rotary Microtome

The Slee CUT 6062 Fully-Automatic Precision Microtome is designed for all applications in medical research, routine diagnostics, or materials science. Years of experience and customer input have contributed to create one of the best fully-automatic microtomes available. The CUT 6062 combines highest precision with user friendliness as well as ergonomic comfort. The motorized sectioning combined with innovative features and accessories make the CUT 6062 unique.

Key Features:

  • Ergonomic design
  • Spacious, integrated section waste tray
  • Wide range of accessories
  • Intuitive control panel
  • Hand wheel lock in any position
  • Blade holder levers changeable (for left-handed users)
  • Highly efficient motorized sectioning (section window/variably adjustable cutting speeds)
  • Seven different operation modes: (motorized: continuous, program, single step, step, window; manual: standard and rocking mode)
  • Motorized trimming up to 750μm, programmable
  • Motorized advance/return of specimen (2 speeds)
  • Display of section counter, section sum and remaining travel
  • Precise specimen approach
  • Two specimen feed memory positions
  • Variable retraction
  • External control panel (optional)
  • Second hand wheel brake (optional)
272400 272400

Slee microtomes come with a complete set of standard components along with a comprehensive selection of accessories to adapt to a variety of sectioning needs for both biological and materials science specimens.

Optional Accessories & Consumables | Slee Rotary Microtomes Comparison Table
CUT 6062 Standard Components   CUT 6062 Specifications
Specimen Orientation Section thickness range 0.5 – 100μm
Universal Cassette Clamp, orientable
Alternatively: Standard Specimen Clamp, orientable		 Section thickness settings 0.5 – 2μm in 0.5μm steps
2 – 20μm in 1μm steps
20 – 50μm in 2μm steps
50 – 100μm in 5μm steps
Disposable Blade Holder
Alternatively: Standard Knife Holder		 Trim thickness settings 0.5 – 2μm in 0.5μm steps
2 – 20μm in 1μm steps
20 – 50μm in 2μm steps
50 – 150μm in 5μm steps
150 – 750μm in 10μm steps
Section Waste Tray Horizontal advance 28mm
  Fast speed SLOW 75, 150, 300, 600μm/s
  Fast speed normal 3,000μm/s
  Vertical stroke 72mm
Disposable Blades, low-profile (box/50)
 Cutting speed up to 450mm/s
Foot Switch for motor drive Specimen retraction 0 – 200µm, selectable
Dust Cover Specimen orientation ± 8°
Mains Cable Electrical parameters 100 – 240V, 50/60Hz
Operations Manual Dimensions (W x D x H) 520 x 600 x 325mm
  Weight 34kg


CUT 6062 Ordering Information

Prod # Description Unit Price Order / Quote
272801 CUT 6062 Fully-Automatic Rotary Microtome each P.O.R.
Qty:
27280-1 CUT 6062 External Control Panel each P.O.R.
Qty:




CUT-Series Rotary Microtomes Comparison Table

272400
CUT 4062 Manual		 272601
CUT 5062 Semi-Automatic		 272801
CUT 6062 Fully-Automatic
Disposable blade holder
(alternatively: standard knife holder)		 Disposable blade holder
(alternatively: standard knife holder)		 Disposable blade holder
(alternatively: standard knife holder)
Mechanical trimming function in 4 steps, 10; 20; 30; 40μm Motorized trimming function,
0.5 - 750μm		 Motorized trimming function,
0.5 - 750μm
Manual feed with ergonomically located coarse feed wheel   Motorized sectioning (section window / variably adjustable cutting speeds)
Specimen Orientation Specimen Orientation Specimen Orientation
Acoustic signal at end positions 2 specimen feed memory positions via button 2 specimen feed memory positions via button
Automatic specimen retraction Automatic motorized specimen retraction Automatic motorized specimen retraction
Options
Section counter, standard specimen clamp (up to 50 x 50mm), foil clamp, prism set Section counter, standard specimen clamp (up to 50 x 50mm), foil clamp, prism set Section counter, standard specimen clamp (up to 50 x 50mm), foil clamp, prism set
Specifications
Cutting thickness 0.5 - 60μm Cutting thickness 0.5 - 100μm Cutting thickness 0.5 - 100μm
Horizontal advance 28mm Horizontal advance 28mm Horizontal advance 28mm
Vertical stroke 60mm Vertical stroke 72mm Vertical stroke 72mm
    Cutting speed variable
up to 450 mm/s
Specimen orientation
x/y axis 8°
z axis 360°		 Specimen orientation
x/y axis 8°
z axis 360°		 Specimen orientation
x/y axis 8°
z axis 360°
560 x 550 x 325mm (W x D x H) 520 x 600 x 325mm (W x D x H) 520 x 600 x 325mm (W x D x H)
33kg 33kg 34kg




NEW Accessories & Consumables
for CUT-Series Precision Rotary Microtomes

272400

Prod # Description Unit Price Order / Quote
27260-1 External Control Panel for CUT 5062 Rotary Microtome (#272601) each $1500.00
Qty:
27280-1 External Control Panel for CUT 6062 Rotary Microtome (#272801) each P.O.R.
Qty:
27280-3 Magnifier with Illumination each 2500.00
Qty:
27280-4 Segment Arc each P.O.R.
Qty:
27280-5 Standard Knife Holder for C & D Profile Knives each 2532.00
Qty:
27280-6 Knife Holder Base Unit each 2374.00
Qty:
27280-7 Prism Set each 465.30
Qty:
27280-8 Section Counter for CUT-Series Rotary Microtomes each 1070.00
Qty:
27280-9 Round Specimen Holders, 6mm each 484.00
Qty:
27280-10 Round Specimen Holders, 15mm each 484.00
Qty:
27280-11 Round Specimen Holders, 19mm each 484.00
Qty:
27280-12 Round Specimen Holders, 25mm each 484.00
Qty:
27280-14 TC65 Disposable Blade Holder each P.O.R.
Qty:
27280-15 Tungsten Carbide Blade, 16cm, use with #27280-5 each 1038.00
Qty:
27280-16 Super Mega Cassette Clamp, Orientable each 2733.00
Qty:
27280-17 Super Mega Cassette Clamp, Fixed each 2443.00
Qty:
27280-18 Standard Specimen Clamp, Orientable each 1645.34
Qty:
27280-19 Standard Specimen Clamp, Fixed each 1838.00
Qty:
27280-20 Foil Clamp, Use with Standard Specimen Clamp each 1745.00
Qty:
27280-21 Glass Knife Holder for Triangular Glass Knives each P.O.R.
Qty:
27245-4 Universal Cassette Clamp, Orientable each 1427.00
Qty:
27245-5 Standard Specimen Clamp, Orientable each 1427.00
Qty:
121-50 Tungsten Carbide Blades, Triangular, use with #27280-21 pgk/3 495.00
Qty:




NEW Cuttec S Manual Sliding Microtome,
MTR Benchtop Quick-Freeze Unit & Other Accessories

Designed for all applications in medical research, routine diagnostics, or materials science
with user-focused ergonomic and safety features



272450

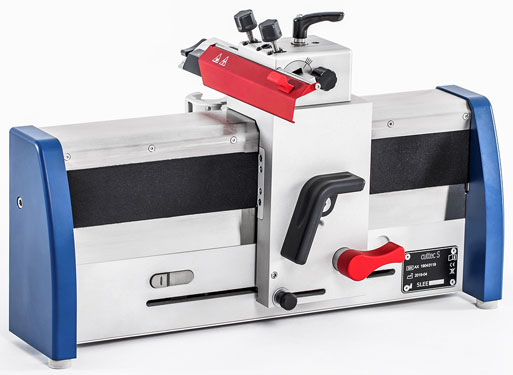

NEW Cuttec S Manual Sliding Microtome

The Cuttec S Manual Sliding Microtome is designed for all applications in medical research, routine diagnostics, or materials science, always focusing on the needs of the user. The precise mechanisms together with the smooth operation contributes to high quality sections.

Key Features:

  • High quality sections
  • Safety features like the locking mechanism and finger protection system protect users and specimens
  • Ergonomic design for fatigue-free working
  • Precise specimen orientation
  • Complete set of accessories
  • Waste tray included

All Slee microtomes come with a complete set of standard components along with a comprehensive selection of optional accessories to be individually adapted to the customer's sectioning needs for both biological and materials science specimens.
272400 272400
Specifications
Section thickness range 0 – 60μm
Section thickness settings 0 – 15μm in 1μm steps
15 – 60μm in 5μm steps
Automatic feed 0 – 60μm
Specimen feed 30mm
Maximum specimen size 50 x 70 x 20mm
Fast speed normal 3,000μm/s
Vertical stroke 72mm
Specimen orientation ± 8°
Length of cutting way 180mm
Dimensions (W x D x H) 150 x 450 x 200mm
Weight (without accessories) 18kg


Cuttec S Ordering Information

Prod # Description Unit Price Order / Quote
272450 Cuttec S Manual Sliding Microtome each P.O.R.
Qty:




27245-1

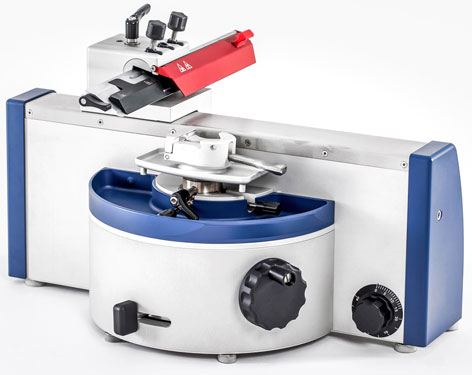

NEW MTR Benchtop Quick-Freeze Unit

The MTR Quick-Freeze Unit consists of a compressor cooling system with a 2m flexible isolation tube and a cooling block which can be adapted to the standard specimen clamp of different types of microtomes.

Ideal for use with the Cuttec S Sliding Microtome when equipped with the Cuttec S Universal Cassette Clamp.

Key Features:

  • Low operating noise
  • Self-optimizing controller for temperature accuracy
  • Manual defrost
  • High cooling capacity down to -45°C
272400 272400

MTR Benchtop Quick-Freeze Unit & Other Accessories Ordering Information

Prod # Description Unit Price Order / Quote
27245-8 MTR for Cuttec S, 115V each P.O.R.
Qty:
27245-9 MTR for Cuttec S, 230V each P.O.R.
Qty:
27245-3 Dry Ice Freezing Stage each 1427.00
Qty:
27245-4 Universal Cassette Clamp, Orientable each 1427.00
Qty:
27245-5 Universal Cassette Clamp, Fixed each 1427.00
Qty:
27245-6 Disposable Blade Rail (For disposable low profile microtome blades) each 2918.00
Qty:
27245-7 Disposable Blade Rail (For disposable high profile microtome blades) each 2918.00
Qty:
