NEW Paraffin Dispensers
& Paraffin Block Trimmer+

NEW Histology Paraffin Dispenser, 5 liter (1.25 gallon)

• Designed for tissue embedding procedures with a heated pouring valve
• Rapid warm-up with an advanced safety one-temperature cut-off
• Heated valve ensures a consistent flow of molten paraffin
• Dispenser valve allows precise control of flowing paraffin and can be locked in the open position if desired
• Two-year warranty

NEW Slimline Paraffin Dispenser, 7.5 liter (2 gallon)

The novel design of the Slimline Paraffin Dispenser ensures a minimum requirement for bench space, while still maintaining a large 7.5 liter capacity tank for melting up to 6kg of pelletized paraffin at a time. Digital temperature controls coupled with an ultra-fast heating system, provide a highly accurate heating system for rapid melting of pelletized paraffin; available for dispensing after only 30 minutes.

Key Benefits:

• Space-saving Slimline design
• The ultra-fast heating system reduces waiting time
• 7.5 liter (2 gallon) capacity tank holds up to 6kg of pelletized paraffin
• Digital controls to ensure accurate temperature and no energy wastage maintaining paraffin at higher than the required temperature
• Heated tap prevents blockages
• Non-drip three-position lever tap includes ‘dispense when pressed’ giving users full control over paraffin dispensation, ‘locked open’ for the rapid delivery of large quantities of molten paraffin, and ‘locked closed’ to prevent accidental dispensing of paraffin
• High tap position (153mm from the bench) allows for the use of larger containers
• Integral tap filter screen (0.5mm mesh) prevents coarse particles from blocking the delivery tap
• Stainless steel inner tank provides good thermal conductivity and improved temperature control
• Insulated paraffin tank prevents heat loss from the tank and ensures that outer surfaces of the tank are safe to touch
• Incorporated miniature circuit breakers for added user safety
• Anti-microbial finish (Ag+) to inhibit bacterial and viral growth
• Dimensions: 420.5 x 181 x 435.5mm (D x W x H)

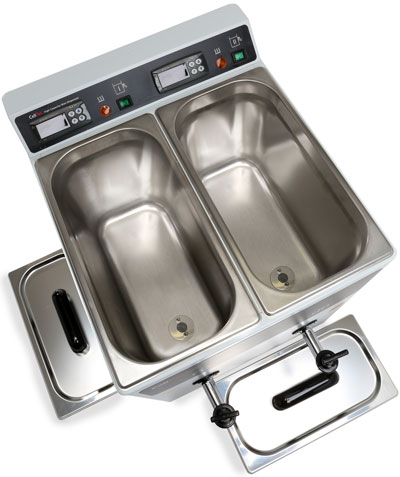

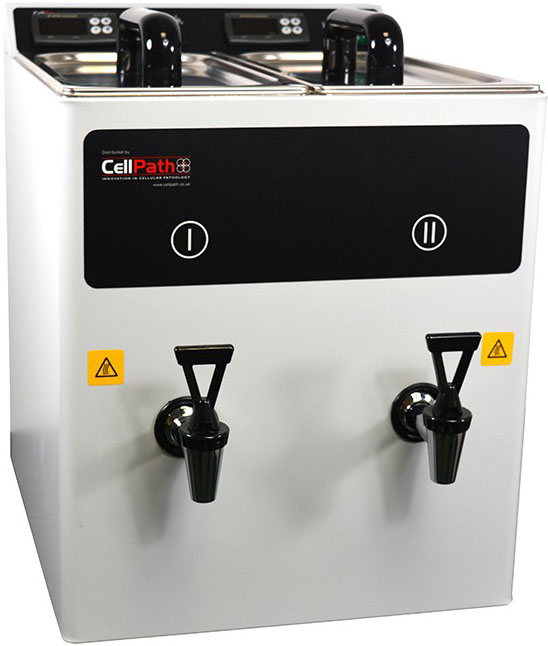

NEW Slimline High Capacity Paraffin Dispenser, 15 liter (4 gallon)

The Slimline High Capacity Paraffin Dispenser has a substantial 15 liter (4 gallon) tank capacity; designed to meet the needs of laboratories with a high workload and require a constant on-demand supply of molten paraffin. The dispenser has two separate 7.5 liter tanks operated independently of one another to provide greater flexibility.

Key Benefits:

• 15 liter total capacity holds up to 12kg of pelletized paraffin for high-workload laboratories
• Two separate 7.5 liter tanks with independent heating and on/off controls improve efficiency
• Encourages LEAN laboratory workflows
• Space-saving Slimline design to minimize the footprint
• The ultra-fast heating system reduces the waiting time before molten paraffin is available
• Digital controls to ensure accurate temperature and no energy wastage maintaining paraffin at higher than the required temperature
• Heated tap prevents blockages
• Non-drip three-position lever tap includes ‘dispense when pressed’ giving users full control over paraffin dispensation, ‘locked open’ for the rapid delivery of large quantities of molten paraffin, and ‘locked closed’ to prevent accidental dispensing of paraffin
• High tap position (153mm from the bench) allows you to use large containers
• Integral tap filter screen (0.5mm mesh) prevents coarse particles from blocking the delivery tap
• Stainless steel inner tank provides good thermal conductivity and improved temperature control
• Insulated paraffin tank prevents heat loss from the tank and ensures that outer surfaces of the tank are safe to touch
• Incorporated miniature circuit breakers for added user safety
• Anti-microbial finish (Ag+) to inhibit bacterial and viral growth
• Dimensions: 420.5mm x 362mm x 435.5mm (D x W x H)

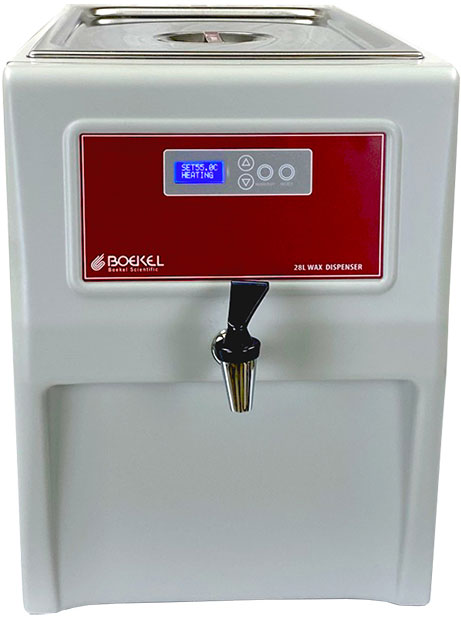

NEW Histology Paraffin Dispenser, Extra-Large, 28 liter (7.4 gallon)

The Extra-Large Paraffin Dispenser can be used as the primary source of paraffin or to supplement tissue processors and embedding centers. It has a maximum capacity of 28 liters (7.4 gallons) and is the largest paraffin dispenser in the industry. It has a heated and filtered spigot to make sure paraffin freely flows during operation.

The easy-to-use digitally controlled system has a timer-based Hot Start warm-up feature that ensures paraffin is melted and ready for dispensing prior to operation. The instrument has a stainless steel lid and chamber that will stay corrosion-free through years of use.

• Largest paraffin capacity available in the industry for high throughput use
• Quickly melts pellets to molten paraffin in as little as four hours
• Hot Start feature automatically starts warming based on a set time
• Bright digital display is clear and easy-to-use
• Heated and filtered spigot keeps paraffin flowing quickly
• Stainless steel lid and paraffin chamber resist corrosion
• Designed and manufactured in the U.S.A.
• Two-year warranty

Paraffin Block Trimmer+

Paraffin Block Trimmer+ efficiently removes excess paraffin from the outside of a tissue cassette following embedding. The edges and writing surface of the tissue cassette are de-waxed effortlessly by passing the paraffin block across the patterned heated work surface. Melted paraffin is then collected in a disposable collection pot.

The Paraffin Block Trimmer+ allows users to prepare tissue blocks with no risk of damage to the printed text or barcode on the tissue cassette. It incorporates an ultra-fast heating system for rapid warm up, which combined with an extra-large heated work surface, allows multiple blocks to be passed across the work surface at one time.

Key Benefits:

• Revised design hot plate – trimmed paraffin is quickly wicked away
• ExacTrim Locator removes paraffin from the writing surface of a standard cassette implanted in a Super Mega Mothership Cassette. It can also be used with conventional blocks as fine detail trimmer.
• Variable digital temperature control with a memory function for desired temperature at start-up
• Neutral slope to satisfy both left and right-hand users
• Miniature circuit breaker eliminates fuses
• Dimensions: 152 Wx 202 D x 183.5mm H (6 W x 8 D x 7" H)
• Temperature Range: 80°C (176°F) ±1°C at 20°C (68°F) ambient
• Power Supply/Rating: Dual Voltage 220-240V or 110-120V 50/60Hz AC/250 Watts
• Weight: 3.0kg (5 lbs)
