Histology Supplies Overview
Mixers & Centrifugation
Magnetic Stir Bars

Benchmark Hot Plate, Stirrer
or Combination Hotplate & Stirrer

stir bars
Hot Plate, Stirrer or
Combo Hotplate/Stirrers
stir bars
Digital Hot Plate, Stirrer
or Combo Hotplate/Stirrers
stir bars
Magnetic
Stir Bars
magfuge centrifuge animated
Silicone Rubber Lab Mat




Benchmark Hotplate Magnetic Stirrer
Benchmark Hot Plates, Magnetic Stirrers and Hot Plate-Stirrers feature an exceptionally durable, chemical resistant white ceramic work surface. Their space-efficient design (20.3 x 22.9cm [8 x 9"] footprint), makes them ideal for use on crowded benchtops and inside of bio-hoods.

Advanced microprocessor controls with convenient turn knobs allow quick, precise adjustment and maintenance of speed and temperature. Safety indicator LED's on the front panel indicate when the heating and/or stirring functions have been activated. The bases are sturdy, powder coated, cast-aluminum construction.

With a square 19cm (7.5") work surface, all three models are compatible with a wide variety of popular sizes of borosilicate glass beakers, flasks, bottles and other vessels. The Hot Plate Magnetic Stirrer, Prod. No. 3235, comes complete with a support rod for mounting thermometers and temperature probes.

Specifications
Model P40-S Stirrer P40-H Hot Plate P40-HS Hot Plate/Stirrer
Product Number 3233 / 3233-230 3234 / 3234-230 3235 / 3235-230
Stirrer Speed 60-1500 RPM - 60-1500 RPM
Stirring Capacity 2 L 2 L 2 L
Temperature Range - 80-380°C / 176-716°F 80-380°C / 176-716°F
Electrical Data 115V, 5A, 50/60Hz
230V, 3A, 50/60Hz
115V, 5A, 50/60Hz
230V, 3A, 50/60Hz
115V, 5A, 50/60Hz
230V, 3A, 50/60Hz
Power Consumption 500W 500W 550W
Dimensions (W x D x H) 20.3 x 22.9 x 11.4cm
(8 x 9 x 4.5")
20.3 x 22.9 x 11.4cm
(8 x 9 x 4.5")
20.3 x 22.9 x 11.4cm
(8 x 9 x 4.5")
Platform 19 x 19cm
(7.5 x 7.5")
19 x 19cm
(7.5 x 7.5")
19 x 19cm
(7.5 x 7.5")
Weight 4.08kg (9 lbs) 4.54kg (10 lbs) 5kg (11 lbs)





Benchmark Digital Hot Plate,
Stirrer or Combination Hotplate & Stirrer

Benchmark Hotplate Magnetic Stirrer Benchmark Digital Hot Plates, Magnetic Stirrers and Hot Plate-Stirrers provide robust quality features for the busy laboratory providing precise LED digital readouts of temperature and RPM.
  • Square 19cm (7.5") white ceramic top plate
  • Safety LED indicates hot surface
  • 5L stir capacity
  • Precise temperature control ±1°C



Stir Bars must be ordered separately,
see ordering information below.


Specifications
Model H3770-S Digital Stirrer H3770-H Digital Hot Plate H3770-HS Digital Hot Plate/Stirrer
Product Number 3233-D / 3233-230-D 3234-D / 3234-230-D 3235-D / 3235-230-D
Stirrer Speed 150-1500RPM - 150-1500RPM
Stirring Capacity 5L 5L 5L
Temperature Range - 5-380°C / 41-716°F 5-380°C / 41-716°F
Electrical Data 115V or 230VAC, 50/60 Hz 115V or 230VAC, 50/60 Hz 115V or 230VAC, 50/60 Hz
Power Consumption 500W 500W 550W
Dimensions (W x D x H) 19 x 27.9 x 10.1cm
(7.5 x 11.5 x 4.5")
18 x 27.9 x 10.1cm
(7.5 x 11.5 x 4.5")
18 x 27.9 x 10.1cm
(7.5 x 11.5 x 4.5")
Platform 18 x 18cm
(7 x 7")
18 x 18cm
(7 x 7")
18 x 18cm
(7 x 7")
Weight 4.08kg (9 lbs) 4.54kg (10 lbs) 5kg (11 lbs)




Ordering Information

Prod # Description Unit Price Order / Quote
Magnetic Stirrer only - no Hot Plate (order Stir Bar below)
3233 P40-S Magnetic Stirrer, 115V each $292.00
Qty:
3233-D H3770-S Magnetic Stirrer, Digital, 115V each 394.00
Qty:
3233-230 P40-S Magnetic Stirrer, 230V each 350.00
Qty:
3233-230-D H3770-S Magnetic Stirrer, Digital, 230V each 314.00
Qty:
Hot Plate only - no Magnetic Stirrer
3234 P40-H Hot Plate, 115V each 292.00
Qty:
3234-D H3770-H Hot Plate, Digital, 115V each 338.00
Qty:
3234-230 P40-H Hot Plate, 230V each 292.00
Qty:
3234-230-D H3770-H Hot Plate, Digital, 230V each 382.50
Qty:
Hot Plate and Magnetic Stirrer (order Stir Bar below)
3235 P40-HS Hot Plate and Magnetic Stirrer, 115V each 436.00
Qty:
3235-D H3770-HS Hot Plate and Magnetic Stirrer, Digital, 115V each 500.00
Qty:
3235-230 P40-HS Hot Plate and Magnetic Stirrer, 230V each 436.00
Qty:
3235-230-D H3770-HS Hot Plate and Magnetic Stirrer, Digital, 230V each 467.00
Qty:

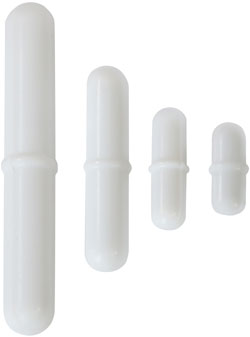

Stir Bars for Hot Plate and Magnetic Stirrer or Magnetic Stirrer only
the Stir Bars are available in four sizes and are PTFE encased rare earth magnets
3260-1 Magnetic Stir Bar, 51 x 8mm (2 x 0.32") each 20.85
Qty:
3260-2 Magnetic Stir Bar, 38x8mm (1.5 x 0.32") each 20.85
Qty:
3260-3 Magnetic Stir Bar, 25 x 8mm (1 x 0.32") each 17.50
Qty:
3260-4 Magnetic Stir Bars, 8 x 1.5mm (0.32 x 0.06") pkg/2 10.75
Qty:




magfuge centrifuge animated

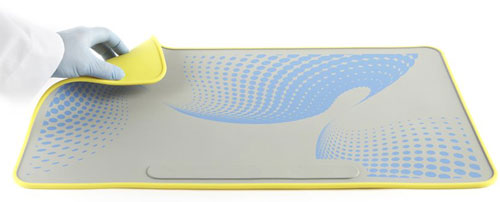

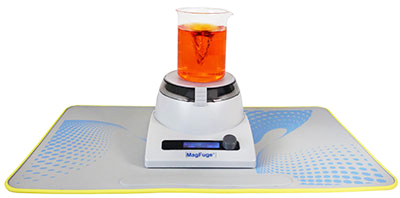

Silicone Rubber Lab Mats

Reusable, reliable, and reversible

  • Ideal for every type of laboratory and more specialized areas such as cold rooms, clean rooms, sterile suites and areas where high sterility is a requirement
  • The lab mats can be used with items such as centrifuges, vortex mixers, hot plates, stirrers, pipettes, and so much more
  • Reversible, with two color/design options available
  • Design includes retaining strip with internal metal inserts for retention of magnetic objects, such as stir bars to help keep items organized
  • Lip around the edge can hold approximately 300mL of liquid
  • Keeps benchtops clean and safe from stains, spills and wear
  • Reusable, helps reduce waste making it a more environmentally friendly option over disposable mats
  • Anti-skid surface helps keep the mat and items in place
  • Noise dampening, reducing sound from the vibration of common bench top equipment
  • Made from a durable FDA food grade silicone rubber material that creates a stain resistant washable working surface
  • Chemical resistance: chemically inert and does not react with most chemicals
  • Can be easily cleaned using any standard disinfectant by simply wiping it and is dishwasher safe
  • Multiple colors available in each style for color coding options
  • Protect counter tops from hot items up to 200°C (392°F)
  • Mats can be rolled up for compact storage
  • Large working surface, 35 x 60 x 0.2cm (14 x 23.5 x 1"), accommodates benchtop equipment, weigh boats, stir bars, scales, etc.
  • Autoclavable at 121°F for 15 minutes

Prod # Description Unit Price Order / Quote
1066-1 Silicone Rubber Lab Mat, Yellow/Grey/Blue each $59.00
Qty:
1066-2 Silicone Rubber Lab Mat, Purple/Grey each 59.00
Qty:
1066-3 Silicone Rubber Lab Mat, Blue/White each 59.00
Qty:
