vacuum pick-up system

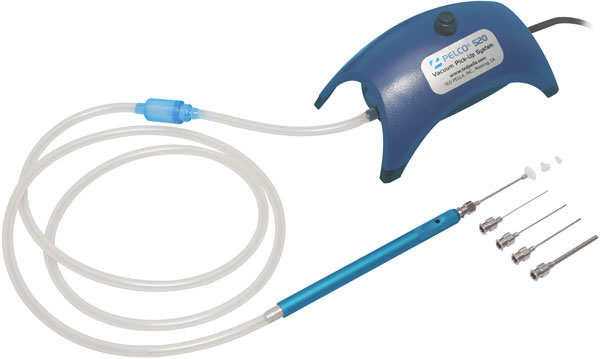

PELCO® Vacuum Pick-Up System with Pump

Handle and transport grids and wafers without the use of tweezers

Use this system for picking up delicate lightweight material with a finger controlled vacuum. Attach various hollow needle tips (5 included with system) or rubber cups (3 included with system) onto the pick-up pen.

Features:

  • Use easy finger control for picking up or releasing.
  • Not for wet or corrosive materials.
  • There is a convenient on/off switch on top of the pump body.
  • A Pick-Up Pen Stand benchtop organizer is available for the Vacuum Pick-Up System

The PELCO® Vacuum Pick-Up System includes: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.125" and 0.375"), in-line filter and hose. Needle tip length is 39mm (1.53").

PELCO® Technical Notes, Vacuum Pick-Up System (395KB PDF)

vacuum pick-up pen PELCO Vacuum Pick-Up System Tips vacuum pick-up pen
Vacuum Pick-Up System
shown in use		 Vacuum Tips & Cups
Pen-Vac™ probes are interchangeable
with PELCO® Vacuum Pick-Up probes.		 Vacuum Pick-Up Pen Stand
Benchtop organizer for the
PELCO® Vacuum Pick-Up System.

The PELCO® Vacuum Pick-Up System has a vacuum spec of 5" Hg. This equates to a suction force of 1.73g/mm2. Compensating for cup deformation and leakage, we have determined the practical lifting capacity for the cups and tips as:


Practical Lifting Capacity
Product No. Cup or Tip Size O.D. (mm) I.D. (mm) Lifting
Capacity (g)
520-4 Vac Cup 0.375" 9.53 - 70
520-5 Vac Cup 0.25" 6.4 - 35
520-6 Vac Cup 0.125" 3.18 - 10
520-7 Tip 12 gauge 2.77 2.36 5
520-8 Tip 16 gauge 1.65 1.18 1
520-9 Tip 18 gauge 1.27 0.80 0.5
520-10 Tip 20 gauge 0.9 0.56 0.3
520-11 Tip 25 gauge 0.52 0.24 0.05

PELCO® Vacuum Pick-Up System Ordering Information:
Prod # Description Unit Price Order / Quote
520-1 PELCO® Vacuum Pick-Up System, 115V, blue pump body each $192.50
Qty:
520-1-220 PELCO® Vacuum Pick-Up System, 220V, grey pump body each 192.50
Qty:
Complete System includes: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.125", 0.25" and 0.375"), in-line filter and hose. Needle tips length is 39mm (1.53").


PELCO® Vacuum Pick-Up System Parts:
Prod # Description Unit Price Order / Quote
520 Vacuum Pump only, 110V each $64.90
Qty:
520-220 Vacuum Pump only, 220V each 64.90
Qty:
520-3 In-line Filter, barbed fitting for 1/8" I.D. hose each 5.00
Qty:
520-19 In-line Filter, 10 micron, barbed fitting for 1/8" I.D. hose each 6.60
Qty:
520-4 Vacuum Cup, 0.375" (9.53mm) dia each 8.85
Qty:
520-5 Vacuum Cup, 0.250" (6.35mm) dia each 8.85
Qty:
520-6 Vacuum Cup, 0.125" (3.18mm) dia each 8.85
Qty:
520-7 Tip, 12 gauge, 0.093" (2.36mm) ID, 39mm L each 15.40
Qty:
520-8 Tip, 16 gauge, 0.0465" (1.18mm) ID, 39mm L each 15.40
Qty:
520-9 Tip, 18 gauge, 0.0315" (0.800mm) ID, 39mm L each 15.40
Qty:
520-10 Tip, 20 gauge, 0.022" (0.558mm) ID, 39mm L each 15.40
Qty:
520-11 Tip, 25 gauge, 0.0095" (0.241mm) ID, 39mm L each 15.40
Qty:
520-12 Pick-up Pen, 9.2 x 127mm, barbed fitting for 1/8" I.D. hose each 40.70
Qty:
520-13 Silicone vacuum tubing 1/8" ID x 1/16 wall, 4' L each 7.70
Qty:





NEW PELCO® Vacuum Pick-Up Pen Stand

Benchtop organizer for the PELCO® Vacuum Pick-Up System and Probes
Battery Powered Vacuum Pick-up Tool

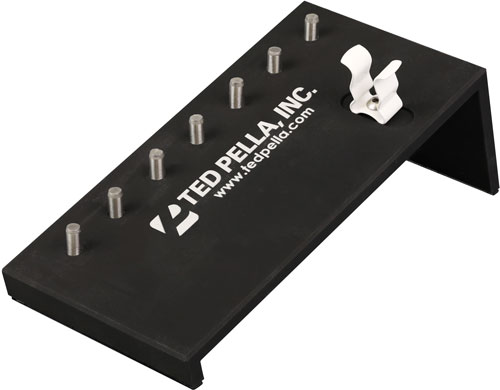

PELCO® Vacuum Pick-Up Pen Stand
(520-20) 		Battery Powered Vacuum Pick-up Tool

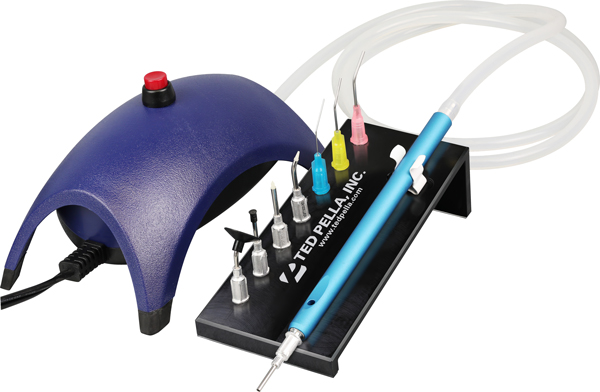

Stand with Probes and Vacuum Pick-Up System
(520-20, 520-1)

The perfect accessory for an organized bench space, the PELCO® Vacuum Pick-Up Pen Stand holds the Pick-Up Pen as well as seven probes. The slip-resistant base keeps the stand in place even when the system's silicone tube hangs over the edge of the work surface.

go to Probes and Cups

Prod # Description Unit Price Order / Quote
520-20 PELCO® Vacuum Pick-Up Pen Stand each $75.00
Qty:




Battery Powered Vacuum Pick-up Tool
Shown here with the 10mm Cup
attached and 5mm cup unattached.

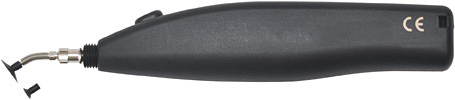

Battery Powered Vacuum Pick-Up Tool

Easy to use, compact, battery operated Vacuum Pick-Up Tool for picking up electronic components, small parts, and samples.

  • Supplied with bent probe and two cups (5 and 10mm)
  • Capable of lifting up to 120g (with 10mm cup)
  • Weight is approximately 70g. Size is 130 x 29 x 22mm
  • Uses two size AAA batteries (included)
  • Battery life is approximately 30,000 suction cycles
  • CE-marked

Compatible with the Metal Tips for the PELCO® Vacuum Pick-up System and the Probes/Cups for the Pen-Vac Pick-Up Tools shown on this page.

go to Probes and Cups
Holding the Battery Powered Vacuum Pick-up Tool
Pressing button to activate vacuum
while picking up a 12mm disc.

Prod # Description Unit Price Order / Quote
529 Battery Powered Vacuum Pick-Up Tool each $225.50
Qty:




pen vac tweezer, vacuum pick-up

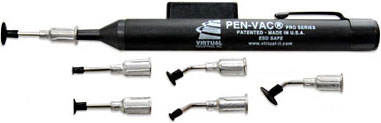

ESD Safe Plastic Body Pen-Vac™ Vacuum Pick-Up Tool with 6 ESD Safe Probes & Cups

Pick up small delicate objects

Self-contained vacuum needs no power supply or batteries yet lifts up to 50 gram items with flat surfaces. Vacuum is generated by pressing and releasing the vacuum push bar. Pocket-fitting, weighs less than 15g (~1/2oz.) Pen length with probe is 152mm. Black plastic ESD safe body.

Comes with 6 vacuum probes that are 1/2" long (not counting the connector), three angled and three straight. Black, ESD safe Buna-N cups, two each of 3.2, 6.4 and 9.5mm (1/8", 1/4" and 3/8").

Cup diameters available in the black ESD safe Buna-N are: 2.4, 3.2, 6.4, 9.5, 12.7, 15.9 and 19.1mm (3/32", 1/8", 1/4", 3/8", 1/2", 5/8", and 3/4").

PELCO® Technical Notes, ESD Safe Pen-Vac™ Vacuum Pick-Up Tool (753KB PDF)
go to Probes and Cups

Prod # Description Unit Price Order / Quote
528-2 Pen-Vac™, complete with 6 probes and cups each $74.50
Qty:




vacuum transfer, vacuum pick-up
vacuum pen, vacuum pick-up
146mm (5-3/4") long x 12.7mm (1/2") diameter

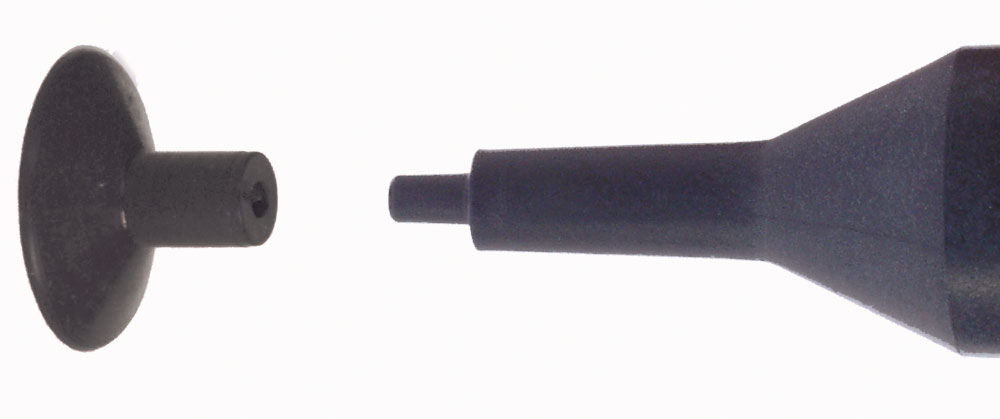

Pen-Vac Tip
Cups can be mounted directly to the tool

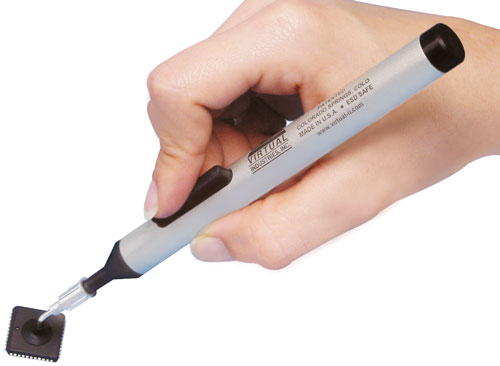

Anodized Aluminum Body ESD Safe Pen-Vac™ Vacuum Pick-Up Tool with 6 ESD Safe Probes and Cups

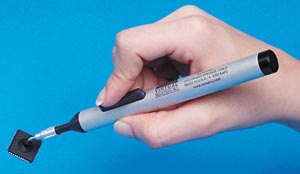

Brushed aluminum and clear anodized body; vacuum is generated by pressing and releasing the vacuum push bar. The sets include 6 probes and cups, two of each size cup (for cup diameters see ordering information), on one bent and one straight probe. The Buna-N cups are static dissipative and non-marking with a temperature range of -20°C to +120°C (-4° to +248°F). The cups also can be mounted directly to the tool. Recommended temperature operating range: +20 to +40° C (+68 to +104° F).

ESD Safe Pen-Vac™ and cups avoid problems with static electricity and make picking up small parts easier.

Comes with 6 vacuum probes that are 1/2" long (not counting base connector); three angled and three straight. Buna-N cups are two each of 3.2, 6.4 and 9.5mm (1/8", 1/4", 3/8").

PELCO® Technical Notes, ESD Safe Pen-Vac™ Vacuum Pick-Up Tool (753KB PDF)

go to Probes and Cups

vacuum cups, vacuum pick-up

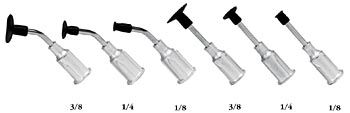

Typical set of probes and cups
ESD Specifications
Product Resistivity
Pen-Vac™ Body 102-106 ohms
ABS Plastic Button 103-106 ohms
ABS Plastic Nozzle 103-106 ohms
Metal Probe Zero
Buna-N Cups 108-1011 ohms

Prod # Description Unit Price Order / Quote
Cup diameters: 3.2mm (1/8"), 6.4mm (1/4"), 9.5mm (3/8")
528-16 Pen-Vac™, ESD-safe, Standard, 6 probes and cups each $96.80
Qty:




Battery Powered Vacuum Pick-up Tool
#522 and included accessories

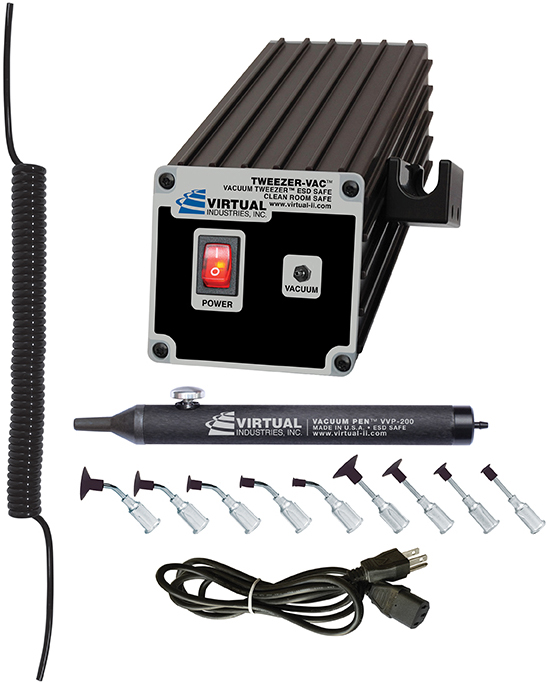

NEW Tweezer-Vac™ Vacuum Pick-Up Tool

ESD Safe Kit with Buna-N Static Dissipative Non-Marking Vacuum Cups with Probes

The Tweezer-Vac™ Vacuum Pick-Up Tool is an ESD and Cleanroom 100 safe vacuum tweezer system. With vacuum of up to 10" Hg at sea level, this system is ideal for handling small, flat and smooth items such as substrates, slides, semiconductors and more. The unit comes with all the items needed for use including hose, vacuum pen and nine vacuum tips. Dimensions are 7.25 x 2.5 x 3" (185 x 64 x 76mm).

  • Supplied with nine probes and Buna-N cups (specified below)
  • Vacuum up to 10" Hg at sea level
  • ESD Safe
  • Class 100 Cleanroom Safe
  • CE-marked
  • Push-button vacuum pen

Contains five 1/2" (12.70mm) long bent probes with 3/32" (2.38mm), 1/8" (3.18mm), 3/16" (4.76mm), 1/4" (6.35mm), 3/8" (9.53mm), and four 1/2" (12.70mm) long straight probes with 1/8" (3.18mm), 1/4" (6.35mm), 3/8" (9.53mm), 1/2" (12.70mm) diameter static dissipative Buna-N Cups.

Compatible with the Metal Tips for the PELCO® Vacuum Pick-up System and the Probes/Cups shown on this page.

PELCO® Technical Notes, Tweezer-Vac™ Vacuum Pick-Up Tool (731KB PDF)

go to Probes and Cups

Prod # Description Unit Price Order / Quote
522 Tweezer-Vac™ Vacuum Tweezer, 110V each $460.00
Qty:
522-1 Tweezer-Vac™ Vacuum Tweezer, 220V each 460.00
Qty:




Battery Powered Vacuum Pick-up Tool
#522-10 and included accessories

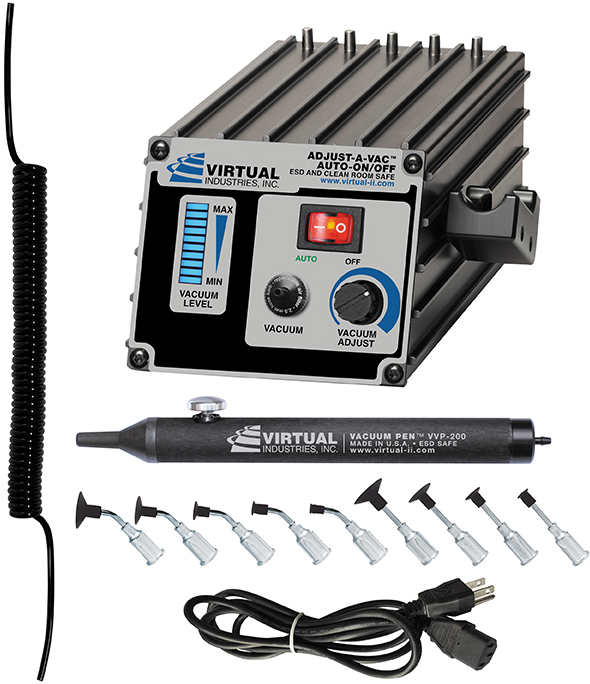

NEW Adjust-A-Vac™ Vacuum Pick-Up Tool

Auto-ON/OFF ESD Safe Kit With Buna-N Static Dissipative Non-Marking Vacuum Cups with Probes

  • Supplied with nine probes and Buna-N cups (specified below)
  • Vacuum up to 8" Hg at sea level
  • ESD Safe
  • Class 100 Cleanroom Safe
  • Auto-ON/OFF feature
  • CE-marked
  • Control knob to reduce vacuum level to pick up tip
  • Push-button vacuum pen
  • Bar LED graph power-on and vacuum-level indicator

A compact desktop vacuum pick-up system (8 x 3 x 3.5" / 203 x 76 x 89mm) with variable vacuum. Both ESD and Class 100 Cleanroom safe, this unit is ideal for handling small, delicate materials that may break with higher vacuum. Storage for five probes on top of the pump.

Contains five 1/2" (12.70mm) long bent probes with 3/32" (2.38mm), 1/8" (3.18mm), 3/16" (4.76mm), 1/4" (6.35mm), 3/8" (9.53mm), and four 1/2" (12.70mm) long straight probes with 1/8" (3.18mm), 1/4" (6.35mm), 3/8" (9.53mm), 1/2" (12.70mm) diameter static dissipative Buna-N Cups.

Compatible with the Metal Tips for the PELCO® Vacuum Pick-up System and the Probes/Cups shown on this page.

PELCO® Technical Notes, Adjust-A-Vac™ Vacuum Pick-Up Tool (774KB PDF)

go to Probes and Cups

Prod # Description Unit Price Order / Quote
522-10 Adjust-A-Vac™ Vacuum Tweezer, 110V each $1340.30
Qty:
522-11 Adjust-A-Vac™ Vacuum Tweezer, 220V each 1340.30
Qty:
52920 Replacement Air Intake Filters pkg/5 61.60
Qty:

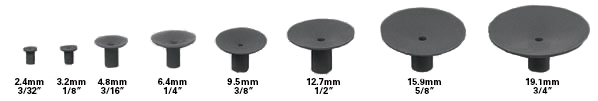

Pen-Vac™ Vacuum Cups, ESD Safe

All Cups Fit All Pen-Vac™ models and PELCO® Vacuum Pick-Up Systems.

esd safe vacuum cups, vacuum pick-up

Black Buna-N ESD Safe Standard Temperature

cup only, no probe
Non-marking material, -20°C to +120°C / -4°F to +248°F. ESD specifications: Resistivity 108-1011 ohms.

Prod # Description Unit Price Order / Quote
528-20 Vacuum Cup, Black Buna ESD, Diameter: 3/32" (2.4mm) each $3.20
Qty:
528-22 Vacuum Cup, Black Buna-N ESD, Diameter: 1/8" (3.2mm) each 3.30
Qty:
528-24 Vacuum Cup, Black Buna-N ESD, Diameter: 3/16" (4.8mm) each 3.20
Qty:
528-26 Vacuum Cup, Black Buna-N ESD, Diameter: 1/4" (6.4mm) each 3.20
Qty:
528-28 Vacuum Cup, Black Buna-N ESD, Diameter: 3/8" (9.5mm) each 3.20
Qty:
528-30 Vacuum Cup, Black Buna-N ESD, Diameter: 1/2" (12.7mm) each 3.20
Qty:
528-32 Vacuum Cup, Black Buna-N ESD, Diameter: 5/8" (15.9mm) each 5.40
Qty:
528-34 Vacuum Cup, Black Buna-N ESD, Diameter: 3/4" (19.1mm) each 5.40
Qty:
528-36 Kit: 1 vacuum cup, Black Buna-N ESD of each size (8 total) each 28.00
Qty:


Black Silicone ESD Safe High Temperature

cup only, no probe
Non-marking material, -55°C to +230°C / -67°F to +446°F. ESD specifications: Resistivity 108-1011 ohms.

Prod # Description Unit Price Order / Quote
528-42 Vacuum Cup, Black Silicone ESD, Diameter: 1/8" (3.2mm) each $3.20
Qty:
528-44 Vacuum Cup, Black Silicone ESD, Diameter: 3/16" (4.8mm) each 3.25
Qty:
528-46 Vacuum Cup, Black Silicone ESD, Diameter: 1/4" (6.4mm) each 3.20
Qty:
528-48 Vacuum Cup, Black Silicone ESD, Diameter: 3/8" (9.5mm) each 3.25
Qty:
528-50 Vacuum Cup, Black Silicone ESD, Diameter: 1/2" (12.7mm) each 3.20
Qty:
528-52 Vacuum Cup, Black Silicone ESD, Diameter: 5/8" (15.9mm) each 5.40
Qty:
528-54 Vacuum Cup, Black Silicone ESD, Diameter: 3/4" (19.1mm) each 5.40
Qty:

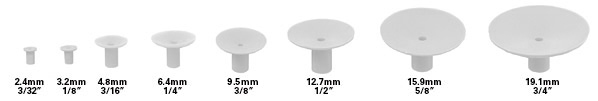

Pen-Vac™ Vacuum Cups

All Cups Fit All Pen-Vac™ models and PELCO® Vacuum Pick-Up Systems.

esd safe vacuum cups, vacuum pick-up

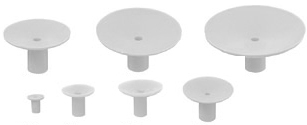

Clear Silicone, High Temperature

cup only, no probe
Non-marking material, -55°C to +250°C / -67°F to +482°F. Not ESD safe.

Prod # Description Unit Price Order / Quote
528-70 Vacuum Cup, C, Diameter: 3/32" (2.4mm) each $3.20
Qty:
528-72 Vacuum Cup, C, Diameter: 1/8" (3.2mm) each 3.20
Qty:
528-74 Vacuum Cup, C, Diameter: 3/16" (4.8mm) each 3.20
Qty:
528-76 Vacuum Cup, C, Diameter: 1/4" (6.4mm) each 3.20
Qty:
528-78 Vacuum Cup, C, Diameter: 3/8" (9.5mm) each 3.20
Qty:
528-80 Vacuum Cup, C, Diameter: 1/2" (12.7mm) each 3.20
Qty:
528-82 Vacuum Cup, C, Diameter: 5/8" (15.9mm) each 5.40
Qty:
528-84 Vacuum Cup, C, Diameter: 3/4" (19.1mm) each 5.50
Qty:
528-86 Kit: 1 vacuum cup (C) of each size (8 total) each 28.00
Qty:

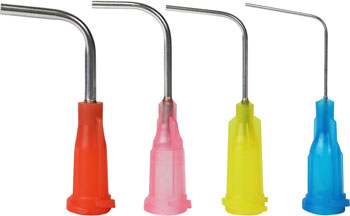

Small Parts Tips for Items as Small as 100 Microns

ESD safe Delrin® tips. Eight sizes in straight and 45° bent probes ranging in diameter from 0.008" (0.203mm) to 0.08" (2.03mm). Fits all of our vacuum pickup tools allowing the user to pick up parts as small as 100μm.

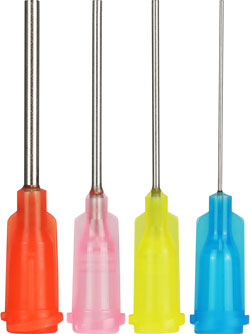

Small Part Straight Tip Metal Probes, 1/2" L
for the Pen-Vac™ and PELCO® Vacuum Pick-Up System

Prod # Description Unit Price Order / Quote
528-410 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.008" (0.203mm), OD 0.003" (0.076mm) ID each $74.80
Qty:
528-411 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.010" (0.254mm), OD 0.005" (0.13mm) ID each 52.80
Qty:
528-412 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.020" (0.508mm), OD 0.010" (0.25mm) ID each 52.80
Qty:
528-413 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.025" (0.635mm), OD 0.015" (0.38mm) ID each 52.80
Qty:
528-414 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.030" (0.762mm), OD 0.020" (0.51mm) ID each 52.80
Qty:
528-415 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.040" (1.02mm), OD 0.030" (0.76mm) ID each 52.80
Qty:
528-416 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.060" (1.52mm), OD 0.040" (1.02mm) ID each 52.80
Qty:
528-417 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.070" (1.78mm), OD 0.050" (1.27mm) ID each 52.80
Qty:
528-418 Metal Probe, Straight 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.080" (2.03mm), 0.060" (1.52mm) ID each 52.80
Qty:


Small Part Bent Tip Metal Probes, 1/2" L
for the Pen-Vac™ and PELCO® Vacuum Pick-Up System

Prod # Description Unit Price Order / Quote
528-310 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.008" (0.203mm), OD 0.003" (0.076mm) ID each $74.80
Qty:
528-311 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.010" (0.254mm), OD 0.005" (0.13mm) ID each 52.80
Qty:
528-312 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.020" (0.508mm), OD 0.010" (0.25mm) ID each 52.80
Qty:
528-313 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.025" (0.635mm), OD 0.015" (0.38mm) ID each 52.80
Qty:
528-314 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.030" (0.762mm), OD 0.020" (0.51mm) ID each 52.80
Qty:
528-315 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.040" (1.02mm), OD 0.030" (0.76mm) ID each 52.80
Qty:
528-316 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.060" (1.52mm), OD 0.040" (1.02mm) ID each 52.80
Qty:
528-317 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.070" (1.78mm), OD 0.050" (1.27mm) ID each 52.80
Qty:
528-318 Metal Probe, Bent 1/2" (12.7mm) ESD Safe Delrin® Tip, Tip Diameter 0.080" (2.03mm), OD 0.060" (1.52mm) ID each 52.80
Qty:



NEW Straight Probes without Cups

for the Pen-Vac™ & PELCO® Vacuum Pick-Up System

45 degree bent probes without cups

Consists of a plastic hub and blunt probe that fits the Vacuum Pick-Up devices shown on this page.

Note: ID of 15 gauge = 0.06" (1.52mm) 18 gauge = 0.038" (0.97mm); 20 gauge = 0.026" (0.66mm), 25 gauge = 0.012" (0.30mm)

Image left to right: 15 gauge (528-280), 18 gauge (528-282), 20 gauge (528-284), 25 gauge (528-286)

Prod # Description Unit Price Order / Quote
528-280 Probe, 15 ga., straight, 1" (25.4mm) long each $3.20
Qty:
528-282 Probe, 18 ga., straight, 1" (25.4mm) long each 3.20
Qty:
528-284 Probe, 20 ga., straight, 1" (25.4mm) long each 3.20
Qty:
528-286 Probe, 25 ga., straight, 1" (25.4mm) long each 3.20
Qty:




NEW 45° Bent Probes without Cups

for the Pen-Vac™ & PELCO® Vacuum Pick-Up System

45 degree bent probes without cups Consists of a plastic hub and blunt probe that fits the Vacuum Pick-Up devices shown on this page.

Note: ID of 15 gauge = 0.06" (1.52mm) 18 gauge = 0.038" (0.97mm); 20 gauge = 0.026" (0.66mm), 25 gauge = 0.012" (0.30mm)

Image left to right: 15 gauge (528-258), 18 gauge (528-260), 20 gauge (528-262), 25 gauge (528-264)

Prod # Description Unit Price Order / Quote
528-258 Probe, 15 ga., bent 45°, 1" (25.4mm) long each $3.20
Qty:
528-260 Probe, 18 ga., bent 45°, 1" (25.4mm) long each 3.20
Qty:
528-262 Probe, 20 ga., bent 45°, 1" (25.4mm) long each 3.20
Qty:
528-264 Probe, 25 ga., bent 45°, 1" (25.4mm) long each 3.20
Qty:




NEW 90° Bent Probes without Cups

for the Pen-Vac™ & PELCO® Vacuum Pick-Up System

90 degree bent probes without cups Consists of a plastic hub and blunt probe that fits the Vacuum Pick-Up devices shown on this page.

Note: ID of 15 gauge = 0.06" (1.52mm) 18 gauge = 0.038" (0.97mm); 20 gauge = 0.026" (0.66mm), 25 gauge = 0.012" (0.30mm)

Image left to right: 15 gauge (528-270), 18 gauge (528-272), 20 gauge (528-274), 25 gauge (528-276)

Prod # Description Unit Price Order / Quote
528-270 Probe, 15 ga., bent 90°, 1" (25.4mm) long each $3.20
Qty:
528-272 Probe, 18 ga., bent 90°, 1" (25.4mm) long each 3.20
Qty:
528-274 Probe, 20 ga., bent 90°, 1" (25.4mm) long each 3.20
Qty:
528-276 Probe, 25 ga., bent 90°, 1" (25.4mm) long each 3.20
Qty:




Metal Probes without Cups

for the Pen-Vac™ & PELCO® Vacuum Pick-Up System

Left to right: 1/2" long, straight; 1" long, straight; 1/2" long, bent; 1" long, bent
Consists of a metal hub that fits the Vacuum Pick-Up devices shown on this page.

Note: 18 gauge = 0.05" (1.27mm); 15 gauge = 0.0725" (1.84mm)

Prod # Description Unit Price Order / Quote
528-240 Metal Probe, 18 ga., bent 1/2" (12.7mm) long each $3.20
Qty:
528-242 Metal Probe, 18 ga., straight 1/2" (12.7mm) long each 3.20
Qty:
528-248 Metal Probe, 15 ga., bent 1/2" (12.7mm) long each 3.20
Qty:
528-250 Metal Probe, 15 ga., straight 1/2" (12.7mm) long each 3.20
Qty:
528-254 Metal Probe, 15 ga., straight 1" (25.4mm) long each 3.50
Qty:




Pen-Vac™ Metal Probes With ESD Safe Cups

for the Pen-Vac™ & PELCO® Vacuum Pick-Up System

metal probes with cups

Metal Probes, 1/2" L, Straight, for the Pen-Vac™ and PELCO® Vacuum Pick-Up System

Non-marking material, -20°C to +120°C / -4°F to +248°F. ESD specifications: Resistivity 108-1011 ohms.

Metal Probe for Pen-Vac

Prod # Description Unit Price Order / Quote
528-110 Metal Probe 1/2", 18 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 3/32" (2.4mm) each $5.50
Qty:
528-112 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 1/8" (3.4mm) each 5.50
Qty:
528-114 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 3/16" (4.8mm) each 5.50
Qty:
528-116 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 1/4" (6.4mm) each 5.50
Qty:
528-118 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 3/8" (9.5mm) each 5.50
Qty:
528-120 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 1/2" (12.7mm) each 5.50
Qty:
528-122 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 5/8" (15.9mm) each 8.30
Qty:
528-124 Metal Probe 1/2", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 3/4" (19.1mm) each 8.30
Qty:


Metal Probes, 1" L, Straight, for the Pen-Vac™ and PELCO® Vacuum Pick-Up System

Non-marking material, -20°C to +120°C / -4°F to +248°F. ESD specifications: Resistivity 108-1011 ohms.

Metal Probe for Pen-Vac 1"

Prod # Description Unit Price Order / Quote
528-144 Metal Probe 1", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 3/16" (4.8mm) each $5.70
Qty:
528-152 Metal Probe 1", 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 5/8" (15.9mm) each 8.40
Qty:
528-154 Metal Probe 1" 15 ga., straight with Vacuum Cup, Black Buna-N ESD, Diameter: 3/4" (19.1mm) each 8.40
Qty:


Metal Probes, 1/2" L, Bent, for the Pen-Vac™ and PELCO® Vacuum Pick-Up System

Non-marking material, -20°C to +120°C / -4°F to +248°F. ESD specifications: Resistivity 108-1011 ohms.

Metal Probes for Pen-Vac bent, 1/2"

Prod # Description Unit Price Order / Quote
528-170 Metal Probe 1/2", 18 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 3/32" (2.4mm) each $5.50
Qty:
528-172 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 1/8" (3.2mm) each 5.50
Qty:
528-174 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 3/16" (4.8mm) each 6.40
Qty:
528-176 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 1/4" (6.4mm) each 5.50
Qty:
528-178 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 3/8" (9.5mm) each 5.50
Qty:
528-180 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 1/2" (12.7mm) each 5.50
Qty:
528-182 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 5/8" (15.9mm) each 8.30
Qty:
528-184 Metal Probe 1/2", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 3/4" (19.1mm) each 8.30
Qty:


Metal Probes, 1" L, Bent, for the Pen-Vac™ and PELCO® Vacuum Pick-Up System

Non-marking material, -20°C to +120°C / -4°F to +248°F. ESD specifications: Resistivity 108-1011 ohms.

Metal Probe for Pen-Vac bent, 1"

Prod # Description Unit Price Order / Quote
528-214 Metal Probe 1", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 3/16" (4.8mm) each $5.70
Qty:
528-216 Metal Probe 1", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 1/4" (6.4mm) each 5.70
Qty:
528-222 Metal Probe 1", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 5/8" (15.9mm) each 8.40
Qty:
528-224 Metal Probe 1", 15 ga., bent with Vacuum Cup, Black Buna-N ESD, Diameter: 3/4" (19.1mm) each 8.40
Qty:

Note: Length measurements does not include mounting hub. Images shown with 6.4mm (1/4") cup.
