Electronics & Semiconductor Overview
FIB Lift-Out Grids & Grid Boxes

NEW SEMI E177 Conforming Products

Products for semiconductor automated TEM workflow

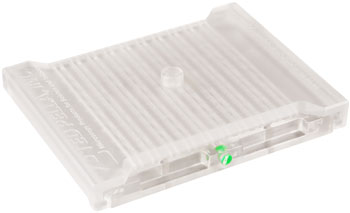

FLCC
FLCC in package
Grid
Fresh Lamella Carrier
Container without LCs
FLCC in packaging
(164-T5)

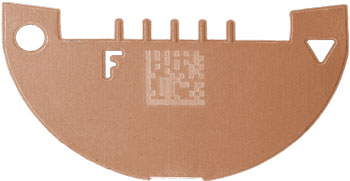

5 post copper LC with DMC
and 3 fiducials


With the increase in interest in automation of sample preparation for failure analysis in the semiconductor industry, the SEMI industry association has recently published the E177 standard for automated transmission electron microscopy (TEM). The products here are designed to fulfill the requirements for consumables in the automated TEM workflow.

Based on the Lamella Carrier Container (LCC) design in the SEMI E177 standard as implemented by Thermo Fisher Scientific, the FLCC is a one-time use container for delivering fresh LCs (lamella carriers)/FIB grids into the automated TEM workflow. The FLCC is made of injection-molded ESD safe plastic and carries 100 SEMI E177 conforming LCs in either half-moon or round 3mm grid formats. The FLCC ships fully populated with data matrix code (DMC) marked LCs. The DMC is a QR code that identifies each grid in the system. The DMC code identifies the grid type, and contains a 6-digit non-sequential serial number consistent with the requirements of Thermo Fisher Scientific’s automation workflow. Custom DMC labelling is not available.



Dimensions

  164-T5
Overall Height 8.8mm (0.35")
Width 73.4mm (2.9")
Depth 58.4mm (2.3")



Ordering Information


100 LCs in FLCC
FLCC Grid

Prod # Description Unit Price Order / Quote
164-T5 FLCC containing 100 Thermo Fisher Scientific-designed SEMI E177 LCs featuring 5 posts, 3 fiducial marks and DMC. each P.O.R.
Qty:

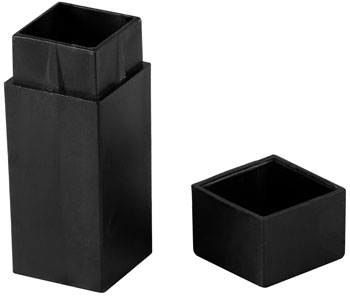

100 LCs in a Vial
Vial Grid

Prod # Description Unit Price Order / Quote
10GCLC05-NODM Vial containing 100 Thermo Fisher Scientific-designed SEMI E177 LCs featuring 5 posts and 3 fiducial marks. No DMC. each $100.00
Qty:
Vial Grid

Prod # Description Unit Price Order / Quote
10GCLC08-NODM Vial containing 100 Thermo Fisher Scientific-designed SEMI E177 LCs featuring 8 posts and 3 fiducial marks. No DMC. each $100.00
Qty:
