DiATOME® Diamond Knives Overview

Now available from Ted Pella, Inc.

DiATOME® histo Diamond Knives

Available for sale in U.S.A. only


histo

The histo knife is designed for the sectioning of hard and soft biological and material research specimens, non-embedded or embedded in acrylic or epoxy resins. The histo knives can be used on all ultramicrotomes as well as on microtomes with a retraction of the specimen arm in the return phase. Section thicknesses range 0.2 to 2µm. Standard histo boat. Blade widths, 4.0, 6.0 and 8.0mm.

histo cryo

The histo cryo knives are delivered with a boat for wet sectioning using a DMSO/water mixture or with a triangular holder for dry sectioning. Section thicknesses range 0.2 to 2µm. Triangular holder (dry) or small histo boat (wet). Blade widths, 4.0, 6.0 and 8.0mm.

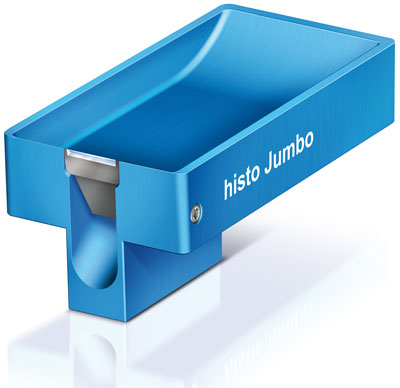

histo Jumbo

For 3D reconstruction, it is imperative not to lose a single section. The jumbo boat into which a glass slide can be dipped as well as the contact adhesive (Pattex contact cement by Henkel)*, applied to the leading face of the pyramid, increases the advantages of our histo knives. They allow sections to stick together to form section ribbons (0.5 – 2 µm), ensuring no section loss, no folding, the same orientation of all sections, easy collection of section ribbons, and multiple ribbons on one glass slide. The perfect knife for immunohistochemistry. Section thicknesses range 0.5 to 2µm. Jumbo histo boat. Blade widths, 4.0, 6.0 and 8.0mm.

 *(M. J. F. Blumer et al., Journal of Neuroscience Methods 120, pp. 11 – 16, 2002).
Handling & Use of DiATOME® Diamond Knives (860KB PDF)


product selector icon DiATOME® Diamond Knife Selector
Knife Type & Angle Width Select
Price: $2098.75 Qty:


DiATOME® Ordering Information

Prod # Description Unit Price Order / Quote
For Sale in U.S.A. Only
R = Resharpen, E = Exchange
123-DK4-H40 DiATOME® histo Diamond Knife, Angle 45°, Knife 4.0mm each $1825.00
Qty:
123-DK4-H40E DiATOME® histo Diamond Knife, Angle 45°, Knife 4.0mm, Exchange each 1275.00
Qty:
123-DK4-H40R DiATOME® histo Diamond Knife, Angle 45°, Knife 4.0mm, Resharpen each 895.00
Qty:
123-DK4-H60 DiATOME® histo Diamond Knife, Angle 45°, Knife 6.0mm each 3395.00
Qty:
123-DK4-H60E DiATOME® histo Diamond Knife, Angle 45°, Knife 6.0mm, Exchange each 2375.00
Qty:
123-DK4-H60R DiATOME® histo Diamond Knife, Angle 45°, Knife 6.0mm, Resharpen each 1725.00
Qty:
123-DK4-H80 DiATOME® histo Diamond Knife, Angle 45°, Knife 8.0mm each 4495.00
Qty:
123-DK4-H80E DiATOME® histo Diamond Knife, Angle 45°, Knife 8.0mm, Exchange each 3175.00
Qty:
123-DK4-H80R DiATOME® histo Diamond Knife, Angle 45°, Knife 8.0mm, Resharpen each 2275.00
Qty:
123-DK4-HCD40 DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 4.0mm each 1825.00
Qty:
123-DK4-HCD40R DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 4.0mm, Resharpen each 895.00
Qty:
123-DK4-HCW40 DiATOME® histo Cryo Wet Diamond Knife, Angle 45°, Knife 4.0mm each 1825.00
Qty:
123-DK4-HCW40R DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 4.0mm, Resharpen each 895.00
Qty:
123-DK4-HCD60 DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 6.0mm each 3395.00
Qty:
123-DK4-HCD60E DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 6.0mm, Exchange each 2375.00
Qty:
123-DK4-HCD60R DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 6.0mm, Resharpen each 1725.00
Qty:
123-DK4-HCW60 DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 6.0mm each 3395.00
Qty:
123-DK4-HCW60E DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 6.0mm, Exchange each 2375.00
Qty:
123-DK4-HCW60R DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 6.0mm, Resharpen each 1725.00
Qty:
123-DK4-HCD80 DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 8.0mm each 4495.00
Qty:
123-DK4-HCD80E DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 8.0mm, Exchange each 3175.00
Qty:
123-DK4-HCD80R DiATOME® histo cryo Diamond Knife, Dry, Angle 45°, Knife 8.0mm, Resharpen each 2300.00
Qty:
123-DK4-HCW80 DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 8.0mm each 4495.00
Qty:
123-DK4-HCW80E DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 8.0mm, Exchange each 3175.00
Qty:
123-DK4-HCW80R DiATOME® histo cryo Diamond Knife, Wet, Angle 45°, Knife 8.0mm, Resharpen each 2300.00
Qty:
123-DK4-JH60 DiATOME® histo Jumbo Diamond Knife, Angle 45°, Knife 6.0mm each 3600.00
Qty:
123-DK4-JH60E DiATOME® histo Jumbo Diamond Knife, Angle 45°, Knife 6.0mm, Exchange each 2545.00
Qty:
123-DK4-JH60R DiATOME® histo Jumbo Diamond Knife, Angle 45°, Knife 6.0mm, Resharpen each 1825.00
Qty:
123-DK4-JH80 DiATOME® histo Jumbo Diamond Knife, Angle 45°, Knife 8.0mm each 4600.00
Qty:
123-DK4-JH80E DiATOME® histo Jumbo Diamond Knife, Angle 45°, Knife 8.0mm, Exchange each 3350.00
Qty:
123-DK4-JH80R DiATOME® histo Jumbo Diamond Knife, Angle 45°, Knife 8.0mm, Resharpen each 2400.00
Qty:




123-C

Ultramicrotome Section Thickness Color Reference Chart

This reference chart allows the user to easily gauge section thickness from the interference color of cut sections. Useful for both new and experienced ultramicrotome users.

Made of durable, water resistant vinyl, this is an essential tool for any ultramicratome facility.

Prod # Description Unit Price Order / Quote
123-C Ultramicrotome Section Thickness Color Reference Chart each $11.50
Qty:
