Specifications for the
108C Auto Carbon Coater

go to the 108C Auto Carbon Coater


Specifications

Chamber size: 120 OD x 120mm high (4.75 x 4.75")
Evaporation source: Bradley type (6.15mm rods, [1/4"])
Heavy duty stainless steel construction
Evaporation supply: Microprocessor based feedback loop controlled with remote current/voltage sensing;
Safety interlocked by vacuum level Variable, 135A max, with over-current protection
Sample table: Holds 12 SEM mounts
Height adjustable through 60mm
Analog metering: Vacuum Atm - 0.001mb
Current: 0 - 200A
Thickness monitoring: MTM-10 High Resolution Thickness Monitor (optional)
Control method: Automatic evaporation control, using programmed voltage and timer; full manual override with pulsed or continuous operation
Digital timer (0 - 9.9 seconds)
Digital volt setting (0.1 to 5.5V)

Requirements

Electrical: 100-120 or 200-240 VAC, 50/60Hz (specify on order)
Power: 1200VA (coater and rotary-vane pump #92080 together)

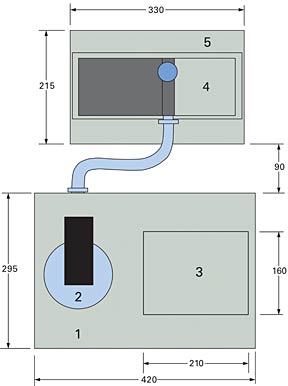

Footprint

(Height: 280mm)



Dimensions for the 108C Auto Carbon Coater
Dimensions (mm)
1. Control unit
2. Vacuum chamber
3. Thickness monitor
4. Rotary pump
5. Anti-vibration base
