PELCO® Pro Wafer Tweezers

PELCO^® ESD Safe Wafer Handling Tweezers

PVDF (SV), Peek (CP)

Conductive, synthetic carbon fiber reinforced tips with non-magnetic stainless steel grips. Sturdy and non-scratching. Clean room compatible. Light weight and strong.

SV - PVDF (polyvinylidene fluoride) reinforced with carbon fiber.

Excellent mechanical strength and toughness
Smooth surface
Heat stabilized, high heat capability, continuous use temperature up to 150°C (302°F)
High purity (clean room and medical devices approved, low extraction value)
Excellent chemical resistance to most aggressive substances and solvents. Resistant to halogens. Not compatible with NMP.
Outstanding resistance to hydrofluoric acid (40% conc., 90°C, 194°F), nitric acid (50% conc., 90°C, 194°F), hydrochloric acid (36% conc., 90°C, 194°F)
High abrasion resistance
Resistant to UV and nuclear radiation (sterilization)
ESD safe material
Typical applications include handling of very scratch and contamination-sensitive components, cleaning and etching processes

CP - PEEK (polyether ether ketone) reinforced with carbon fiber

Very hard, rigid, high tensile and flexural strength, very high wear resistance
High heat capability (260-300°C, 500-572°F), good dimension stability, low thermal linear expansion coefficient
Excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing. Compatible with NMP.
ESD-safe material

Typical applications include handling of components in cleaning/chemical/assembly processes also at high temperature (soldering)

Sturdy but non-scratching. Outstanding chemical resistance.

2" wafer handling tweezer

Prod #

Description

Style

Length

Metal

Points
Width x Thickness

Unit

Price

Order / Quote

5048-SV

ESD Safe SV Carbon Wafer Tweezers, for 5.8cm (2") wafers

2WF

136.5mm

NM-SS

6mm (0.24") x 0.7mm (0.03")

each

$35.90

Qty:

5048-SV-1

ESD Safe SV Carbon Wafer Tweezers, Replacement Tips

2WF

6mm (0.24") x 0.7mm (0.03")

pair

13.40

Qty:

5048-CP

ESD Safe CP Carbon Wafer Tweezers, for 5.8cm (2") wafers

2WF

136.5mm

NM-SS

6mm (0.24") x 0.7mm (0.03")

each

35.90

Qty:

5048-CP-1

ESD Safe CP Carbon Wafer Tweezers, Replacement Tips

2WF

6mm (0.24") x 0.7mm (0.03")

pair

13.40

Qty:

Points
Width x Thickness

Unit

Price

Order / Quote

5049-SV

ESD Safe SV Carbon Wafer Tweezers, for 5.8 - 10.2cm (2 - 4") wafers

4WF

136.5mm

NM-SS

12mm (0.47") x 0.7 (0.03")

each

$35.90

Qty:

5049-SV-1

ESD Safe SV Carbon Wafer Tweezers, Replacement Tips

4WF

12mm (0.47") x 0.7 (0.03")

pair

13.40

Qty:

5049-CP

ESD Safe CP Carbon Wafer Tweezers, for 5.8 - 10.2cm (2 - 4") wafers

4WF

136.5mm

NM-SS

12mm (0.47") x 0.7 (0.03")

each

35.90

Qty:

5049-CP-1

ESD Safe CP Carbon Wafer Tweezers, Replacement Tips

4WF

12mm (0.47") x 0.7 (0.03")

pair

13.40

Qty:

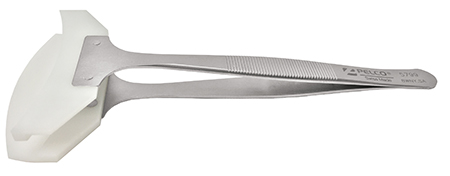

PELCO^® ESD Safe PTFE Wafer Handling Tweezers

With patented ESD safe PTFE replaceable tips and EZ lever handle

SV - Conductive, synthetic carbon fiber reinforced PVDF (polyvinylidene fluoride) tips with non-magnetic steel grips. Sturdy but soft and non-scratching. Cleanroom compatible, outstanding resistance to mineral and organic acids, solvents and halogens. Light-weight, strong material.

Sturdy but non-scratching. Outstanding chemical resistance.

EZ lever for easy closing and opening of tweezer. Not a locking mechanism.
