PELCO® Vacuum Lab Vise
Ideal for sample preparation
Robust and multifunctional lab vise with a large and stable vacuum base. The multidirectional vise head can be
positioned to enable optimum working. Ideal for repair work, sample preparation or working on small parts. The vise
head of the PELCO® vacuum lab vise rotates a full 360° and can swivel 45°
in any direction. It can swivel to 90° in one direction to quickly change from horizontal to vertical work.
Maximum opening is 70mm (2-3/4") with jaws 75mm (3"). The jaws are made of hardened steel and are supplied
with patterned semi-hard rubber sleeves which fit over the jaws to work on softer materials. The rubber vacuum base
grips on most nonporous smooth surfaces.
Color may vary.
Overall dimensions are: 160 x 160 x 160mm (6.3 x 6.3 x 6.3").
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 54730
| PELCO® Vacuum Base Lab Vise
| each
| $45.00
|
|
|
 |
Vacuum Base PanaVise
Versatile and sturdy laboratory bench vise with vacuum base. Vise head can be positioned at virtually any
angle to facilitate easy working. Ideal for sample preparation or working on small parts. Base rotates 360°
horizontal and 90° vertical, vise head additionally rotates 360°. Maximum opening is 57mm (2-1/4")
with jaws 57mm (2-1/4") wide. Smooth nylon jaws. The rubber vacuum base grips on most nonporous
smooth surface.
Overall dimensions are 159 x 133 x 162mm (6-1/4 x 5-1/4 x 6-3/8").
 Steel Jaws available for firmer grip.
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 54722
| Vacuum Base PanaVise
| each
| $80.00
|
|
| 54722-10
| Steel Jaws, 57mm (2.25"), PanaVise
| pkg/2
| 12.00
|
|
|
 |
Vacuum Base Precision Vise
Lightweight, portable and versatile vacuum base workstation for light-duty sample preparation, field repairs,
electronics assembly and assembly applications. Can be attached firmly to any flat, smooth non-porous surface.
The grooved plastic sturdy jaws open to 73mm (2-7/8") and allow for delicate work with the fine/coarse adjustment
knob. The jaws are 25mm ( 1") wide . The holder arm can tilt 140, the jaws can rotate a full 360° and swivel
210° for unparalleled flexibility.
Overall dimensions are 127 x 152 x 178mm (5 x 6 x 7").
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 54711
| Vacuum Base Precision Vise
| each
| $34.99
|
|
|
 |
Fixed Base Precision Vise
The fixed base vise is a versatile tool that offers tilt, rotate and turn whilst holding your work to virtually any
position you want it. Can be used for sample preparation, repairs, electronics assembly and assembly applications.
It is also a great complement for rotary type hand tools. The grooved plastic sturdy jaws open to 73mm (2-7/8")
and allow for delicate work with the fine/coarse adjustment knob. The jaws are 25mm ( 1") wide. Rotates 360°
at the base, the jaws can turn a full 360° and swivel 210°. The base can be mounted an most surfaces.
Overall dimensions are 108 x 152 x 178mm ( 4-1/4 x 6" x 7").
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 54715
| Fixed Base Precision Vise
| each
| $29.99
|
|
|
Third Hand Work Holders
|
#54435
|
#54436
|
|
|

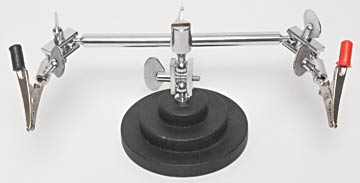

Third hand work holders are ideal for holding small samples, parts or assemblies to work on or to examine under a
stereo microscope. They have a heavy iron base for stability. The single arm, 3rd hand, work holder has a sturdy
inverse (self closing) tweezers to hold samples. The double arm, 3rd hand, work holders have two flexible arms
(crocodile clips) which may be placed in any direction.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 54435
| Third Hand Work Holder, Single Arm
| each
| $23.00
|
|
| 54436
| Third Hand Work Holder, Double Arm
| each
| 31.00
|
|
|
