Tools Overview
Micro-Tools / Minitool™ Overview

cross reference icon   NEW Minitool™ to Micro-Tool Cross Reference Table

Micro-Tool Sets with Hardened Tool Steel Tips

technician set mini tool
Technician Micro-Tool Set		 Precision Cutting Set
Precision Cutting Set		 tinitools minitools
Tinitool Set
heavy duty tools
NEW Heavy Duty Micro-Tool Set		 needle probe set with interchangeable tips
NEW Needle Probe Set with Interchangeable Tips




technician microtools mini tool technician set mini tool

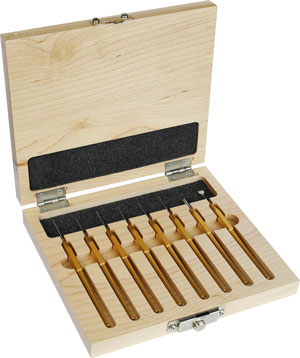

Technician Micro-Tool Set

formerly from the Minitool™ line of precision tools

This set contains eight tool tips with integrated handles that are light-weight, non-rolling and well balanced. The overall tool length is approximately 127mm (5"). Tip size is 0.89mm (0.030") and the material is oil-hardened tool steel, nickel-plated.

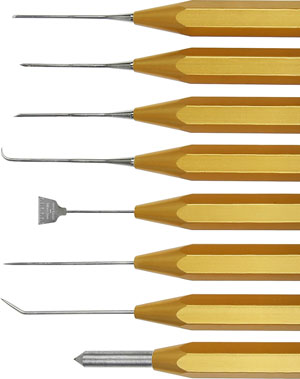

The entire set contains, from top to bottom at left:

Micro-Graver, Oval; Micro-Chisel; Micro-Knife, 20°; Micro-Probe, 90°; Micro Measuring Scale; Micro-Probe, Straight; Micro-Probe 30°; Micro Diamond Scribe.
Made in USA

Prod # Description Unit Price Order / Quote
54440 Technician Set, complete with 8 Tools and Storage Case set $290.40
Qty:
54440-1 NEW Micro Measuring Scale each 28.00
Qty:
54440-2 NEW Micro Diamond Scribe each 28.00
Qty:
54440-3 NEW Micro-Graver, Oval each 28.00
Qty:
54440-4 NEW Micro-Knife, 20° each 28.00
Qty:
54440-5 NEW Micro-Chisel each 28.00
Qty:
54440-6 NEW Straight Micro-Probe, 90° each 28.00
Qty:
54440-7 NEW Straight Micro-Probe, 30° each 28.00
Qty:
54440-8 NEW Micro-Probe Straight each 28.00
Qty:




miniature tools Precision Cutting Set

Precision Cutting Set

formerly from the Minitool™ line of precision tools

5-piece set with the following specifications. Tip material is hardened steel. The tip size is 1.6mm by 12.7mm long (0.063 x 0.5"). The overall length of the tool is about 124mm (4.88").

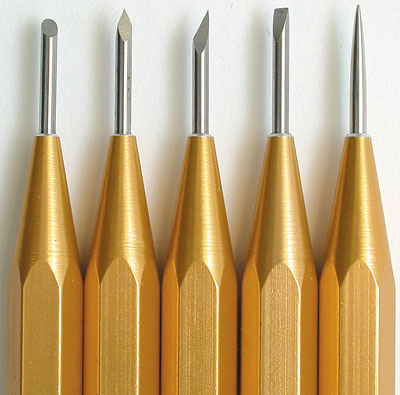

Set contains, from top to bottom at left: Scriber; Chisel; Knife; Triangular Scraper; Oval Graver.

An excellent tool for sharpening microtools is the Tweezer Repair Kit.
Made in USA

Prod # Description Unit Price Order / Quote
54444 Precision Cutting Set, complete with 5 Tools and Plastic Case each $143.00
Qty:
54444-1 NEW Scriber each 13.00
Qty:
54444-2 NEW Chisel each 16.50
Qty:
54444-3 NEW Knife each 16.50
Qty:
54444-4 NEW Triangular Scraper each 16.50
Qty:
54444-5 NEW Oval Graver each 16.50
Qty:




tinitools minitools

Tinitool Set

nickel-plated hardened steel tips; formerly from the Minitool™ line of precision tools

The tip size is 0.8mm by 25mm long (0.03 x 1"). The overall length of the tool is about 140mm (5.5"). This set consists of three different tools: Straight Scriber; Sharp Triangular Scraper; Bent Probe.
Made in USA

Prod # Description Unit Price Order / Quote
54442 Tinitool Set, complete with 3 Tools listed below each $35.10
Qty:
54442-11 Straight Scriber with sharp tip each 14.10
Qty:
54442-12 Sharp Triangular Scraper each 16.20
Qty:
54442-13 Bent Probe with sharp tip each 16.20
Qty:




heavy duty tools

NEW Heavy Duty Micro-Tool Set

formerly from the Minitool™ line of precision tools

The Heavy Duty Micro-Tools are made from fine grain high speed steel and are designed for applications where extra strength is required but without sacrificing the precision of a true Micro-Tool. They are durable and strong Micro-Tools. The interchangeable tool tips are available in 1mm (0.040") tip diameter only and fit the #13662 Precision Vise Handle.

Set includes: Precision Vise Handle, Six Interchangeable Tips listed in the table below, and a Plastic Storage Case.
Tip # Micro-Tool Description 1mm (0.040") Tip Diameter
1 Micro-Needle, Long Micro-Needle, Long 13711
3 Micro-Chisel Micro-Chisel 13713
8 Micro-Knife, 20 degrees Micro-Knife, 20° 13718
9 Micro-Knife, 45 degrees Micro-Knife, 45° 13719
13 Micro-Engraver, oval Micro-Engraver, Oval 13717
15 Micro-Diamond Scribe, 60 deg Micro-Diamond Scribe, 60° 13715
Made in USA

Prod # Description Unit Price Order / Quote
13710 Heavy Duty Micro-Tool Set, complete with 6 Tools in Plastic Case each $322.50
Qty:
13662 Precision Vise Handle each 38.40
Qty:
13711 Micro-Needle, Long each 43.80
Qty:
13713 Micro-Chisel each 52.80
Qty:
13718 Micro-Knife, 20° each 57.80
Qty:
13719 Micro-Knife, 45° each 64.40
Qty:
13717 Micro-Engraver, Oval each 52.80
Qty:
13715 Micro-Diamond Scribe, 60° each 47.90
Qty:




NEW Needle Probe Set with Interchangeable Tips

formerly from the Minitool™ line of precision tools

 needle probe tips
Enlarged view of Probers with dimensions.
needle probe set with interchangeable tips

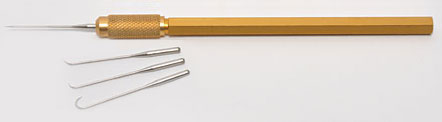

Probe Handle holding the Straight Prober
with three other tips, making up the complete set.

The Needle Probe Set includes one lightweight, precision handle and four interchangeable hardened steel tools for manipulating, scribing, spring assembly and probing.

The precision handle is finely balanced, non-rolling, gold color anodized with a split collet mounting and knurled lock nut. Length of the handle is 117.5mm (4.63"). The precision forged tools are made of hardened nickel-plated tool steel, 40mm (1.58") long with a 2mm (0.08") diameter shank reduced to a 0.7mm (0.03") diameter. All tools are tapered to a sharp tip. Shipped in clear plastic, tube container.
Made in USA

Prod # Description Unit Price Order / Quote
13650 Needle Probe Set, 4 Tools and 1 Handle each $28.00
Qty:
13651 Needle Probe Handle each 14.00
Qty:
13652 Straight Prober each 9.90
Qty:
13653 Bent Prober, 45° each 7.70
Qty:
13654 Hook, 90° each 17.20
Qty:
13655 Hook, 180° each 21.30
Qty:


cross reference icon   NEW Minitool™ to Micro-Tool Cross Reference Table
