Micro-Tools Overview

[ Stainless Steel Micro-Tool Sets ]

Micro-Tools with Interchangeable Stainless Steel Tips

All the Micro-Tools with stainless steel tips are forged from 304 grade stainless steel, followed by precision grinding, lapping and polishing steps to create the ultimate in precision manipulation tools. The stainless steel Micro-Tools withstand corrosion better than tool steels are more suitable for moist or wet environments encountered in pharmaceutical, medical, biological and biochemistry applications. The Micro-Tools with stainless steel tips (and No. 32 Micro Hook which is made of tool steel/gold plated) are mounted in stainless steel tool cones. Stainless steel tools are not as hard as the Micro-Tools made from hardened tool steels. All Micro-Tools fit both the standard aluminum and the stainless steel Micro-Tool handle (sold separately).

Micro-Tool Tip Micro-Tool Handle and Tip

      Shank Size
# Tip
style		 Micro-Tool Description 0.12mm
(0.005")		 0.25mm
(0.010")		 0.40mm
(0.016")		 0.50mm
(0.020")
1 Micro-Needle, Long Micro-Needle, Long, St. St. 13671 13671A 13671B -----
3 Micro-Chisel Micro-Chisel, St. St. 13673 13673A 13673B 13673C
4 Micro-Spade Micro-Spade, St. St. 13674 13674A 13674B -----
6 Micro-Mirror Micro-Mirror, forward, St. St. ----- ----- ----- 13676
7 Micro-Ruler, 10mm, 0.1mm div Micro-Ruler, 10mm, 0.1mm div., St. St. ----- ----- ----- 13677
8 Micro-Knife, 20 degrees Micro-Knife, 20°, St. St. 13678 ----- 13678B 13678C
9 Micro-Knife, 45 degrees Micro-Knife, 45°, St. St. 13679 13679A 13679B ------
10 Micro-Mirror, reverse, St St Micro-Mirror, reverse, St. St. ------ ------ ------ 13680
11 Micro-Prober, 90 degrees Micro-Prober, 90°, St. St. ----- 13681A 13681B -----
12 Micro-Prober, 45 degrees Micro-Prober, 45°, St. St. ----- 13682A 13682B -----
13 Micro-Engraver, oval Micro-Engraver, oval, St. St. 13683 13683A 13683B -----
15 Micro-Diamond Scribe, 60 deg Micro-Diamond Scribe, 60°, St. St. ----- ----- 13685 -----
16 Micro-Spatula, flexible, St St Micro-Spatula, flexible, St. St. ----- ----- 13686 -----
18 Micro-Hook, 90 degrees Micro-Hook, 90°, St. St. ----- 13688A 13688B -----
21 Micro-Hook, 180 degrees Micro-Scraper, triangular, St. St. 13684 13684A 13684B -----
23M Micro-Scale, 5mm, 0.1mm div., St. St. ----- ----- ----- 13687
23I Micro-Scale, 0.2", 0.005" div., St. St. ----- ----- ----- 13690
24 Micro-Needle, short Micro-Needle, short, St. St. 13689 13689A 13689B -----
25 Ultra Micro-Needle, tungsten, straight Ultra Micro-Needle, straight, 20µm radius tip, St. St. ----- ----- ----- 13691
26 Ultra Micro-Needle, 30°, 20µm radius tip, St. St. ----- ----- ----- 13692
27 Ultra Micro-Needle, 90°, 20µm radius tip, St. St. ----- ----- ----- 13693
32 Micro-Hook, 0.3mm ID, 1mm OD, Anti Snag Guard,
tip is tool steel/gold plated		 ----- ----- ----- 13696


Micro-Tool Individual Handle and Tips Ordering Information:
Made in USA

Prod # Description Unit Price Order / Quote
Available Handles and Storage Case:
13600 Micro-Tool Handle, 120mm (4.75") long, light weight, anodized aluminum each $21.40
Qty:
13675 Micro-Tool Handle, 120mm (4.75") long, Stainless Steel each 40.10
Qty:
13640 Micro-Tool hardwood storage case for 8 tips and handle each 58.80
Qty:
Available Tips:
13671 Micro-Needle, Long 0.12mm (0.005"), St. St. each 67.30
Qty:
13671A Micro-Needle, Long, 0.25mm (0.010"), St. St. each 53.00
Qty:
13671B Micro-Needle, Long, 0.40mm (0.016"), St. St. each 52.00
Qty:
13673 Micro-Chisel, 0.12mm (0.005"), St. St. each 77.20
Qty:
13673A Micro-Chisel, 0.25mm (0.010"), St. St. each 59.40
Qty:
13673B Micro-Chisel, 0.40mm (0.016"), St. St. each 47.90
Qty:
13673C Micro-Chisel, 0.50mm (0.020"), St. St. each 57.80
Qty:
13674 Micro-Spade, 0.12mm (0.005"), St. St. each 77.20
Qty:
13674A Micro-Spade, 0.25mm (0.010"), St. St. each 59.40
Qty:
13674B Micro-Spade, 0.40mm (0.016"), St. St. each 47.90
Qty:
13676 Micro-Mirror, forward, St. St., 0.50mm (0.020"), St. St. each 52.80
Qty:
13677 Micro-Ruler, 10mm with 0.1mm div, 0.50mm (0.020"), St. St. each 68.10
Qty:
13678 Micro-Knife, 20°, 0.12mm (0.005"), St. St. each 77.20
Qty:
13679 Micro-Knife, 45°, 0.12mm (0.005"), St. St. each 77.20
Qty:
13679A Micro-Knife, 45°, 0.25mm (0.010"), St. St. each 59.40
Qty:
13679B Micro-Knife, 45°, 0.40mm (0.016"), St. St. each 47.90
Qty:
13680 Micro-Mirror, reverse 0.50mm (0.020"), St. St. each 49.20
Qty:
13681A Micro-Prober, 90°, 0.25mm (0.010"), St. St. each 57.80
Qty:
13681B Micro-Prober, 90°, 0.40mm (0.016"), St. St. each 47.90
Qty:
13682A Micro-Prober, 45°, 0.25mm (0.010"), St. St. each 50.80
Qty:
13682B Micro-Prober, 45°, 0.40mm (0.016"), St. St. each 45.40
Qty:
13683 Micro-Engraver, oval, 0.12mm (0.005"), St. St. each 77.20
Qty:
13683A Micro-Engraver, oval, 0.25mm (0.010"), St. St. each 59.40
Qty:
13683B Micro-Engraver, oval, 0.40mm (0.016"), St. St. each 47.90
Qty:
13685 Micro-Diamond Scribe, 60°, 0.40mm (0.016"), St. St. each 57.50
Qty:
13686 Micro-Spatula, flexible, St. St. 0.40mm (0.016"), St. St. each 50.80
Qty:
13688A Micro-Hook, 90°, 0.25mm (0.010"), St. St. each 59.40
Qty:
13688B Micro-Hook, 90°, 0.40mm (0.016"), St. St. each 50.80
Qty:
13684 Micro-Scraper, triangular, 0.12mm (0.005"), St. St. each 77.20
Qty:
13684A Micro-Scraper, triangular, 0.25mm (0.010"), St. St. each 59.40
Qty:
13684B Micro-Scraper, triangular, 0.40mm (0.016"), St. St. each 47.90
Qty:
13687 Micro-Scale, 5mm with 0.1mm div., 050mm (0.020"), St. St. each 78.90
Qty:
13690 Micro-Scale, 0.2" with 0.005" div, 0.50mm (0.020"), St. St. each 78.90
Qty:
13689 Micro-Needle, short, 0.12mm (0.005"), St. St. each 75.60
Qty:
13689A Micro-Needle, short, 0.25mm (0.010"), St. St. each 47.90
Qty:
13689B Micro-Needle, short, 0.40mm (0.016"), St. St. each 36.80
Qty:
13691 Ultra Micro-Needle, straight, tip radius 20 µm, 0.50mm (0.020"), St. St. each 36.30
Qty:
13692 Ultra Micro-Needle, 30°, tip radius 20 µm, 0.50mm (0.020"), St. St. each 38.80
Qty:
13693 Ultra Micro-Needle, 90°, tip radius 20 µm, 0.50mm (0.020"), St. St. each 42.10
Qty:
13696 Micro-Hook, 0.3/1mm, Anti Snag Guard, 0.50mm (0.020"), tip is tool steel/gold plated each 56.10
Qty:




Micro-Tool Standard Sets with Stainless Steel Tips

The precision Micro-Tools with stainless steel tips (except for No. 32 Micro Hook which is made of tool steel/gold plated) are also available in a standard set, safely stored in a convenient hardwood case. The Micro-Tools in the standard set includes 8 tips in stainless steel tool holders with 0.50mm (0.020") shank size, stainless steel handle and hardwood case. There are also 3 special sets available with a 0.40mm (0.016") shank diameter for microscopy, cutting or probing applications:

Micro-Tool Stainless Steel Standard Set
Tip # Micro-Tool Description 0.50mm (0.020")
3 Micro-Chisel Micro-Chisel 13673C
6 Micro-Mirror Micro-Mirror, forward, Stainless Steel 13676
8 Micro-Knife, 20 degrees Micro-Knife, 20° 13678C
23M Micro-Scale, 5mm, 0.1mm div. 13687
71 Ultra Micro-Needle, straight Ultra Micro-Needle, straight, 20 µm radius tip 13691
72 Ultra Micro-Needle, straight Ultra Micro-Needle, 30°, 20 µm radius tip 13692
27 Ultra Micro-Needle, straight Ultra Micro-Needle, 90°, 20 µm radius tip 13693
32 Micro-Hook, 0.3 ID, 1mm long, anti snag guard
made of tool steel/gold plated		 13696

Micro-Tool Stainless Steel Standard Set (#13670)

Set includes: Handle with eight replaceable threaded tips and a hardwood storage case.

Note: individual tips may be ordered above.

Made in USA

Prod # Description Unit Price Order / Quote
13670 Micro-Tool Stainless Steel Standard Set, complete set $481.00
Qty:




Micro-Tool Stainless Steel Standard Set
Tip # Micro-Tool Description 0.40mm (0.016")
1 Micro-Needle, Long Micro-Needle, Long 13671B
3 Micro-Chisel Micro-Chisel 13673B
8 Micro-Knife, 20 degrees Micro-Knife, 20° 13678B
12 Micro-Prober, 45 degrees Micro-Prober, 45° 13682B
16 Micro-Spatula, flexible Micro-Spatula, flexible 13686
18 Micro-Hook, 90 degrees Micro-Hook, 90° 13688B
23M Micro-Scale Micro-Scale, 5mm, 0.1mm div. 13687
24 Micro-Needle, short Micro-Needle, short 13689B

Micro-Tool Stainless Steel Microscopist Set (#13670-10)

Set includes: Handle with eight replaceable threaded tips and a hardwood storage case.

Note: individual tips may be ordered above.

Made in USA

Prod # Description Unit Price Order / Quote
13670-10 Microscopist Stainless Steel Tool Set, complete set $463.70
Qty:




Micro-Tool Stainless Steel Standard Set
Tip # Micro-Tool Description 0.40mm (0.016")
1 Micro-Needle, Long Micro-Needle, Long 13671B
6 Micro-Mirror Micro-Mirror, forward 13676
7 Micro-Ruler, 10mm, 0.1mm div Micro-Ruler, 10mm, 0.1mm div. 13677
11 Micro-Prober, 90 degrees Micro-Prober, 90° 13681B
12 Micro-Prober, 45 degrees Micro-Prober, 45° 13682B
16 Micro-Spatula, flexible Micro-Spatula, flexible 13686
18 Micro-Hook, 90 degrees Micro-Hook, 90° 13688B
24 Micro-Needle, short Micro-Needle, short 13689B

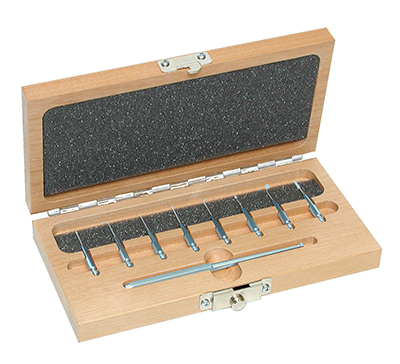

Micro-Needle Prober Set (#13670-20)

Set includes: Handle with eight replaceable threaded tips and a hardwood storage case.

Note: individual tips may be ordered above.

Made in USA

Prod # Description Unit Price Order / Quote
13670-20 Micro-Needle Stainless Steel Probe Tool Set, complete set $455.40
Qty:




Micro-Tool Stainless Steel Standard Set
Tip # Micro-Tool Description 0.40mm (0.016")
1 Micro-Needle, Long Micro-Needle, Long 13671B
3 Micro-Chisel Micro-Chisel 13673B
4 Micro-Spade Micro-Spade 13674B
6 Micro-Mirror Micro-Mirror, forward 13676
8 Micro-Knife, 20 degrees Micro-Knife, 20° 13678B
9 Micro-Knife, 45 degrees Micro-Knife, 45° 13679B
13 Micro-Engraver, oval Micro-Engraver, oval 13683B
21 Micro-Hook, 180 degrees Micro-Scraper, triangular 13684B

Micro-Cutting Tool Set (#13670-30)

Set includes: Handle with eight replaceable threaded tips and a hardwood storage case.

Note: individual tips may be ordered above.

Made in USA

Prod # Description Unit Price Order / Quote
13670-30 Micro-Cutting Stainless Steel Tool Set, complete set $445.20
Qty:
