Storage Overview
Plastic Boxes

PELCO® X-TREME Cases

X-treme Cases

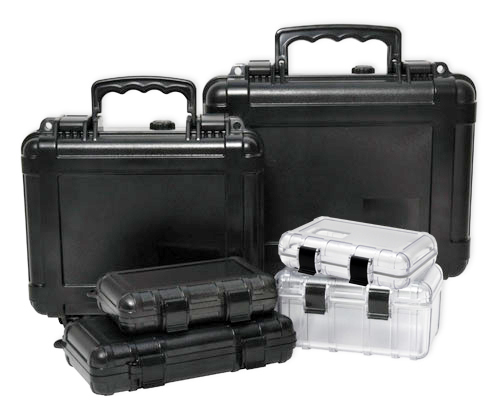

The PELCO® X-TREME Cases are very strong and rugged plastic boxes to protect the contents. These sturdy and robust boxes are watertight, dustproof and crushproof. They are ideal as shipping, transport and storage cases with locking clasps, strong hinge and a soft silicone O-ring seal between the base and the lid. Applications are to safely store small and or delicate equipment, samples, assemblies or parts. The larger cases have a fold down handle and a pressure equalization valve. The larger PELCO® X-TREME cases are very suitable as transport cases on field trips to store either equipment or samples.

Available in five rugged smaller sizes in clear polycarbonate plastic and four robust larger sizes made of black ABS plastic. For the four larger cases there is an optional foam insert available. The case number designation are the nearest rounded internal volume in cubic inches.

X-treme Cases
Heavy Duty Latches 		X-treme Cases
Hinge and Seal 		X-treme Cases
Very Strong 		X-treme Cases
Optional Foam Insert

Product# Case# Inside size " Outside size " Color Material Handle Valve Foam Insert
140-80C C8 3.93x2.39x0.94 4.40x3.05x1.40 Clear Polycarbonate - - -
140-81C C25 6.00 x 3.41 x 1.19 6.47 x 4.13 x 1.64 Clear Polycarbonate - - -
140-82C C50 6.00 x 3.41 x 2.77 6.47 x 4.13 x 3.26 Clear Polycarbonate - - -
140-83C C45 7.88 x 3.90 x 1.42 8.38 x 4.66 x 1.88 Clear Polycarbonate - - -
140-84C C110 7.88 x 3.90 x 3.53 8.38 x 4.66 x 3.99 Clear Polycarbonate - - -
140-87B B275 9.37 x 7.24 x 4.06 10.19 x 8.55 x 4.78 Black ABS x x Option
140-88B B400 9.37 x 7.24 x 6.08 10.19 x 8.55 x 6.80 Black ABS x x Option
140-89B B450 11.93 x 9.02 x 4.05 12.81 x 10.36 x 4.64 Black ABS x x Option
140-90B B650 11.93 x 9.02 x 5.98 12.81 x 10.36 x 6.64 Black ABS x x Option

Made in USA
Prod # Description Unit Price Order / Quote
140-80C PELCO® X-TREME Case C8, Polycarbonate, Clear each $11.00
Qty:
140-81C PELCO® X-TREME Case C25, Polycarbonate, Clear each 12.25
Qty:
140-82C PELCO® X-TREME Case C50, Polycarbonate, Clear each 17.00
Qty:
140-83C PELCO® X-TREME Case C45, Polycarbonate, Clear each 21.00
Qty:
140-84C PELCO® X-TREME Case C110, Polycarbonate, Clear each 24.00
Qty:
140-87B PELCO® X-TREME Case B275, ABS Plastic, Black, incl. handle and valve each 50.55
Qty:
140-88B PELCO® X-TREME Case B400, ABS Plastic, Black, incl. handle and valve each 65.00
Qty:
140-89B PELCO® X-TREME Case B450, ABS Plastic, Black, incl. handle and valve each 74.65
Qty:
140-90B PELCO® X-TREME Case B650, ABS Plastic, Black, incl. handle and valve each 69.20
Qty:
Optional foam inserts for the larger black cases
140-87B-INS Foam Insert for PELCO® X-TREME Case B275, Grey each 11.75
Qty:
140-88B-INS Foam Insert for PELCO® X-TREME Case B400, Grey each 15.50
Qty:
140-89B-INS Foam Insert for PELCO® X-TREME Case B450, Grey each 10.00
Qty:
140-90B-INS Foam Insert for PELCO® X-TREME Case B650, Grey each 21.00
Qty:
