PELCO® Rotators

pelco r2 rotator rotater
PELCO® R2 Rotator
with 1051 Head
NEW PELCO® R2 Rotator
with Heads with Clips		 pelco r1 single speed rotator rotater
PELCO® R1 Single Speed Rotator

Tissue Rotators for slow agitation of biological specimens in their appropriate fixation, dehydration, intermediate and embedding chemicals to produce more thorough and uniform infiltration and exchange of chemicals in the specimens.



PELCO® R2 Rotator with 1051 Head

low-speed mixer for EM specimen infiltration preparations (1 - 7.5 RPM),
design provides two angles 55° or 35°

pelco r2 rotator - rotater

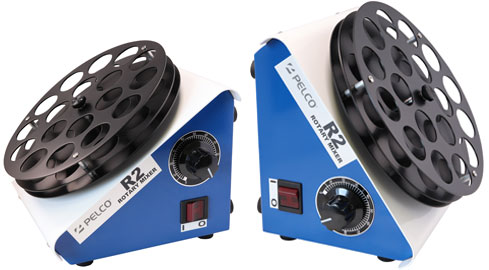

PELCO® R2 Rotator with 1051 heads shown in the 55° and 35° positions

The slow rotational speed of the PELCO® R2 lends itself to EM tissue processing techniques. Slow rotation is recommended for processing specimens and leads to more complete infiltration without air mixing, giving improved results for tissue preparations.

The PELCO® R2 has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the "bottom feet" and 55° from horizontal when placed on the "back feet".

A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO® R2 has been tested under heavy load conditions to assure reliability.

A black-anodized head (1051) with 18 holes for bottles or vials up to 30mm in diameter comes with the R2. Our #12706 Snap-Cap® Vials are used in this head. Optional head is available (1054).

Dimensions
Head: 19.7cm (7-3/4") O.D., 18 holes (32mm ø)
Body: 18.6cm (7-5/16") W, 16.5cm (6-1/2") H, 20.3cm (8") D

With 1051 Head Mounted the R2 Occupies the Following Dimensions:
19.7cm (7-3/4") W, 19.5cm (7-11/16") H, 20.3cm (8") D

Weight with 1051 Head: 2.4Kg (5.25 lbs.)

Power Requirements: Universal Voltage 100-240VAC, 45W, 50/60Hz

PELCO® Technical Notes, PELCO® R2 Rotary Mixer (229KB PDF)
Manufactured in USA

Prod # Description Unit Price Order / Quote
1050 PELCO® R2 Rotator with 1051 Head, 100-240VAC, 45W, 50/60Hz each $749.00
Qty:
1051 R2 Rotator Head, with 18 holes (32mm ø) each 116.90
Qty:
1050-115-1 Replacement Motor for PELCO® R2 Rotator each 101.60
Qty:

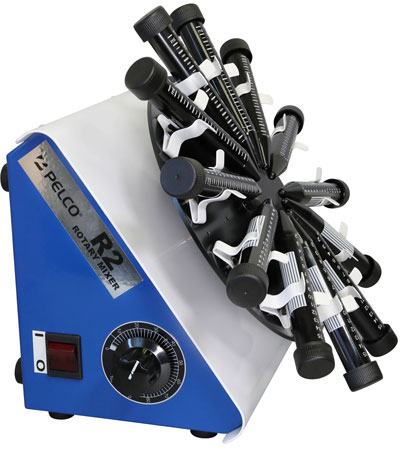

NEW PELCO® R2 Rotator
with Heads with Clips for Test Tubes

low-speed mixer for test tubes (1 - 7.5 RPM),
design provides two angles 55° or 35°

NEW R2 Rotator Head
with Clips for 50ml tubes
(#1050-2)		 NEW R2 Rotator Head
with Clips for 5, 10 and 15ml tubes

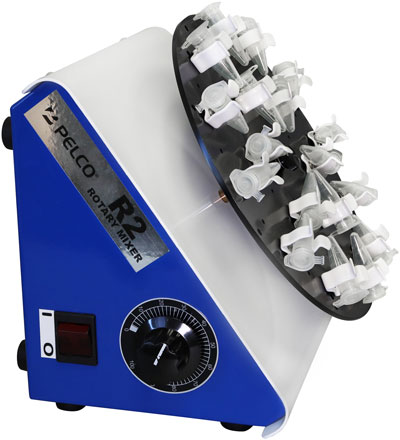

(#1050-3)		 NEW PELCO R2 Rotator Head
with Clips for 1.5 and 2.0ml tubes
(#1050-4)

The PELCO® R2 Rotator has rubber cushioned feet on the bottom as well as on the back so it may be placed on either of two angles, 35° from horizontal when placed on the "bottom feet" and 55° from horizontal when placed on the "back feet".

A high torque motor maintains constant speed at full load. Variable speed is easily set with a rotary control. Rotational speed is less than 1 to greater than 7.5 rpm. The PELCO® R2 has been tested under heavy load conditions to assure reliability.

Prod # Description Unit Price Order / Quote
1050-2 PELCO® R2 Rotator with Head for 50 ml. (28mm) Tubes with Tube Clips each $970.00
Qty:
1052-2 Rotator Head Only for 50 ml. (28mm) Tubes with Tube Clips each 300.00
Qty:
1050-3 PELCO® R2 Rotator with Head for 15 ml. (17mm) Tubes with Tube Clips each 970.00
Qty:
1052-1 Rotator Head Only for 15 ml. (17mm) Tubes with Tube Clips each 300.00
Qty:
1050-4 PELCO® R2 Rotator with Head for 1.5/2.0 ml. (10mm) Microcentrifuge Tubes each 970.00
Qty:
1052 Rotator Head Only for 1.5/2.0 ml. (10mm) Microcentrifuge Tubes each 300.00
Qty:




Optional, 1054 Rotator Head for the PELCO® R2 Rotator

Dimensions
Head: 19.7cm (7-3/4") O.D., 31 holes (16.3mm ø)

rotator head r2 rotator head with wheaton sample vials
1054 Rotator Head for the R2 1054 Rotator Head with #411 Specimen Vials loaded

#411 Clear Wheaton® Sample Vials with Rubber Lined Screw Cap
Solid top black phenolic caps with 14B white rubber liner are attached. The vials are manufactured from Wheaton 33® low extractable borosilicate glass (meets ASTM Type I Class A and USP Type I Standards) to protect against changes in pH and maintain purity of contents. They have uniform sidewall and bottom thicknesses, are lightweight and have excellent strength and clarity. Storage down to -40° C.

Prod # Description Unit Price Order / Quote
1054 PELCO® R2 Rotator Head, 31 holes (16.3mm ø) each $92.00
Qty:
411 Sample Vials, 4ml, 15mm Dia x 48mm H cs/144 123.35
Qty:

go to Specimen Vials




PELCO® R1 Single Speed Rotator

tissue infiltration for electron microscopy preparations

pelco r1 single speed rotator rotater

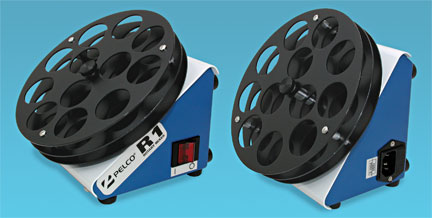

PELCO® R1 Single Speed Rotator shown in the 35° and 55° positions

This small, economical rotator is suitable for electron microscopy preparations. It has a slow speed of approximately 10RPM. It is effective for gentle and thorough infiltration of solvents and embedding plastics. The Rotator head has twelve holes which accommodate vials up to 30mm in diameter. Our #12706 Snap-Cap® Vials are used in this head. See additional head below for up to 16mm diameter vials.



Dimensions

Base: 10.2 x 15.6cm (4 x 6-1/8")
Rotor Head: (prod. no. 1058)15.9cm diameter x 2.7cm high (6-1/4 x 1-1/16"); 12 holes (32mm ø)
Height with Head Attached: 13.7cm (5-3/8")

rotator head - rotater
1056 Rotator Head for the R1

go to Specimen Vials
PELCO® Technical Notes, PELCO® R1 Rotary Mixer (229KB PDF)

Manufactured in USA

Prod # Description Unit Price Order / Quote
1055 PELCO® R1 Rotator with 1058 Head, 115VAC, 60Hz each $525.00
Qty:
1055-220 PELCO® R1 Rotator with 1058 Head, 220VAC, 50Hz each 525.00
Qty:
1058 R1 Rotator Head, 12 holes (32mm ø) each 103.55
Qty:
1056 R1 Rotator Head, 23 holes (16.3mm ø) each 97.20
Qty:
1055-115-1 Replacement Motor for R1 Rotator #1055, 115VAC each 165.50
Qty:
