Tweezers Overview
Plastic Tweezers and Pliers Material Properties
Plastic Tweezers and Pliers Overview
Carbon Fiber Tipped Tweezers

PELCO® ESD Safe SV, PVDF
PELCO® ESD Safe CF, Polyamide 66 Tweezers
Sharp Points and Flat Tips

These high performance precision, conductive, PELCO® SV ESD Safe, PVDF And Pelco® CF Polyamide tweezers are ideal for forensic, electronic and sample preparation applications where handling of scratch-sensitive material or samples is required. The soft touch surface avoids cutting or damaging hairs, fibers, paper, bullets and rounds. Compatible for clean room applications and suitable for chemical processing. Light weight, strong and sturdy material. Also ideal for magnetic applications, since the material will not be magnetized.

The tweezers are made of carbon fiber reinforced PVDF (polyvinylidene flouride) or CF (carbon fiber reinforced polyamide 66) and have the following features:

Typical applications:

  • Handling of scratch sensitive samples
  • Cleaning and etching processes
  • Handling of static and/or static-sensitive components
  • Handling of soft specimens
  • Handling of magnetic specimens


Sharp Points

carbon fiber tweezers

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5412 PELCO® SV ESD Safe, Tweezers sharp, 707 115mm carbon fiber reinforced PVDF 0.25 x 0.12mm 1+ $8.00
Qty:
5104 PELCO® CF ESD Safe, Tweezers sharp, 707 115mm carbon fiber reinforced Polyamide 66 0.25 x 0.12mm 1+ 3.30
Qty:




angled carbon fiber tweezers

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5415 PELCO® SV ESD Safe, Tweezers sharp, 708 115mm carbon fiber reinforced PVDF 0.25 x 0.12mm 1+ $8.00
Qty:
5107 PELCO® CF ESD Safe, Tweezers sharp, 708 115mm carbon fiber reinforced Polyamide 66 0.25 x 0.12mm 1+ 3.30
Qty:




sharp carbon fiber tweezers

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5411 PELCO® SV ESD Safe, Tweezers sharp, 705 115mm carbon fiber reinforced PVDF 0.25 x 0.12mm 1+ $8.00
Qty:
5103 PELCO® CF ESD Safe, Tweezers sharp, 705 115mm carbon fiber reinforced Polyamide 66 0.25 x 0.12mm 1+ 3.30
Qty:




PELCO SV carbon Fiber Tweezers style 707A

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5417 PELCO® SV ESD Safe, Tweezers sharp, curved, 707A 115mm carbon fiber reinforced PVDF 0.17 x 0.2mm 1+ $8.00
Qty:
5108 PELCO® CF ESD Safe, Tweezers sharp, curved, 707A 115mm carbon fiber reinforced Polyamide 66 0.17 x 0.2mm 1+ 3.30
Qty:




Flat Tips

flat carbon fiber tweezers

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5413 PELCO® SV ESD Safe, Tweezers flat, 709 115mm carbon fiber reinforced PVDF 3.50 x 0.12mm 1+ $7.30
Qty:
5105 PELCO® CF ESD Safe, Tweezers flat, 709 115mm carbon fiber reinforced Polyamide 66 3.50 x 0.12mm 1+ 3.25
Qty:




flat carbon fiber tweezers

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5414 PELCO® SV ESD Safe, Tweezers flat, 710 115mm carbon fiber reinforced PVDF 8.0 x 0.12mm 1+ $7.30
Qty:
5106 PELCO® CF ESD Safe, Tweezers flat, 710 115mm carbon fiber reinforced Polyamide 66 8.0 x 0.12mm 1+ 3.30
Qty:




flat carbon fiber tweezers

Prod # Description Style Length Material Points
Width x Thickness 		Qty Price Order / Quote
5410 PELCO® SV ESD Safe, Tweezers flat, 702A 115mm carbon fiber reinforced PVDF 2.0 x 0.12mm 1+ $7.30
Qty:
5102 PELCO® CF ESD Safe, Tweezers flat, 702A 115mm carbon fiber reinforced Polyamide 66 2.0 x 0.12mm 1+ 3.30
Qty:




Sets

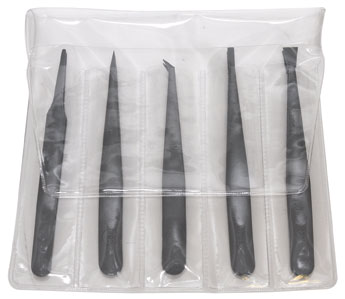

Set of 5 PELCO SV Carbon fiber Reinforced Tweezers

Prod # Description Unit Price Order / Quote
5418-5 Set of 5 PELCO® SV ESD Safe, PVDF Tweezers in clear plastic pouch. Contains #5410, #5412, #5415, #5413 and #5414 each $38.50
Qty:
5109 Set of 5 PELCO® CF ESD Safe, Polyamide 66 Tweezers in clear plastic pouch. Contains #5102, #5104, #5107, #5105 and #5106 each 16.00
Qty:

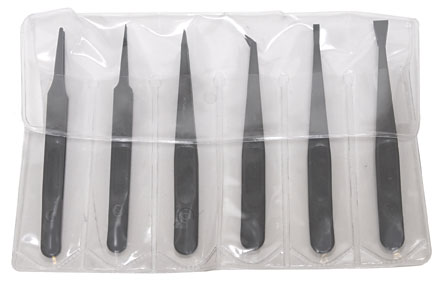

set of 6 PELCO SV Carbon Fiber Reinforced Tweezers

Prod # Description Unit Price Order / Quote
5419-6 Set of 6 PELCO® SV ESD Safe, PVDF Tweezers in clear plastic pouch. Contains #5410, #5411, #5412, #5415, #5413 and #5414 each $50.60
Qty:
5110 Set of 6 PELCO® CF ESD Safe, Polyamide 66 Tweezers in clear plastic pouch. Contains #5102, #5103, #5104, #5107, #5105 and #5106 each 23.10
Qty:
