colloidal silica suspension

Colloidal Silica Suspension

A non-crystallizing silica (SiO2) suspension stabilized at an alkaline pH value of 9.8. The combination of very fine abrasive particles in a chemically aggressive liquid provides a Chemical-Mechanical Polishing (CMP) action. Ideal for final polishing to obtain a deformation-free surface. Obtain excellent results on IC-cross sections, ceramics, minerals, hard steels and ductile non-ferrous materials. Recommended as final polishing for EBSD samples.

SDS (140KB PDF)

Supplied in 32 oz bottle (950ml) with a 40% particle concentration in water, pH range 9.7-9.9.

Prod # Description Unit Price Order / Quote
815-110 Colloidal Silica Suspension, 0.06µm, 32 oz. (950ml) each $56.90
Qty:



colloidal silica suspension

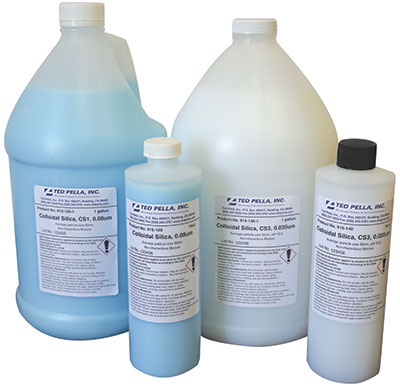

PELCO® Colloidal Silica Suspensions

PELCO® Colloidal Silica Suspensions are ideal for the final polishing of materials for which a high quality, visibly scratch free surface is required. Three new formulations are provided, each with a specific average particle size and with increased alkalinity for an enhanced Chemical-Mechanical Polishing (CMP) effect.

PELCO® Colloidal Silica CS1 with an average particle size of 80nm and pH value of 9.9 is ideal for many metallographic final polishing applications.
PELCO® Colloidal Silica CS2 with an average particle size of 50nm and pH value of 9.9 formulated for fine polishing of semiconductor wafers and devices.
PELCO® Colloidal Silica CS3 with an average particle size of 35nm and pH value of 10.5 formulated specifically for fine polishing of silicon wafers and devices.

SDS (129KB PDF)

Prod # Description Unit Price Order / Quote
815-120 PELCO® Colloidal Silica Suspension CS1, 0.08µm, 16 oz. (473ml) each $38.50
Qty:
815-130 PELCO® Colloidal Silica Suspension CS2, 0.05µm, 16 oz. (473ml) each 30.80
Qty:
815-140 PELCO® Colloidal Silica Suspension CS3, 0.035µm, 16 oz. (473ml) each 33.00
Qty:
815-120-1 PELCO® Colloidal Silica Suspension CS1, 0.08µm, 1 gallon each 121.00
Qty:
815-130-1 PELCO® Colloidal Silica Suspension CS2, 0.05µm, 1 gallon each 137.50
Qty:
815-140-1 PELCO® Colloidal Silica Suspension CS3, 0.035µm, 1 gallon each 145.20
Qty:
