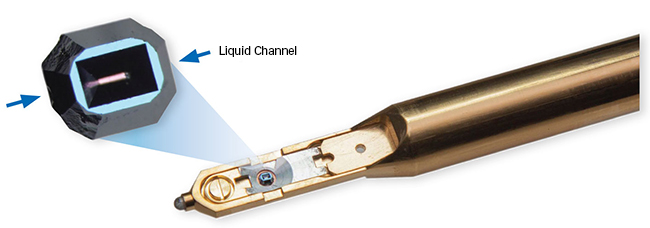

The K-kit is a single-use sealable carrier with a microchannel inside, allowing for liquid analysis by electron microscopy. It is made by ultraprecise MEMS micromachining from silicon, with a silicon nitride window. It fits inside a standard 3mm TEM grid and thus into all commonly used TEM holders.

The K-kit advantage:

  • Affordable and easy-to-use, with no installation hassle
  • Image nano-objects, agglomerates, and aggregates (NOAA) in native state, no drying artifacts
  • Fits all common TEM holders, and SEM compatible
  • Resistant to chemical solvents
  • Acts as a micro reaction chamber for chemical and biological research
  • Temperature range of -196°C to 120°C for cryo TEM as well as bake out and heating
  • Can preserve the sample for future re-examination

With K-kit, you no longer need to invest tens to hundreds of thousands to see your liquid or wet samples in their native state!
Fill, Seal and Observe
K-kit step by step use
The K-kit is easy. Just touch the carrier to a drop
of your liquid sample to have it drawn inside
by capillary force.		 Seal ends with vacuum-proof Torr Seal® glue. Mount inside a standard grid for TEM.

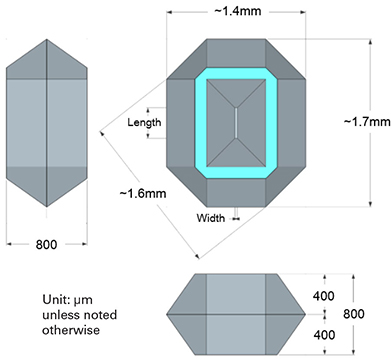

Specifications

Window:

Si3N4 thickness: 30nm & 100nm
Width: 24µm
Length: 300µm

Channel:

Width: 120µm
Channel heights available: 0.2, 0.5, 1, 2, 5µm

Materials:

Substrate: Si wafer
Channel walls: Si3N4
Wafer bonding: SiO2

 K-kit Specifications




Nanomaterials Characterization Using the K-kit

K-kit Difference - Conventional Preparation K-kit Difference

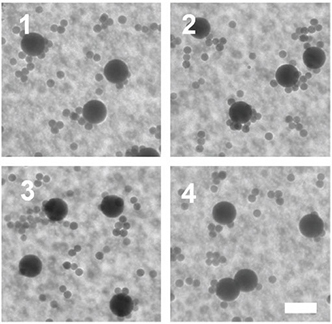

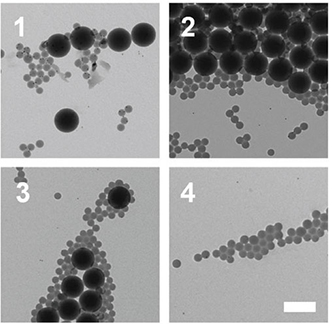

See the difference: NIST-traceable polystyrene beads in water are aggregated upon drying by conventional TEM preparation (left) but maintain their native state in K-kit carrier (right). Scale bar, 500nm.

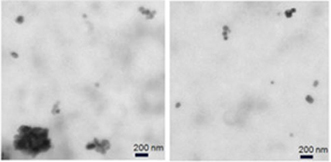

K-kit Difference Milk K-kit Difference - Sunscreen

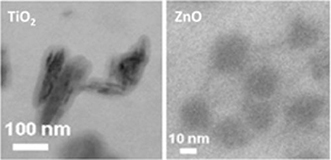

CaCO3 nanoparticle additives in milk TiO2 and ZnO in sunscreen lotion

K-kit Difference Polishing Slurry K-kit Difference - Blood

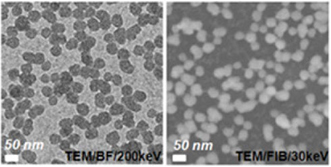

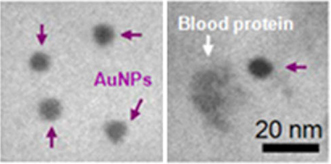

SiO2 nanoparticles in polishing slurry Gold nanoparticles (AuNPs) in blood



Tools for Easy Loading and Mounting
K-kit container for loading and mounting

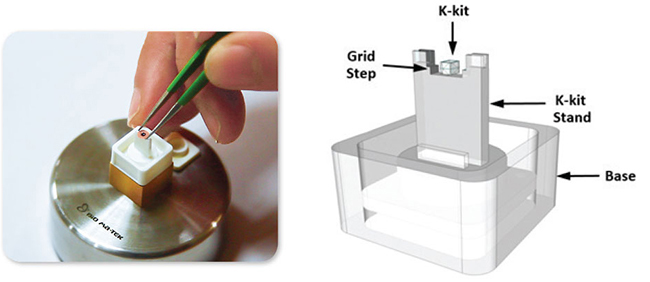

The K-kit container is designed to facilitate K-kit loading and mounting.


We offer the K-kit as a complete toolbox, set in a deluxe carrying case. The tools, together with the carrier container, are designed to make loading and mounting of the K-kit carrier easy even for an inexperienced user. The toolbox also includes a starter supply of the consumables, everything to get you started doing liquid TEM.

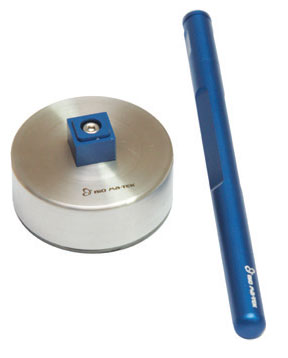

K-kit holder and loading stand k-kit stand and needle pen

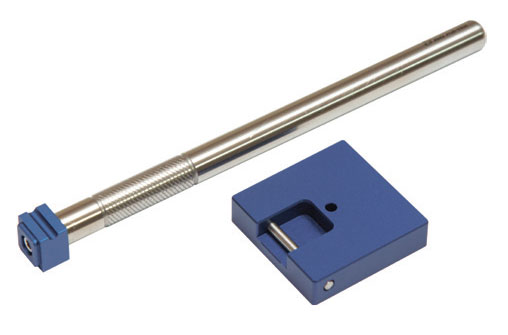

K-kit Holder & Loading Stand Set
(120-15)		 Gluing Stand & Needle Pen Set
(120-19)



K-kit toolbox k-kit packaging

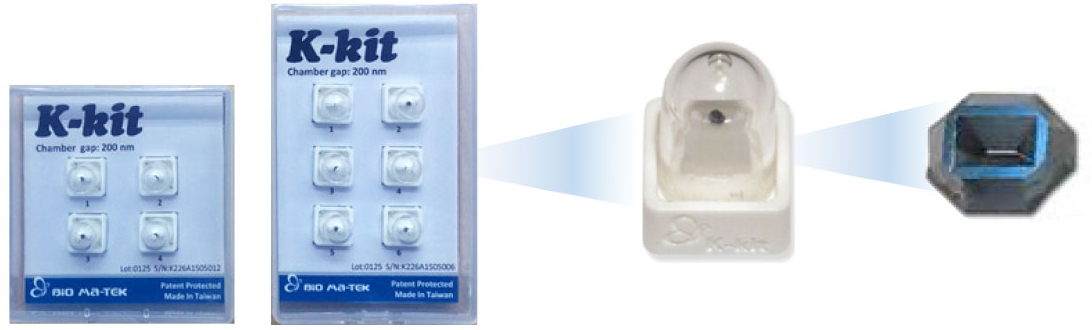

(120-1) (120-4) (120-6) K-kit in its sealed container



Ordering Information

Prod # Description Unit Price Order / Quote
120-1 K-kit Complete Toolbox Set, includes a pack of 4 carriers, 0.2µm each $945.00
Qty:
Included in the Box: 1 Sample Loading Stand, 1 Holder, 1 Needle Pen, 1 Gluing Stand, 1 pack of 6 glass slides, 1 Accessory Box (contains sealing and mounting glues, stirring sticks, and miscellaneous spare parts for the tools), and 1 4-pack of single-use 0.2µm K-kit carriers.
