Grids Overview

PELCO^® Grids

for transmission electron microscopy
packed in anti-static vials

The PELCO^® Grids are usually somewhat thicker than similar TEM grids made by electro plating processes which makes them stiffer and easier to handle without the danger of bending, but still maintain a good definition of the grid bars. The wide rims (350-400µm) on the PELCO^® Grids provide additional stiffness and minimize the potential of interfering with the sample when picking up and handling the grids with tweezers. The popular PELCO^® Grids were introduced 45 years ago and have found a large user base in all disciplines of TEM. The grids have a shiny (smooth) finish on one side and matte (rough) or dull finish on the other side. Grids have all been inspected before packaging. A comprehensive selection of different grid styles is offered with the standard outside diameter of 3.05mm. Styles available are Square Mesh, Hexagonal (honeycomb) Mesh, Double Folding Grids, Slotted Mesh, Tabbed Grids, Slotted or Round Hole. Available materials are Cu, Ni and Au.

For Mo, Ti, Al and Stainless Steel TEM Grids, please go to the PELCO® Special Metal TEM Grids.

Packaging: Standard Cu grids 100grids/vial, except specials which are listed accordingly. Gold is packaged 25grids/vial.

PELCO® Grid Size Specifications

[ 50 Mesh ] [ 75 Mesh ] [ 100 Mesh ] [ 150 Mesh ] [ 200 Mesh ]
[ 300 Mesh ] [ 400 Mesh ] [ 500 Mesh ] [ Hexagonal ] [ Slot ] [ Hole ]

PELCO® 50 Mesh Grids Prod # Description Unit Qty Price Order / Quote 50: Pitch 508µm; Hole Width 425µm; Bar Width 83µm; Transmission 70% 1GC50 PELCO® Center-Marked Grids, 50 mesh, 3.0mm O.D., Copper 100/vial 1-9 $26.00 Qty: 10+ 22.80 1GN50 PELCO® Center-Marked Grids, 50 mesh, 3.0mm O.D., Nickel 100/vial 1-9 29.00 Qty: 10+ 26.10 1GG50 PELCO® Center-Marked Grids, 50 mesh, 3.0mm O.D., Gold 25/vial 1-9 76.00 Qty: 10+ 68.40

Prod # Description Unit Qty Price Order / Quote 50: Pitch 508µm; Hole Width 425µm; Bar Width 83µm; Transmission 70% Tabbed 3HGC50 PELCO® Tabbed Center-Marked Grids, 50 mesh, 3.0mm O.D., Copper 100/vial 1-9 $34.00 Qty: 10+ 32.49

Prod # Description Unit Qty Price Order / Quote Slotted 1GC50/200 PELCO® Slotted Mesh, 50/200, Center-Marked Grids, 3.0mm O.D., Copper 100/vial 1-9 $42.00 Qty: 10+ 37.80

Prod # Description Unit Qty Price Order / Quote Folding 4GC50/50 PELCO® Folding Grids, 50-50 mesh, Center-Marked One Side, Copper 100/vial 1-9 $49.00 Qty: 10+ 45.73

PELCO® 75 Mesh Grids Prod # Description Unit Qty Price Order / Quote 75: Pitch 339µm; Hole Width 284µm; Bar Width 55µm; Transmission 70% 1GC75 PELCO® Center-Marked Grids, 75 mesh, 3.0mm O.D., Copper 100/vial 1-9 $28.00 Qty: 10+ 25.20 1GN75 PELCO® Center-Marked Grids, 75 mesh, 3.0mm O.D., Nickel 100/vial 1-9 29.00 Qty: 10+ 26.10 1GG75 PELCO® Center-Marked Grids, 75 mesh, 3.0mm O.D., Gold 25/vial 1-9 52.00 Qty: 10+ 46.80

Prod # Description Unit Qty Price Order / Quote 75: Pitch 339µm; Hole Width 284µm; Bar Width 55µm; Transmission 70% Tabbed 3HGC75 PELCO® Tabbed Center-Marked Grids, 75 mesh, 3.0mm O.D., Copper 100/vial 1-9 $35.00 Qty: 10+ 32.81 3HGN75 PELCO® Tabbed Center-Marked Grids, 75 mesh, 3.0mm O.D., Nickel 100/vial 1-9 36.00 Qty: 10+ 31.07

PELCO® 100 Mesh Grids Prod # Description Unit Qty Price Order / Quote 100: Pitch 254µm; Hole Width 204µm; Bar Width 50µm; Transmission 65% 1GC100 PELCO® Center-Marked Grids, 100 mesh, 3.0mm O.D., Copper 100/vial 1-9 $27.00 Qty: 10+ 23.67 1GN100 PELCO® Center-Marked Grids, 100 mesh, 3.0mm O.D., Nickel 100/vial 1-9 35.00 Qty: 10+ 31.50 1GG100 PELCO® Center-Marked Grids, 100 mesh, 3.0mm O.D., Gold 25/vial 1+ 43.00 Qty:

Prod # Description Unit Qty Price Order / Quote 100: Pitch 254µm; Hole Width 204µm; Bar Width 50µm; Transmission 65% Tabbed 3HGC100 PELCO® Tabbed Center-Marked Grids, 100 mesh, 3.0mm O.D., Copper 100/vial 1-9 $34.25 Qty: 10+ 31.71 3HGN100 PELCO® Tabbed Center-Marked Grids, 100 mesh, 3.0mm O.D., Nickel 100/vial 1-9 37.00 Qty: 10+ 35.55

Prod # Description Unit Qty Price Order / Quote Slotted 1GC100/400 PELCO® Slotted Mesh, 100/400, Center-Marked Grids, 3.0mm O.D., Copper 100/vial 1-9 $32.00 Qty: 10+ 28.66 1GN100/400 PELCO® Slotted Mesh, 100/400, Center-Marked Grids, 3.0mm O.D., Nickel 100/vial 1-9 33.00 Qty: 10+ 29.70

Prod # Description Unit Qty Price Order / Quote Folding 4GC100/100 PELCO® Folding Grids, 100-100 mesh, Center-Marked One Side, Copper 100/vial 1-9 $48.00 Qty: 10+ 44.81 4GN100/100 PELCO® Folding Grids, 100-100 mesh, Center-Marked One Side, Nickel 100/vial 1+ 52.00 Qty: 4GC100/300 PELCO® Folding Grids, 100-300 mesh, Center-Marked One Side, Copper 100/vial 1-9 42.00 Qty: 10+ 40.89

PELCO® 150 Mesh Grids Prod # Description Unit Qty Price Order / Quote 150: Pitch 169µm; Hole Width 125µm; Bar Width 44µm; Transmission 60% 1GC150 PELCO® Center-Marked Grids, 150 mesh, 3.0mm O.D., Copper 100/vial 1-9 $26.00 Qty: 10+ 23.02 1GN150 PELCO® Center-Marked Grids, 150 mesh, 3.0mm O.D., Nickel 100/vial 1-9 34.00 Qty: 10+ 30.60 1GG150 PELCO® Center-Marked Grids, 150 mesh, 3.0mm O.D., Gold, 25/vial 25/vial 1-9 41.00 Qty: 10+ 36.90 Tabbed 3HGC150 PELCO® Tabbed Center-Marked Grids, 150 mesh, 3.0mm O.D., Copper 100/vial 1-9 34.00 Qty: 10+ 31.85 3HGN150 PELCO® Tabbed Center-Marked Grids, 150 mesh, 3.0mm O.D., Nickel 100/vial 1-9 41.00 Qty: 10+ 38.56

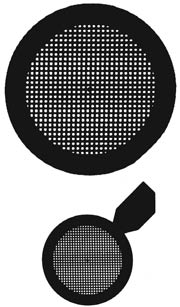

PELCO® 200 Mesh Grids Prod # Description Unit Qty Price Order / Quote 200: Pitch 127µm; Hole Width 90µm; Bar Width 37µm; Transmission 50% 1GC200 PELCO® Center-Marked Grids, 200 mesh, 3.0mm O.D., Copper 100/vial 1-9 $30.50 Qty: 10+ 27.40 1GN200 PELCO®® Center-Marked Grids, 200 mesh, 3.0mm O.D., Nickel 100/vial 1-9 32.00 Qty: 10+ 28.80 1GG200 PELCO® Center-Marked Grids, 200 mesh, 3.0mm O.D., Gold 25/vial 1-9 43.00 Qty: 10+ 38.70 Tabbed 3HGC200 PELCO® Tabbed Center-Marked Grids, 200 mesh, 3.0mm O.D., Copper 100/vial 1-9 34.00 Qty: 10+ 31.57 3HGN200 PELCO® Tabbed Center-Marked Grids, 200 mesh, 3.0mm O.D., Nickel 100/vial 1-9 38.00 Qty: 10+ 35.50 Notchrim 1GC200NV PELCO® Notchrim Grids, 200 mesh, 3.0mm O.D., Copper 100/vial 1-9 27.00 Qty: 10+ 25.36 Extra Open Area: Pitch 127µm; Hole Width 106µm; Bar Width 21 µm; Transmission 69% 4406 PELCO® Extra Open Area Grids, 200 mesh, 3.0mm O.D., Copper 100/vial 1-9 25.00 Qty: 10+ 23.37

PELCO® 300 Mesh Grids Prod # Description Unit Qty Price Order / Quote 300: Pitch 85µm; Hole Width 54µm; Bar Width 31µm; Transmission 40% 1GC300 PELCO® Center-Marked Grids, 300 mesh, 3.0mm O.D., Copper 100/vial 1-9 $29.00 Qty: 10+ 25.48 1GN300 PELCO® Center-Marked Grids, 300 mesh, 3.0mm O.D., Nickel 100/vial 1-9 32.00 Qty: 10+ 28.80 1GG300 PELCO® Center-Marked Grids, 300 mesh, 3.0mm O.D., Gold 25/vial 1-9 43.00 Qty: 10+ 38.70 Tabbed 3HGC300 PELCO® Tabbed Center-Marked Grids, 300 mesh, 3.0mm O.D., Copper 100/vial 1-9 34.00 Qty: 10+ 31.48 3HGN300 PELCO® Tabbed Center-Marked Grids, 300 mesh, 3.0mm O.D., Nickel 100/vial 1-9 38.00 Qty: 10+ 36.24

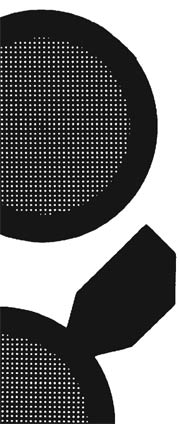

PELCO® 400 Mesh Grids Prod # Description Unit Qty Price Order / Quote 400: Pitch 64µm; Hole Width 38µm; Bar Width 26µm; Transmission 35% 1GC400 PELCO® Center-Marked Grids, 400 mesh, 3.0mm O.D., Copper 100/vial 1-9 $32.00 Qty: 10+ 28.58 1GN400 PELCO® Center-Marked Grids, 400 mesh, 3.0mm O.D., Nickel 100/vial 1-9 33.00 Qty: 10+ 29.70 1GG400 PELCO® Center-Marked Grids, 400 mesh, 3.0mm O.D., Gold 25/vial 1-9 52.00 Qty: 10+ 46.80 Tabbed 3HGC400 PELCO® Tabbed Center-Marked Grids, 400 mesh, 3.0mm O.D., Copper 100/vial 1-9 37.50 Qty: 10+ 35.63 Extra Open Area: Pitch 64µm; Hole Width 45µm; Bar Width 19 µm; Transmission 48% 4408 PELCO® Extra Open Area, Center-Marked Grids, 400 mesh, 3.0mm O.D., Copper 100/vial 1-9 27.00 Qty: 10+ 25.45

Extra Open Area

PELCO® 500 Mesh Grids Prod # Description Unit Qty Price Order / Quote 500: Pitch 51µm; Hole Width 28µm; Bar Width 23µm; Transmission 30% 1GC500 PELCO® Center-Marked Grids, 500 mesh, 3.0mm O.D., Copper 100/vial 1-9 $36.00 Qty: 10+ 32.40 Tabbed 3HGC500 PELCO® Tabbed Center-Marked Grids, 500 mesh, 3.0mm O.D., Copper 100/vial 1-9 41.00 Qty: 10+ 37.49

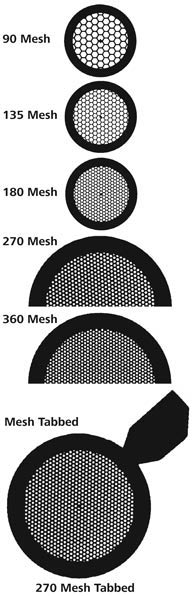

PELCO® Hexagonal Grids Prod # Description Unit Qty Price Order / Quote 8GC90 PELCO® Hexagonal Center-Marked Grids, 90 mesh, 3.0mm O.D., Copper 100/vial 1-9 $42.00 Qty: 10+ 39.00 8GN90 PELCO® Hexagonal Center-Marked Grids, 90 mesh, 3.0mm O.D., Nickel 100/vial 1-9 27.00 Qty: 10+ 25.66 8GC135 PELCO® Hexagonal Center-Marked Grids, 135 mesh, 3.0mm O.D., Copper 100/vial 1-9 41.00 Qty: 10+ 37.48 8GC180 PELCO® Hexagonal Center-Marked Grids, 180 mesh, 3.0mm O.D., Copper 100/vial 1-9 41.00 Qty: 10+ 37.48 8GN180 PELCO® Hexagonal Center-Marked Grids, 180 mesh, 3.0mm O.D., Nickel 100/vial 1-9 27.00 Qty: 10+ 25.66 8GC270 PELCO® Hexagonal Center-Marked Grids, 270 mesh, 3.0mm O.D., Copper 100/vial 1-9 41.00 Qty: 10+ 38.73 8GC360 PELCO® Hexagonal Grids, 360 mesh, 3.0mm O.D., Copper 100/vial 1-9 41.00 Qty: 10+ 38.73 Tabbed 8HGC135 PELCO® Tabbed Hexagonal Center-marked Grids, 135 mesh, 3.0mm O.D., Copper 100/vial 1-9 34.00 Qty: 10+ 31.48 8HGC270 PELCO® Tabbed Hexagonal Center-marked Grids, 270 mesh, 3.0mm O.D., Copper 100/vial 1-9 37.00 Qty: 10+ 35.70

PELCO® Slot Grids Prod # Description Unit Qty Price Order / Quote Slot 0.4x2mm, after R.F. Bils 1GC42S PELCO® Slot Grids, 0.4 x 2mm, 3.0mm O.D., Copper 100/vial 1-9 $37.00 Qty: 10+ 32.39 1GN42S PELCO® Slot Grids, 0.4 x 2mm, 3.0mm O.D., Nickel 100/vial 1-9 48.00 Qty: 10+ 43.20 PELCO® Slot Grids, 3.0mm O.D., matt/shiny sides Slot 1x2mm, after F. Sjöstrand 1GC12H PELCO® Slot Grids, 1 x 2mm, 3.0mm O.D., Copper 100/vial 1-9 37.00 Qty: 10+ 33.14 1GN12H PELCO® Slot Grids, 1 x 2mm, 3.0mm O.D., Nickel 100/vial 1-9 45.00 Qty: 10+ 40.50 Tabbed, Slotted 1 x 2mm 3HGC12H Cohen-PELCO® Tabbed Slot Grids, 1 x 2mm, 3.0mm O.D., Copper 100/vial 1-9 37.50 Qty: 10+ 35.77 3HGN12H Cohen-PELCO® Tabbed Slot Grids, 1 x 2mm, 3.0mm O.D., Nickel, 100/vial 1-9 48.00 Qty: 10+ 45.79

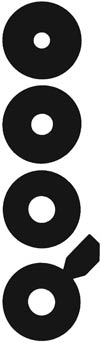

PELCO® Hole Grids Prod # Description Unit Qty Price Order / Quote PELCO® Hole Grids, 3.0mm O.D. 1GC6H PELCO® Hole Grids, 0.6mm, 3.0mm O.D., Copper 100/vial 1-9 $38.00 Qty: 10+ 34.20 1GC8H PELCO® Hole Grids, 0.8mm, 3.0mm O.D., Copper 100/vial 1-9 40.00 Qty: 10+ P.O.R. 1GC10H PELCO® Hole Grids, 1.0mm, 3.0mm O.D., Copper 100/vial 1-9 39.00 Qty: 10+ 34.49 1GG10H PELCO® Hole Grids, 1.0mm, 3.0mm O.D., Gold 25/vial 1-9 61.50 Qty: 10+ 55.35 Tabbed  3HGC10H PELCO® Tabbed Hole Grids, 1.0mm, 3.0mm O.D., Copper 100/vial 1-9 36.00 Qty: 10+ 33.88

PELCO^® TEM Grids Size Specifications

Rim Width: 350-400µm. Thickness: PELCO® Grids are approximately 25µm thick. Diameter: 3.0 to 3.05mm Finish: Copper, Nickel and Gold grids have a matte finish on one side and a shiny finish on the other side. Packaging: 100 grids per vial/tube, except for specials which are listed accordingly. Gold, Titanium, Stainless Steel, Molybdenum and Aluminum grids are packaged in 25's. Pitch: Is 1"/mesh or 25.4mm/mesh Example 200 mesh pitch = 25.4/200 = 127µm From the drawing above, the hole and bar widths are shown. Sometimes "pitch" is used in this terminology and it is the equivalent of hole width plus bar width.

Material Code Copper C Nickel N Gold G Aluminum A Molybdenum M Titanium T Stainless Steel S PELCO® Grid Size Square Mesh Pitch µm Hole µm Bar µm % Trans-mission 50 508 425 83 70 75 339 284 55 70 100 254 204 50 65 150 169 125 44 60 200 127 90 37 50 200 EOA 127 106 21 69 300 85 54 31 40 400 64 38 26 35 400 EOA 64 45 19 48 500 51 28 23 30
